Implementing and Administering Cisco Solutions (200-301 CCNA) v1.1 Questions and Answers

Question 181

Refer to the exhibit. A network engineer is configuring a wireless LAN with Web Passthrough Layer 3 Web Policy. Which action must the engineer take to complete the configuration?

Options:

Set the Layer 2 Security to 802.1X.

Enable TKIP and CCMP256 WPA2 Encryption.

Set the Layer 2 Security to None.

Enable the WPA Policy.

Question 182

Which technology allows multiple operating systems to run a single physical server?

Options:

Containers

Cloud computing

Application hosting

Virtualization

Question 183

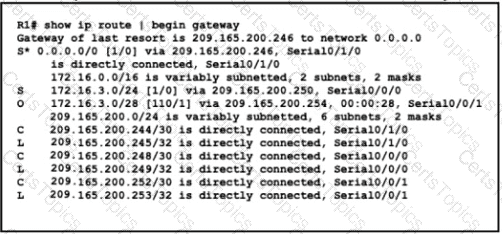

Refer to the exhibit. Which routes are configured with their default administrative distances?

Options:

Local

EIGRP

RIP

OSPF

Question 184

All physical cabling is in place. Router R4 and PCI are fully configured and

inaccessible. R4 ' s WAN interfaces use .4 in the last octet for each subnet.

Configurations should ensure that connectivity is established end-to-end.

1 . Configure static routing to ensure RI prefers the path through R2 to

reach only PCI on R4 ' s LAN

2. Configure static routing that ensures traffic sourced from RI will take

an alternate path through R3 to PCI in the event of an outage along

the primary path

3. Configure default routes on RI and R3 to the Internet using the least number of hops

Guidelines

This is a lab item in which tasks will be performed on virtual devices.

• Refer to the Tasks tab to view the tasks for this lab item.

• Refer to the Topology tab to access the device console(s) and perform the tasks.

• Console access is available for all required devices by clicking the device icon or using

the tab(s) above the console window.

• All necessary preconfigurations have been applied.

• Do not change the enable password or hostname for any device.

• Save your configurations to NVRAM before moving to the next item.

• Click Next at the bottom of the screen to submit this lab and move to the next question.

• When Next is clicked, the lab closes and cannot be reopened.

Options:

Answer:

See the solution below in Explanation.

Explanation:

To configure static routing on R1 to ensure that it prefers the path through R2 to reach only PC1 on R4’s LAN, you need to create a static route for the host 10.0.0.100/8 with a next-hop address of 20.0.0.2, which is the IP address of R2’s interface connected to R1. You also need to assign a lower administrative distance (AD) to this route than the default AD of 1 for static routes, so that it has a higher preference over other possible routes. For example, you can use an AD of 10 for this route. To create this static route, you need to enter the following commands on R1’s console:

R1#configure terminal R1(config)#ip route 10.0.0.100 255.0.0.0 20.0.0.2 10 R1(config)#end

To configure static routing on R1 that ensures that traffic sourced from R1 will take an alternate path through R3 to PC1 in the event of an outage along the primary path, you need to create another static route for the host 10.0.0.100/8 with a next-hop address of 40.0.0.2, which is the IP address of R3’s interface connected to R1. You also need to assign a higher AD to this route than the AD of the primary route, so that it has a lower preference and acts as a backup route. For example, you can use an AD of 20 for this route. This type of static route is also known as a floating static route. To create this static route, you need to enter the following commands on R1’s console:

R1#configure terminal R1(config)#ip route 10.0.0.100 255.0.0.0 40.0.0.2 20 R1(config)#end

To configure default routes on R1 and R3 to the Internet using the least number of hops, you need to create a static route for the network 0.0.0.0/0 with a next-hop address of the ISP’s interface connected to each router respectively. A default route is a special type of static route that matches any destination address and is used when no other specific route is available. The ISP’s interface connected to R1 has an IP address of 10.0.0.4, and the ISP’s interface connected to R3 has an IP address of 50.0.0.4. To create these default routes, you need to enter the following commands on each router’s console:

On R1: R1#configure terminal R1(config)#ip route 0.0.0.0 0.0.0.0 10.0.0.4 R1(config)#end

On R3: R3#configure terminal R3(config)#ip route 0.0.0.0 0.0.0.0 50.0.0.4 R3(config)#end
