CompTIA Network+ N10-009 Updated Exam

The IPv4 address 192.168.123.232 falls within the Class C range under classful addressing. In classful terms, Class C addresses have a first octet from 192 to 223, which makes any address starting with 192.x.x.x a Class C address. Network+ (N10-009) networking concepts cover IPv4 addressing fundamentals and commonly reference class ranges as foundational knowledge, even though modern networks primarily use CIDR (classless) subnetting rather than strict classful boundaries.

This address is also within a well-known private IPv4 block: 192.168.0.0/16 (RFC1918 private addressing), which is frequently used for internal networks and NIC configurations where addresses are not routable on the public internet.

To eliminate the distractors: Class A uses first octet 1–126, Class B uses 128–191, and Class D (224–239) is reserved for multicast. Since the first octet here is 192, it maps to Class C, making option C correct.

===========

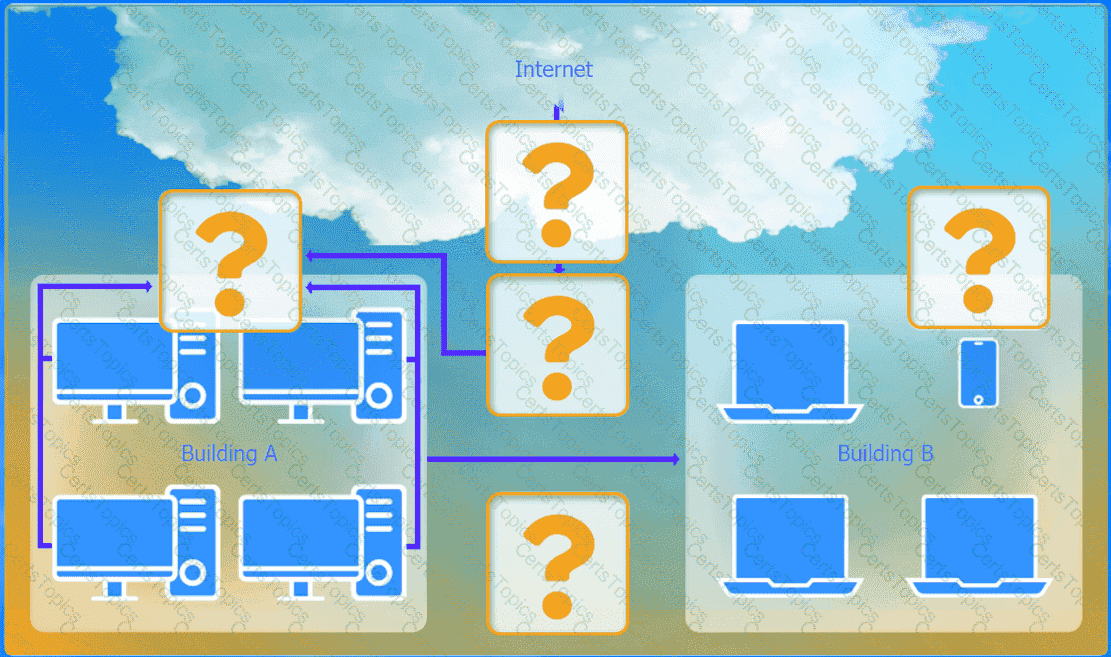

Devices in both buildings should be able to access the Internet.

Security insists that all Internet traffic be inspected before entering the network.

Desktops should not see traffic destined for other devices.

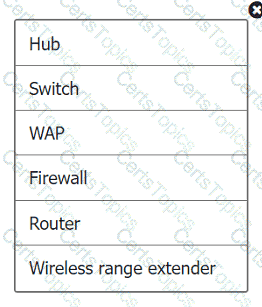

Here is the corrected layout with explanation:

Building A:

Switch: Correctly placed to connect all desktops.

Firewall: Correctly placed to inspect all incoming and outgoing traffic.

Building B:

Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.

Between Buildings:

Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.

Connection to the Internet:

Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.

Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.

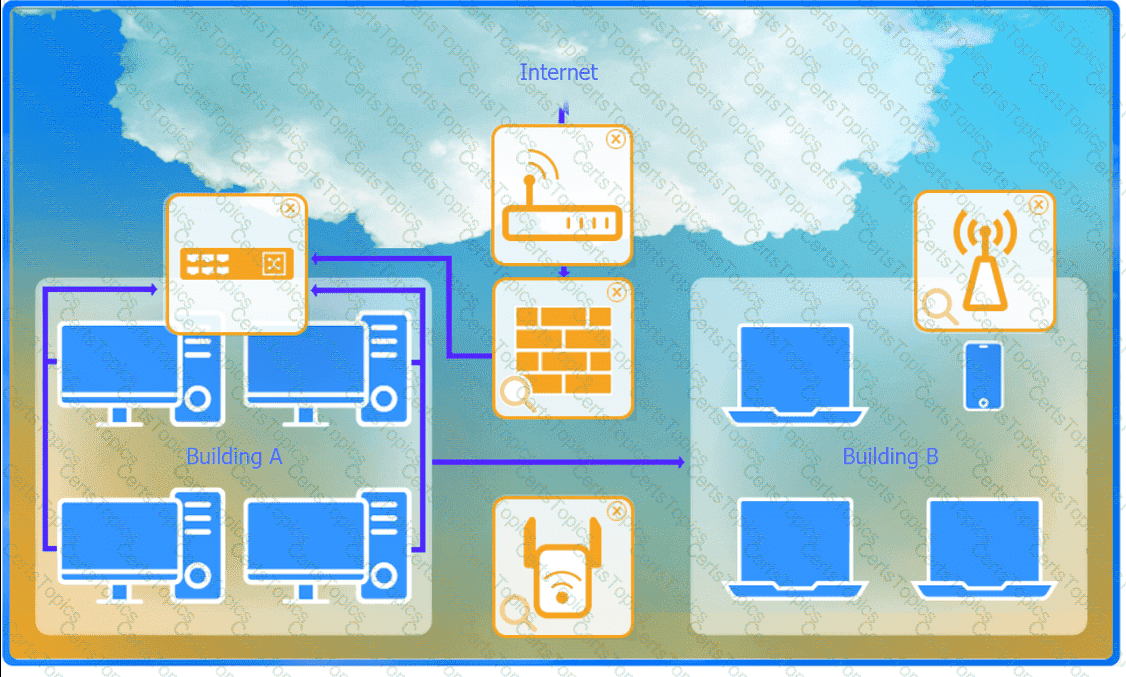

Corrected Setup:

Top-left (Building A): Switch

Bottom-left (Building A): Firewall (inspect traffic before it enters the network)

Top-middle (Internet connection): Router

Bottom-middle (between buildings): Wireless Range Extender

Top-right (Building B): Wireless Access Point (WAP)

In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

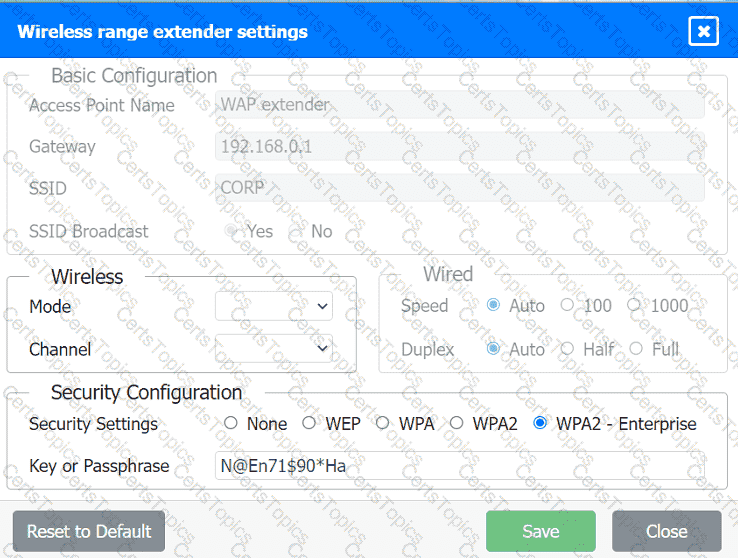

Configuration for Wireless Range Extender:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

To configure the wireless range extender for security, follow these steps:

SSID (Service Set Identifier):

Ensure the SSID is set to " CORP " as shown in the exhibit.

Security Settings:

WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.

Key or Passphrase:

If you select WPA2, enter a strong passphrase in the " Key or Passphrase " field.

If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.

Wireless Mode and Channel:

Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.

Wired Speed and Duplex:

Set the speed to " Auto " unless you have specific requirements for 100 or 1000 Mbps.

Set the duplex to " Auto " unless you need to specify half or full duplex based on your network equipment.

Save Configuration:

After making the necessary changes, click the " Save " button to apply the settings.

Here is how the configuration should look after adjustments:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:

DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.

HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.

Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.

HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.

HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.

Suggested Additional Settings:

Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.

Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.

Firewall Configuration Adjustments:

Correct the Network Typo:

Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.

Permit General Outbound Traffic:

Rule Name: General Outbound

Source: 192.168.0.1/24

Destination: ANY

Service: ANY

Action: PERMIT

Deny All Other Traffic:

Rule Name: Block All

Source: ANY

Destination: ANY

Service: ANY

Action: DENY

Here is how your updated firewall settings should look:

Rule Name

Source

Destination

Service

Action

DNS Rule

192.168.0.1/24

ANY

DNS

PERMIT

HTTPS Outbound

192.168.0.1/24

ANY

HTTPS

PERMIT

Management

ANY

192.168.0.1/24

SSH

PERMIT

HTTPS Inbound

ANY

192.168.0.1/24

HTTPS

DENY

HTTP Inbound

ANY

192.168.0.1/24

HTTP

DENY

General Outbound

192.168.0.1/24

ANY

ANY

PERMIT

Block All

ANY

ANY

ANY

DENY

These settings ensure that:

Internal devices can access DNS and HTTPS services externally.

Management access via SSH is permitted.

Inbound HTTP and HTTPS traffic is denied unless otherwise specified.

General outbound traffic is allowed.

All other traffic is blocked by default, ensuring a secure environment.

Make sure to save the settings after making these adjustments.

Confidentiality with Data at Rest: Confidentiality is a core principle of data security, ensuring that data stored (at rest) is only accessible to authorized individuals. This protection is achieved through mechanisms such as encryption, access controls, and permissions.

Privileged Access: The statement " Data can be accessed after privileged access is granted " aligns with the confidentiality principle, as it restricts data access to users who have been granted specific permissions or roles. Only those with the appropriate credentials or permissions can access the data.

Incorrect Options:

A. " Data can be accessed by anyone on the administrative network. " This violates the principle of confidentiality by allowing unrestricted access.

B. " Data can be accessed remotely with proper training. " This focuses on remote access rather than restricting access based on privileges.

D. " Data can be accessed after verifying the hash. " This option relates more to data integrity rather than confidentiality.

CompTIA Network+ materials on data security principles, particularly sections on confidentiality and access control mechanisms​​.

Understanding Link Aggregation:

Definition: Link aggregation combines multiple network connections into a single logical link to increase bandwidth and provide redundancy.

Usage in High-Bandwidth Scenarios:

Combining Links: By aggregating multiple 1Gbps connections, the facility can utilize the full 2.5Gbps bandwidth provided by the ISP.

Benefits: Enhanced throughput, load balancing, and redundancy, ensuring better utilization of available bandwidth.

Comparison with Other Options:

802.1Q Tagging: Used for VLAN tagging, which does not affect the physical bandwidth utilization.

Network Address Translation (NAT): Used for IP address translation, not related to link speed or bandwidth aggregation.

Port Duplex: Refers to the mode of communication (full or half duplex) on a port, not the aggregation of bandwidth.

Implementation:

Configure link aggregation (often referred to as LACP - Link Aggregation Control Protocol) on network devices to combine multiple physical links into one logical link.
