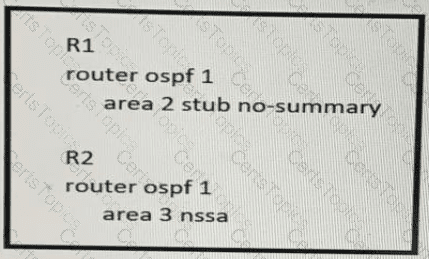

 Router R1 is configured as a stub area with the “no-summary” option, which means it will not receive summary LSAs (Type 3) from the Area Border Router (ABR). It will only have Type 1 (Router LSAs) and Type 2 (Network LSAs) in its OSPF database for the area it belongs to. Router R2 is configured as an NSSA (Not So Stubby Area), which allows it to import AS external routes as Type-7 LSAs. These Type-7 LSAs can then be converted to Type-5 LSAs by the ABR when propagated into other areas. Therefore, R2 has Types 1, 2, and 7 LSAs in its OSPF database.

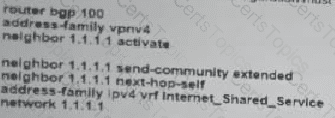

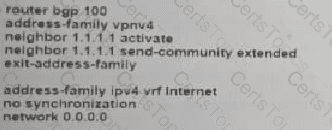

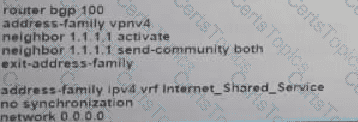

To inject a default route into the MP-BGP address family for a dedicated VRF, you would typically need to:

Configure a static default route in the VRF using the ip route vrf 0.0.0.0 0.0.0.0  command.

Redistribute the static route into BGP using the redistribute static command under the BGP VRF configuration.

Cisco IOS XE Software is an open and flexible operating system optimized for a variety of network infrastructures. One of its key enhancements over Cisco IOS Software is the support for symmetric multiprocessing (SMP). This allows the operating system to efficiently utilize multiple CPU cores, improving performance and scalability for network services.
