Workday-Pro-Integrations Exam Dumps : Workday Pro Integrations Certification Exam

As an integration developer working with Workday, you are tasked with transforming the output of an Enterprise Interface Builder (EIB) that calls the Get_Job_Profiles web service operation. The provided XML shows the response from this operation, and you need to write XSLT to select the value of the element where the wd:type attribute equals "Job_Profile_ID." The root template of your XSLT matches on and applies templates to . Within this template, you use the element to extract the value. Let’s analyze the XML structure, the requirement, and each option to determine the correct XPath syntax.

Understanding the XML and Requirement

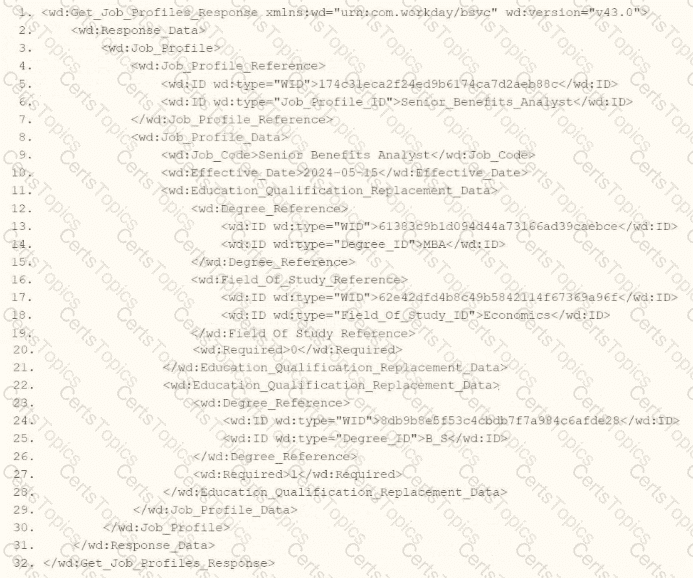

The XML snippet provided is a SOAP response from the Get_Job_Profiles web service operation in Workday, using the namespace xmlns:wd="urn:com.workday/bsvc" and version wd:version="v43.0". Key elements relevant to the question include:

The root element is .

It contains , which includes elements.

Within , there is , which contains multiple elements, each with a wd:type attribute:

1740d3eca2f2ed9b6174ca7d2ae88c8c

Senior_Benefits_Analyst

The task is to select the value of the element where wd:type="Job_Profile_ID" (e.g., "Senior_Benefits_Analyst") using XPath within an XSLT template that matches . The element outputs the value of the selected node, so you need the correct XPath path from the context to the specific element with the wd:type attribute value "Job_Profile_ID."

Analysis of Options

Let’s evaluate each option based on the XML structure and XPath syntax rules:

Option A: wd:Job_Profile_Reference/wd:ID/wd:type='Job_Profile_ID'

This XPath attempts to navigate from wd:Job_Profile_Reference to wd:ID, then to wd:type='Job_Profile_ID'. However, there are several issues:

wd:type='Job_Profile_ID' is not valid XPath syntax. In XPath, to filter based on an attribute value, you use the attribute selector [@attribute='value'], not a direct comparison like wd:type='Job_Profile_ID'.

wd:type is an attribute of , not a child element or node. This syntax would not select the element itself but would be interpreted as trying to match a nonexistent child node or property, resulting in an error or no match.

This option is incorrect because it misuses XPath syntax for attribute filtering.

Option B: wd:Job_Profile_Reference/wd:ID/@wd:type='Job_Profile_ID'

This XPath navigates to wd:Job_Profile_Reference/wd:ID and then selects the @wd:type attribute, comparing it to "Job_Profile_ID" with =@wd:type='Job_Profile_ID'. However:

The =@wd:type='Job_Profile_ID' syntax is invalid in XPath. To filter based on an attribute value, you use [@wd:type='Job_Profile_ID'] as a predicate, not an equality comparison in this form.

This XPath would select the wd:type attribute itself (e.g., the string "Job_Profile_ID"), not the value of the element. Since expects a node or element value, selecting an attribute directly would not yield the desired "Senior_Benefits_Analyst" value.

This option is incorrect due to the invalid syntax and inappropriate selection of the attribute instead of the element value.

Option C: wd:Job_Profile_Reference/wd:ID[@wd:type='Job_Profile_ID']

This XPath navigates from wd:Job_Profile_Reference to wd:ID and uses the predicate [@wd:type='Job_Profile_ID'] to filter for elements where the wd:type attribute equals "Job_Profile_ID."

In the XML, contains:

1740d3eca2f2ed9b6174ca7d2ae88c8c

Senior_Benefits_Analyst

The predicate [@wd:type='Job_Profile_ID'] selects the second element, whose value is "Senior_Benefits_Analyst."

Since the template matches , and is a direct child of , this path is correct:

→ → .

When used with , it outputs "Senior_Benefits_Analyst," fulfilling the requirement.

This option is correct because it uses proper XPath syntax for attribute-based filtering and selects the desired value.

Option D: wd:Job_Profile_Reference/wd:ID/[@wd:type='Job_Profile_ID']

This XPath is similar to Option C but includes an extra forward slash before the predicate: wd:ID/[@wd:type='Job_Profile_ID']. In XPath, predicates like [@attribute='value'] are used directly after the node name (e.g., wd:ID[@wd:type='Job_Profile_ID']), not separated by a slash. The extra slash is syntactically incorrect and would result in an error or no match, as it implies navigating to a child node that doesn’t exist.

This option is incorrect due to the invalid syntax.

Why Option C is Correct

Option C, wd:Job_Profile_Reference/wd:ID[@wd:type='Job_Profile_ID'], is the correct XPath syntax because:

It starts from the context node (as the template matches this element) and navigates to , using the predicate [@wd:type='Job_Profile_ID'] to filter for the element with wd:type="Job_Profile_ID".

It correctly selects the value "Senior_Benefits_Analyst," which is the content of the element where wd:type="Job_Profile_ID".

It uses standard XPath syntax for attribute-based filtering, aligning with Workday’s XSLT implementation for web service responses.

When used with , it outputs the required value, fulfilling the question’s requirement.

Practical Example in XSLT

Here’s how this might look in your XSLT:

This would output "Senior_Benefits_Analyst" for the element with wd:type="Job_Profile_ID" in the XML.

Verification with Workday Documentation

The Workday Pro Integrations Study Guide and SOAP API Reference (available via Workday Community) detail the structure of the Get_Job_Profiles response and how to use XPath in XSLT for transformations. The XML structure shows containing elements with wd:type attributes, and the guide emphasizes using predicates like [@wd:type='value'] to filter based on attributes. This is a standard practice for navigating Workday web service responses.

Workday Pro Integrations Study Guide References

Section: XSLT Transformations in EIBs– Describes using XSLT to transform web service responses, including selecting elements with XPath and attribute predicates.

Section: Workday Web Services– Details the Get_Job_Profiles operation and its XML output structure, including and with wd:type attributes.

Section: XPath Syntax– Explains how to use predicates like [@wd:type='Job_Profile_ID'] for attribute-based filtering in Workday XSLT.

Workday Community SOAP API Reference – Provides examples of XPath navigation for Workday web service responses, including attribute selection.

Option C is the verified answer, as it correctly selects the value with wd:type="Job_Profile_ID" using the appropriate XPath syntax within the template context.

In Workday integrations, XSLT is used to transform XML data, such as the output from a web service-enabled report or EIB, into a desired format for third-party systems. In this scenario, you need to create an XSLT template that matches the wd:Education_Group element in the provided XML and transforms it to produce the degree data in the format shown in the Transformed_Record example. The goal is to output each degree (e.g., "California University MBA" and "Georgetown University B.S.") as a element within a parent element.

Here’s why option A is correct:

Template Matching: The correctly targets the wd:Education_Group element in the XML, which contains multiple wd:Education elements, each with a wd:Degree child, as shown in the XML snippet (e.g., California UniversityMBA).

Transformation Logic:

creates the outer element for each education group, matching the structure in the Transformed_Record example (e.g., California University MBA).

copies the content of the child elements (wd:Education and wd:Degree) and concatenates their values into a single string. The select="*" targets all child elements of wd:Education_Group, and xsl:value-of outputs their text content (e.g., "California University" and "MBA" become "California University MBA").

This approach ensures that each wd:Education_Group is transformed into a single element with the combined text of the wd:Education and wd:Degree values, matching the example output.

Context and Output: The template operates on each wd:Education_Group, producing the nested structure shown in the Transformed_Record (e.g., CaliforniaUniversity MBAGeorgetown University B.S.), assuming a parent template or additional logic wraps the elements in .

Why not the other options?

B.

xml

WrapCopy

This uses without , which outputs the concatenated text of all child elements but does not preserve any XML structure or formatting. It would produce plain text (e.g., "California UniversityMBACalifornia UniversityB.S.") without the proper tags, failing to match the structured output in the example.

C.

xml

WrapCopy

This uses , but does not take a select attribute—it simply copies the current node. This would result in an invalid XSLT syntax and fail to produce the desired output, making it incorrect.

D.

xml

WrapCopy

This uses , which copies all child nodes (e.g., wd:Education and wd:Degree) as-is, including their element structure, resulting in output like California UniversityMBA. This does not match the flattened, concatenated text format in the Transformed_Record example (e.g., California University MBA), making it incorrect.

To implement this in XSLT for a Workday integration:

Use the template from option A to match wd:Education_Group, apply to concatenate and output the wd:Education and wd:Degree values as a single element. This ensures the transformation aligns with the Transformed_Record example, producing the required format for the integration output.

References:

Workday Pro Integrations Study Guide: Section on "XSLT Transformations for Workday Integrations" – Details the use of , , and for transforming XML data, including handling grouped elements like wd:Education_Group.

Workday EIB and Web Services Guide: Chapter on "XML and XSLT for Report Data" – Explains the structure of Workday XML (e.g., wd:Education_Group, wd:Education, wd:Degree) and how to use XSLT to transform education data into a flattened format.

Workday Reporting and Analytics Guide: Section on "Web Service-Enabled Reports" – Covers integrating report outputs with XSLT for transformations, including examples of concatenating and restructuring data for third-party systems.

In the Workday Pro Integrations program, the process of uploading an XSLT file for a brand-new Document Transformation system follows a specific workflow designed to ensure the transformation logic is properly attached and configured within the integration system. The correct sequence involves first creating the XSLT Attachment Transformation and then configuring the Integration Attachment Service to utilize it. Here's a step-by-step breakdown based on Workday's integration methodology:

Create XSLT Attachment Transformation:

The initial step is to create an XSLT Attachment Transformation object within Workday. This involves uploading the XSLT file, which contains the transformation logic needed to convert XML data into the desired format for the Document Transformation system. In Workday, XSLT (Extensible Stylesheet Language Transformations) is used to define how data from a source (typically in XML format) is transformed into an output format compatible with an external system.

To do this, you navigate to the Integration System, access the related actions, and select the option to create a new "XSLT Attachment Transformation." You then name the transformation, upload the XSLT file (with a size limit of 30 MB as per Workday specifications), and save it. This step establishes the transformation logic as an object that can be referenced by the integration system.

Configure Integration Attachment Service:

Once the XSLT Attachment Transformation is created, the next step is to configure the Integration Attachment Service to incorporate this transformation. The Integration Attachment Service is a component of the Document Transformation system that handles the delivery or processing of the transformed data.

In this step, you edit the integration system, navigate to the "Services" tab, and configure the Integration Attachment Service. Here, you specify the previously created XSLT Attachment Transformation as the transformation to be applied. This links the XSLT logic to the integration workflow, ensuring that the data processed by the Document Transformation system is transformed according to the uploaded XSLT file.

Why Other Options Are Incorrect:

A. Configure XSLT Attachment Transformation, then Create Integration Attachment Service: This is incorrect because you cannot "configure" an XSLT Attachment Transformation before it exists. It must first be created as an object in Workday before any configuration or association with services can occur.

C. Create Integration Attachment Service, then Configure Integration Attachment Service: This option skips the creation of the XSLT Attachment Transformation entirely, which is a critical step. Without the transformation defined, configuring the service alone would not enable the XSLT upload or its functionality.

D. Configure Integration Attachment Service, then Create Integration Service Attachment: This sequence is reversed and misleading. The Integration Attachment Service must be configured to use an existing XSLT Attachment Transformation, not the other way around. Additionally, "Create Integration Service Attachment" is not a standard term in this context within Workday documentation.

Workday Pro Integrations Study Guide References:

Workday Integration System Fundamentals: This section outlines the components of an integration system, including the use of XSLT for document transformation and the role of attachment services.

Document Transformation Module: Specifically details the process of uploading and applying XSLT files, emphasizing the creation of an XSLT Attachment Transformation followed by its configuration within the integration services.

Core Connectors and Document Transformation Course Manual: Provides practical steps for setting up transformations, including the sequence of creating and then configuring transformation attachments (e.g., Activities related to "Upload a Custom XSLT Transformation" and "Edit XSLT Attachment Transformation").

Workday Community Documentation: Confirms that XSLT files are uploaded as attachment transformations and then linked to services like the Integration Attachment Service for processing.
