Comprehensive and Detailed Explanation From Exact Extract:

Pervious paving allows water to infiltrate through surfaces, reducing runoff and preventing erosion and surface water accumulation on site. It is an effective stormwater management technique suited to infill sites where space is limited.

A catchment area (B) collects water but does not prevent erosion or surface water by itself.

Horizontal overhangs (C) provide shading and weather protection but do not affect surface water runoff.

NCARB PPD guidelines emphasize permeable surfaces as key components of sustainable site design to manage stormwater onsite.

Comprehensive and Detailed Explanation From Exact Extract:

Rooms such as medical treatment or healthcare spaces require wall finishes that are smooth, scrubbable, and water-resistant to maintain hygiene and allow for regular cleaning and disinfection.

Tight, sealed seams (A) and absence of fissures (B) are important but part of broader requirements.

The key is surfaces that can withstand cleaning agents and moisture exposure without damage.

This ensures compliance with healthcare facility codes and infection control.

Comprehensive and Detailed Explanation From Exact Extract:

Designing lighting systems based on initial lamp lumen output (the maximum light output when lamps are new) without accounting for lumen depreciation (light loss over time) typically leads to increased number of lamps or fixtures to compensate for future light loss, ensuring adequate illumination throughout the system's life.

This approach does not directly affect glare (B, D).

It does not decrease the number of lamps (A); it often increases them for safety margin.

Comprehensive and Detailed Explanation From Exact Extract:

For shading design on west facades:

Height of the wall (A): Determines the scale and proportion of shading devices.

Solar Heat Gain Coefficient (SHGC) of glazing (C): Influences how much solar radiation passes through windows.

Spacing and depth of vertical louvers (D): Controls shading effectiveness against low-angle afternoon sun.

Low-E glazing (E) helps but is glazing performance, not shading design.

Annual temperature (B) is climatic but less directly relevant.

Adjacent building heights (F) influence shading from surroundings but are secondary.

Comprehensive and Detailed Explanation From Exact Extract:

When signage projects into corridors:

ADA requirements (A) ensure signage is accessible to all, including those with disabilities.

IBC exit width requirements (B) ensure projected signage does not reduce required egress widths.

Manufacturer installation information (F) guides proper, safe mounting and compliance with structural requirements.

Zoning (D) is generally for exterior signage.

Energy code (E) is not related.

Material and finish (C) affect aesthetics but not code compliance.

The northwest elevation faces the Pedestrian Access Easement as per site and plan documents.

Variances for facade non-compliance are typically granted where they impact the pedestrian experience.

Therefore, the facade requiring the variance must face this easement to comply with PD and planning conditions.

The other elevations (A, C, D) do not face the pedestrian access and thus do not qualify.

Comprehensive and Detailed Explanation From Exact Extract:

Given the constraints:

Lowest cost of installation and minimized loss of usable space favor elevators that don’t require a separate machine room.

Machine-roomless elevators (D) have compact machinery integrated within the hoistway, reducing space needs and construction costs.

Hydraulic elevators (A, C) require pits and often larger machine rooms, and are less energy efficient and have slower round trip times compared to traction types.

Gearless traction elevators (B) provide excellent speed and efficiency but usually require machine rooms, increasing cost and space.

Thus, machine-roomless elevators balance cost, efficiency, space, and speed best for mid-rise residential buildings.

Comprehensive and Detailed Explanation From Exact Extract:

Curtain wall systems are designed to accommodate building movement, including deflections from wind and seismic loads, and provide an air and moisture barrier without carrying structural loads.

Replacing the curtain wall with a steel stud framing covered with stucco, which is rigid and brittle, will not accommodate differential movement between the frame and cladding. This is likely to cause stucco cracking as the steel framing and concrete frame move differently under lateral loads.

The wind load will not necessarily overload the concrete frame (A), as loads are transferred properly in both systems.

The substitution may save initial cost but will cause durability and maintenance problems (B).

Dead load increase (D) is minimal compared to structural effects of cracking.

NCARB guidelines stress proper cladding systems that can accommodate structural deflections to prevent damage.

Comprehensive and Detailed Explanation From Exact Extract:

To reduce consumption and waste, especially for government projects emphasizing sustainability:

Construction waste recycling (A): Diverts materials from landfill.

Use of local materials (B): Reduces transportation energy and emissions.

Reuse of existing structures (D): Minimizes new material use and demolition waste.

Use of low flow fixtures (F): Conserves water and reduces operational consumption.

Means of construction (C) and limiting bidding (E) affect cost and process but less directly impact waste reduction.

Comprehensive and Detailed Explanation From Exact Extract:

For efficient weekend cooling in a multi-story office building, placing fan equipment centrally between the conditioned spaces reduces duct lengths, allows better zoning, and minimizes energy use.

In option C, fans are located mid-building between office floors and other uses, allowing for more efficient distribution and individual zone control.

Other options (A, B, D) place fans either all at one end or stacked at one side, increasing duct runs and reducing flexibility in zoning, which can lead to inefficiency during reduced loads like weekends.

NCARB PPD guidelines emphasize mechanical system design that optimizes equipment placement to balance energy efficiency, occupant comfort, and system flexibility.

Comprehensive and Detailed Explanation From Exact Extract:

Bus duct systems with tap boxes offer modular, flexible electrical distribution capable of handling high loads and allowing easy future expansions with minimal disruption and cost.

Paralleled wires (A, B) increase complexity and are less flexible.

Single large conductors (C) are limited in expansion.

Bus ducts optimize installation speed, scalability, and cost in commercial building retrofits.

Comprehensive and Detailed Explanation From Exact Extract:

When designing in locations with insufficient water service to support sprinkler systems, architects must rely on inherently fire-resistant materials or assemblies that can provide passive fire protection while also meeting the aesthetic and structural needs of the space. This is especially critical in assembly spaces where sight lines are important and exposed structure is desired.

Option A: Steel columns with open web girders and joists are acceptable because steel does not combust and can be designed for fire resistance either by inherent fireproofing or applied fireproofing. The open-web design also supports maximizing sight lines by minimizing visual obstruction.

Option B: Large peeled log columns with glulam beams and wood decking are commonly used in lodge designs. Although wood is combustible, large timber members like glulam beams char on the surface and maintain structural capacity for a predictable duration under fire conditions, which often meets code for exposed timber in assembly spaces without sprinkler systems.

Option F: Cedar columns with light gauge steel purlins and fire retardant treated plywood decking can be suitable where fire retardant treatment extends the fire resistance of wood members. This is an accepted strategy in areas lacking sprinkler protection, particularly for visual warmth and compatibility with lodge aesthetics.

Options C and D: Concrete columns and beams are noncombustible but tend to be bulky and can obstruct sight lines. Additionally, precast planks with concrete may not fit the desired exposed wood or open aesthetic.

Option E: Light gauge steel columns with corrugated metal decking are lightweight and minimal, but 3" steel columns are structurally insufficient for large assembly spaces and metal decking without proper fireproofing is less common in exposed wood aesthetic projects.

These design choices align with NCARB's Project Planning & Design content regarding material selection for fire resistance, visual requirements, and assembly occupancy considerations. Specifically, the guidelines recommend using heavy timber, fire-retardant-treated wood, or protected steel systems where sprinkler systems are not feasible to comply with fire and life safety codes while addressing architectural intent.

To reduce costs while complying with Planned Development (PD) document restrictions on exterior finishes, the architect should select materials that are less expensive than terra cotta yet meet aesthetic and code requirements:

Standard brick (C) is a cost-effective, durable alternative with broad acceptance.

Earth tone EIFS (E) (Exterior Insulation and Finish System) offers an economical and versatile finish that can replicate various textures and colors while reducing costs.

Low priced stone (A) and cultured stone (B) may still be costly or not permitted per PD document.

Artisan brick (D) and metal panels (F) may exceed allowed percentages or not fit aesthetic guidelines.

Comprehensive and Detailed Explanation From Exact Extract:

When converting a retail strip mall to a church, the architect must verify that the existing building infrastructure supports the new occupancy:

(A) Exits and egress must be adequate per fire and life safety codes for assembly occupancy.

(B) Roof structure must be evaluated for installing skylights to bring natural light into central spaces.

(C) Water and sewer services need to support increased demand, especially with added restrooms and nursery.

Demographic surveys (D, E) inform program design but do not determine feasibility.

Landscaping consultants (F) are part of later design phases, not initial feasibility.

Comprehensive and Detailed Explanation From Exact Extract:

Using natural light as a primary source of ambient lighting is a sustainable strategy to improve indoor environmental quality and reduce energy consumption. However, careful control of daylighting is essential to avoid glare and overheating.

Exterior shading devices (such as louvers, overhangs, and fins) are critical in managing solar heat gain and glare by controlling direct sunlight before it enters the building envelope. They help maintain visual comfort and reduce cooling loads, directly impacting energy costs and occupant comfort.

Operable windows on opposite walls facilitate cross ventilation, which is beneficial for natural ventilation but does not directly control daylighting quality or energy use related to lighting.

Clear glazing window wall systems maximize daylight penetration but can increase solar heat gain if not properly shaded, thus increasing cooling loads.

Single switched lighting controls are a basic electrical feature and do not influence daylighting quality or energy efficiency related to natural light.

NCARB's PPD guidelines emphasize integrating exterior shading as a passive design strategy to optimize daylight use and reduce reliance on mechanical cooling and artificial lighting, improving building performance sustainably.

Per building and accessibility codes (such as ADA and IBC), raised platforms or stages in assembly areas like gymnasiums are limited in height to ensure safe access and egress. A maximum height of 1 foot 6 inches (18 inches) without requiring additional stairs or ramps is common to allow easy transition and avoid additional egress requirements.

Heights above 18 inches typically require stairs or ramps per ADA.

1'-9" or 2'-6" exceed these limits and would trigger additional code requirements.

bottom right (vertical fins or louvers shading the window) is the most effective.

West-facing windows receive strong, low-angle afternoon sun in the summer, which is difficult to shade with horizontal overhangs because the sun's rays come in at a low angle.

Vertical shading devices (like fins or louvers) placed perpendicular to the window are most effective in blocking low-angle sunlight from the west.

The top left and top right images show horizontal shading, which works better for south-facing windows but is less effective for west exposures.

The bottom left shows multiple horizontal fins, which help but still less effective for west-facing windows compared to vertical fins.

According to NCARB ARE 5.0 PPD content on solar shading and passive solar design, vertical shading is preferred for east and west exposures to minimize summer heat gain.

Comprehensive and Detailed Explanation From Exact Extract:

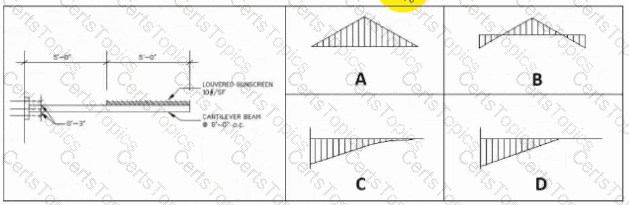

For a cantilevered beam loaded uniformly (such as a louvered sunscreen), the bending moment diagram is characterized by:

Maximum negative moment (hogging moment) at the fixed support (where the beam is anchored to the building). This is a large negative moment because the beam is fixed and resists rotation.

The moment decreases linearly to zero at the free end of the cantilever.

Diagram C shows this pattern with maximum moment at the support tapering to zero at the free end, consistent with static beam theory.

Other diagrams show positive moments or incorrect distributions.

This is a standard result taught in structural mechanics and referenced in ARE guidelines related to structural systems.

Comprehensive and Detailed Explanation From Exact Extract:

Pedestrian security depends on the design and management of the site to reduce hiding spots, increase visibility, and encourage natural surveillance:

Type of landscaping (B): Dense, tall, or thorny plants can deter access or obstruct views, while low, transparent landscaping improves visibility and security.

Number of site access points (D): More access points can increase vulnerability unless properly controlled.

Transparency of fences and barriers (E): Transparent or see-through fences improve visibility and reduce concealment areas, enhancing security.

Location of adjacent activity (F): Adjacent active uses or areas with high foot traffic provide natural surveillance, discouraging crime.

Impervious pavement (A) relates to surface permeability and drainage but not directly to security.

Parking quantity (C) impacts traffic and congestion more than pedestrian security.

Comprehensive and Detailed Explanation From Exact Extract:

Variable Refrigerant Flow (VRF) systems are ideal for buildings with space constraints and diverse internal loads. They provide zoned heating and cooling from a compact mechanical room and allow flexibility with open floor plans by serving multiple zones with variable refrigerant volumes.

Geothermal heat pumps (A) require larger mechanical or ground loop spaces and are less practical in tight urban footprints.

Packaged terminal air conditioners (B) serve individual rooms and require space for multiple units and wall penetrations, which may not be feasible in this context.

Hence, VRF systems balance space efficiency, energy performance, and zoning flexibility.

Comprehensive and Detailed Explanation From Exact Extract:

In seismic design, vertical irregularities are discontinuities or abrupt changes in the building’s mass, stiffness, or geometry that can affect seismic response and increase vulnerability during an earthquake. The NCARB ARE 5.0 Project Planning & Design guidelines describe vertical irregularities as changes occurring along the height of the building.

Option C describes a mass irregularity where story 2 has twice the effective mass of story 1. According to seismic code provisions (such as those referenced in ASCE 7 and adopted by IBC), a vertical mass irregularity is present if the effective seismic mass in any story is more than 150% (1.5 times) or less than 70% (0.7 times) of the mass of an adjacent story. Here, doubling the mass is a significant vertical irregularity that affects the dynamic behavior and design.

Option A, the roof mass being half that of the floor below, is a decrease in mass but less than the typical threshold of 30% difference (the ratio is 0.5, which is a 50% difference). This might also be considered, but the mass irregularity is more typically flagged at the 1.5x or 0.7x threshold and tends to be more critical in lower floors, making C the clearer choice.

Option B describes a reentrant corner, which is a horizontal plan irregularity, not vertical. Reentrant corners affect torsional behavior but are not classified as vertical irregularities.

Option D refers to stiffness differences between interior shear walls and perimeter columns but, when symmetrically placed, this is not necessarily considered an irregularity. Vertical stiffness irregularities are defined by abrupt stiffness changes in vertical elements, but symmetry mitigates torsional effects.

The presence of vertical mass irregularities significantly influences seismic forces distribution, dynamic response, and the potential for torsional motions. Designers must recognize these irregularities per NCARB guidelines and apply appropriate structural detailing and design modifications to meet life-safety requirements.

Comprehensive and Detailed Explanation From Exact Extract:

A raised access floor system provides a flexible, accessible space beneath the finished floor for routing power, data, telecommunications, and security cables. It facilitates easy reconfiguration and tenant fit-out modifications without major disruption.

Poke-through systems (A) provide limited point access for power/data and are less flexible for extensive rewiring.

Cellular deck systems (B) are structural components, not distribution systems.

Flat cable wiring (D) is a wiring method but does not provide the physical infrastructure for flexibility.

Comprehensive and Detailed Explanation From Exact Extract:

Reducing embodied energy involves strategies that minimize new material production and transportation impacts:

Re-using existing buildings (A) avoids new material consumption and demolition waste.

Using local and low-energy materials (C) reduces transportation energy and energy-intensive materials.

Simple geometric structures (F) use fewer materials and minimize complexity, lowering embodied energy.

Orientation and transitional spaces (B) mainly affect operational energy, not embodied energy.

Altering the proportion of high-rise or single-story units (D, E) affects land use and operational efficiency more than embodied energy.

NCARB emphasizes these strategies in sustainable design practices.

Comprehensive and Detailed Explanation From Exact Extract:

When a building’s size and occupancy cause non-compliance with allowable building area or frontage requirements, the architect should first check frontage area increase provisions allowed by the code. The frontage increase can allow a larger building area based on the length of street frontage and fire access, especially when sprinklers and fire lanes are provided.

Adding firewalls (A) is a method to subdivide building area but is typically considered after exploring frontage increases.

Reducing building area (C) is a last resort if other allowances are insufficient.

Therefore, the architect should first verify if frontage area increases resolve the compliance issue.

Comprehensive and Detailed Explanation From Exact Extract:

Stratification refers to the layering of air temperatures within a space, where warmer air rises and cooler air stays near the floor. In forced-air heating systems, minimizing temperature stratification is critical to maintaining occupant comfort and energy efficiency. The placement of supply and return air grilles plays a significant role in preventing stratification.

Low supply, low return (Option C) should be avoided because supplying warm air near the floor and simultaneously returning air also near the floor limits effective air mixing. Warm air naturally rises, so if the return grille is also low, cooler air remains trapped above, resulting in poor circulation and uneven temperatures throughout the room. This can cause discomfort, with warmer air accumulating near the ceiling and colder air lingering in the occupied zone.

High supply, low return (Option B) is often preferred because warm air is supplied from high points, then cools and sinks toward the lower return grille, promoting vertical circulation and mixing, reducing stratification.

Low supply, high return (Option A) and high supply, high return (Option D) can be less effective depending on system design, but the critical issue is having both supply and return located low, which restricts air movement and stratification mitigation.

According to NCARB PPD content on building systems and HVAC design, proper grille placement is essential to maintain thermal comfort, minimize energy waste, and comply with indoor environmental quality standards. Effective grille placement harnesses natural convection to ensure even temperature distribution, reducing the potential for hot or cold spots and improving occupant satisfaction.

Comprehensive and Detailed Explanation From Exact Extract:

Enhancing acoustic design requires:

(A) Careful location of noise-sensitive spaces away from noise sources.

(B) Choosing structural floor systems with good sound isolation between floors.

(D) Using exterior barriers (natural or built) to reduce external noise.

(E) Selecting interior finishes with favorable acoustical absorption properties.

Minimizing steel stud framing (C) is not always required; proper detailing can address acoustic issues.

Treatments that decrease sound absorption (F) worsen acoustics.

Comprehensive and Detailed Explanation From Exact Extract:

Adding a green roof with a two-foot soil bed significantly increases the dead load on the roof and affects the uplift forces caused by high winds. This heavier roof mass necessitates additional structural tie-downs or anchorage to resist wind uplift and prevent overturning or structural failure.

The added weight does not inherently increase resistance to overturning (A) or racking (C); rather, it increases loads that require structural reinforcement.

Comprehensive and Detailed Explanation From Exact Extract:

Changing from a pier-and-beam system with an open crawlspace to a slab-on-grade floor has several impacts:

Warmer floors in the evenings (A): Concrete slab-on-grade floors have high thermal mass, which can absorb heat during the day and release it slowly, resulting in warmer floors at night, particularly beneficial in cold climates.

Limited future plumbing flexibility (C): Plumbing embedded in or beneath slabs is difficult to access or modify after construction, unlike crawlspaces that provide easier access to underfloor plumbing for repairs or modifications.

More steel reinforcing (B): While slabs do require reinforcement, this is often comparable or less than the framing required for pier-and-beam floors, so this is not necessarily an impact.

Flooring finishes (D): Slab floors can accommodate many finishes; thus, limitations are generally minimal.

Better moisture control (E): Slabs require moisture barriers and careful detailing to control moisture; crawlspaces can sometimes be easier to ventilate but may allow moisture intrusion if not properly designed.

HVAC ductwork installation (F): Crawlspaces allow ducts to be located under the floor; slabs typically require ducts to be placed above or within conditioned spaces.

Thus, the most significant impacts are warmer floors and reduced plumbing flexibility.

Comprehensive and Detailed Explanation From Exact Extract:

Roof-mounted photovoltaic (PV) panels are the most appropriate sustainable feature to offset building operational costs with minimal design changes, especially in a mixed-use development with planned future expansion.

Building-mounted vertical sunshades (A) require design integration and may affect exterior finishes and daylighting.

Ground-mounted PV panels (C) require additional land and site preparation, which could conflict with future development plans and site constraints.

Roof-mounted PV panels maximize use of existing roof space, reduce energy costs, and are relatively easy to integrate with minimal impact on building massing or future phases.

Comprehensive and Detailed Explanation From Exact Extract:

B: Structural support must accommodate PV panel weight and wind loads.

C: Number of panels is calculated by dividing total roof area by panel area (total panel count ≈ 273).

F: Peak power output = number of panels × wattage per panel (273 × 350 W ≈ 95.5 kW).

A: Grid-tied systems without batteries do not provide power during outages.

D: PV panels generate electricity but do not directly reduce artificial lighting needs.

E: Panels are mounted for optimal solar exposure, not necessarily toward pick-up areas.
