Fortinet NSE5_FSW_AD-7.6 Exam With Confidence Using Practice Dumps

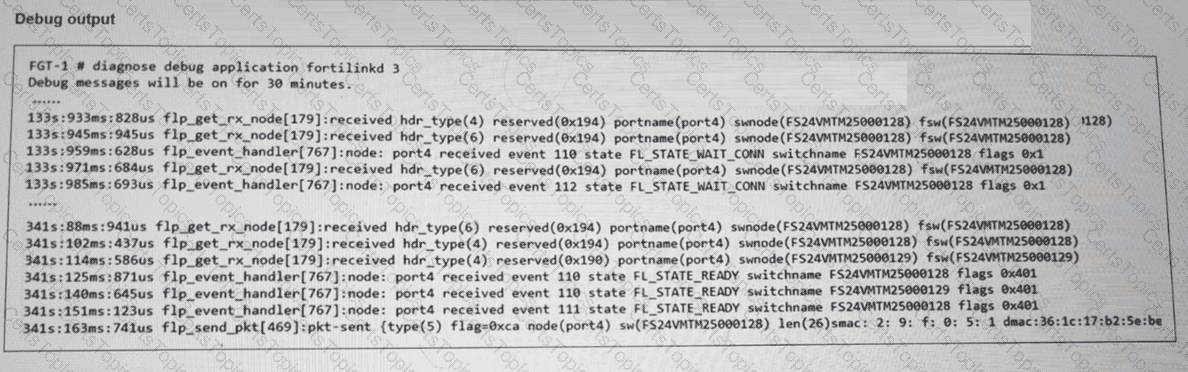

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health and stability of the control plane between a FortiGate and a managed FortiSwitch are maintained through a continuous keepalive mechanism. Once a FortiSwitch is authorized and transitions to theFL_STATE_READYstate (as shown in the debug output in the exhibit), the devices must ensure the management tunnel remains active.

The primary mechanism for this is theFortiLink heartbeat. The documentation specifies that a managed FortiSwitch sends heartbeat messages to the FortiGate every few seconds over the FortiLink interface. The FortiGate, acting as the controller, must acknowledge these heartbeats to confirm that the switch is still reachable and responding to management commands. If the FortiGate fails to receive a certain number of consecutive heartbeats, it will consider the switch " offline " in the GUI, even if physical link lights remain green.

Checking for these heartbeat exchanges is a critical troubleshooting step to verify that theCAPWAP(Control and Provisioning of Wireless Access Points) based management tunnel is functioning correctly without intermittent drops. Option A is incorrect as port disabling is a configuration choice, not a health check. Option C is incorrect because firmware updates are manual or scheduled, not automatic upon authorization. Option D is a logging function that relies on a healthy management tunnel but is not a direct measure of the FortiLink ' s operational health.

In FortiSwitchOS 7.6,Dynamic ARP Inspection (DAI)is tightly integrated withDHCP snoopingto provide Layer 2 protection against ARP spoofing and man-in-the-middle attacks. DAI relies on theDHCP snooping binding table, which contains trusted IP-to-MAC-to-port mappings learned from legitimate DHCP transactions. Because of this dependency, the trust model for DAI is directly inherited from DHCP snooping.

According to the FortiSwitchOS 7.6 Administrator Guide, when a switch port is configured astrusted for DHCP snooping, that same port isautomatically treated as trusted by DAI. No additional configuration is required. This implicit trust relationship exists because trusted DHCP snooping ports are assumed to be connected to legitimate infrastructure devices such as DHCP servers, routers, or upstream network devices that must be allowed to send valid ARP replies.

On untrusted ports, DAI inspects ARP packets and validates them against the DHCP snooping database. If an ARP packet does not match an existing binding, it is dropped. On trusted ports, ARP packets bypass DAI inspection to ensure normal network operation and to avoid blocking valid infrastructure traffic.

The other options are incorrect. There is no separate CLI command required to trust a port for DAI (Option A). IP Source Guard (Option C) is another Layer 2 security feature that also depends on DHCP snooping but is not required to establish DAI trust. Static MAC learning (Option D) is unrelated to DAI trust behavior.

Therefore, once a port is configured as trusted for DHCP snooping,DAI implicitly trusts the port, makingOption Bthe correct and fully verified answer based on FortiSwitchOS 7.6 documentation.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6.1 Administration Guide—Standalone Mode, aRouted VLAN Interface (RVI)is a physical port or trunk interface that is converted to support Layer 3 routing protocols.2This transformation changes the fundamental nature of the interface from a switching component to a routing component.

When an RVI is enabled on a specific physical port or trunk, the system automatically assignsVLAN 4095to that interface at the backend.3This specific VLAN ID is reserved across the FortiSwitch platform to signal that the interface is no longer operating as a standard Layer 2 switch port.4Once configured as an RVI, the interface supports advanced Layer 3 features such asOSPF, BGP, RIP, IS-IS, and static routing, as well asVirtual Routing and Forwarding (VRF)for routing isolation.5

Importantly, the documentation states that upon enabling RVI,Layer 2 protocols(such as Spanning Tree Protocol or 802.1X port-based security) and most standard switch interface features aredisabledon that port.6This is because the port is now treated as a dedicated Layer 3 " routed " interface rather than a member of the Layer 2 switching fabric.7Additionally, if the underlying physical port or trunk interface is administratively shut down, the associated RVI will also transition to a " down " state.
