In FortiSwitchOS 7.6,Dynamic ARP Inspection (DAI)is tightly integrated withDHCP snoopingto provide Layer 2 protection against ARP spoofing and man-in-the-middle attacks. DAI relies on theDHCP snooping binding table, which contains trusted IP-to-MAC-to-port mappings learned from legitimate DHCP transactions. Because of this dependency, the trust model for DAI is directly inherited from DHCP snooping.

According to the FortiSwitchOS 7.6 Administrator Guide, when a switch port is configured astrusted for DHCP snooping, that same port isautomatically treated as trusted by DAI. No additional configuration is required. This implicit trust relationship exists because trusted DHCP snooping ports are assumed to be connected to legitimate infrastructure devices such as DHCP servers, routers, or upstream network devices that must be allowed to send valid ARP replies.

On untrusted ports, DAI inspects ARP packets and validates them against the DHCP snooping database. If an ARP packet does not match an existing binding, it is dropped. On trusted ports, ARP packets bypass DAI inspection to ensure normal network operation and to avoid blocking valid infrastructure traffic.

The other options are incorrect. There is no separate CLI command required to trust a port for DAI (Option A). IP Source Guard (Option C) is another Layer 2 security feature that also depends on DHCP snooping but is not required to establish DAI trust. Static MAC learning (Option D) is unrelated to DAI trust behavior.

Therefore, once a port is configured as trusted for DHCP snooping,DAI implicitly trusts the port, makingOption Bthe correct and fully verified answer based on FortiSwitchOS 7.6 documentation.

The FortiLink authorization process is an integral part of setting up FortiSwitch to be managed by FortiGate. The correct statements regarding the FortiLink authorization process are:

C.A FortiLink frame is sent by FortiGate to FortiSwitch to complete the authorization.This is a part of the FortiLink protocol, where FortiGate communicates with the connected FortiSwitch to establish management and control. This frame initiates the configuration and management process, allowing FortiGate to effectively control the switch.

D.FortiLink authorization sets the FortiSwitch management mode to FortiLink.Once authorized, the management mode of FortiSwitch is set to FortiLink, indicating that it is being managed via a FortiLink connection from a FortiGate appliance. This changes the operational mode of the switch to be under the control of the FortiGate for centralized management and policy application.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Remote Switched Port Analyzer (RSPAN) is a method used to monitor traffic across a network of switches by carrying mirrored traffic over a specific RSPAN VLAN. Because RSPAN floods mirrored traffic to all ports that are members of that specific VLAN across the intermediate switches (Switch B, etc.) until it reaches the destination port, it is critical to manage how that traffic is isolated.

The documentation explicitly states that the best practice is touse a dedicated VLAN assigned only to monitoring devices (Option B). When a VLAN is designated for RSPAN, the switch disables MAC address learning on that VLAN to ensure that the mirrored traffic—which contains the source and destination MAC addresses of the original conversation—does not interfere with the switch ' s normal MAC address table entries for those devices.2

Using a VLAN that already carries regular data traffic (Option A) would result in a massive amount of duplicate traffic being flooded to normal production hosts, leading to network congestion and potential security risks. Similarly, using a dynamic VLAN that includes all ports (Option C) would cause the mirrored traffic to be broadcast to every port in the switch fabric, significantly degrading performance. Finally, using the RSPAN VLAN as a native VLAN (Option D) is not recommended because native VLANs typically handle untagged traffic, whereas RSPAN requires consistent tagging to ensure the mirrored packets stay within the isolated monitoring domain across trunk links. Therefore, creating a unique, dedicated VLAN that is used exclusively for the transport of mirrored traffic is the architectural standard for FortiSwitch RSPAN deployments.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6.1 Administration Guide—Standalone Mode, aRouted VLAN Interface (RVI)is a physical port or trunk interface that is converted to support Layer 3 routing protocols.2This transformation changes the fundamental nature of the interface from a switching component to a routing component.

When an RVI is enabled on a specific physical port or trunk, the system automatically assignsVLAN 4095to that interface at the backend.3This specific VLAN ID is reserved across the FortiSwitch platform to signal that the interface is no longer operating as a standard Layer 2 switch port.4Once configured as an RVI, the interface supports advanced Layer 3 features such asOSPF, BGP, RIP, IS-IS, and static routing, as well asVirtual Routing and Forwarding (VRF)for routing isolation.5

Importantly, the documentation states that upon enabling RVI,Layer 2 protocols(such as Spanning Tree Protocol or 802.1X port-based security) and most standard switch interface features aredisabledon that port.6This is because the port is now treated as a dedicated Layer 3 " routed " interface rather than a member of the Layer 2 switching fabric.7Additionally, if the underlying physical port or trunk interface is administratively shut down, the associated RVI will also transition to a " down " state.

Based on the DHCP snooping configuration details provided in the exhibit:

B. FortiSwitch is configured to trust DHCP replies coming on FortiLink interface.The configuration segment shows " trusted ports : port2 FlInK1 MLAG0, " indicating that the FortiSwitch is configured to trust DHCP replies coming from the specified ports, including the FortiLink interface labeled FlInK1. This setup is critical in environments where the FortiLink interface connects directly to a trusted device, such as a FortiGate appliance, ensuring that DHCP traffic on these ports is considered legitimate.

D. Global configuration for DHCP snooping is set to forward DHCP client requests on all ports in the VLAN.The " DHCP Broadcast Mode " set to ' All ' under the DHCP Global Configuration indicates that DHCP client requests are allowed to broadcast across all ports within the VLAN. This setting is essential for environments needing broad DHCP client servicing across multiple access ports without restriction, facilitating network connectivity and management.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, DHCP snooping is a security feature that prevents rogue DHCP servers from distributing incorrect IP addresses on a network. Once enabled for a specific VLAN, the switch differentiates betweentrustedanduntrustedports to regulate DHCP traffic.

Trusted Ports and DHCP Replies (Option A):In a managed FortiSwitch environment, all ports areuntrusted by default. To allow a DHCP server (such as a FortiGate or an external server) to provide IP addresses, the administrator must explicitly set the connecting port astrusted. DHCP snooping validates incoming packets; it allowsDHCP server messages(such as DHCPOFFER and DHCPACK) only on these trusted ports. Any DHCP server reply arriving on an untrusted port is identified as coming from a potentially rogue source and is discarded by the switch.

Option 82 Data Insertion (Option C):FortiSwitch supportsDHCP Option 82(also known as the Relay Information Option), which provides additional security by appending location-specific information (such as the Circuit ID and Remote ID) toDHCP request packets. When DHCP snooping is active, the switch can be configured to insert this data into client requests as they enter untrusted ports. This allows the upstream DHCP server to identify the specific physical port or VLAN from which the request originated, even if the server is located in a different subnet.

Regarding the incorrect options:Option Bis false as DHCP snooping only inspects and filters DHCP-specific traffic, not general unicast data.Option Dis incorrect because DHCP requests (client-to-server) are generally permitted on all ports to ensure clients can find a server, though some configurations allow dropping requests from untrusted sources if they do not meet specific security criteria.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health and stability of the control plane between a FortiGate and a managed FortiSwitch are maintained through a continuous keepalive mechanism. Once a FortiSwitch is authorized and transitions to theFL_STATE_READYstate (as shown in the debug output in the exhibit), the devices must ensure the management tunnel remains active.

The primary mechanism for this is theFortiLink heartbeat. The documentation specifies that a managed FortiSwitch sends heartbeat messages to the FortiGate every few seconds over the FortiLink interface. The FortiGate, acting as the controller, must acknowledge these heartbeats to confirm that the switch is still reachable and responding to management commands. If the FortiGate fails to receive a certain number of consecutive heartbeats, it will consider the switch " offline " in the GUI, even if physical link lights remain green.

Checking for these heartbeat exchanges is a critical troubleshooting step to verify that theCAPWAP(Control and Provisioning of Wireless Access Points) based management tunnel is functioning correctly without intermittent drops. Option A is incorrect as port disabling is a configuration choice, not a health check. Option C is incorrect because firmware updates are manual or scheduled, not automatic upon authorization. Option D is a logging function that relies on a healthy management tunnel but is not a direct measure of the FortiLink ' s operational health.

FortiSwitch supports packet capture through various methods, but the Sniffer profile is specifically capable of capturing traffic on both trunks and management interfaces.Here ' s why:

Sniffer Profile (B):

Versatile Capture:The sniffer profile in FortiSwitch is designed to capture traffic across different types of interfaces, including trunks (where multiple VLANs are present) and management interfaces (used for controlling and monitoring the switch).

Configuration Flexibility:You can configure sniffer profiles to target specific traffic, offering flexibility in monitoring and troubleshooting network issues on both data and management planes.

Other Options:

SPAN (A)is used mainly for mirroring traffic to another port for analysis but is typically limited in its ability to capture management interface traffic.

sFlow (C)andTCP dump (D)are useful tools but do not specifically align with the capability to universally capture traffic across trunks and management interfaces in the context described.

According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch Study Guide, Access Control Lists (ACLs) are used to provide granular control over the traffic entering or leaving a switch port. ACLs function by definingclassifiers(to match specific traffic based on criteria like MAC address, IP address, or VLAN ID) and then applying specificactionsto that matched traffic.

The documentation explicitly categorizes ACL actions into three distinct groups:

Traffic Processing:This category includes actions that dictate the physical handling of the frame. Valid actions listed in the official documents under this header includecount(to track packet volume),drop(to block the traffic),redirect(to forward the frame to a specific physical port or interface instead of its original destination), andmirror(to send a copy to a monitoring port).

Quality of Service (QoS):This category focuses on traffic prioritization and bandwidth management. It includes actions such asrate limiting,remarking CoS/DSCP values, andsetting the egress queue(e.g., assigning a packet to a specific queue number from 0 to 7).

VLAN:This allows for modifications such as setting anouter VLAN tagon frames.

The question specifically asks for " traffic processing actions. " Based on the 7.6 documentation,Redirect frames to another port(Option A) andDrop frames(Option D) are explicitly defined under the " Traffic Processing " action header. While " Assign traffic to a high-priority egress queue " (Option B) is a valid action an ACL can perform, it is technically categorized as aQoS action, not a traffic processing action.Encrypt frames(Option C) is not a supported ACL action on FortiSwitch hardware, as encryption is typically handled at higher layers or via dedicated MACsec configurations on specific models.

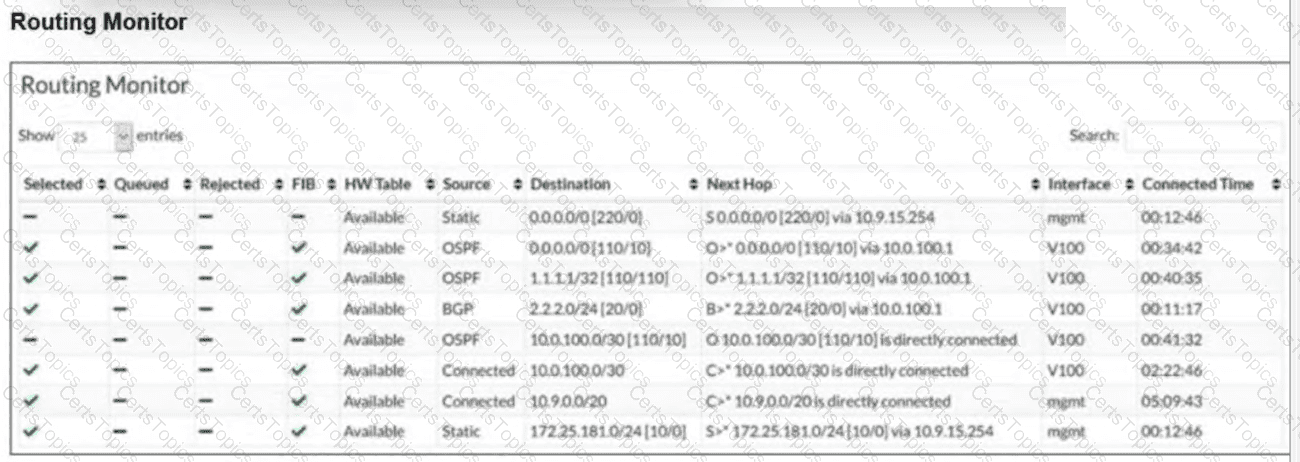

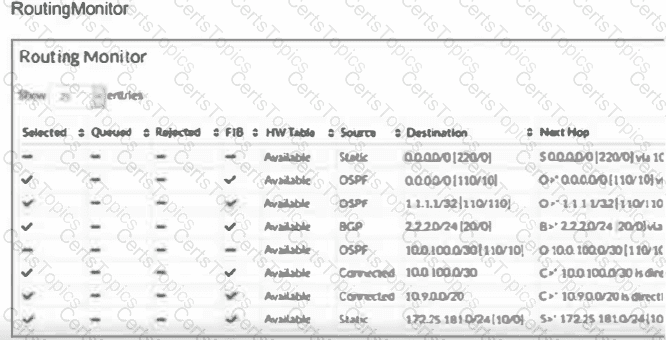

From the exhibit and the details given about the routes not installed in the FIB:

These two routes have a higher administrative distance value available to the destination networks (Option A): Administrative distance is a measure used by routers to select the best path when there are two or more different routes to the same destination from two different routing protocols. A higher administrative distance means that the route is considered less trustworthy, thus not selected for the FIB unless the more preferred routes fail.

These two routes will become primary, if the best routes are removed (Option B): In routing, if the currently installed routes (which are considered the best due to reasons like lower administrative distance) are removed or become unavailable, the next best routes based on administrative distance will be used. This behavior ensures redundancy and maintains network connectivity in diverse scenarios.

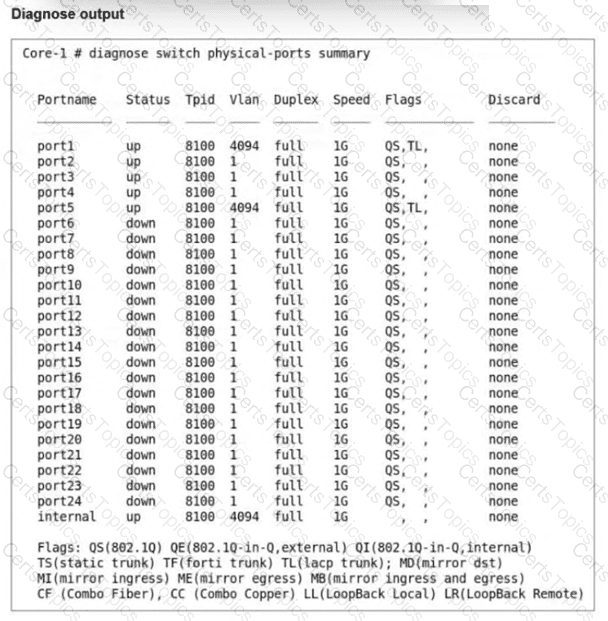

The output of the diagnose switch physical-ports summary command provides critical insight into how a FortiSwitch is being managed by examiningVLAN assignments,tag protocol identifiers (TPID), andinternal port behavior. In the provided exhibit, several ports—includingport1,port5, and theinternalport—are assigned toVLAN 4094.

According to the FortiSwitchOS 7.6 Administrator Guide,VLAN 4094 is reserved for FortiLink management trafficwhen a FortiSwitch is managed by a FortiGate. FortiLink uses this dedicated VLAN to carry control-plane traffic such as configuration synchronization, monitoring data, LLDP-based discovery, and keepalive messages between the FortiGate and FortiSwitch. The presence of VLAN 4094 on physical interfaces is a strong and explicit indicator ofFortiGate-managed mode.

In standalone or local management mode, FortiSwitch ports typically default toVLAN 1or administrator-defined VLANs, andVLAN 4094 is not automatically assigned. Similarly, FortiSwitch Cloud–managed devices do not use VLAN 4094 in this manner, as cloud management relies on IP connectivity to FortiEdge Cloud rather than FortiLink encapsulation.

Additionally, the internal port showing VLAN 4094 further confirms FortiLink operation, as this internal interface is used by the switch ASIC to communicate with the FortiGate over the FortiLink tunnel. This behavior is documented in FortiOS 7.6 and FortiSwitchOS 7.6 design guides as characteristic of FortiGate-managed FortiSwitch deployments.

Therefore, based on the VLAN assignments shown—specifically the use ofVLAN 4094—the most accurate and fully verified conclusion is thatthe FortiSwitch is managed by FortiGate, makingOption Bthe correct answer.

According to theFortiSwitchOS 7.6 Administration GuideandFortiOS 7.6 FortiLink Guide, the processing of Ethernet frames on a managed FortiSwitch port depends on whether the frame is tagged or untagged upon arrival (ingress) and how the port ' s VLAN membership is defined.

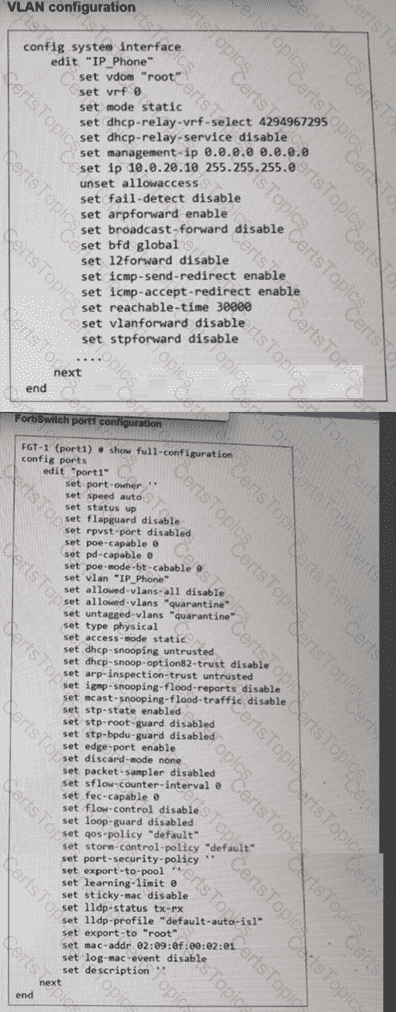

In the provided exhibit,port1is configured with set vlan " IP_Phone " (VLAN 20) as itsnative VLAN. By definition, the native VLAN handles untagged traffic; any untagged frame arriving at the port is assigned to VLAN 20, and any egress traffic from VLAN 20 is sent out of the port without a tag. However, the scenario specifically states that theIP phone tags its traffic with VLAN ID 20.

When a FortiSwitch receives atagged frame, it checks the VLAN ID against theallowed-vlanslist configured on that port. Although VLAN 20 is the native VLAN, the exhibit shows that the port has been explicitly configured with set allowed-vlans " quarantine " . This creates a restrictive filter that permits only tagged frames belonging to the " quarantine " VLAN to enter or exit the port. Because VLAN 20 (IP_Phone) is not present in the allowed-vlans list, the switch drops the tagged frames from the IP phone during ingress processing.

To resolve this, the administrator must modify theFortiSwitch port configurationby adding VLAN 20 to the allowed_vlans list (e.g., set allowed-vlans " quarantine " " IP_Phone " or set allowed-vlans-all enable). This ensures that the switch recognizes and permits tagged traffic for VLAN 20 on that physical interface. Option B is incorrect because l2forward is a Layer 3 interface setting on the FortiGate and does not address the physical port ' s ingress filtering logic on the switch. Disabling the edge_port (Option D) relates to Spanning Tree Protocol (STP) convergence and would not impact VLAN tag filtering.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer 2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.

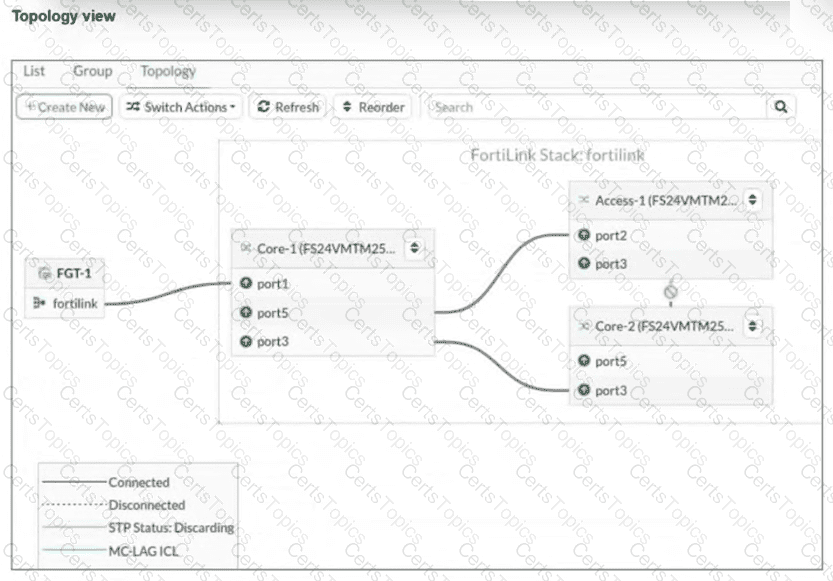

The behavior described in the exhibit—whereport3 on Access-1enters aDiscarding state—is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the " best " path to that root (the Root Port) and block all other redundant paths.

The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2 ' s priority settings influenced the STP tree such that Access-1 ' s link to it was determined to be the redundant (alternate) path.

If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP " Discarding " state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED) is an enhancement to standard LLDP that provides advanced discovery and configuration for endpoints li1ke IP phones. While the current configuration in the exhibit correctly handlesNetwork Policy TLVsto advertise QoS2and VLAN settings to the phones, it is missing the specific component required for data collection.34

To coll5ect detail6ed information such as themanufacturer, software version, hardware version, and serial or asset numbers, you mustEnable LLDP-MED inventory management TLVs (Option C). The documentation specifies that when the inventory-management TLV is active, the switch can retrieve these extensive device characteristics from the connected Media Endpoints. This information is then visible to the administrator through the FortiGate or FortiSwitch monitoring tools, providing a complete hardware inventory of the voice network.

Regarding the other options:Option Ais unnecessary because a single LLDP profile can support multiple TLV types simultaneously by adding them to the med-tlvs string.Option Bis already partially implemented in the exhibit ' s network policy but does not contribute to device detection or data collection.Option Dis used for automatic trunking between FortiSwitches and is unrelated to endpoint device information. Therefore, the addition of the inventory-management TLV is the specific requirement to fulfill the goal of collecting detailed IP phone data.

FortiGate ' s multi-tenancy feature, specifically Virtual Domains (VDOMs), is the most appropriate tool for segmenting network operations and the administration of managed FortiSwitch devices on FortiGate. Here ' s why:

VDOMs as Virtual Firewalls:VDOMs function as independent virtual firewalls within a single FortiGate device. Each VDOM can have its own:

Security policies

Interfaces (Including FortiLink interfaces for FortiSwitch management)

Routing table

Administrative access

Segmenting Network Operations:By assigning different FortiSwitch devices (or groups of ports) to separate VDOMs, you effectively partition your network. Network administrators can manage specific FortiSwitches through their assigned VDOMs, maintaining operational isolation.

Enhanced Administration:VDOMs offer granular administrative control. Different administrators can be assigned to specific VDOMs, limiting their management scope and reducing the risk of accidental configuration changes.

Why Other Options Are Less Suitable:

B. Multi-chassis link aggregation trunk:This focuses on link redundancy and bandwidth aggregation, not network segmentation.

C. FortiGate clustering protocol:This is aimed at high availability and scalability of the firewall functions themselves, not the management of switches.

D. FortiLink split interface:This allows dividing a FortiLink interface on the FortiGate for managing multiple FortiSwitches, but it doesn ' t provide the true segmentation and administrative isolation that VDOMs offer.

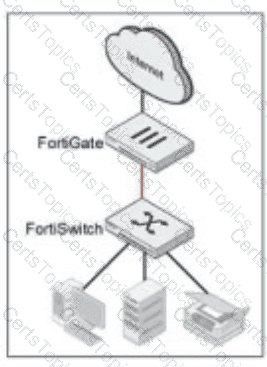

According to the FortiOS 7.6 Study Guide and the FortiSwitch 7.6 FortiLink Guide , when establishing a FortiLink connection between a standalone FortiGate unit and a single managed FortiSwitch unit, Fortinet supports two valid FortiLink interface architectures:

Single Physical Port (Option A): In basic or entry-level deployments, FortiLink can be enabled directly on a dedicated individual physical interface of the FortiGate (such as a hardware port designated for FortiLink or any unassigned internal Ethernet port). Under this deployment mode, a single physical Ethernet or fiber cable connects the FortiGate physical port directly to the FortiSwitch discovery port.

Link Aggregation Group (LAG) (Option D): Fortinet best-practice architecture recommends configuring the FortiLink interface as an 802.3ad aggregate interface (LAG). Even when connecting a single FortiGate to a single FortiSwitch, a LAG interface can bundle multiple physical links together to provide link redundancy, increased aggregate bandwidth, and seamless scalability for future link additions without disrupting the management tunnel.

Regarding the incorrect options:

Option B (Port channel): " Port channel " is vendor-specific terminology primarily used in Cisco IOS/NX-OS platforms. In Fortinet documentation and GUI/CLI commands, 802.3ad multi-link bundles are strictly defined and configured as 802.3ad aggregate or LAG interfaces.

Option C (Switchport mode trunk): " Switchport mode trunk " is also Cisco syntax. Within Fortinet FortiOS and FortiSwitchOS environments, trunking and tagging behavior is defined by setting the Native VLAN and adding secondary subnets into the Allowed VLANs list on a physical or aggregate interface, rather than using Cisco switchport command modes.

All hosts behind an authenticated port are allowed access after a successful authentication (A): Once a device on a port successfully authenticates using 802.1X, all other devices connected behind that port also gain network access. This is typical in scenarios where a switch is behind an authenticated port and not each device individually authenticates.

All devices connecting to FortiSwitch must support 802.1X authentication (D): For a network secured with 802.1X, all devices attempting to connect through the FortiSwitch must support and participate in 802.1X authentication to gain access. This ensures that all devices on the network are authenticated before they are allowed to communicate on the network.

Tail-drop mode is a congestion management technique used in network devices, including FortiSwitches, to handle congestion on network ports:

Tail-Drop Mode (A):

Behavior:When a queue reaches its maximum capacity on a congested port, tail-drop mode simply drops any incoming packets that arrive after the buffer is full. This continues until the congestion is alleviated and there is space in the queue to accommodate new packets.

Application:This is a straightforward approach used when the device’s buffer allocated to the port becomes full due to sustained high traffic, preventing buffer overflow and maintaining system stability.

According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, managing FortiSwitch units in a multi-VDOM environment allows for granular control over physical switch resources. By default, when a FortiSwitch is discovered and authorized via FortiLink, its ports reside in the same VDOM as the FortiLink interface (typically the root or a dedicated management VDOM).

To allocate these ports to other VDOMs, administrators have two primary methods. The first method isdirect assignment(Option A). Using the FortiGate CLI or GUI, an administrator can export a specific physical port directly to a target VDOM. For example, the command set export-to < VDOM_name > under the config switch-controller managed-switch port settings physically isolates that port for use only by the specified VDOM. This is ideal for multi-tenant scenarios where a specific physical connection must be dedicated to a single business unit.

The second method involves using aVirtual Port Pool (VPP)(Option D). This method provides a layer of virtualization for switch ports. An administrator first creates a pool (VPP) in the management VDOM and assigns physical ports to it. Then, from the tenant VDOM, an administrator can " request " a port from that specific pool. This allows for a more flexible " shared " infrastructure where ports are not permanently tethered to a single VDOM until they are claimed from the pool. Both methods ensure that traffic remains logically and physically isolated between VDOMs, supporting the security requirements of complex enterprise deployments. Options B and C are incorrect as they relate to traffic routing and device identification rather than the foundational assignment of hardware ports to virtual domains.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the interaction between a managed switch and a connected endpoint depends on whether the endpoint can participate in the 802.1X authentication process. When a security policy is applied to a port, the switch sends EAP (Extensible Authentication Protocol) requests to the device to initiate the login.

The FortiSwitch handles two primary failure scenarios differently:

Non-supplicant (No 802.1X Support):If a device, such as a legacy PC or a basic printer, does not have an 802.1X supplicant, it will not respond to the switch ' s EAP requests. In this case, the switch waits for the duration specified in theGuest authentication delayfield (30 seconds in the exhibit). Once this timer expires without a response, the switch places the device into theGuest VLAN. As shown in the exhibit, the Guest VLAN is explicitly set to " onboarding.fortilink (onboarding) " .

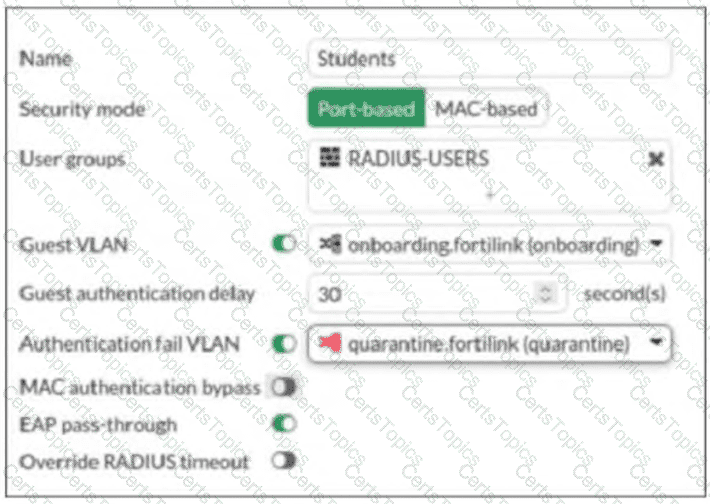

Authentication Failure:If a devicedoessupport 802.1X but the user provides incorrect credentials, the RADIUS server returns an Access-Reject message. In this scenario, the device is moved to theAuthentication fail VLAN, which the exhibit identifies as " quarantine.fortilink (quarantine) " .

Note:BecauseMAC authentication bypass (MAB)is disabled in the exhibit, the switch will not attempt to authenticate the device ' s MAC address against the RADIUS server before defaulting to the Guest VLAN. Therefore, for any device lacking an 802.1X supplicant, the result is placement into theonboardingVLAN.

FortiSwitchOS 7.6 provides two primary mechanisms for packet capture: thesniffer commandand thesniffer profile. While both are used for traffic analysis and troubleshooting, the FortiSwitchOS 7.6 Administrator Guide clearly identifies a key advantage of using asniffer profileover the CLI-based sniffer command.

According to the documentation (Page 438), a sniffer profile allows administrators tocapture packets from all switch ports simultaneously, without being constrained to a single interface or requiring repeated command execution. This capability makes sniffer profiles particularly effective for broad troubleshooting scenarios, such as identifying intermittent issues, unknown traffic sources, or network-wide anomalies across multiple ports and VLANs.

In contrast, the diagnose sniffer packet command is executed manually and typically focuses on a specific interface or traffic flow, requiring administrators to explicitly define capture parameters each time. This makes it less efficient when comprehensive visibility across the switch is required.

Sniffer profiles are also designed to bepersistent and reusable, meaning they can remain configured and enabled as needed without continuous CLI interaction. This is especially beneficial in production environments where consistent monitoring across all ports is necessary while minimizing administrative overhead.

The other answer choices are incorrect because sniffer profiles do not eliminate the need for ACLs or port mirroring, do not inherently filter traffic automatically, and do not provide SSL/TLS decryption, which is outside the functional scope of FortiSwitch.

Therefore, based on FortiSwitchOS 7.6 Administrator Guide (Page 438), the correct and fully verified answer isA. It allows packet capture on all switch ports without limitations.

In dynamic routing on FortiSwitch, certain types of interfaces are utilized to participate in the routing processes. The types of interfaces that can be used include:

Loopback Interfaces (B):Loopback interfaces are virtual interfaces that are always up, making them ideal for use in routing protocols where a stable interface is necessary. They are commonly used to establish router IDs and manage routing information more reliably.

Switch Virtual Interfaces (C):Switch Virtual Interfaces (SVIs) are assigned to VLANs and can have IP addresses assigned to them, making them capable of participating in Layer 3 routing. SVIs are essential for routing between different VLANs on a switch and can participate in dynamic routing protocols to advertise networks or make routing decisions.

Physical Interfaces (D)andDetected Management Interfaces (A)are not typically used directly by dynamic routing protocols for their operations in the context of FortiSwitch.

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.

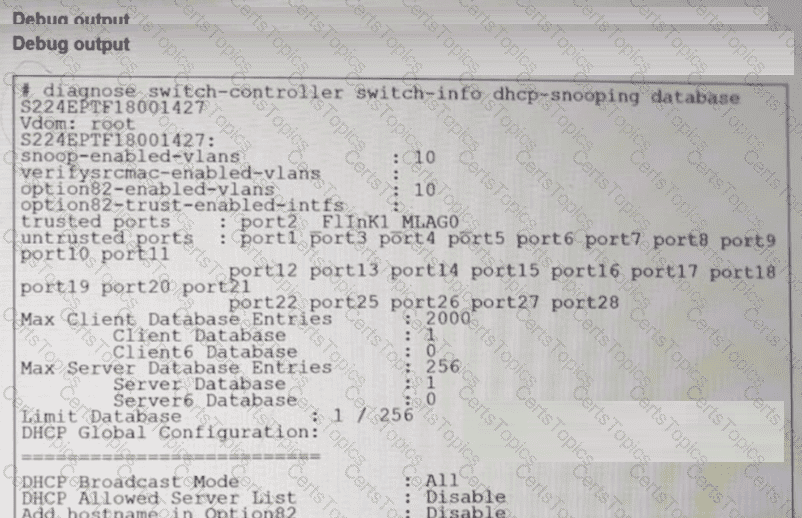

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, DHCP snooping is a security feature that acts as a firewall between untrusted hosts and trusted DHCP servers. It validates DHCP messages from untrusted sources and filters out invalid messages.

The provided debug output reveals specific configuration details that support the correct answers:

Option 82 Support (Option C):The output line option82-enabled-vlans : 10 explicitly indicates that DHCP Option 82 is active for that specific VLAN. When Option 82 is enabled on a VLAN, the FortiSwitch (acting as a relay agent or snooping device) inserts information about the physical port and VLAN into the DHCP request packet before it is forwarded to the server. This allows the server to apply location-based IP address allocation policies.

Broadcast Traffic Handling (Option D):In the " DHCP Global Configuration " section, theDHCP Broadcast Modeis set toAll. In FortiSwitchOS 7.6, the default behavior for DHCP snooping is to forward DHCP broadcast traffic to all ports in the VLAN unless explicitly restricted. Setting the mode to " All " means the switch does not limit the propagation of DHCP broadcast packets solely to trusted interfaces; instead, they are flooded to both trusted and untrusted ports within the broadcast domain. To restrict broadcasts, the mode would need to be changed to " Trusted-Only " .

Regarding the incorrect options:Option Ais false because the output shows snoop-enabled-vlans : 10, confirming it is active.Option Bis incorrect because the trusted ports list includes port2, FlInK1, and MLAG0, meaning multiple interfaces are trusted, not just port2.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Dynamic ARP Inspection (DAI) is a security feature used to intercept, log, and discard ARP packets with invalid IP-to-MAC address bindings. DAI is primarily used to prevent " Man-in-the-Middle " attacks, such as ARP spoofing or ARP cache poisoning.

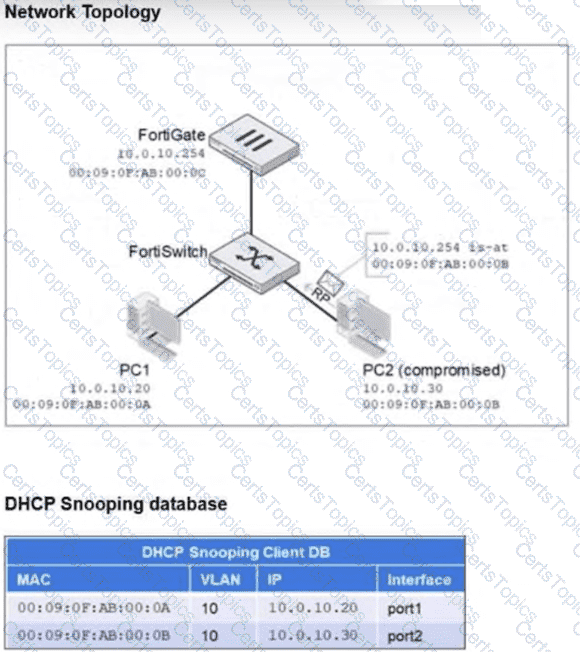

In this scenario, DAI is active on VLAN 10. When DAI is enabled, the FortiSwitch intercepts all ARP packets on untrusted ports and validates them against a trusted source—most commonly theDHCP snooping database. As shown in the " DHCP Snooping database " exhibit, PC2 is correctly mapped to IP 10.0.10.30 and MAC 00:09:0F:AB:00:0B.

When PC2 attempts to send a forged ARP reply claiming that IP 10.0.10.254 (the FortiGate ' s IP) is located at its own MAC address (00:09:0F:AB:00:0B), the FortiSwitch ' s DAI engine inspects the packet. It checks the DHCP snooping database for a binding that matches IP 10.0.10.254 to MAC 00:09:0F:AB:00:0B. Finding no such valid entry (because the database correctly identifies the MAC 00:09:0F:AB:00:0B as belonging to IP 10.0.10.30), the switch identifies the ARP packet as illegitimate.

Consequently, the FortiSwitch willdrop the ARP repliesbecause they fail the DAI validation check against the established DHCP snooping bindings. Option A is incorrect as DAI functions independently of IPSG once the database is populated. Option B is incorrect because " accepting " the spoofed packet is the opposite of DAI ' s purpose. Option C is incorrect because DAI is specifically designed to run on untrusted ports to protect the network from client-side attacks.

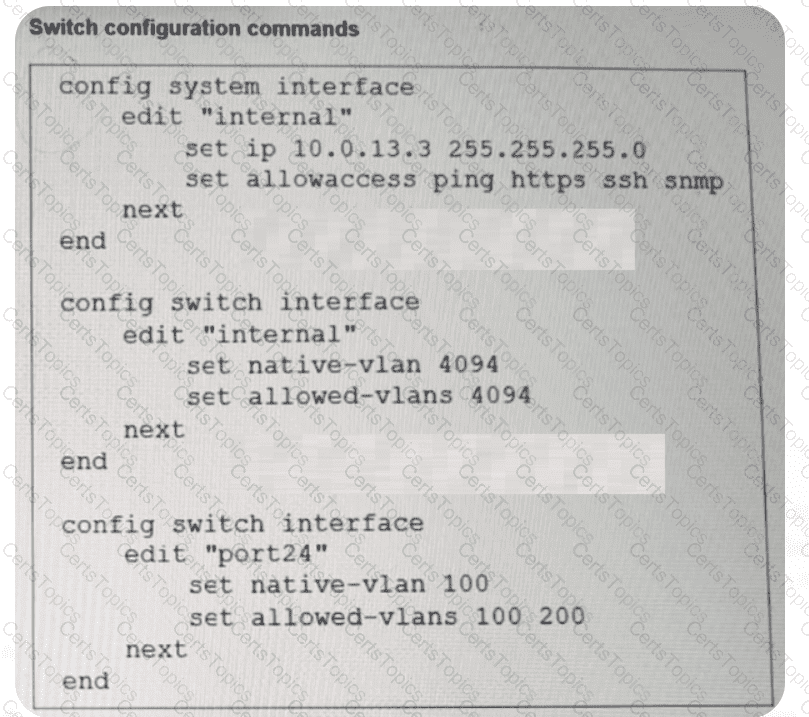

According to theFortiSwitchOS 7.6 Administration Guide (Page 320), management traffic on a FortiSwitch is associated with a specific logical interface, which in this case is the " internal " interface. The exhibit shows that the " internal " interface is configured onVLAN 4094(both as native and allowed). This means that for any management traffic (such as HTTPS, SSH, or SNMP) to reach the switch CPU, it must be able to traverse the physical uplink on VLAN 4094.

However, the configuration forport24(the uplink) is currently restricted. It is set withnative VLAN 100and an allowed-vlans list that only includes100 and 200. Because VLAN 4094 is not included in the allowed list of port24, all frames belonging to the management VLAN (4094) are dropped by the switch ' s ingress/egress filters on the uplink.

To resolve this and restore management access, the administrator has two valid configuration paths based on the provided options:

Option B:Change thenative VLAN on port24 to VLAN 4094. By making 4094 the native VLAN, untagged management traffic can traverse the port, effectively allowing the " internal " interface to communicate with the network.

Option D:Add VLAN 4094 to the allowed VLANs on port24. This ensures that VLAN 4094 is no longer filtered out, allowing management frames to pass through the uplink while maintaining the current native VLAN for other traffic.

Option C is irrelevant as removing a working VLAN (200) does not help the management traffic. While Option A describes an alternate architectural approach (moving management into an already-allowed VLAN), Options B and D represent the direct fixes for the mismatch described in the 7.6 administration documentation.

In mixed-vendor network environments, such as deployments that include bothFortiSwitchandCiscodevices, properLayer 2 discovery protocolsmust be enabled to allow devices to automatically discover neighbors and exchange essential device and interface information. FortiSwitchOS 7.6 supports bothCisco Discovery Protocol (CDP)andLink Layer Discovery Protocol (LLDP)to ensure interoperability.

Cisco Discovery Protocol (CDP)is a Cisco-proprietary Layer 2 discovery protocol widely used by Cisco switches, routers, and IP phones. When CDP is enabled on FortiSwitch interfaces, Cisco devices can discover FortiSwitch neighbors and receive information such as device ID, port ID, platform, and capabilities. This is particularly important in Cisco-centric networks where CDP is the primary discovery mechanism.

Link Layer Discovery Protocol (LLDP), defined by IEEE 802.1AB, is a vendor-neutral discovery protocol supported by both Fortinet and Cisco devices. Enabling LLDP allows FortiSwitch and Cisco devices to exchange standardized information including system name, port description, VLAN information, and management address. LLDP is essential for cross-vendor compatibility and is commonly enabled by default in modern enterprise networks.

The remaining options are incorrect.Unidirectional Link Detection (UDLD)is used to detect unidirectional fiber or copper link failures and does not provide device discovery or information exchange.LLDP-MEDis an extension of LLDP specifically designed for media endpoints such as IP phones and is not required for general switch-to-switch discovery.

Therefore, to ensure automatic discovery and information exchange between FortiSwitch and Cisco devices,both CDP and LLDP must be enabled, makingOptions B and Cthe correct and fully verified answers based on FortiSwitchOS 7.6 documentation.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Information Base (RIB) contains all potential routes discovered by the switch, but theForwarding Information Base (FIB)only includes the " best " active routes used for hardware packet forwarding. When the routing process receives multiple paths to the exact same destination (in this case, the default route 0.0.0.0/0), it must select the most reliable source based on a specific hierarchy.

The primary tie-breaker for routes from different protocols is theAdministrative Distance (AD). AD is a value from 1 to 255 that represents the trustworthiness of the routing source, where alower value is more preferred. In the provided exhibit:

TheOSPFroute has an AD of110(shown as [110/10]).

TheStaticroute has been configured with an AD of220(shown as [220/0]).

Because the OSPF route ' s AD (110) is lower than the Static route ' s AD (220), the system considers the OSPF route to be superior. Consequently, only the OSPF route is " Selected " and installed into theFIB. The static route remains in the RIB as a " backup " or floating static route; it will only be moved to the FIB if the preferred OSPF route becomes unavailable. Option D is incorrect because having identical prefixes is not a " conflict " but a standard part of route selection where AD decides the winner. Option A is incorrect because metric is only compared if the AD is identical.

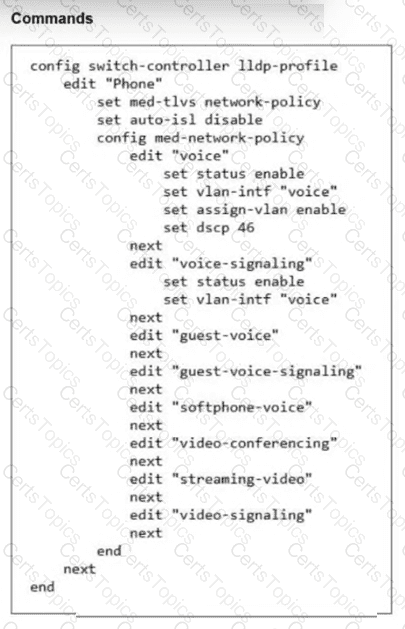

While FortiSwitch can collect all the listed LLDP-MED TLVs (Network Policy, Power Management, Location, and Inventory Management), the primary focus for tracking and identifying network devices is on theInventory ManagementTLV.

This TLV carries critical details such as:

Manufacturer

Model

Hardware/Firmware versions

Serial/Asset numbers

This information provides a granular understanding of the devices on your network.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, several prerequisite steps and compatibility checks must be performed before a FortiGate can successfully discover, authorize, and manage a FortiSwitch or a stack of switches.

First, theSwitch Controller feature must be enabled (Option B)on the FortiGate.2By default, on many FortiGate models, the " Switch Controller " menu is hidden in the GUI to simplify the interface. Administrators must navigate toSystem > Feature Visibilityand toggle theSwitch Controllerswitch to " on " to expose the management menus required to configure FortiLink interfaces and manage FortiSwitch units.3Without this feature enabled, the FortiGate cannot act as a centralized management entity for the switch fabric.

Second, theFortiSwitchOS version must be compatible with FortiOS (Option D). While it is not strictly required to be on the " latest " version (Option A), the firmware on both devices must fall within the supported compatibility matrix provided by Fortinet. If the versions are incompatible, the FortiLink tunnel (CAPWAP) may fail to establish, or certain management features may be unavailable in the FortiOS GUI.

Regarding the incorrect options:Option Ais not a requirement because older, compatible versions are often used in stable environments.Option Cis incorrect because FortiLink interfaces are the very mechanism used for management; they must be correctly configured and enabled, not disabled, for management to function. Therefore, ensuring feature visibility and verifying the compatibility matrix are the two essential administrative requirements for establishing a managed switch stack.

Pag 232, FortiSwitch_7.6_Study_Guide-Online " However, if you want to authenticate each device behind a port, and optionally, grant each device a different access level based on the credentials provided, then MAC-based is required. "

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink Guide (FortiOS 7.6), FortiSwitch supports two primary modes for 802.1X authentication:port-basedandMAC-based.

In802.1X port-based authentication, once a single supplicant (user or device) successfully authenticates, the physical port is transitioned to an " authorized " state, allowing all traffic from any device connected to that port (e.g., through a hub or unmanaged switch) to pass through. This is summarized by Option D, which is incorrect for MAC-based mode.

In contrast,802.1X MAC-based authentication(Option B) treats each device ' s MAC address as a distinct session. The switch maintains a table of authenticated MAC addresses for each port and applies security policies to each one individually. This granular approach allows the FortiSwitch to grantdifferent access levelsto different devices on the same physical port. For example, a laptop might be assigned to a corporate VLAN with a specific Dynamic Access Control List (DACL), while an IP phone on the same port is assigned to a Voice VLAN.

Furthermore, FortiSwitchOS 7.6 documentation specifies that MAC-based mode can support up to20 devices per port. Each device must provide its own credentials (or be validated via MAC Authentication Bypass), enabling the switch to enforce specific security attributes—such as VLAN IDs, QoS marking, and ingress ACLs—tailored to each uniquely identified device. While the switch typically communicates with aRADIUS server(Option C) for these credentials, MAC-based mode ' s primary functional advantage is this individual session management and authorization flexibility.

According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch 7.6 Administrator Study Guide, FortiSwitch supports a multi-stage ACL pipeline that allows for granular traffic control at different points in a packet ' s journey through the switch.1The documentation identifies three primary stages for ACL application:Prelookup,Ingress, andEgress.

Prelookup (Option D):This is the earliest stage in the switching pipeline. The documentation explicitly states thatPrelookup ACLsare processedbefore any Layer 2 or Layer 3 lookupsare performed by the switch hardware. This stage is highly recommended for high-performance security actions, such as dropping unwanted traffic immediately upon arrival, because it prevents the switch from wasting internal resources (CPU and ASIC lookup cycles) on frames that are destined to be discarded anyway.

Ingress (Option A):This stage occursafterthe switch has completed its Layer 2 (MAC table) and Layer 3 (routing table) lookups butbeforethe packet is queued for the egress port. While powerful, actions here occur after initial processing has already taken place.

Egress (Option C):This stage is processed just before the frame leaves the switch through the destination port. It is typically used for final modifications or filtering based on the outgoing interface context.

Therefore, to achieve the goal of applying actionsbeforeany Layer 2 or Layer 3 processing occurs, thePrelookupstage is the technically correct and recommended choice in FortiSwitchOS 7.6.Forwarding (Option B)is a general functional stage of a switch but is not a specific ACL stage type in the FortiSwitch configuration hierarchy.

The appearance of a serial number in the Native VLAN column for port23 suggests that the switch connected to this port is identified uniquely in the network.Given the options provided:

A standalone switch with the shown serial number is connected on port23 (Option C): This is the most plausible explanation. The FortiSwitch configuration interface is displaying the serial number of a standalone switch that is directly connected to port23. This kind of display helps in identifying and managing individual devices in a network setup, especially in environments with multiple switches.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health of the Control and Provisioning of Wireless Access Points (CAPWAP) based management tunnel between a FortiGate and a FortiSwitch is maintained through a continuous keepalive mechanism. The provided exhibit captures the fortilinkd process logs, which are essential for verifying the operational status of the FortiLink control plane.

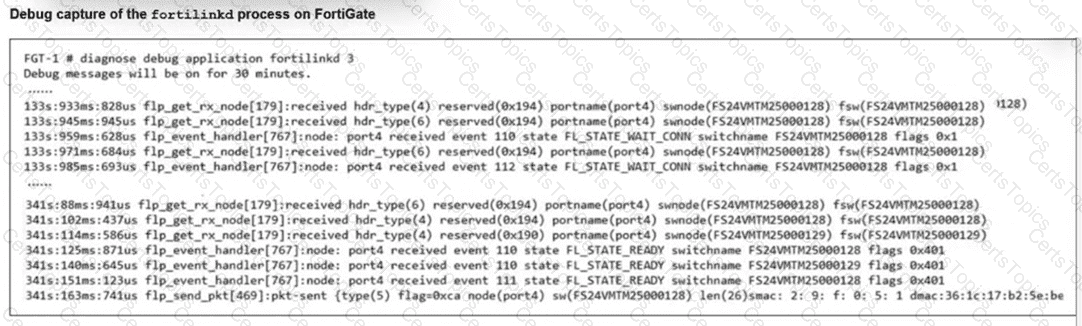

The debug output reveals two critical indicators of a successful connection:

State Transitions:The lines at timestamp 341s show the managed switch (FS24VMTM25000128) has reached theFL_STATE_READYstate. This state indicates that the discovery, authorization, and configuration synchronization phases are complete, and the switch is now fully operational under the FortiGate ' s management.

Heartbeat Mechanism:The entry flp_send_pkt[469]:pkt-sent {type(5)} represents the transmission of aFortiLink heartbeat. TheseType 5 packetsare sent every few seconds to verify that the peer device is still reachable and responsive. In a healthy environment, the FortiGate sends these heartbeats, and the FortiSwitch responds (or vice versa depending on the specific sub-protocol phase), ensuring the management tunnel remains active.

The regular exchange of these messages as shown in the exhibit confirms that the FortiLink connection ishealthy and active. If the switch were unauthorized or stuck in a negotiation phase, the state would be shown as FL_STATE_WAIT_AUTH or FL_STATE_DISCOVERY, and the periodic type(5) heartbeats would either be absent or not acknowledged.
