Downloadable User Roles (DUR) are a key component of Aruba ' s Dynamic Segmentation. Instead of manually defining roles on every switch, the switch downloads the role definition (VLAN, ACLs, QoS) dynamically from Aruba ClearPass via HTTPS .

The HTTPS Connection: When a user authenticates, ClearPass sends a RADIUS attribute containing the role name. The switch then initiates an HTTPS connection to the ClearPass server to fetch the full details of that role.

Certificate Trust: Because this download happens over HTTPS, the AOS-CX switch acts as an HTTPS Client . For the connection to be established, the switch must trust the SSL/TLS certificate presented by ClearPass.

Validation Requirement: If the switch does not have the correct CA Certificate installed, or if the HTTPS client certificate configuration is missing or incorrect, the TLS handshake will fail. The switch will be unable to download the role, and the user will typically be placed in a " denyall " or " initial " role. Therefore, verifying the HTTPS/TLS certificate configuration on the switch is a primary troubleshooting step for DUR.

Why other options are incorrect:

Option B: DUR does not use the REST API of the switch; it uses a standard HTTPS GET request to ClearPass.

Option C: SNMP is for monitoring and is not involved in the real-time delivery of user roles.

Option D: While the user-role name must match, the reason a DUR fails to load is almost always the transport mechanism (RADIUS or HTTPS), not the role name configuration itself.

When making changes remotely to critical configurations such as Control Plane ACLs on a CX switch, to protect against accidental lockout due to misconfiguration, you should enable checkpoint auto before committing the changes.

Checkpoint auto creates an automatic rollback timer. If the administrator loses connectivity (e.g., because of the ACL change), the system automatically rolls back the change after the timer expires, preventing lockout.

checkpoint commit is used after committing to save the checkpoint explicitly, but it does not provide automatic rollback.

Running checkpoint auto before committing is essential to have the rollback safety net.

The troubleshooting methodology exemplified by comparing outputs or configurations to find discrepancies is called Spot the difference. It involves checking variations between working and non-working states or devices.

Follow the path: tracing packet flow step-by-step.

Top-down/Bottom-up: analyzing layers systematically.

Replace configuration: swapping configurations to isolate issues.

Here, comparing command outputs aligns with spot-the-difference.

In complex network designs involving different administrative domains (like a Campus and a Data Center), it is often desirable to prevent Spanning Tree Protocol (STP) from merging the two environments into a single, massive logical tree.

The Goal of Isolation: " Isolated spanning tree topology " means that the Campus and the Data Center should each have their own independent Root Bridge and calculate their own loop-free paths without being influenced by one another.

BPDU Filter (The Solution): When you apply BPDU Filter to an interface, the switch stops sending BPDUs out of that port and, more importantly, ignores any incoming BPDUs. Because the Campus switch no longer " sees " the BPDUs coming from the Data Center core, it will stop recognizing the DC as the Root Bridge and will instead elect a local Root Bridge (or remain as the Root itself). This effectively breaks the STP connection between the two domains while still allowing Layer 2 data traffic to flow.

Evaluating Other Options:

Option A (Root Guard): This is used to prevent a specific port from becoming a Root Port. If a superior BPDU is received, the port is placed into a " root-inconsistent " state (blocked). While this protects the local Root role, it does not " isolate " the topology; the switches still participate in the same overall STP domain.

Option C (BPDU Guard): This is intended for edge ports (connected to PCs/Printers). If it receives a BPDU, it shuts down the port entirely (rxtx-disable). Applying this to a core-to-core link would cause a total loss of connectivity as soon as the DC core sends a BPDU.

Option D (Admin Edge): This simply tells the switch to skip the Listening/Learning states and go straight to Forwarding. It does not provide topology isolation.

When deploying HPE Aruba VSX switches parallel to existing HPE Comware switches, choosing a first-hop redundancy protocol compatible with both platforms is essential. VRRP (Virtual Router Redundancy Protocol) is widely supported across multiple vendors and is suitable for multi-vendor environments.

HSRP is Cisco proprietary and not supported on Aruba Comware or CX.

Active Forwarding and Active Gateway are Aruba VSX internal mechanisms, not standard first-hop redundancy protocols.

VRRP provides seamless failover and is supported in Comware and Aruba CX platforms.

Thus, VRRP is the suitable choice.

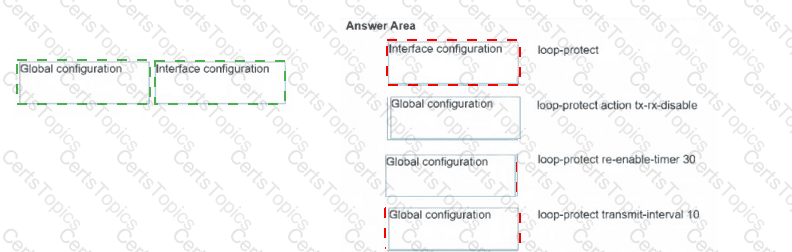

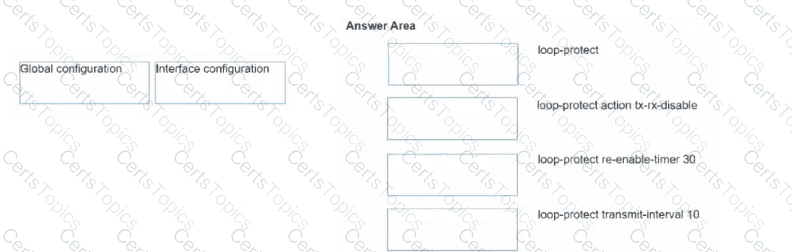

Interface configuration: loop-protect

Global configuration: loop-protect action tx-rx-disable

Global configuration: loop-protect re-enable-timer 30

Global configuration: loop-protect transmit-interval 10

In the AOS-CX operating system, configuration for Loop Protection follows a " Global Parameter, Local Execution " model. This distinguishes it from STP, which often has more per-interface tunable parameters.

Enabling the Feature (Interface configuration): The command loop-protect is entered within the interface context (e.g., interface 1/1/1). This command acts as a " trigger " or toggle that tells the switch to start sending and listening for loop-protection probe packets on that specific physical port or LAG.

Defining the Behavior (Global configuration): The specific way the loop protection " engine " behaves is defined once for the entire switch in the global configuration context .

loop-protect action tx-rx-disable: This sets the universal response if a loop is detected. The switch can be told to simply log the event, or physically disable the port (either just the transmitter, or both transmitter and receiver).

loop-protect re-enable-timer 30: If a port is disabled due to a loop, this global timer defines how many seconds the switch waits before automatically attempting to bring the port back online to see if the loop has been physically removed.

loop-protect transmit-interval 10: This defines how frequently the switch generates the proprietary loop protection packets.

Why this structure exists: This model simplifies administration. You can change the sensitivity (interval) or the severity (action) for the entire switch in one place, while still having the granular control to only enable the feature on " risky " ports where unmanaged switches or hubs might be connected.

In the world of IP Multicast, the address range is strictly categorized by the IANA. Understanding these boundaries is a core requirement for the ACP-S switching exam.

Link-Local Multicast (224.0.0.0/24): The address used in the scenario, 224.0.0.100 , falls within the " Local Network Control Block " (224.0.0.0 to 224.0.0.255). These addresses are reserved for protocol traffic that is intended to stay within a single broadcast domain (Layer 2). Examples include OSPF (224.0.0.5) and RIPv2 (224.0.0.9).

The Routing Restriction: By design and industry standard, Layer 3 switches and routers do not forward traffic addressed to the 224.0.0.0/24 range. This is a hard-coded behavior to prevent control plane protocols from leaking into other parts of the network. Even if you enable PIM (Protocol Independent Multicast) and IGMP on all SVIs, the switch will drop these packets at the Layer 3 boundary.

The Solution: To route multicast traffic between VLAN 100 and VLANs 200/300, the application must use a group address from the administratively scoped or globally scoped ranges (e.g., 239.0.0.0/8 or 224.0.1.0 and above).

Why Option D is insufficient: While enabling IGMP and PIM on the SVIs is a necessary step for routable multicast, it will not overcome the fundamental architectural block placed on the 224.0.0.0/24 link-local range.

When receiving a ' 404 - Not Found ' HTTP response while attempting to configure a VLAN via REST API, the most common cause is specifying an incorrect URI endpoint. The correct approach is to specify the exact resource path for VLAN configuration, which is /rest/v1/system/vlan. Without the correct URI, the API will return a 404 error indicating the resource is not found.

Sending a POST request to login is necessary but not related to 404 after login.

Syntax errors in payload lead to 400-series errors but usually not 404.

Enabling REST API read/write is important but would result in different errors.

Quality of Service (QoS) on AOS-CX switches relies on hardware queues to manage congestion. Different traffic types require different handling logic.

Strict Priority (SP) Queuing: In an SP model, the switch services the highest-numbered queue (usually Queue 7 for Voice) until it is completely empty before it even considers sending a single packet from a lower-priority queue. This ensures that latency-sensitive traffic like Voice (VoIP) is never delayed by data bursts, providing the " highest priority " forwarding required by the prompt.

Weighted Fair Queuing (WFQ/DWRR): These methods (like Deficit Weighted Round Robin) assign a percentage of the bandwidth to each queue. While this prevents " queue starvation " for data traffic, it doesn ' t guarantee that voice will always go first; it just guarantees voice gets its " fair share. "

FIFO: This is the default " no-QoS " behavior where the first packet to arrive is the first to leave, regardless of its importance.

Virtual Output Queuing (VOQ): This is an internal architectural design of the switch fabric (often found in the 8000 series) used to prevent Head-of-Line (HOL) blocking across the switch backplane. It is not a configurable end-user queuing strategy for traffic prioritization.

To protect a network from Layer 2 man-in-the-middle attacks, AOS-CX switches utilize two closely related security features: DHCP Snooping and Dynamic ARP Protection .

DHCP Snooping: This feature acts as a firewall between untrusted hosts and trusted DHCP servers. When enabled, the switch categorizes ports as either trusted (connected to a legitimate DHCP server or another switch) or untrusted (connected to end-user devices). If a " malicious " DHCP server on an untrusted port attempts to send a DHCP OFFER or ACK message, the switch drops the packet.

The Snooping Binding Table: As a byproduct of monitoring legitimate DHCP exchanges, the switch builds a DHCP Snooping Binding Table . This table is a " source of truth " that maps a client ' s MAC address to its assigned IP address and the specific physical port it is connected to.

Dynamic ARP Protection: ARP poisoning (or spoofing) occurs when an attacker sends fake ARP messages to link their MAC address with the IP address of a legitimate server or gateway. When ARP protection is enabled, the switch intercepts all ARP packets on untrusted ports and validates them against the DHCP Snooping Binding Table . If the MAC-to-IP mapping in the ARP packet does not match the entry in the table, the packet is discarded.

Integration: These two features must work together. Without the binding table created by DHCP Snooping, ARP Protection has no data to validate against. This combination ensures that only the device that legitimately received an IP via DHCP can claim that IP in ARP responses.

LACP (Link Aggregation Control Protocol) modes can be active or passive. When two switches are both configured in passive mode, no LACP packets are initiated, causing the link aggregation to fail or go into a block state.

Changing one side from passive to active causes that switch to initiate LACP negotiation, resolving the block state.

Changing to static mode disables LACP negotiation, which is not recommended unless both sides are static.

Changing timeout does not solve LACP block issues caused by mode mismatches.

Therefore, changing one switch’s LACP mode from passive to active is necessary to resolve the block.

Colorless Ports are a foundational element of Aruba’s Dynamic Segmentation strategy. They allow any device to be plugged into any access port without requiring manual VLAN or ACL configuration by the IT staff.

The Role of Authentication: When a device connects, the switch uses 802.1X or MAC Authentication to identify the device and communicate with Aruba ClearPass .

Downloadable User Roles (DUR): Instead of pre-configuring thousands of roles locally on every switch, the switch downloads the specific policy—including VLAN assignment, QoS, and Access Control Lists (ACLs)—directly from ClearPass. This is the Downloadable User Role .

Why this is " Colorless " : Because the policy is defined centrally and " downloaded " to the port only when needed, the physical port has no static identity (no " color " ). This simplifies deployment and ensures that security policies follow the user or device regardless of where they plug in.

The Network Analytics Engine (NAE) is a powerful built-in framework in AOS-CX for monitoring and troubleshooting. It uses Python-based agents to track system health and network events.

Direct UI Integration: The AOS-CX Web Interface (Web UI) includes a dedicated Analytics dashboard. Within this dashboard, there is a functional integration designed to simplify the acquisition of new monitoring scripts.

Aruba Solutions Exchange (ASE): The ASE is the official repository for Aruba-validated scripts, configuration templates, and NAE agents. When an administrator clicks the " Download " or " Discover " button within the NAE section of the switch ' s Web UI, the switch attempts to connect directly to the Aruba Solutions Exchange API . This allows the user to browse, select, and install verified NAE scripts without manually downloading files from a PC and then uploading them to the switch.

Evaluating Other Options:

Option A: The Support Portal is used for firmware and documentation, but it is not a script repository integrated into the switch UI.

Option C: Airheads is a community forum where scripts are discussed and shared manually, but it lacks the API integration for direct UI downloads.

Option D: While there is an official Aruba GitHub for NAE scripts, the built-in discovery mechanism specifically points to the ASE portal for a seamless, authenticated experience.

AOS-CX is a modern, database-driven operating system, but it is built with extensive backward compatibility to ensure it fits into established enterprise ecosystems.

CLI (Command Line Interface) (Option A): This is the most traditional form of switch management. AOS-CX provides a robust CLI accessible via Console, Telnet, or SSH. While the syntax is " industry-standard " (similar to Cisco or older ArubaOS-Switch), it remains a " legacy " pillar that almost all existing management systems (like Rancid, SolarWinds, or custom scripts) use for configuration and state collection.

SNMP (Simple Network Management Protocol) (Option E): SNMP is the universal " legacy " language for network monitoring. AOS-CX supports SNMP v1, v2c, and v3. Legacy Management Systems (NMS) rely on SNMP MIBs (Management Information Bases) to pull statistics about port utilization, temperature, and errors.

Modern vs. Legacy:

REST API (Option B): This is a modern, programmable interface where every command in the switch can be executed via a JSON-based web call. Legacy systems typically do not support this.

NAE (Option C): The Network Analytics Engine is unique to AOS-CX and uses Python scripts for local monitoring. This is a " Next-Gen " feature.

HTTPS (Option D): While web interfaces have been around a while, the modern AOS-CX Web UI is a sophisticated tool built on top of the REST API, and it is generally considered a primary management method for the " Modern " era rather than a " Legacy Management System " integration point like SNMP.

Device Profiles on AOS-CX switches are a " Lite " version of Dynamic Segmentation, allowing the switch to automatically configure a port when a specific device is detected via LLDP or CDP, without needing a RADIUS server.

Associate an LLDP group (Option C): To " catch " a device, you first define a Device Group (often an lldp-group) that contains match criteria such as the System Name or OUI of an Aruba AP. This group tells the switch which devices should trigger the profile.

Associate a role (Option A): Once a device matches the group, the switch needs to know what to do with it. The Role is the container that holds all the port attributes (VLAN, PoE priority, STP settings, etc.). The Device Profile ' s job is to " bridge " the group and the role together using the associate role and associate lldp-group commands.

Why other options are incorrect:

Options B, D, and E: These are all settings that are configured inside the Role . You do not associate a VLAN or an ACL directly to the Profile; you associate them to the Role, and then associate the Role to the Profile.

To determine which sites would benefit most from upgrading from 6200 to more powerful 6300 switches in Aruba Central, the best report to run is the Switch Capacity Planning report. It analyzes resource utilization and capacity to identify bottlenecks and potential upgrade candidates.

Infra Inventory lists devices but not capacity usage.

Resource Utilization gives raw usage but not in planning context.

Network report focuses on topology and status.

Hence, Switch Capacity Planning is the most relevant report for upgrade planning.

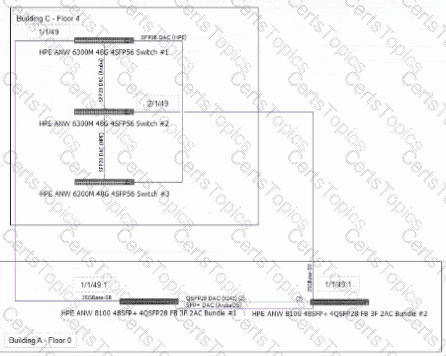

For a 1 Gbps link between two Aruba CX switches, the appropriate SFP port type is an SFP (Small Form-factor Pluggable). SFP+ and SFP28 are used for higher speeds such as 10 Gbps and 25 Gbps, respectively. QSFP+ is for even higher speeds (40 Gbps).

SFP supports 1 Gbps (1000BASE-X)

SFP+ supports 10 Gbps

SFP28 supports 25 Gbps and above

QSFP+ supports 40 Gbps and above

Therefore, the correct port type for a 1 Gbps link is SFP.

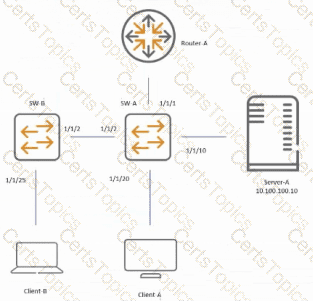

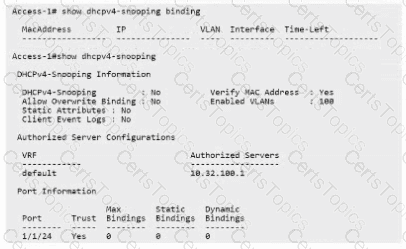

To prevent rogue DHCP servers in a VLAN, DHCP snooping authorized-server commands are used to specify trusted DHCP servers allowed to respond.

Option A (dhcpv4-snooping trust 10.100.100.10) configures a trusted port, but it is not VLAN specific and not precise enough for this purpose.

Enabling DHCP snooping globally and on VLAN or interface (Options C and D) are prerequisites but do not prevent rogue servers unless authorized servers are defined.

Option B correctly enables an authorized DHCP server IP on VLAN 30, blocking unauthorized DHCP responses.

The exhibit shows a configuration for a standard Stub Area (area 1 stub). To meet the customer requirement of having only a default route, we must understand how OSPF area types filter Link State Advertisements (LSAs).

Stub Area (Current Config): Blocks Type 5 (External) LSAs. The Area Border Router (ABR) injects a Type 3 LSA default route. However, Type 3 LSAs (Inter-Area routes from other parts of the OSPF network) are still allowed in. This explains why the user still sees other OSPF routes in the table.

Totally Stubby Area (The Solution): This area type is a Cisco/Aruba enhancement to the OSPF standard. It blocks both Type 5 (External) and Type 3 (Inter-Area) LSAs. The ABR replaces all of these with a single Type 3 default route . This is the most efficient configuration for a small branch switch with limited memory and a single exit point.

AOS-CX Configuration: To convert the current " Stub " to a " Totally Stubby " area, you would add the no-summary keyword on the ABR:

Bash

router ospf 1

area 1 stub no-summary

Why other options are incorrect:

Option A and D: NSSA (Not-So-Stubby Areas) are used when you need to redistribute external routes from the branch into the rest of the OSPF network. The prompt doesn ' t mention a local external source.

Option B: This is what is currently configured and is explicitly described as not meeting the requirement.

In the context of the HPE Aruba Networking troubleshooting framework, selecting a methodology depends heavily on the trigger event.

The Trigger: A physical change occurred (relocating an AP). In networking, physical changes are synonymous with Layer 1 (Physical Layer) of the OSI model.

Bottom-Up Approach: The " Bottom-up " methodology starts at the Physical Layer and works upward through the Data Link, Network, and Transport layers. Since a technician recently touched the cabling and moved the hardware, starting with the physical layer is the most efficient path. You would first verify the cable integrity, PoE power delivery from the switch, and the physical environment (RF interference in the new location).

Top-Down Approach: Alternatively, starting at the application layer (the video call software) is also a valid " starting point " when the user reports an application-specific failure. Together, the Top-down/Bottom-up model provides a structured way to isolate whether the issue is the physical move or a software configuration that coincided with it.

Why others are less suitable here:

Option B (Divide and conquer): This usually starts at Layer 3 (IP connectivity) to see if you can ping. While useful, it might skip the most likely culprit in a physical relocation: a bad cable or poor signal.

Option C: This is a remediation step, not a diagnostic methodology.

Option D (Follow the path): This is better for complex routing issues where packets are getting lost across multiple hops; it is overkill for a local boardroom connectivity issue.

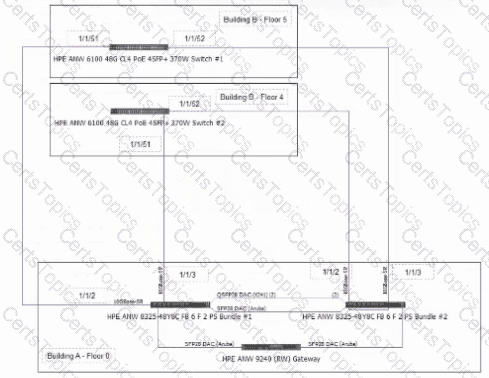

When configuring a Multi-Chassis Link Aggregation Group (MC-LAG) in a VSX environment, the two physical switches must act as a single logical entity to the connected device (the Gateway).

The Concept of Multi-Chassis (Option A): In many networking architectures, including Aruba ' s legacy AOS-Switch and the conceptual models taught in certification, a LAG must be explicitly identified as " Multi-Chassis " to enable the coordination between the two physical switches. In AOS-CX , while you don ' t literally type " multi-chassis " on the interface, the term is used in exam contexts to describe the MC-LAG functionality .

The " One Link Up " Problem: If the Gateway only sees one link up, it means the LACP negotiation has failed on one of the two switches. This happens because the two switches are not presenting the same LACP System ID to the Gateway. Without the proper multi-chassis/VSX coordination, Switch 1 and Switch 2 appear as two completely different devices. The Gateway’s LACP process will see two different IDs for what it thinks should be one bundle and will block one of the links to prevent a loop.

Why not B? vsx-sync is used to synchronize the commands between the two switches so you don ' t have to type them twice. While helpful for management, its absence doesn ' t prevent a link from coming up as long as you manually configured both sides identically.

Why not C? lacp mode active on the switch will work perfectly with either active or passive on the Gateway side.

Comprehensive Detailed Explanation:

To prevent man-in-the-middle attacks based on Layer 2 (Ethernet) addressing, enabling ARP inspection in the VLAN context is recommended. ARP inspection validates ARP packets and ensures only legitimate ARP responses are forwarded.

Enabling ARP inspection at VLAN level allows granular control.

Interface-level or global context is less typical or supported for ARP inspection on Aruba CX switches.

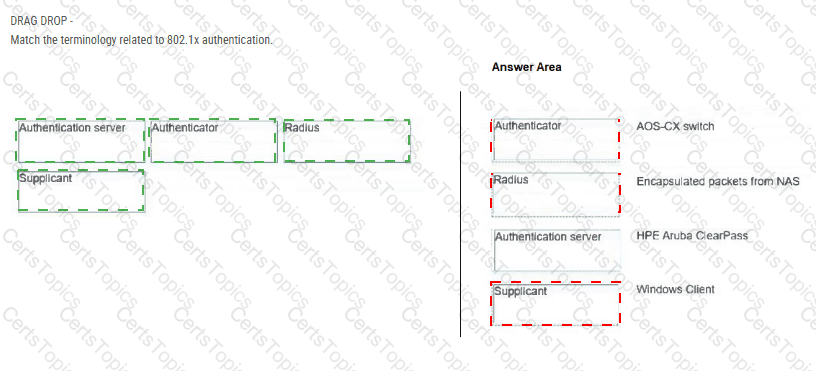

Authenticator: AOS-CX switch

Radius: Encapsulated packets from NAS

Authentication server: HPE Aruba ClearPass

Supplicant: Windows Clien

To master the HPE Aruba Networking Certified Professional - Switching exam, you must clearly distinguish between the roles defined in the IEEE 802.1X standard. These roles dictate how identity-based security is enforced at the edge of the network.

Supplicant (Windows Client): The supplicant is the client device (laptop, phone, or IoT device) that is requesting access to the network. It runs software (a " supplicant " ) that can respond to EAPOL (EAP over LAN) requests from the switch. In a typical office environment, the Windows 10/11 native 802.1X client acts as this role.

Authenticator (AOS-CX switch): The authenticator is the intermediary device, typically an access layer switch. Its job is to control the physical or logical port. It remains in an " Unauthorized " state (blocking all traffic except EAPOL) until it receives a success message from the authentication server. It translates EAPOL packets from the client into RADIUS packets for the server.

Authentication Server (HPE Aruba ClearPass): This is the " brain " of the operation. The server validates the credentials (certificates, usernames/passwords) provided by the supplicant. In the Aruba ecosystem, ClearPass Policy Manager (CPPM) is the primary authentication server. It checks its internal database or an external one (like Active Directory) and sends an " Access-Accept " or " Access-Reject " back to the switch.

Radius (Encapsulated packets from NAS): RADIUS (Remote Authentication Dial-In User Service) is the networking protocol that provides the transport for these exchanges. The switch, acting as a NAS (Network Access Server) , takes the EAP payload from the client and encapsulates it into RADIUS packets to send them across the IP network to ClearPass.

In OSPF, when an Autonomous System Boundary Router (ASBR) redistributes routes into the OSPF domain, it assigns them a " Type. " Understanding the difference between Type 1 (E1) and Type 2 (E2) is fundamental for controlling traffic flow out of the network.

Type 2 (E2) Routes (Default): The cost of an E2 route is only the external cost (seed metric) assigned by the ASBR. OSPF does not add the internal path cost to reach the ASBR when comparing two E2 routes.

Tie-Breaking: If two ASBRs advertise the same prefix with the same E2 metric , OSPF then uses the internal cost to the ASBR as a tie-breaker. It will choose the path to the ASBR that is mathematically " closest " in terms of OSPF cost.

Closest Exit Point Strategy (Option D): This is a very common design in Aruba campus networks with multiple Internet or Data Center exits. By configuring all ASBRs to use the same E2 seed metric (the " appropriate " metric), you ensure that every switch in the network will automatically choose its own closest exit point based on the local topology.

Type 1 (E1) Routes: These routes calculate the total cost as External Cost + Internal Path Cost . Use E1 when you want the internal network ' s performance/hops to always influence the path choice, even if external costs differ.

Why other options are incorrect:

Option B: This is the definition of an E1 route, not E2.

Option C: While E2 with the same metric can result in ECMP (Equal Cost Multi-Path), this only happens if the internal costs to both ASBRs are also identical. The more fundamental architectural goal for E2 is favoring the closest exit.

Option A: You can achieve primary/backup with either E1 or E2; it is not a requirement to use E1.

To monitor BGP neighbor state changes and automatically create a helpdesk ticket, the NAE (Network Analytics Engine) action to use is a REST API call. This allows integration with external ticketing or automation systems, enabling automated ticket creation when a monitored event occurs.

Executing shell commands, sending emails, or generating logs are limited to internal actions and do not integrate as seamlessly with helpdesk systems.

REST API calls allow custom integration and automation.

When line card LEDs do not light up, and the cards are newly installed, the best troubleshooting methodology is Divide and conquer by swapping the line cards. This method isolates the problem by testing hardware in different slots or known working units.

Spot the difference involves comparing configurations, which does not directly isolate hardware failure.

Follow the path is more suited for connectivity issues.

Replace configuration relates to software or config problems.

Hardware issues are best isolated by physically swapping components.

To isolate wired ports on the same VLAN on a large scale (such as hotel rooms) but allow communication within the same VLAN for common areas, Private VLANs (PVLANs) are recommended. PVLANs allow segmentation within a single VLAN by dividing it into primary and secondary VLANs, controlling communication between ports.

VPN and VXLAN are overlay technologies for different purposes.

UBT (User-Based Tunneling) is related to wireless user segmentation, not wired port isolation.

Therefore, PVLANs provide the simplest and most effective solution to isolate room ports within a single VLAN.

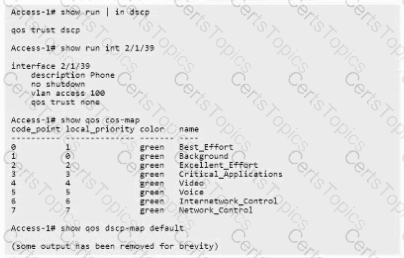

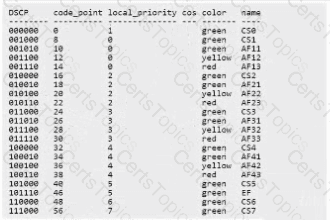

For an interface connected to an untrusted device regarding DSCP markings, the recommended configurations are:

Apply a classifier-based policy to assign a Local Priority value (Option B). This overrides or marks traffic based on predefined criteria.

Configure qos trust none (Option E) to disable trusting DSCP or CoS markings from the device, preventing manipulation of QoS.

Trusting CoS (Option A) is incorrect because the device is untrusted.

DSCP maps and Weighted Fair Queuing (Options C and D) are additional QoS features but do not specifically address untrusted markings.

In an AOS-CX VSX environment, LACP is the standard for forming Multi-Chassis Link Aggregation Groups (MC-LAGs). However, LACP has a " chicken and egg " problem during certain boot processes.

The LACP Dilemma: LACP requires a software driver or " actor " on the client device to exchange BPDUs with the switch. During a Preboot Execution Environment (PXE) Boot , a server or workstation does not yet have its OS or LACP drivers loaded. Consequently, the switch receives no LACP packets, and by default, it keeps the LAG ports in a " blocked " or " waiting " state to prevent loops.

LACP Fallback Function: The lacp fallback command allows the VSX members to temporarily treat the LAG ports as non-bonded individual interfaces if no LACP partner is detected. This allows the device to communicate over a single physical link during the PXE process to download its OS image.

The Transition: Once the OS is loaded and the LACP driver starts sending BPDUs, the switch automatically transitions the ports back into a fully functional, bonded LAG.

Why other options are incorrect:

Option A: LACP mode (Active vs. Passive) is handled by the lacp mode command, not fallback.

Option D: While fallback results in a single interface operating, the intent and design requirement is to facilitate the pre-OS boot process, not simply to limit the partner to one interface.

Dynamic Segmentation (DS) requires certain capabilities on the switches to support user role assignment and traffic segmentation based on identity. The CX 6100 series switches do not support Dynamic Segmentation due to hardware and feature limitations. Therefore, they must be replaced with CX 6300 models, which support DS features natively.

Options involving GRE tunnels or VXLAN tunnels relate to traffic forwarding but do not enable DS on unsupported hardware.

Applying licenses does not upgrade hardware capabilities for DS.

When a VSX primary switch is powered off, it loses connectivity with management systems such as HPE Aruba Central. This causes the management system to trigger a " Switch Disconnected " alert because the switch is no longer reachable.

" Switch Reboot " alerts would indicate a restart, not power off.

" Switch Stack Conductor Change " refers to stack leadership changes, not VSX primary down.

" Switch STP Root Change " relates to Spanning Tree Protocol root bridge changes.

Hence, powering off the VSX primary causes a " Switch Disconnected " alert.

The term " Active " in BGP is one of the most misunderstood states. It sounds positive, but it actually indicates that the switch is " actively " trying to establish a TCP connection and failing.

eBGP Default Behavior: By default, External BGP (eBGP) expects neighbors to be directly connected. Because of this, eBGP packets are sent with a Time to Live (TTL) of 1 .

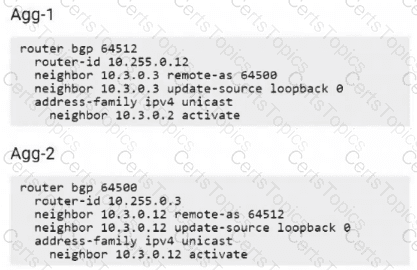

The Loopback Problem: In the exhibit, the switches are peering using their Loopback 0 addresses (update-source loopback 0). Even if the switches are physically connected, the Loopback interface is considered a " hop " away from the physical interface.

TTL Expiry: When Agg-1 sends a BGP packet to Agg-2 ' s loopback, the TTL of 1 expires before the packet can reach the logical loopback interface. This causes the TCP connection to fail, keeping the session in the Active state.

The Solution (eBGP Multihop): To fix this, you must configure ebgp-multihop (usually with a value of 2 or more). This increases the TTL, allowing the BGP packets to reach the loopback address.

Side Note on the Exhibit: If you look closely at Agg-1 ' s configuration, there is a typo: the neighbor is defined as 10.3.0.3 but the address-family activation is for 10.3.0.2. While this would also cause a failure, the core architectural concept being tested here regarding " Active " state and loopbacks is the TTL/Multihop requirement.

Comprehensive Detailed Explanation:

For live upgrading a VSX cluster, the correct procedure is to use the vsx update-software option, which allows in-service software upgrade (ISSU) with minimal disruption by upgrading switches one at a time while maintaining synchronization.

issu update-software is not a recognized command in Aruba CX.

Reloading the primary first risks service disruption.

Compatibility mode is not required prior to reboot.

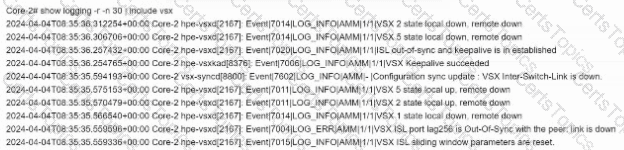

The event message:

perl

Copy

2024-04-04T08:35:38.312254+00:00 ICX-Core-1 hpe-vaxd[2167]: Event[701|LOG_INFO|AMM1/1|VSX2 state local up, remote down]

indicates that the local VSX member is up, but the remote VSX member is down. In a VSX pair, both switches must be operational for full redundancy and synchronization.

This log means the secondary VSX switch (remote) is down or unreachable, causing loss of synchronization and possibly traffic failover issues.

Option B (keepalive detection) is related but the event specifically shows the state of the remote switch being down.

Options C and D refer to LAG or interface state, which are not what this log entry describes.

In the study of BGP (Border Gateway Protocol) for AOS-CX, understanding the differences between Internal BGP (iBGP) and External BGP (eBGP) is fundamental to the ACP-S certification.

eBGP Peering Definition: eBGP occurs when two BGP neighbors reside in different Autonomous Systems. In this scenario, the local switch is in AS 65010 and the neighbor is in AS 65100 .

The " Directly Connected " Requirement: By default, BGP assumes that eBGP neighbors are directly connected (physically connected or on the same subnet). This is because eBGP packets are sent with a Time-to-Live (TTL) of 1 . If the neighbor is more than one hop away (for example, peering via loopback interfaces without additional configuration), the packet will expire before reaching the neighbor, and the session will not establish.

Terminology Note: The term " directory connected " in the question is a common typographical error in exam materials for " directly connected. " In the context of eBGP peering, being directly connected is the default requirement to ensure the TTL 1 packet reaches the peer. If you were peering with a non-directly connected device, you would need to manually configure ebgp-multihop.

Analysis of Other Options:

Option A: This is incorrect as it uses a random AS number (65001) that does not match the local or neighbor AS provided in the prompt.

Option B: Route Reflectors are a solution used exclusively in iBGP to solve the split-horizon rule (which dictates that a prefix learned from an iBGP peer cannot be advertised to another iBGP peer). Route reflectors are never used for standard eBGP sessions.

Option D: While AOS-CX requires you to enter the address-family ipv4 unicast context to activate a neighbor, the keyword " internal " is not a valid address-family type in the AOS-CX BGP syntax for this purpose.

Key Practice Tip: When configuring BGP on AOS-CX, always remember that after defining the neighbor x.x.x.x remote-as, you must enter the address-family context and use the neighbor x.x.x.x activate command for the session to transition to the " Established " state.

Comprehensive Detailed Explanation:

When a recent configuration change causes a spike in CPU utilization that negatively impacts users, the fastest way to restore normal operation is to revert the change. This rollback immediately removes the offending configuration, potentially stabilizing the CPU and restoring service.

Rebooting the switch (Option A) is disruptive and takes more time.

Disabling debug logging (Option C) may help if debug is causing high CPU, but it doesn ' t undo config changes.

Pausing NAE monitoring (Option D) only suspends monitoring and doesn’t address the root cause.

Hence, reverting the recent config change is the best immediate action.

If the ISL between two VSX core switches is down and logs indicate that Core-2 has disabled its VSX LAG interfaces, it means Core-2 has disabled its VSX LAG interfaces, likely as a protective or failover mechanism.

Keepalive packets being dropped (Option B) may cause issues but logs specifically state interface disablement.

Both switches forwarding traffic (Option C) is unlikely if ISL is down.

Downstream switches inability to forward traffic (Option D) is a consequence, not the cause.

The command erase all zeroize performs a secure erase on the switch, which deletes all customer data including startup-config and stored credentials. This process can take up to an hour depending on the hardware and storage media.

It does not retain running config (Option A).

It does not restore the factory AOS-CX image (Option B).

Admin credentials are deleted as part of the secure erase (Option C is incorrect).

Therefore, this command securely wipes all data and resets the device.

The LACP state event Actor state: ALFNCD, Partner state: ASFNCD indicates that the LACP negotiation between the local (actor) and peer (partner) is successful with all flags matching and no errors.

ALFNCD and ASFNCD are standard LACP states indicating Active, Long timeout, Aggregation capable, Not synchronized, Collecting, and Distributing flags set as expected.

Also, the log shows the LACP rate is set to slow, which is the default.

Thus, the output shows the LAG 253 has a matching LACP configuration with its peer.

To avoid split-brain scenarios in VSF stacks, the VSL split-detect mgrep command is used to enable multicast group detection over the Virtual Switching Link (VSL). This helps detect when the stack links are down or partitioned, triggering appropriate failover or shutdown mechanisms.

Options like vsf start-auto-stacking, vsf secondary-member 2, or vsf conductor-member 2 are related to stack initialization and member roles but do not address split-brain detection directly.

Hence, enabling split-detect with mgrep is the best practice for VSF stack stability.
