In a client-to-site VPN based on tunnel-mode IPsec, the remote clients and a gateway at the main site are responsible for the IPsec encapsulation. The remote clients initiate the VPN connection and encapsulate their traffic in IPsec, which is then decapsulated by the gateway at the main site.

1.IPsec Encapsulation: The remote clients encapsulate their traffic using IPsec protocols before sending it over the internet to the main site.

2.Gateway Role: The gateway at the main site receives the encapsulated traffic, decapsulates it, and forwards it to the internal network. Similarly, traffic from the main site to the remote clients is encapsulated by the gateway and decapsulated by the clients.

3.Security: This setup ensures that data is securely transmitted between the remote clients and the main site, protecting it from eavesdropping and tampering.

To support the requirement for HPE Aruba Networking ClearPass Policy Manager (CPPM) to have HTTP User-Agent strings for profiling devices, you should add the CPPM server's IP address to the IP helper list in all client VLANs on routing switches. This configuration ensures that DHCP requests and other relevant client traffic are forwarded to CPPM, allowing it to capture HTTP User-Agent strings and use them for device profiling.

1.IP Helper Configuration: Adding CPPM to the IP helper list ensures that the switch forwards DHCP and other client traffic to CPPM, enabling it to gather necessary information for profiling.

2.User-Agent Strings: By receiving client traffic, CPPM can analyze HTTP headers and capture User-Agent strings, which provide valuable information about the client's device and browser.

3.Profiling Support: This approach supports the comprehensive profiling of devices, allowing CPPM to apply appropriate policies based on detailed device information.

Why a Mirror Session Is the Correct Choice

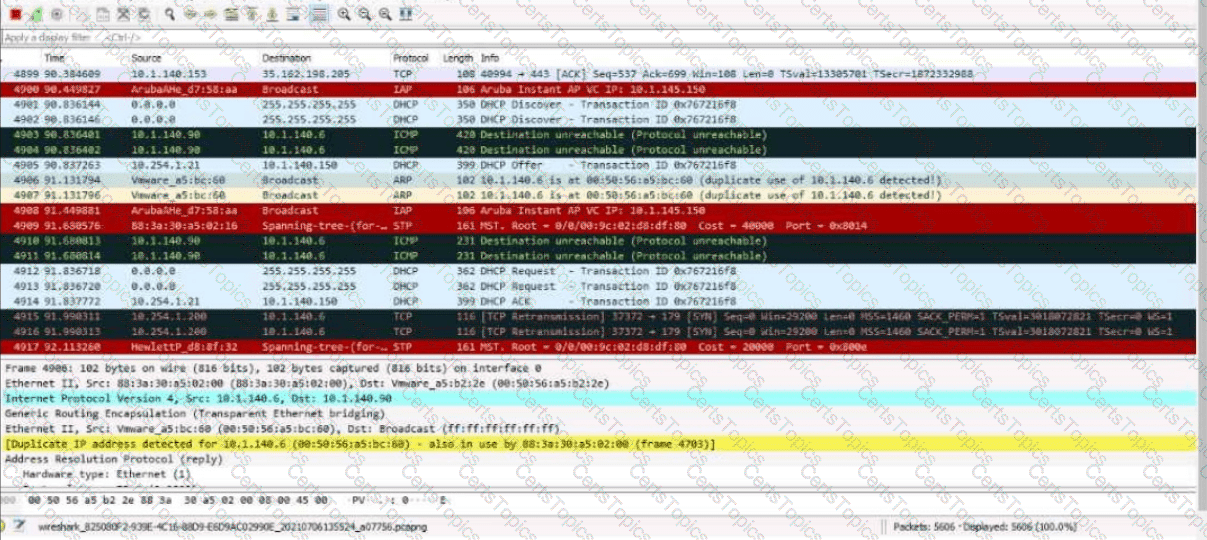

To analyze a wired client’s traffic with Wireshark, you need the traffic mirrored to your management station where Wireshark is installed. The most effective way to achieve this is by configuring a mirror session on the AOS-CX switch, specifying the client port as the source and your management station as the destination.

Analysis of Each Option

A. Access the client's switch's CLI from your management station. Access the switch shell and run a TCP dump on the client port:

Incorrect:

AOS-CX switches do not natively support packet capture (e.g., tcpdump) directly on the switch CLI.

This approach is not feasible for capturing and analyzing live client traffic.

B. Go to the client's switch in HPE Aruba Networking Central. Use the "Security" page to run a packet capture:

Incorrect:

HPE Aruba Networking Central provides security insights but does not directly support initiating packet captures for detailed analysis.

Traffic analysis with tools like Wireshark requires local packet capture at the management station.

C. Set up a policy that implements a captive portal redirect to your management station. Apply that policy to the client's port:

Incorrect:

Captive portals are designed for user authentication and redirection, not traffic analysis.

This would disrupt the client’s network activity without enabling traffic analysis in Wireshark.

D. Set up a mirror session on the client's switch; set the client port as the source and your station IP address as the tunnel destination:

Correct:

Mirroring the client port to your management station is the standard method for analyzing live network traffic with Wireshark.

Steps include:

Configure a mirror session on the client’s AOS-CX switch.

Set the client’s port as the source.

Set your management station as the destination using its IP address (via GRE tunnel or physical interface).

Start capturing traffic with Wireshark on the management station.

Final Recommendation

To analyze the client's traffic, configure a mirror session on the switch, set the client port as the source, and direct the traffic to your management station where Wireshark is running.

References

AOS-CX Switch Port Mirroring Configuration Guide.

HPE Aruba Networking Central Monitoring and Troubleshooting Best Practices.

Wireshark Traffic Analysis and Capture Techniques.
