F5CAB1 Exam Dumps : BIG-IP Administration Install, Initial Configuration, and Upgrade

For BIG-IP high-availability (HA) pairs, F5’s recommended upgrade workflow prioritizes service continuity , predictable failover , and minimal downtime . The established best-practice sequence is:

Upgrade the standby unit first

Because the standby device is not passing traffic, upgrading and rebooting it does not impact production.

Boot the standby unit into the newly installed version

Once online, the administrator verifies basic health, device sync status, cluster communication, and module functionality.

Perform a controlled failover to the upgraded unit

Traffic shifts to the newly upgraded device, allowing validation of the configuration and operational behavior under real traffic loads.

Upgrade the second device (now standby)

The previously active device becomes standby after failover, allowing it to be safely upgraded and rebooted without interruption.

This phased approach ensures only one device is unavailable at a time, allowing continuous traffic flow throughout the upgrade process.

Why the Correct Answer is C

Option C exactly matches F5’s documented production-safe upgrade method:

Upgrade the standby node first

Reboot into new image

Failover to upgraded device

Validate

Upgrade the remaining (now-standby) device

This procedure minimizes risk and traffic disruption.

Why the other options are incorrect:

A. Upgrade the active node first

Upgrading the active device requires removing it from service and failing over abruptly. This is not recommended and increases service disruption risk.

B. Resetting device trust

Resetting trust is unnecessary and can disrupt configuration sync, peer communication, and cluster operation. It is not part of any standard upgrade workflow.

D. Upgrading and rebooting both nodes simultaneously

This would cause total outage , because both HA members would be unavailable at the same time.

Comprehensive and Detailed Explanation From BIG-IP Administration — Install, Initial Configuration, and Upgrade:

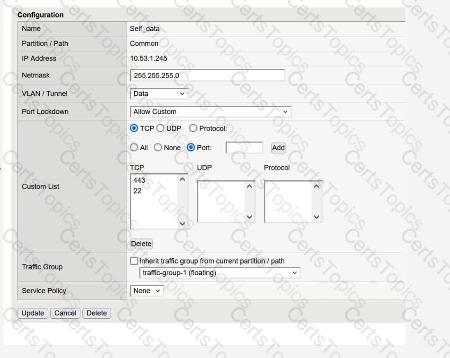

BIG-IP Self IP addresses have an associated Port Lockdown feature that governs which protocols and services are permitted to communicate directly with that Self IP. By default, Self IPs may allow broader access than desired, making Port Lockdown a critical hardening control.

The Allow Custom option under Port Lockdown is the precise mechanism for administrators who need granular, port-specific filtering. When selected, only the explicitly listed TCP/UDP ports are permitted — all others, including port 443 (HTTPS), are implicitly denied. This satisfies the requirement of blocking 443 specifically while preserving access on other required ports.

The remaining options are incorrect for this scenario:

Option A references SSH access control under System » Platform, which governs management-plane SSH — not Self IP service filtering.

Option B disables the entire Self IP, removing all traffic handling, which is operationally disruptive.

Option D — Allow None — blocks all traffic to the Self IP, not selectively port 443.

The Allow Custom approach provides the surgical precision required: administrators enumerate permitted ports, and everything outside that list — including 443 — is dropped.

Reference Topics: Self IP Port Lockdown, Network Security Hardening, Self IP Configuration — BIG-IP Administration Study Guide.

When installing a BIG-IP software version with a HotFix on a new boot volume , F5 requires that both the base TMOS image and the HotFix image be installed together as part of the same installation workflow.

The correct process is:

Specify the base TMOS ISO

Specify the HotFix ISO that corresponds to that base version

Instruct the system to create a new boot volume

Install both images into that new volume

This is achieved with the following tmsh syntax:

tmsh install /sys software BIGIP- < version > .iso hotfix Hotfix-BIGIP- < version > -ENG.iso create-volume HD1.2

This command:

Installs the base image first

Applies the HotFix on top of the base image

Creates and installs everything on HD1.2

Leaves the currently active volume untouched for rollback

Why the other options are incorrect

A. Installing only the hotfix

A HotFix cannot be installed by itself on a new volume. A base image must already be present.

C. Using create instead of install

The create keyword is not valid for software installation operations.

D. Using copy

The copy command does not install software images or hotfixes.
