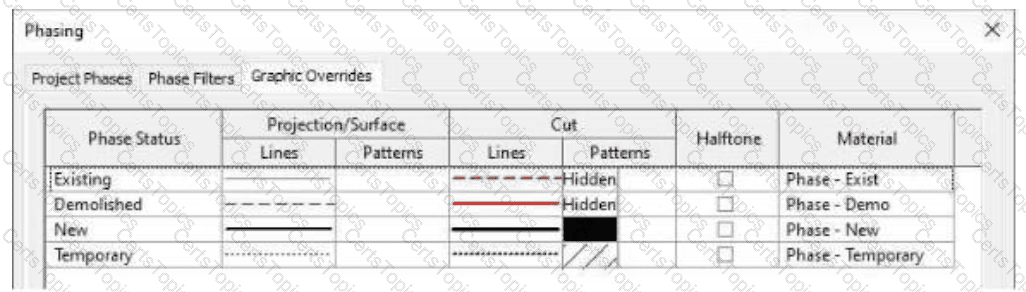

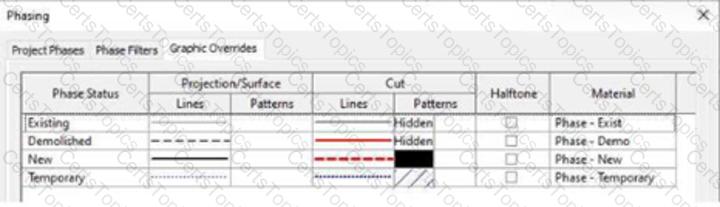

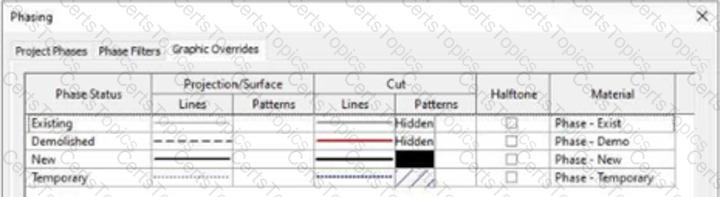

The project should retain a common View Template for consistent graphics, visibility, filters, discipline settings, detail level, and other documentation standards, while excluding View Range from the parameters controlled by that template. Deselecting the corresponding Include checkbox allows each floor-plan view to maintain a level-specific View Range without losing the other standardized template settings.

Plan Regions are intended for localized conditions within a plan, such as a raised platform, clerestory, split level, or isolated area requiring a different cut plane. They are not an efficient substitute when the entire floor requires a different View Range because its floor-to-floor height differs from other levels.

Removing the View Template would weaken graphical and documentation consistency. Visibility/Graphics also does not control the View Range; it controls the visibility and appearance of categories and elements. Creating a separate template for every floor would produce unnecessary template proliferation and increase maintenance risk because future standard changes would need to be repeated across numerous nearly identical templates.

Excluding only the variable parameter provides the correct balance between corporate standardization and project-specific view configuration.

Reference topics: View Templates; View Range; template-controlled parameters; Plan Regions; floor-plan standards; graphical consistency.

===============

Training should be targeted to the personnel responsible for executing, checking, or approving the specialized data-formatting and export workflow. The BIM manager should develop task-specific tutorials that cover tool installation, approved configuration, source-data prerequisites, export settings, file naming, validation procedures, exception handling, and the method for confirming compliance with the government and global data-management requirements.

Role-based assignment is more effective than training the entire project team. Only users who perform or supervise the workflow require operational proficiency, while other participants may need only general awareness of submission dependencies. This reduces training time, limits unnecessary software access, and creates clear accountability.

Waiting for software crashes or quality-control failures is reactive and exposes the project to preventable delivery risk. Revit Journal files may help diagnose technical failures, but they do not identify whether users understand the required data workflow. Similarly, milestone reviews occur too late to serve as the primary training trigger.

The BIM manager should also test the add-on in a controlled environment, document approved versions, provide sample datasets, and verify user competency before production exports begin.

Reference topics: Role-based training; project-specific technology deployment; add-on validation; data-export standards; competency assessment; quality assurance.

The Revit publication configuration must first include the sheets and model views that the contractor is expected to review. Updating Publish Settings ensures that the designated documentation is included whenever the cloud model is published. Without this configuration, the cloud environment may contain the latest model version but omit the required sheets.

The BIM manager should then configure scheduled publishing through Design Collaboration so that the agreed information is refreshed at the required weekly interval. This establishes a predictable review cycle and reduces dependence on individual users remembering to publish manually.

Emailing PDFs creates uncontrolled duplicate files outside the Common Data Environment and separates markups from the authoritative model and issue history. Blank sheets add no value and do not make current documentation available. Enabling Model Coordination may be necessary for automated clash workflows, but the stated requirement is to review and mark up the latest models and sheets; it is not specifically a clash-detection requirement.

The contractor must also receive appropriate view and markup permissions, and the BIM manager should confirm that each scheduled publication completes successfully before the agreed review period.

Reference topics: Revit Publish Settings; scheduled publishing; Design Collaboration; weekly model exchange; sheet publication; cloud-based markup workflows.

===============

The timing of the performance degradation strongly indicates that one or more recently distributed links, or their access paths, should be isolated before undertaking invasive model changes. Opening the project through Specify Worksets allows the BIM manager to control which worksets are loaded. Where Revit links are assigned to dedicated worksets, the manager can initially close those worksets, assess baseline performance, and then load them selectively. If the model performs normally with linked-model worksets closed, the investigation has established a defensible connection between the slowdown and the updated external references.

The Manage Links dialog should then be reviewed for link status, saved paths, path type, file availability, and unexpected network or cloud locations. A valid link may still degrade access when it resolves through an inaccessible, high-latency, or inconsistent location.

Flattening linked geometry is not a standard Revit troubleshooting operation. Removing and recreating every link is unnecessarily destructive and can compromise positioning, visibility overrides, and coordination settings. Consultant warnings may warrant separate health reviews, but indiscriminately fixing every warning is neither an efficient first diagnostic step nor normally within the host team’s model authority.

Reference topics: Linked-model troubleshooting; workset loading; Manage Links; model-performance isolation; distributed-file validation; Revit model health.

===============

The Survey Point represents the shared real-world or site coordinate framework. Placing or defining it consistently at the common site origin allows every building model to relate to the same survey reference for federation, site plans, civil coordination, and geographically consistent exports.

Each building should retain its own Project Base Point because this point supports the building’s local project-coordinate framework. A building may use a convenient internal datum and orientation suited to its grids, geometry, and documentation while still maintaining a transformation to the common survey system. This separation allows the buildings to remain independently manageable without losing site-wide positional accuracy.

Placing every Project Base Point at the shared site origin would eliminate the intended distinction between each building’s local coordinate basis and the common site reference. Likewise, using a single Project Base Point across all separate models is not how Revit coordinate systems operate; each model has its own internal origin, Project Base Point, and Survey Point. Option B is imprecise because the requirement is not to establish unrelated Survey Points, but to align the models to one shared site origin.

The correct arrangement is a common Survey Point reference combined with a locally appropriate Project Base Point for each building.

Reference topics: Survey Point; Project Base Point; multi-building coordination; local versus shared coordinates; site federation; building-specific origins.

===============

A structured performance audit is the correct starting point because it evaluates the model comprehensively rather than assuming a single cause. The review should examine warning quantity and severity, file size, imported or linked CAD data, excessive views, unused content, model groups, in-place families, highly detailed components, workset configuration, and other authoring practices that can increase regeneration time and memory consumption.

In-place families are particularly relevant because numerous or geometrically complex instances can make the model difficult to maintain and may increase computational overhead. Warning trends also matter: some warnings create repeated relationship checking or indicate poor modelling practices, although warning count alone does not determine performance.

Deleting sheets or exporting only 3D views damages the project’s documentation structure and does not constitute a controlled health-improvement strategy. Clash reports evaluate multidisciplinary spatial conflicts; they do not diagnose the internal efficiency of the submitted Revit model. Loading linked files individually can be useful later when evidence specifically implicates a link, but it is too narrow as the primary health assessment.

The audit should produce documented findings, prioritized recommendations, and measurable actions that the consultant can implement without compromising required project deliverables.

Reference topics: Revit model-health audits; performance management; warnings; in-place families; file-size analysis; consultant model review; coordination readiness.

The imported Civil CAD files are the strongest causal indicator. Imported CAD data becomes embedded within the Revit model rather than remaining externally referenced. Civil drawings frequently contain large coordinate extents, dense linework, hatches, proxy objects, unnecessary layers, and complex geometry. Embedding several such files can substantially increase model size, graphical processing requirements, opening time, and synchronization duration.

The audit specifically establishes that no significant native Revit geometry was added, eliminating option A as the principal explanation. Revit model backups are normally maintained externally or through version history rather than being accumulated as embedded model data in the manner suggested by option B. An increase from 600 to 750 warnings warrants review, and certain warning types can affect regeneration performance, but that increase alone is less likely to explain a doubled file size and a sudden 40% synchronization penalty.

The appropriate corrective action is to assess whether the CAD files can be linked instead of imported, clean them before use, remove unnecessary layers and objects, verify their coordinates, and purge obsolete imported definitions after removal.

Reference topics: Revit model health; imported versus linked CAD files; file-size management; performance auditing; model warnings; civil-background coordination.

===============

The first requirement is a documented governance framework that defines how the participating firms are expected to work together. The identified failures are not limited to unauthorized access; they also include inconsistent data and breakdowns in communication. Coordination protocols must therefore establish model ownership, authorized editing responsibilities, submission requirements, quality-control gates, issue-escalation paths, communication channels, and accountability for approving changes.

Once these rules are agreed, the BIM manager can configure Common Data Environment permissions to enforce them. Implementing tighter access controls before establishing the underlying responsibilities may prevent some unauthorized edits, but it does not determine who should own each dataset, which checks must be performed, or how coordination decisions are communicated.

Option A delegates model maintenance but does not establish consistent cross-team procedures or editing rights. Option D may expose design assumptions, yet it is focused on modelling strategy and conflict identification rather than comprehensive information governance.

Effective BIM coordination depends on both procedural and technical controls. The procedural protocol comes first because it provides the basis for access configuration, quality reviews, issue workflows, model exchange, and audit requirements across the delivery team.

Reference topics: BIM coordination protocols; model ownership; editing authority; Common Data Environment governance; quality control; communication planning; risk mitigation.

===============

A project-specific BIM kickoff is required to convert the BEP and client information requirements into operating procedures understood by every contributor. The session should align teams on weekly publication deadlines, approved file formats, model naming, coordinate standards, coordination responsibilities, issue workflows, COBie parameter requirements, validation gates, and final handover expectations.

This is particularly important where consultants use different platforms. The team must agree on interoperability methods, exchange formats, responsibility for data loss during conversion, and the authoritative location for approved information. The kickoff also provides an opportunity to identify training, software, access, and resource gaps before they affect production.

Accepting each firm’s standard workflow would preserve incompatible practices rather than establish a unified project process. Configuring permissions is necessary, but a Common Data Environment cannot compensate for undefined workflows or inconsistent deliverables. Waiting to modify a baseline BEP only after coordination problems occur is reactive and allows preventable errors to enter the project.

The kickoff should conclude with confirmed responsibilities, documented decisions, action owners, and controlled updates to the BEP and delivery plans.

Reference topics: BIM kickoff; multidisciplinary alignment; COBie; interoperability planning; coordination uploads; project-specific workflows; BIM Execution Plan implementation.

Software version and build information is essential because Revit models are not backward-compatible. Opening and saving a model in a newer release upgrades it, potentially preventing teams using an earlier version from accessing the file. Build differences can also matter where hotfixes or updates affect cloud worksharing, interoperability, stability, or specific model functions.

Required add-ins are equally important. A model or workflow may depend on third-party tools for data validation, content placement, exports, parameter management, automation, or specialized object handling. If contributors lack the approved add-in or use incompatible versions, they may be unable to reproduce required processes or may generate inconsistent deliverables.

Project units and shared coordinates are critical for modelling and spatial coordination, but they are project-configuration issues rather than the most direct determinants of digital-tool compatibility. Graphic standards govern presentation and documentation consistency but do not determine whether the model and workflow can be operated within the organization’s technology environment.

The kickoff should therefore confirm the approved software release, build, update policy, required add-ins, licensing, installation procedures, and testing responsibilities before production begins.

Reference topics: Software compatibility; Revit version management; approved builds; add-in governance; technology assessment; project kickoff; fast-track mobilization.

===============

The designer should inspect the view’s Visibility/Graphics settings. Area Lines, also referred to as Area Boundary Lines, are view-specific elements whose visibility can be controlled by the active view, an applied view template, or category-level visibility settings. If the applicable line category is disabled, Revit can create the boundaries successfully while warning that the newly created elements are not visible in the current Area Plan.

The review should include the Model Categories and Annotation Categories tabs, any active view filters, temporary hide/isolate status, and the view template controlling the Area Plan. Where a template governs visibility, the correction should normally be made in the template rather than as an isolated view override, particularly when the same standard must apply to multiple Area Plans.

A Plan Region changes the local view range and does not govern Area Boundary Line visibility. Detail Level affects how certain model geometry is represented but does not normally suppress Area Lines. The Area Scheme determines the type and organizational purpose of an Area Plan, such as Gross Building or Rentable Area, but it is not the direct location for correcting hidden linework.

Reference topics: Area Plans; Area Boundary Lines; Visibility/Graphics; view templates; view-specific elements; graphical troubleshooting.

===============

The clash matrix is the project’s approved framework for determining which model combinations, object categories, zones, and tolerances require coordination. The BIM manager should configure clash tests to reflect that matrix rather than distribute an unfiltered list of every geometric intersection generated by the software.

Low-value results should be removed through controlled rule selection, object-category filtering, zone-based scoping, and technically justified tolerance settings. Reports can then be organized according to each discipline’s responsibility and focused on clashes that materially affect constructability, design intent, access, maintenance clearances, or code compliance.

Sending all 3,000 results to project teams transfers the BIM manager’s triage responsibility to designers and creates substantial coordination noise. Manual spreadsheet sorting separates the results from model context and is inefficient for repeated review cycles. Arbitrarily relaxing clash rules merely to reduce totals is also unacceptable; tolerances must correspond to documented project requirements rather than a desired numerical result.

Applying the clash matrix creates a repeatable, auditable process and ensures that coordination meetings address consequential issues instead of irrelevant geometric contacts.

Reference topics: Clash matrices; clash-test configuration; tolerance management; discipline-based reporting; coordination prioritization; Model Coordination.

===============

Because the host model itself has not changed, the first investigation should focus on how the external references are being resolved. Relative paths depend on the relationship between the host file and the linked files within the project folder structure. If a folder was renamed, relocated, synchronized differently, or omitted from a distributed package, Revit may no longer locate the linked models even though the links remain correctly configured in the host.

The BIM manager should review the link status and saved paths in Manage Links , confirm that the referenced files still exist, and compare the current folder structure with the approved project structure. Access permissions, cloud synchronization status, and network availability should also be checked where applicable.

Converting all references to absolute paths would make the links dependent on a specific drive or network location and commonly causes failures for other users. Removing and reinserting links risks losing positioning, pinning, display overrides, workset assignments, and coordination history. Rebuilding the host from backup is disproportionate and does not address an external path or access failure.

Reference topics: Manage Links; relative file paths; federated-model folder structures; reference resolution; link-status troubleshooting; Common Data Environment access.

===============

The lighting team should correct the source CAD file so that it conforms to the project’s approved coordinate framework and then reissue it. External discipline files must be delivered with a predictable origin, orientation, and elevation that correspond to the architectural or designated site-control model. Correcting the source ensures that every recipient can link the file consistently and that subsequent updates retain the same placement.

Manually moving the linked CAD file in Revit creates an unmanaged instance offset. Although the file may appear aligned temporarily, reloading, replacing, or distributing it can reproduce the original problem or create inconsistent positioning among team members. Adding gridlines may help visually diagnose the offset but does not establish a reliable coordinate relationship.

Acquiring coordinates from the misaligned lighting file is particularly inappropriate because it would redefine the host model’s shared-coordinate relationship based on a non-authoritative and incorrectly positioned reference. The architectural or site model should remain the approved source of project positioning.

The BIM manager should provide the lighting team with the agreed coordinate protocol, reference model, control points, units, and required vertical datum, then validate the corrected file before accepting it for coordination.

Reference topics: Consultant file requirements; shared-coordinate governance; CAD-link positioning; authoritative coordinate sources; model exchange; coordination quality control.

===============

Repositioning the authoritative civil site resource relative to the established building model and then publishing the revised positional relationship is the least disruptive approach. At Design Development, multiple disciplines may already have linked the building model, established views, placed annotations, configured worksets, and coordinated systems around its current internal geometry. Physically moving all building elements would therefore create extensive risk, including displaced annotations, broken constraints, altered links, and inconsistent consultant coordination.

Publishing the updated position preserves the controlled relationship between the project model and the site resource without requiring each discipline to relocate its authored geometry manually. The revised coordinate relationship can then be distributed through the established shared-coordinate workflow.

Specify Coordinates at Point is not appropriate merely because a setback changed; it can redefine the project’s coordinate basis based on an isolated point rather than maintaining the managed relationship with the civil reference. Resetting coordinates and reacquiring them is substantially more disruptive because it discards the existing shared-coordinate relationship and can affect every connected model. Moving all model elements is the highest-risk option because it changes design geometry rather than correcting the external positional reference.

Reference topics: Shared coordinates; civil-site coordination; Publish Coordinates; model positioning; geolocation governance; change management during design development.

===============

The project requires a structured delivery plan that assigns responsibility and timing for each information exchange. The plan must define what information is required, which task team produces it, who verifies and authorizes it, the required format, the delivery milestone, and the receiving party. This is particularly important where design packages overlap and asset-data requirements must develop alongside spatial coordination rather than being added retrospectively.

A task information-delivery plan provides detailed commitments at the team level, while the consolidated information-delivery plan coordinates those commitments across the project. Together they align model production, structured data, coordination submissions, review periods, and final handover requirements.

Allowing each discipline to determine its own formats independently would produce inconsistent data structures and make late consolidation expensive and unreliable. Naming conventions are necessary but represent only one small component of information management. Postponing asset information until construction creates a high risk of missing parameters, unassigned responsibilities, incomplete records, and extensive rework.

The delivery strategy must therefore be established early and integrated with the design programme, BIM Execution Plan, client information requirements, and quality-assurance process.

Reference topics: Task Information Delivery Plans; Master Information Delivery Planning; information-exchange requirements; asset-data handover; structured data; responsibility matrices; delivery milestones.

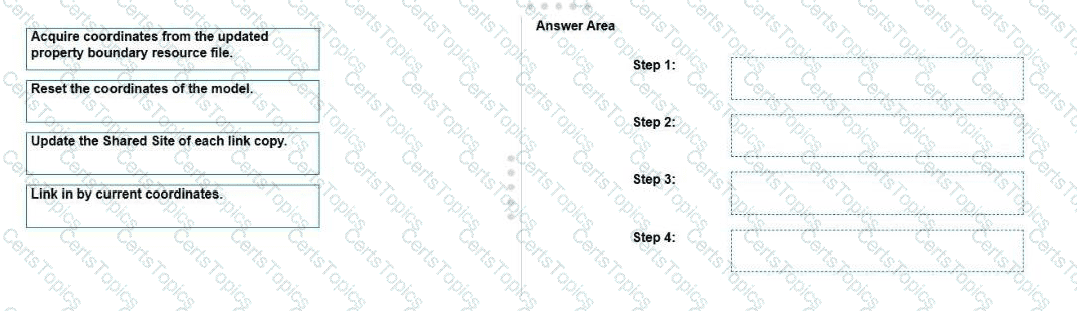

Step 1: Reset the coordinates of the model.

Step 2: Link in by current coordinates.

Step 3: Acquire coordinates from the updated property boundary resource file.

Step 4: Update the Shared Site of each link copy.

The existing shared-coordinate relationship must first be cleared because the authoritative civil background now contains revised GIS positioning. Resetting the model coordinates removes the obsolete relationship and prepares the architectural model to establish a new shared-coordinate system without physically moving its authored building geometry.

The updated property-boundary or civil resource is then linked using its current positioning so that it can serve as the authoritative coordinate source. Once the updated reference is correctly positioned, the architectural model acquires coordinates from that file. Acquiring coordinates transfers the civil model’s survey-coordinate definition into the host while preserving the architectural model’s internal origin and local modelling arrangement.

The final step is to update the Shared Site assigned to each duplicated building-link instance. This is necessary because multiple copies of the same building model may occupy different campus locations or orientations. Each link instance must reference the appropriate named site position so that the copies remain correctly placed after the revised GIS coordinate system is adopted.

Changing link sites before updating the host coordinate framework would apply positions against outdated coordinate data and could displace the campus federation.

Reference topics: Shared coordinates; Acquire Coordinates; named Shared Sites; campus model assembly; GIS and civil-reference updates; duplicated Revit links.

===============
