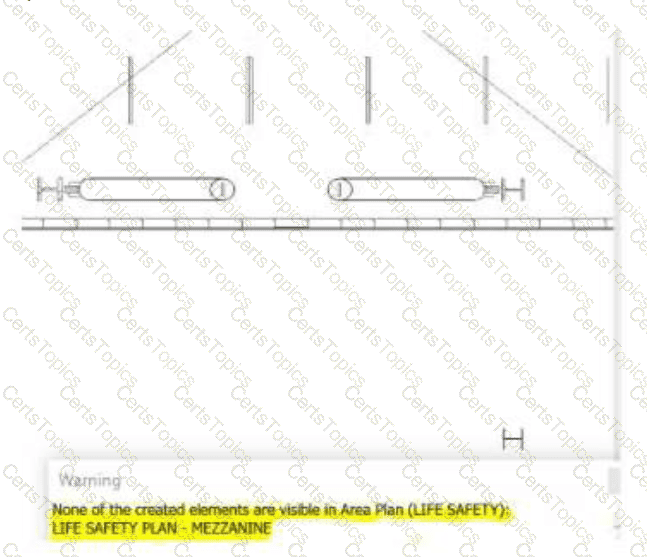

The designer should inspect the view’s Visibility/Graphics settings. Area Lines, also referred to as Area Boundary Lines, are view-specific elements whose visibility can be controlled by the active view, an applied view template, or category-level visibility settings. If the applicable line category is disabled, Revit can create the boundaries successfully while warning that the newly created elements are not visible in the current Area Plan.

The review should include the Model Categories and Annotation Categories tabs, any active view filters, temporary hide/isolate status, and the view template controlling the Area Plan. Where a template governs visibility, the correction should normally be made in the template rather than as an isolated view override, particularly when the same standard must apply to multiple Area Plans.

A Plan Region changes the local view range and does not govern Area Boundary Line visibility. Detail Level affects how certain model geometry is represented but does not normally suppress Area Lines. The Area Scheme determines the type and organizational purpose of an Area Plan, such as Gross Building or Rentable Area, but it is not the direct location for correcting hidden linework.

Reference topics: Area Plans; Area Boundary Lines; Visibility/Graphics; view templates; view-specific elements; graphical troubleshooting.

===============

Software version and build information is essential because Revit models are not backward-compatible. Opening and saving a model in a newer release upgrades it, potentially preventing teams using an earlier version from accessing the file. Build differences can also matter where hotfixes or updates affect cloud worksharing, interoperability, stability, or specific model functions.

Required add-ins are equally important. A model or workflow may depend on third-party tools for data validation, content placement, exports, parameter management, automation, or specialized object handling. If contributors lack the approved add-in or use incompatible versions, they may be unable to reproduce required processes or may generate inconsistent deliverables.

Project units and shared coordinates are critical for modelling and spatial coordination, but they are project-configuration issues rather than the most direct determinants of digital-tool compatibility. Graphic standards govern presentation and documentation consistency but do not determine whether the model and workflow can be operated within the organization’s technology environment.

The kickoff should therefore confirm the approved software release, build, update policy, required add-ins, licensing, installation procedures, and testing responsibilities before production begins.

Reference topics: Software compatibility; Revit version management; approved builds; add-in governance; technology assessment; project kickoff; fast-track mobilization.

===============

The imported Civil CAD files are the strongest causal indicator. Imported CAD data becomes embedded within the Revit model rather than remaining externally referenced. Civil drawings frequently contain large coordinate extents, dense linework, hatches, proxy objects, unnecessary layers, and complex geometry. Embedding several such files can substantially increase model size, graphical processing requirements, opening time, and synchronization duration.

The audit specifically establishes that no significant native Revit geometry was added, eliminating option A as the principal explanation. Revit model backups are normally maintained externally or through version history rather than being accumulated as embedded model data in the manner suggested by option B. An increase from 600 to 750 warnings warrants review, and certain warning types can affect regeneration performance, but that increase alone is less likely to explain a doubled file size and a sudden 40% synchronization penalty.

The appropriate corrective action is to assess whether the CAD files can be linked instead of imported, clean them before use, remove unnecessary layers and objects, verify their coordinates, and purge obsolete imported definitions after removal.

Reference topics: Revit model health; imported versus linked CAD files; file-size management; performance auditing; model warnings; civil-background coordination.

===============
