The stats command is used to calculate summary statistics for your search results such as count, sum, avg, min, max and more2. The stats command supports various functions that you can use to perform calculations on your fields2. However, addtotals is not a stats function but a separate command that adds a row or column with the total of the values in each group2. Therefore, option B is correct, while options A, C and D are incorrect because they are valid stats functions.

The correct answer is A. chart, timechart, stats, eventstats.

Transforming commands are commands that change the format of the search results into a table or a chart. They can be used to perform statistical calculations, create visualizations, or manipulate data in various ways1.

Transactions are groups of events that share some common values and are related in some way. Transactions can be defined by using the transaction command or by creating a transaction type in the transactiontypes.conf file2.

Some transforming commands can be used with transactions to create tables or charts based on the transaction fields. These commands include:

• chart: This command creates a table or a chart that shows the relationship between two or more fields. It can be used to aggregate values, count occurrences, or calculate statistics3.
• timechart: This command creates a table or a chart that shows how a field changes over time. It can be used to plot trends, patterns, or outliers4.
• stats: This command calculates summary statistics on the fields in the search results, such as count, sum, average, etc. It can be used to group and aggregate data by one or more fields5.
• eventstats: This command calculates summary statistics on the fields in the search results, similar to stats, but it also adds the results to each event as new fields. It can be used to compare events with the overall statistics.

These commands can be applied to transactions by using the transaction fields as arguments. For example, if you have a transaction type named “login” that groups events based on the user field and has fields such as duration and eventcount, you can use the following commands with transactions:

• | chart count by user : This command creates a table or a chart that shows how many transactions each user has.
• | timechart span=1h avg(duration) by user : This command creates a table or a chart that shows the average duration of transactions for each user per hour.
• | stats sum(eventcount) as total_events by user : This command creates a table that shows the total number of events for each user across all transactions.
• | eventstats avg(duration) as avg_duration : This command adds a new field named avg_duration to each transaction that shows the average duration of all transactions.

The other options are not valid because they include commands that are not transforming commands or cannot be used with transactions. These commands are:

• diff: This command compares two search results and shows the differences between them. It is not a transforming command and it does not work with transactions.
• datamodel: This command retrieves data from a data model, which is a way to organize and categorize data in Splunk. It is not a transforming command and it does not work with transactions.
• pivot: This command creates a pivot report, which is a way to analyze data from a data model using a graphical interface. It is not a transforming command and it does not work with transactions.

References:

• About transforming commands
• About transactions
• chart command overview
• timechart command overview
• stats command overview
• [eventstats command overview]
• [diff command overview]
• [datamodel command overview]
• [pivot command overview]

To use a search macro in a search string, you need to place a back tick character (`) before and after the macro name1. You also need to use the same number of arguments as defined in the macro2. The macro weekly sales (2) has two arguments: Price and AmountSold. Therefore, you need to provide two values for these arguments when you call the macro.

The option A is incorrect because it uses parentheses instead of back ticks around the macro name. The option B is incorrect because it uses underscores instead of spaces in the macro name. The option D is incorrect because it uses spaces instead of commas to separate the argument values.

The correct answer is B. eventtype=web_errors.

An event type is a way to categorize events based on a search. An event type assigns a label to events that match a specific search criteria. Event types can be used to filter and group events, create alerts, or generate reports1.

To search for events that have a specific event type, you need to use the eventtype field with the name of the event type as the value. The syntax for this is:

eventtype=

For example, if you want to search for events that have the event type web_errors, you can use the following syntax:

eventtype=web_errors

This will return only the events that match the search criteria defined by the web_errors event type.

The other options are not correct because they use different syntax or fields that are not related to event types. These options are:

• A. tag=web_errors: This option uses the tag field, which is a way to add descriptive keywords to events based on field values. Tags are different from event types, although they can be used together. Tags can be used to filter and group events by common characteristics2.
• C. eventtype “web errors”: This option uses quotation marks around the event type name, which is not valid syntax for the eventtype field. Quotation marks are used to enclose phrases or exact matches in a search3.
• D. eventtype (web_errors): This option uses parentheses around the event type name, which is also not valid syntax for the eventtype field. Parentheses are used to group expressions or terms in a search3.

References:

• About event types
• About tags
• Search command cheatsheet

The correct answer is B. Use the field values in an HTTP error event to create a new ticket in an external system.

A workflow action is a knowledge object that enables a variety of interactions between fields in events and other web resources. Workflow actions can create HTML links, generate HTTP POST requests, or launch secondary searches based on field values1.

There are three types of workflow actions that can be set up using Splunk Web: GET, POST, and Search2.

• GET workflow actions create typical HTML links to do things like perform Google searches on specific values or run domain name queries against external WHOIS databases2.
• POST workflow actions generate an HTTP POST request to a specified URI. This action type enables you to do things like creating entries in external issue management systems using a set of relevant field values2.
• Search workflow actions launch secondary searches that use specific field values from an event, such as a search that looks for the occurrence of specific combinations of ipaddress and http_status field values in your index over a specific time range2.

Therefore, the example that would use a POST workflow action is B. Use the field values in an HTTP error event to create a new ticket in an external system. This example requires sending an HTTP POST request to the URI of the external system with the field values from the event as arguments.

The other examples would use different types of workflow actions. These examples are:

• A. Perform an external IP lookup based on a domain value found in events: This example would use a GET workflow action to create a link to an external IP lookup service with the domain value as a parameter.
• C. Launch secondary Splunk searches that use one or more field values from selected events: This example would use a Search workflow action to run another Splunk search with the field values from the event as search terms.
• D. Open a web browser to look up an HTTP status code: This example would also use a GET workflow action to create a link to a web page that explains the meaning of the HTTP status code.

References:

• Splexicon:Workflowaction
• About workflow actions in Splunk Web

The Splunk Common Information Model (CIM) provides a methodology to normalize data from different sources and source types. The CIM defines a common set of fields and tags for different types of data, such as web, network, email, etc. This allows you to search and analyze data from different sources in a consistent way.

To group events by JSESSIONID, the correct search is index=web sourcetype=access_combined | transaction JSESSIONID | search SD470K92802F117 (Option B). The transaction command groups events that share the same JSESSIONID value, allowing for the analysis of all events associated with a specific session as a single transaction. The subsequent search for SD470K92802F117 filters these grouped transactions to include only those related to the specified session ID.

Define a GET workflow action

Steps

• Navigate to Settings > Fields > Workflow Actions.
• Click New to open up a new workflow action form.
• Define a Label for the action.

The Label field enables you to define the text that is displayed in either the field or event workflow menu. Labels can be static or include the value of relevant fields.

• Determine whether the workflow action applies to specific fields or event types in your data.

Use Apply only to the following fields to identify one or more fields. When you identify fields, the workflow action only appears for events that have those fields, either in their event menu or field menus. If you leave it blank or enter an asterisk the action appears in menus for all fields.

Use Apply only to the following event types to identify one or more event types. If you identify an event type, the workflow action only appears in the event menus for events that belong to the event type.

• For Show action in determine whether you want the action to appear in the Event menu, the Fields menus, or Both.
• Set Action type to link.
• In URI provide a URI for the location of the external resource that you want to send your field values to.

Similar to the Label setting, when you declare the value of a field, you use the name of the field enclosed by dollar signs.

Variables passed in GET actions via URIs are automatically URL encoded during transmission. This means you can include values that have spaces between words or punctuation characters.

• Under Open link in, determine whether the workflow action displays in the current window or if it opens the link in a new window.
• Set the Link method to get.
• Click Save to save your workflow action definition.

The fields sidebar is a panel that shows the fields that are present in your search results2. The fields sidebar does not show all extracted fields, which are fields that are extracted from your raw data using various methods such as regular expressions, delimiters or key-value pairs2. The fields sidebar only shows selected fields and interesting fields2. Selected fields are fields that you choose to display in your search results by clicking on them in the fields sidebar or by using the fields command2. Interesting fields are fields that appear in at least 20 percent of events or have high variability among values2. Therefore, option C is correct, while options A and B are incorrect because they are types of fields that the fields sidebar does show.

The correct answer is B. The value for the productName field because it appears first.

The coalesce function is an eval function that takes an arbitrary number of arguments and returns the first value that is not null. A null value means that the field has no value at all, while an empty value means that the field has a value, but it is “” or zero-length1.

The coalesce function can be used to combine fields that have different names but represent the same data, such as IP address or user name. The coalesce function can also be used to rename fields for clarity or convenience2.

The syntax for the coalesce function is:

coalesce(,,…)

The coalesce function will return the value of the first field that is not null in the argument list. If all fields are null, the coalesce function will return null.

For example, if you have a set of events where the IP address is extracted to either clientip or ipaddress, you can use the coalesce function to define a new field called ip, that takes the value of either clientip or ipaddress, depending on which is not null:

| eval ip=coalesce(clientip,ipaddress)

In your example, you have a set of events where the product name is extracted to either productName or productid, and you use the coalesce function to define a new field called productINFO, that takes the value of either productName or productid, depending on which is not null:

| eval productINFO=coalesce(productName,productid)

If both productName and productid fields have values for a given event, the coalesce function will return the value of the productName field because it appears first in the argument list. The productid field will be ignored by the coalesce function.

Therefore, the value for the productName field will be used to populate the productINFO field if both fields have values for a given event.

References:

• Search Command> Coalesce
• USAGE OF SPLUNK EVAL FUNCTION : COALESCE

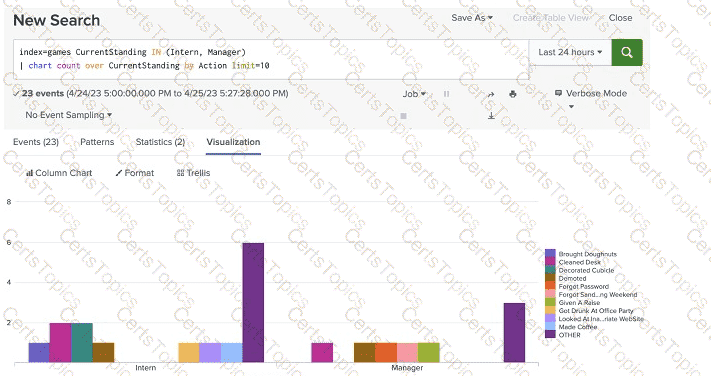

The correct answer is D. limit=0. This is because the limit argument specifies the maximum number of series to display in the chart. If you set limit=0, no series filtering occurs and all values are returned. You can learn more about the limit argument and how it works with the agg argument from the Splunk documentation1. The other options are incorrect because they are not valid values for the limit argument. The limit argument expects an integer value, not a string or a wildcard. You can learn more about the syntax and usage of the timechart command from the Splunk documentation23.

The Field Extractor (FX) is a tool that helps you extract fields from your events using a graphical interface or by manually editing the regular expression2. The FX allows you to create field extractions that persist as knowledge objects, which are entities that you create to add knowledge to your data and make it easier to search and analyze2. Field extractions are methods that extract fields from your raw data using various techniques such as regular expressions, delimiters or key-value pairs2. When you create a field extraction using the FX, you can save it as a knowledge object that applies to your data at search time2. You can also manage and share your field extractions with other users in your organization2. Therefore, option C is correct, while options A, B and D are incorrect because they do not describe the use of the FX.

The regular expression mode of Field Extractor (FX) should be used for data with multiple, different characters separating fields or for unstructured data. The regular expression mode allows you to select a sample event and highlight the fields that you want to extract, and the field extractor generates a regular expression that matches similar events and extracts the fields from them.ReferencesSee Build field extractions with the field extractor - Splunk Documentation and Field Extractor: Select Method step - Splunk Documentation.

The recommended approach when using the Splunk Common Information Model (CIM) add-on to normalize data is A. Consult the CIM data model reference tables. This is because the CIM data model reference tables provide detailed information about the fields and tags that are expected for each dataset in a data model. By consulting the reference tables, you can determine which data models are relevant for your data source and how to map your data fields to the CIM fields. You can also use the reference tables to validate your data and troubleshoot any issues with normalization. You can find the CIM data model reference tables in the Splunk documentation1 or in the Data Model Editor page in Splunk Web2. The other options are incorrect because they are not related to the CIM add-on or data normalization. The authentication command is a custom command that validates events against the Authentication data model, but it does not help you to normalize other types of data. The correlation command is a search command that performs statistical analysis on event fields, but it does not help you to map your data fields to the CIM fields. The CIM event type reference tables do not exist, as event types are not part of the CIM add-on.

When using a field value variable with a Workflow Action, the exclamation mark (!) will escape the data. A Workflow Action is a custom action that performs a task when you click on a field value in your search results. A Workflow Action can be configured with various options, such as label name, base URL, URI parameters, post arguments, app context, etc. A field value variable is a placeholder for the field value that will be used to replace the variable in the URL or post argument of the Workflow Action. A field value variable is written as fieldn​ame, where field_name is the name of the field whose value will be used. However, if the field value contains special characters that need to be escaped, such as spaces, commas, etc., you can use the exclamation mark (!) before and after the field value variable to escape the data. For example, if you have a field value variable host, you can write it as !$host! to escape any special characters in the host field value.

Therefore, option B is the correct answer.

The correct answer is C. A macro is a portion of a search that can be reused in multiple places.

A macro is a way to reuse a piece of SPL code in different searches. A macro can be any part of a search, such as an eval statement or a search term, and does not need to be a complete command. A macro can also take arguments, which are variables that can be replaced by different values when the macro is called. A macro can also contain another macro within it, which is called a nested macro1.

To create a macro, you need to define its name, definition, arguments, and description in the Settings > Advanced Search > Search Macros page in Splunk Web or in the macros.conf file. To use a macro in a search, you need to enclose the macro name in backtick characters (`) and provide values for the arguments if any1.

For example, if you have a macro named my_macro that takes one argument named object and has the following definition:

search sourcetype= object

You can use it in a search by writing:

my_macro(web)

This will expand the macro and run the following SPL code:

search sourcetype=web

The benefits of using macros are that they can simplify complex searches, reduce errors, improve readability, and promote consistency1.

The other options are not correct because they describe other types of knowledge objects in Splunk, not macros. These objects are:

• A. An event type is a method of categorizing events based on a search. An event type assigns a label to events that match a specific search criteria. Event types can be used to filter and group events, create alerts, or generate reports2.
• B. A field alias is a way to associate an additional (new) name with an existing field name. A field alias can be used to normalize fields from different sources that have different names but represent the same data. Field aliases can also be used to rename fields for clarity or convenience3.
• D. An alert is a knowledge object that enables you to schedule searches for specific events and trigger actions when certain conditions are met. An alert can be used to monitor your data for anomalies, errors, or other patterns of interest and notify you or others when they occur4.

References:

• About event types
• About field aliases
• About alerts
• Define search macros in Settings
• Use search macros in searches

Tags are a type of knowledge object that enable you to assign descriptive keywords to events based on the values of their fields. Tags can help you to search more efficiently for groups of event data that share common characteristics, such as functionality, location, priority, etc. For example, you can tag all the IP addresses of your routers as router, and then search for tag=router to find all the events related to your routers. Tags can also help you to normalize data from different sources by using the same tag name for equivalent field values. For example, you can tag the field values error, fail, and critical as severity=high, and then search for severity=high to find all the events with high severity level2

1: Splunk Core Certified Power User Track, page 10. 2: Splunk Documentation, About tags and aliases.

This is because an event type is a knowledge object that assigns a user-defined name to a set of events that match a specific search criteria. For example, you can create an event type named successful_purchase for events that have sourcetype=access_combined, status=200, and action=purchase. Then, you can use eventtype=successful_purchase as a search term to find those events. You can also use event types to create alerts, reports, and dashboards. You can learn more about event types from the Splunk documentation1. The other options are incorrect because they do not describe what an event type is. A log level measurement is a field that indicates the severity of an event, such as info, warn, or error. A knowledge object that is applied before fields are extracted is a source type, which identifies the format and structure of the data. Either a log, a metric, or a trace is a type of data that Splunk can ingest and analyze, but not an event type.

The fields sidebar is a panel that shows the fields that are present in your search results2. The fields sidebar has two sections: selected fields and interesting fields2. Selected fields are fields that you choose to display in your search results by clicking on them in the fields sidebar or by using the fields command2. Interesting fields are fields that appear in at least 20 percent of events or have high variability among values2. For each field in the fields sidebar, you can select one of the following options: events with this field, rare values, top values by time or top values2. If you select rare values, Splunk will automatically pipe your search results to the rare command, which shows the least common values of a field2. Therefore, option B is correct, while options A, C and D are incorrect because they do not pipe your search results to the rare command.

The eval command calculates an expression and puts the resulting value into a search results field.

• If the field name that you specify does not match a field in the output, a new field is added to the search results.
• If the field name that you specify matches a field name that already exists in the search results, the results of the eval expression overwrite the values in that field.

The correct answer is D. | eval notNULL = “” fillnull value=0 notNULL

• Option A is incorrect because it is missing a comma between the “0” and the notNULL in the if function. The correct syntax for the if function is if (condition, true_value, false_value).
• Option B is incorrect because it is missing the false_value argument in the if function. The correct syntax for the if function is if (condition, true_value, false_value).
• Option C is incorrect because it uses the nullfill command, which only replaces null values, not empty strings. The nullfill command is equivalent to fillnull value=null.
• Option D is correct because it uses the eval command to assign an empty string to the notNULL field, and then uses the fillnull command to replace the empty string with a zero. The fillnull command can replace any value with a specified replacement, not just null values.

A report that is scheduled to run every 15 minutes but takes 17 minutes to complete is in danger of being skipped or deferred2. This means that Splunk may skip some scheduled runs of the report if they overlap with previous runs that are still in progress or defer them until the previous runs are finished2. This can affect the accuracy and timeliness of the report results and notifications2. Therefore, option A is correct, while options B, C and D are incorrect because they are not consequences of a report taking longer than its schedule interval.

The correct answer is B. Calculated fields can be chained together to create more complex fields.

Calculated fields are fields that are added to events at search time by using eval expressions. They can be used to perform calculations with the values of two or more fields already present in those events. Calculated fields can be defined with Splunk Web or in the props.conf file. They can be used in searches, reports, dashboards, and data models like any other extracted field1.

Calculated fields can also be chained together to create more complex fields. This means that you can use a calculated field as an input for another calculated field. For example, if you have a calculated field named total that sums up the values of two fields named price and tax, you can use the total field to create another calculated field named discount that applies a percentage discount to the total field. To do this, you need to define the discount field with an eval expression that references the total field, such as:

discount = total * 0.9

This will create a new field named discount that is equal to 90% of the total field value for each event2.

References:

• About calculated fields
• Chaining calculated fields

When using the Field Extractor (FX) tool in Splunk and the tool fails to extract a value from all appropriate events, there are specific steps you can take to improve the extraction process. These steps involve interacting with the FX tool and possibly adjusting the extraction method:

A. Select an additional sample event with the Field Extractor (FX) and highlight the missing value in the event. This approach allows Splunk to understand the pattern better by providing more examples. By highlighting the value in another event where it wasn't extracted, you help the FX tool to learn the variability in the data format or structure, improving the accuracy of the field extraction.

D. Edit the regular expression manually. Sometimes the FX tool might not generate the most accurate regular expression for the field extraction, especially when dealing with complex log formats or subtle nuances in the data. In such cases, manually editing the regular expression can significantly improve the extraction process. This involves understanding regular expression syntax and how Splunk extracts fields, allowing for a more tailored approach to field extraction that accounts for variations in the data that the automatic process might miss.

Options B and C are not typically related to improving field extraction within the Field Extractor tool. Re-ingesting data (B) does not directly impact the extraction process, and changing to a delimited extraction method (C) is not always applicable, as it depends on the specific data format and might not resolve the issue of missing values across events.

A report is a way to save a search and its results in a format that you can reuse and share with others2. A report is also a type of knowledge object, which is an entity that you create to add knowledge to your data and make it easier to search and analyze2. Therefore, option A is correct. A report can be scheduled, which means that you can configure it to run at regular intervals and send the results to yourself or others via email or other methods2. Therefore, option B is correct. A report can run a script, which means that you can specify a script file to execute when the report runs and use it to perform custom actions or integrations2. Therefore, option C is correct. Therefore, option D is correct because all of the above statements are true for reports.

The correct answer is C. When events contain unstructured data.

The regular expression method works best with unstructured event data, such as log files or text messages, where the fields are not separated by a common delimiter, such as a comma or space1. You select a sample event and highlight one or more fields to extract from that event, and the field extractor generates a regular expression that matches similar events in your dataset and extracts the fields from them1. The regular expression method provides several tools for testing and refining the accuracy of the regular expression. It also allows you to manually edit the regular expression1.

The delimiters method is designed for structured event data: data from files with headers, where all of the fields in the events are separated by a common delimiter, such as a comma or space1. You select a sample event, identify the delimiter, and then rename the fields that the field extractor finds1. This method is simpler and faster than the regular expression method, but it may not work well with complex or irregular data formats1.

Field aliases in Splunk are alternate names assigned to fields. These can be particularly useful for normalizing data from different sources or simply for making field names more intuitive. Once an alias is created for a field, it can be used across various Splunk knowledge objects, enhancing their flexibility and utility.

A. Calculated fields, lookups, event types, and tags: This is the correct answer. Field aliases can indeed be referenced in calculated fields, lookups, event types, and tags within Splunk. When you create an alias for a field, that alias can then be used in these knowledge objects just like any standard field name.

• Calculated fields: These are expressions that can create new field values based on existing data. You can use an alias in a calculated field expression to refer to the original field.
• Lookups: These are used to enrich your event data by referencing external data sources. If you've created an alias for a field that matches a field in your lookup table, you can use that alias in your lookup configurations.
• Event types: These are classifications for events that meet certain search criteria. You can use field aliases in the search criteria for defining an event type.
• Tags: These allow you to assign meaningful labels to data, making it easier to search and report on. You can use field aliases in the search criteria that you tag.

The correct answer is C. Creates reports without using SPL. This is because the Pivot tool is a feature of Splunk that allows you to report on a specific data set without using the Splunk Search Processing Language (SPL). You can use a drag-and-drop interface to design and generate pivots that present different aspects of your data in the form of tables, charts, and other visualizations. You can learn more about the Pivot tool from the Splunk documentation1 or watch a video tutorial2. The other options are incorrect because they do not describe the features of the Pivot tool. The Pivot tool requires data models and datasets to define the data that you want to work with. Data models and datasets are designed by the knowledge managers in your organization. You can learn more about data models and datasets from the Splunk documentation3. The Pivot tool does not create lookups, which are tables that match field values to other field values. You can create lookups using SPL or the Lookup Editor. You can learn more about lookups from the Splunk documentation.

The eval command supports a number of functions that you can use in your expressions to perform calculations, conversions, string manipulations and more2. One of the eval command functions is tostring(), which converts a numeric value to a string value2. Therefore, option D is correct, while options A, B and C are incorrect because they are not valid eval command functions.

Tags are aliases or alternative names for field values in Splunk. They can make your data more understandable by using common or descriptive terms instead of cryptic or technical terms. For example, you can tag a field value such as “200” with “OK” or “success” to indicate that it is a HTTP status code for a successful request. Tags are case sensitive, meaning that “OK” and “ok” are different tags. Tags are created at search time, meaning that they are applied when you run a search on your data. Tags are searched by using the syntax tag::, where  is the name of the tag you want to search for.

Event types are custom categories of events that are based on search criteria. Event types can be used to label events with meaningful names, such as error, success, login, logout, etc. Event types can also be used to create transactions, alerts, reports, dashboards, etc. Event types can be created in two ways:

• By going to the Settings menu and clicking Event Types > New. This will open a form where you can enter the name, description, search string, app context, and tags for the event type.
• By selecting an event in search results and clicking Event Actions > Build Event Type. This will open a dialog box where you can enter the name and description for the event type. The search string will be automatically populated based on the selected event.

Event types cannot be created by using the searchtypes command in the search bar, as this command does not exist in Splunk. Event types can also be created by editing the event_type stanza in the transforms.conf file, not the props.conf file.

The search below groups events by two or more fields (clientip and host), creates transactions with start and end constraints (maxspan=30s and maxpause=5s), and calculates the duration of each transaction.

index=main | transaction clientip host maxspan=30s maxpause=5s

The search does the following:

• It filters the events by the index main, which is a default index in Splunk that contains all data that is not sent to other indexes.
• It uses the transaction command to group events into transactions based on two fields: clientip and host. The transaction command creates new events from groups of events that share the same clientip and host values.
• It specifies the start and end constraints for the transactions using the maxspan and maxpause arguments. The maxspan argument sets the maximum time span between the first and last events in a transaction. The maxpause argument sets the maximum time span between any two consecutive events in a transaction. In this case, the maxspan is 30 seconds and the maxpause is 5 seconds, meaning that any transaction that has a longer time span or pause will be split into multiple transactions.
• It creates some additional fields for each transaction, such as duration, eventcount, startime, etc. The duration field shows the time span between the first and last events in a transaction.

Auto-Extracted fields in Splunk Data Models are derived directly from the indexed data based on the existing fields within the events. These fields are identified and extracted by Splunk automatically, without the need for explicit field extractions configured by the user. Understanding the characteristics of Auto-Extracted fields is crucial for effectively managing Data Models and utilizing them in Pivot tables for analysis.

A. Auto-Extracted fields can be hidden in Pivot. This is true. When building a Data Model, you have the option to hide certain fields from appearing in Pivot, making the Pivot table cleaner and more focused on the fields that are most relevant for analysis. This helps in reducing clutter and focusing on the data that matters most to the users.

B. Auto-Extracted fields can have their data type changed. This statement is not typically accurate for Auto-Extracted fields. The data type of an Auto-Extracted field is determined by Splunk based on the field's content in the indexed data. While you can assign a type to a field when you manually create a field in a data model, the inherent data type of Auto-Extracted fields is not something that is changed within the Data Model itself.

C. Auto-Extracted fields can be given a friendly name for use in Pivot. This is correct. Within Data Models, you can assign a more user-friendly, descriptive name to an Auto-Extracted field. This feature is particularly useful in making Data Models more intuitive and easier to use for those who may not be familiar with the original field names or when the original field names are not descriptive or user-friendly.

D. Auto-Extracted fields can be added if they already exist in the dataset with constraints. This is true. Auto-Extracted fields are based on fields that already exist in the data. When you define a dataset within a Data Model, you can apply constraints to narrow down the events that the dataset includes. The Auto-Extracted fields are then identified from this constrained dataset. This means that the fields must already be present in the data that meets the dataset's constraints to be available for auto-extraction.

In summary, Auto-Extracted fields in Splunk Data Models offer a flexible and efficient way to utilize existing data fields within Pivot tables, with options to rename them for clarity and hide unnecessary fields to streamline data analysis.

A macro is a way to save a commonly used search string as a variable that you can reuse in other searches1. When you create a macro, you can define arguments that are placeholders for values that you specify at execution time1. The argument values are used to resolve the search string when the macro is invoked, not when it is created1. Therefore, statements B and C are true, while statements A and D are false.

The Splunk Common Information Model (CIM) add-on is a Splunk app that contains data models to help you normalize data from different sources and formats. The CIM add-on defines a common and consistent way of naming and categorizing fields and events in Splunk. This makes it easier to correlate and analyze data across different domains, such as network, security, web, etc. The CIM add-on does not use machine learning to normalize data, but rather relies on predefined field names and values. The CIM add-on does not contain dashboards that show how to map data, but rather provides documentation and examples on how to use the data models. The CIM add-on is not automatically installed in a Splunk environment, but rather needs to be downloaded and installed from Splunkbase.

The Field Extractor (FX) is a tool that helps you extract fields from your events using a graphical interface2. You can create a report using a custom field extracted by the FX and share it with other users in your organization2. However, if another user runs the shared report and no results are returned, there could be two possible reasons. One reason is that the extraction is private, which means that only you can see and use the extracted field2. To make the extraction available to other users, you need to make it global or app-level2. Therefore, option C is correct. Another reason is that the other user does not have access to the index where the events are stored2. To fix this issue, you need to grant the appropriate permissions to the other user for the index2. Therefore, option D is correct. Options A and B are incorrect because they are not related to the field extraction or the report.

As mentioned before, a calculated field is a field that you create based on the value of another field or fields2. A calculated field can be based on extracted fields, which are fields that are extracted from your raw data using various methods such as regular expressions, delimiters or key-value pairs2. Therefore, option B is correct, while options A, C and D are incorrect because they are not types of fields that a calculated field can be based on.

 The data model command allows you to run searches on data models that have been accelerated1. The syntax for using the data model command is | datamodel [search ]1. Therefore, option A is the correct way to use the data model command to search fields in the data model within the web dataset. Options B and C are incorrect because they do not follow the syntax for the data model command. Option D is incorrect because it does not use the data model command at all.

Data models and pivot are both knowledge objects in Splunk that allow you to analyze and visualize your data in different ways. Data models are collections of datasets that represent your data in a structured and hierarchical way. Data models define how your data is organized into objects and fields. Pivot is a user interface that allows you to create data visualizations that present different aspects of a data model. Pivot does not require users to input SPL searches on data models, but rather lets them select options from menus and forms. Data models are not created out of datasets called pivots, but rather pivots are created from datasets in data models.

A workflow action is a link that appears when you click an event field value in your search results1. A workflow action can open a web page or run another search based on the field value1. There are two types of workflow actions: GET and POST1. A GET workflow action appends the field value to the end of a URI and opens it in a web browser1. A POST workflow action sends the field value as part of an HTTP request to a web server1. You can configure a workflow action to open a web page in either the same window or a new window1. Therefore, option D is correct, while options A, B and C are incorrect.

Field aliases are alternative names for fields in Splunk. Field aliases can be used to normalize data across different sources and sourcetypes that have different field names for the same concept. For example, you can create a field alias for src_ip that maps to clientip, source_address, or any other field name that represents the source IP address in different sourcetypes. Field aliases can also be used in lookup file definitions to map fields in your data to fields in the lookup file. For example, you can use a field alias for src_ip to map it to ip_address in a lookup file that contains geolocation information for IP addresses. Field alias names do not replace the original field name, but rather create a copy of the field with a different name. Field alias names are case sensitive when used as part of a search, meaning that src_ip and SRC_IP are different fields.

After manually editing a regular expression (regex) that was created using the Field Extractor (FX) UI, it is no longer possible to edit the field extraction in the FX UI. The FX UI is a tool that helps you extract fields from your data using delimiters or regular expressions. The FX UI can generate a regex for you based on your selection of sample values or you can enter your own regex in the FX UI. However, if you edit the regex manually in the props.conf file, the FX UI will not be able to recognize the changes and will not let you edit the field extraction in the FX UI anymore. You will have to use the props.conf file to make any further changes to the field extraction. Changes made manually cannot be reverted in the FX UI, as the FX UI does not keep track of the changes made in the props.conf file. It is possible to manually edit a regex that was created using the FX UI, as long as you do it in the props.conf file.

Therefore, only statement B is true about manually editing a regex.

As mentioned before, there are two types of workflow actions: GET and POST1. Both types of workflow actions can be executed from search results by clicking on an event field value that has a workflow action configured for it1. Another type of workflow action is Search, which runs another search based on the field value1. Therefore, options A, B and D are correct, while option C is incorrect because LOOKUP is not a type of workflow action.

A chart is a graphical representation of your search results that shows the relationship between two or more fields2. You can display a chart in stack mode by changing the Stack Mode option in the Format menu2. Stack mode allows you to stack multiple series on top of each other in a chart to show the cumulative values of each series2. Therefore, option C is correct, while options A, B and D are incorrect because they are not ways to display a chart in stack mode.

POST workflow actions are custom actions that send a POST request to a web server when you click on a field value in your search results. POST workflow actions can be configured with various options, such as label name, base URL, URI parameters, post arguments, app context, etc. One of the options that are required to create a POST workflow action is post arguments. Post arguments are key-value pairs that are sent in the body of the POST request to provide additional information to the web server. Post arguments can include field values from your data by using dollar signs around the field names.

The timechart command is used to create a time-series chart of statistical values based on your search results2. You can use the timechart command with a by clause to split the results by one or more fields and create multiple series in the chart2. However, you can only list one field after the by clause when using the timechart command because _time is already implied as the x-axis of the chart2. Therefore, option B is correct, while options A, C and D are incorrect.

The relationship between data models and pivots is that data models provide the datasets for pivots. Data models are collections of datasets that represent your data in a structured and hierarchical way. Data models define how your data is organized into objects and fields. Pivots are user interfaces that allow you to create data visualizations that present different aspects of a data model. Pivots let you select options from menus and forms to create charts, tables, maps, etc., without writing any SPL code. Pivots use datasets from data models as their source of data. Pivots and data models are not the same thing, as pivots are tools for visualizing data models. Pivots do not provide datasets for data models, but rather use them as inputs.

Therefore, only statement A is true about the relationship between data models and pivots.

The eval command is used to create new fields or modify existing fields based on an expression2. The eval command can perform various actions such as calculations, conversions, string manipulations and more2. One of the actions that the eval command can perform is to create or replace an existing field with a new value based on an expression2. For example, | eval status=if(status="200","OK","ERROR") will create or replace the status field with either OK or ERROR depending on the original value of status2. Therefore, option B is correct, while options A, C and D are incorrect because they are not actions that the eval command can perform.

This search uses the transaction command to group events that share a common value for JSESSIONID into transactions1. The transaction command assigns a duration field to each transaction, which is the difference between the latest and earliest timestamps of the events in the transaction1. The search then uses the timechart command to create a time-series chart of the average duration of each transaction1. Therefore, option A is correct because it describes the search accurately. Option B is incorrect because the search does not use the stats command or the pause field. Option C is incorrect because the transaction command does not require the startswith and endswith options, although they can be used to specify how to identify the beginning and end of a transaction1. Option D is incorrect because the transaction command does not have to be the last command in the search pipeline, although it is often used near the end of a search1.

The Splunk Common Information Model (CIM) add-on is a collection of pre-built data models and knowledge objects that help you normalize your data from different sources and make it easier to analyze and report on it3. The CIM add-on includes pre-configured data models that cover various domains such as Alerts, Email, Database, Network Traffic, Web and more3. Therefore, option B is correct. The CIM add-on also includes fields and event category tags that define the common attributes and labels for the data models3. Therefore, option C is correct. The CIM add-on does not include custom visualizations or automatic data model acceleration. Therefore, options A and D are incorrect.
