HPE7-A07 Reviews Questions

In Aruba CX 6300 and other AOS-CX switches, device profiling enables automatic assignment of roles and policies to endpoints based on device attributes such as MAC OUI, LLDP, or DHCP fingerprint — without requiring an external authentication server such as ClearPass or RADIUS.

The configuration snippet shows:

mac-group iot

seq 10 match mac-oui 81:cd:93

port-access device-profile iot-prod

enable

associate role iot-prod

associate mac-group iot

This means that any device with a MAC address matching the OUI 81:cd:93 will automatically be assigned the iot-prod device profile and its associated role (iot-prod).

However, the requirement also specifies that any other device connected to the same interface (that does not match the OUI or device profile) should still be assigned a default role called iot-default.

To ensure that endpoints not matching any known device profile still receive limited network access, Aruba AOS-CX uses the fallback-role feature under port-access configuration.

The command:

port-access fallback-role iot-default

defines the role that will be automatically assigned to endpoints that fail to match any of the configured device-profile conditions.

This mechanism is crucial in lab or standalone environments where no external authentication (e.g., RADIUS, ClearPass) is configured. It ensures devices are still given a default policy, preventing them from being left in an unauthenticated or blocked state.

Official HPE Aruba Extract (ArubaOS-CX Security and Access Guide):

“The fallback-role command allows the switch to assign a predefined local role to a device when no authentication server is available, or when the device does not match any configured device profile.”

“This command is typically used in test or lab environments where profiling is local to the switch, and a baseline role must still be enforced for unknown devices.”

Therefore, in this case:

Devices matching the MAC OUI 81:cd:93 → assigned iot-prod role

All other devices → automatically assigned iot-default role via port-access fallback-role iot-default

Option Analysis:

A. Incorrect – The port-access onboarding-method precedence command changes the priority order between authentication methods (e.g., 802.1X, MAC-auth, device profile). It does not control fallback behavior.

B. Incorrect – The block-until-profile-applied option delays port activation until profiling completes, but it doesn’t provide a fallback role.

C. Correct – The port-access fallback-role iot-default command ensures that any device not matching the iot-prod profile receives the iot-default role.

D. Incorrect – Lowering precedence has no effect on assigning a default role.

Final Verified Answer: C

Reference Sources (HPE Aruba Official Materials):

Aruba AOS-CX Security and Access Configuration Guide – Device Profiling and Role Assignment

Aruba Certified Switching Professional (ACSP) Study Guide – Port Access and Device Profiling

ArubaOS-CX Fundamentals Guide – Port Access and Fallback Role Implementation

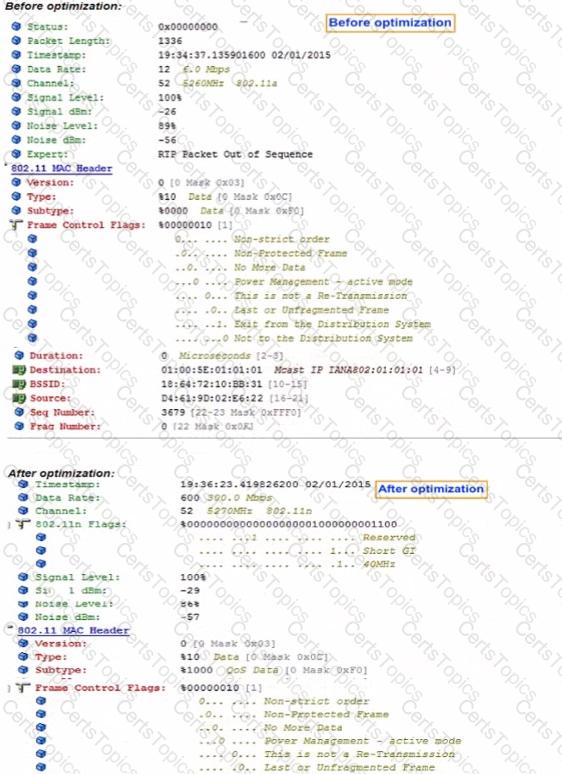

Dynamic Multicast Optimization (DMO) is a feature that enhances the delivery of multicast traffic by optimizing the data rate. The before and after optimization images show a significant increase in the data rate, which is a typical result of DMO being configured, as it allows multicast traffic to be transmitted at higher data rates by converting multicast streams into unicast streams for the clients that need them.

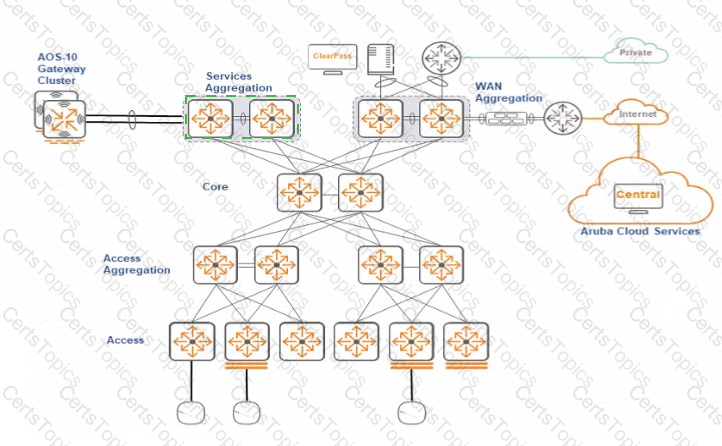

In the context of an EVPN VXLAN fabric, the Route-Reflector Persona is most appropriately configured at the Services Aggregation layer. This layer is responsible for interconnecting different network services and typically includes more robust, higher-capacity devices capable of handling the route-reflection functions for EVPN VXLAN.

In an Aruba Networks fabric, route reflectors are used to optimize the distribution of BGP routes. The Services Aggregation layer, which is centrally located in the network topology, is best suited for this role due to its high availability and ability to efficiently manage routes between the core and access layers.

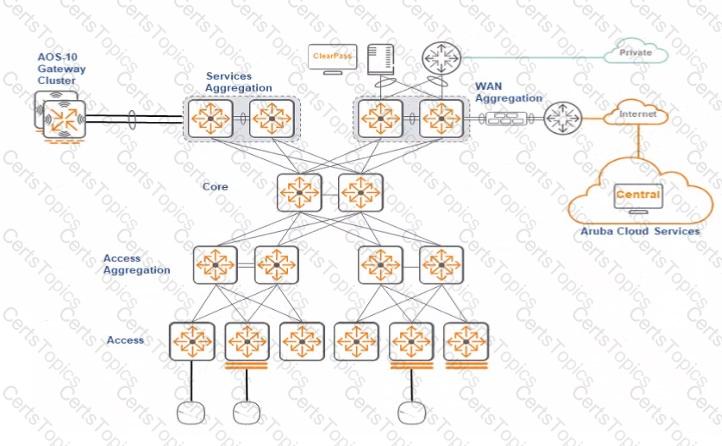

Therefore, if you were to click on the image provided, you would select the Services Aggregation layer to configure the Route-Reflector Persona.

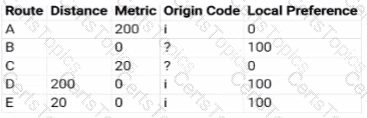

In BGP, the route marked with a ">" symbol is the best route that is chosen based on BGP attributes in the following order: highest weight (Cisco-specific), highest local preference, originated by BGP running on the local router, shortest AS path, lowest origin type, lowest MED, eBGP over iBGP, closest IGP neighbor, and lowest BGP router ID. Based on the table provided, Option E would be marked with a ">" symbol as it has the highest local preference of 100 which is a decisive factor in the BGP best path selection process.
