HPE Aruba Certified Certification HPE7-A07 Book

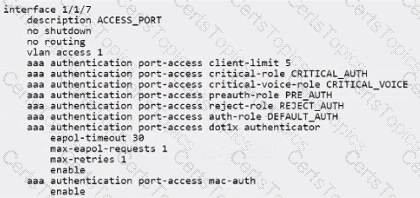

In the provided configuration for interface 1/1/7, there are roles specified for different scenarios concerning authentication. When a voice client attempts to connect and the RADIUS server is unreachable, the role that is assigned is the one specified as the "critical-voice-role". In this case, the "CRITICAL_VOICE" role is configured to be assigned under such circumstances, ensuring that voice clients receive appropriate network access permissions even when the RADIUS server is not available to authenticate them.

USB dongles often require additional power, which may exceed the power delivery capabilities of Class 4 PoE switches. Aruba AP-615 and AP-635 are designed to work with USB dongles that require additional power for proper operation. Since the Cat 6A cable can support higher power levels, replacing the Class 4 PoE switches with Class 6 PoE switches, which can deliver higher power, should resolve the issue with the dongles not powering up.

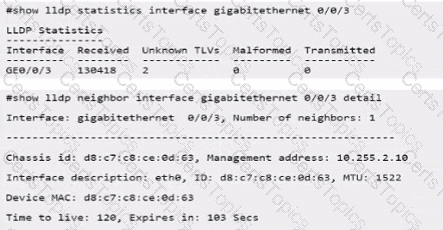

The issue is that unknown TLVs (Type Length Values) cannot be displayed. LLDP (Link Layer Discovery Protocol) is used to share device information with network neighbors, but if a TLV is not recognized by the LLDP implementation on the gateway, it won't be displayed or processed. Hence, the Asset ID TLV set on the device for inventory management is not showing up because it is unrecognized or unsupported by the gateway's LLDP.

VoIP quality can be negatively impacted by insufficient cell overlap in AP deployment plans, which can cause poor handoffs between APs as a user moves around. This results in a degraded VoIP experience. Additionally, roaming into an area with continuous Zigbee operation can cause interference with the 5GHz frequency band, further contributing to poor VoIP call quality. The Zigbee communication protocol operates on the same frequency band as Wi-Fi and can introduce noise and interference, which leads to a reduced MOS score, as reported by the VoIP engineer.
