Exactprep 350-801 Questions

-

Guidelines

-

This is a lab item in which tasks will be performed on virtual devices.

• Refer to the Tasks tab to view the tasks for this lab item.

• Refer to the Topology tab to access the device console(s) and perform the tasks.

• Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

• All necessary preconfigurations have been applied.

• Do not change the enable password or hostname for any device.

• Save your configurations to NVRAM before moving to the next item.

• Click Next at the bottom of the screen to submit this lab and move to the next question.

• When Next is clicked, the lab closes and cannot be reopened.

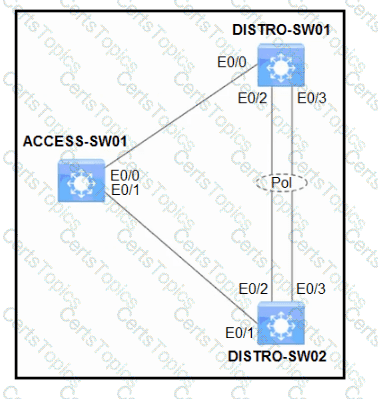

Topology

Tasks

-

The operations team started configuring network devices for a new site.

Complete the configurations to achieve these goals:

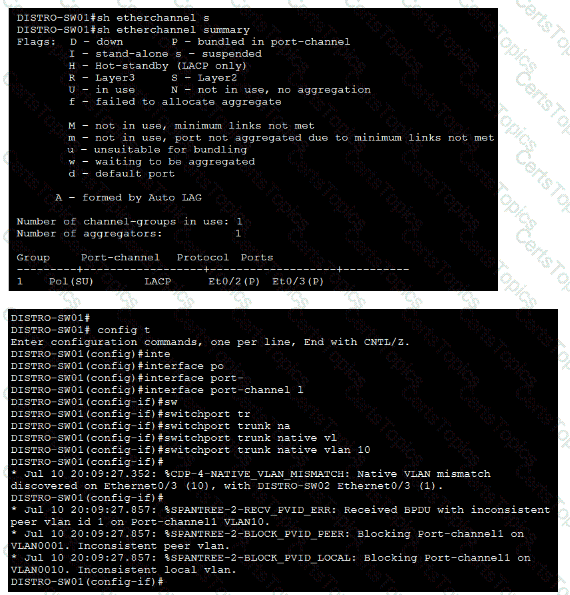

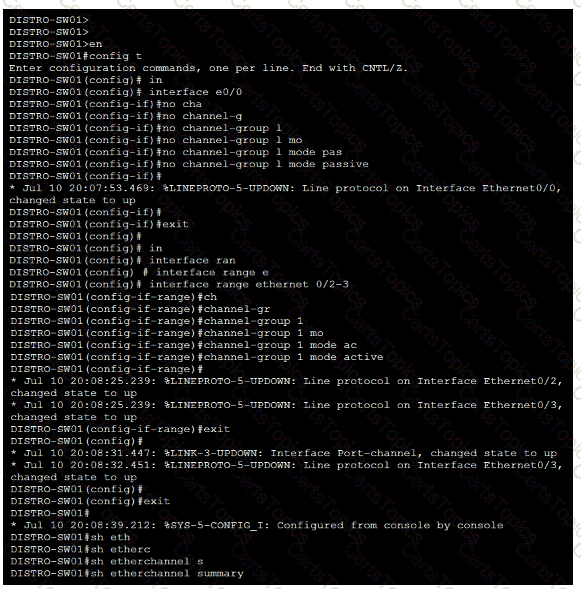

1. Ensure that port channel Po1 between DISTRO-SW01 and DISTRO-SW02 is operational using the LACP protocol. Configuration changes for this task must be made on DISTRO-SW01.

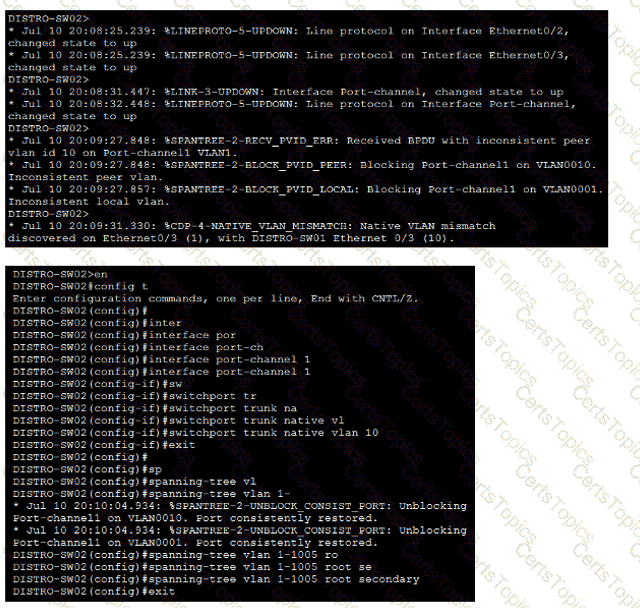

2. Ensure that traffic on VLAN 10 is carried as untagged traffic between DISTRO-SW01 and DISTRO-SW02.

3. Complete the Rapid-PVST+ configuration on DISTRO-SW2 by ensuring it it the secondary root switch for all VLANs in the range of 1 to 1005.

DISTRO-SW01

DISTRO-SW02

-

An employee of company ABC just quit. The IT administrator deleted the employee’s user id from the active directory at 10 a m. on March 4th The nightly sync occurs at 10 p.m. daily. The IT administrator wants to troubleshoot and find a way to delete the user id as soon as possible How is this issue resolved?

Which transport protocol does the application layer protocol SNMP use?

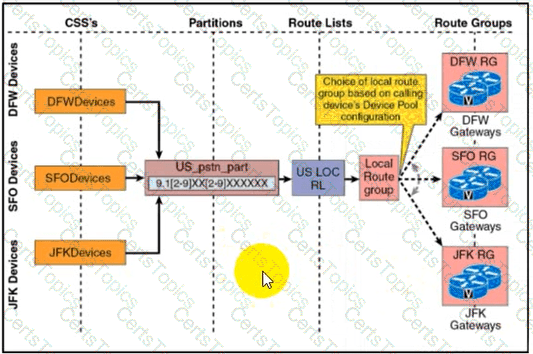

Refer to the exhibit. A user takes a phone from San Francisco to New York for a short reassignment. The phone was set up to use the San Francisco device pool, and device mobility is enabled on the Cisco UCM. The user makes a call that matches a route pattern in a route list that contains the Standard Local Route Group. To where does the call retreat?
