Programmatic voice interaction requires a calling control surface rather than a configuration feature intended for chat, knowledge, or information governance. Dynamics 365 Contact Center's voice architecture is built on communication capabilities that expose calling APIs and SDK functionality for establishing, controlling, transferring, and extending calls. These APIs support scenarios where application logic must influence the active voice interaction rather than relying entirely on manually initiated representative actions.

Microsoft's current communications architecture exposes Calling SDK and Call Automation capabilities for programmable calling scenarios. Dynamics 365 Contact Center also supports consultation and transfer between service representatives and supervisors as part of the voice channel, which is the operational pattern required when the frontline interaction must involve another employee or back-office specialist.

A pre-chat survey applies to digital chat data collection. Knowledge-authoring functions provide resolution content but cannot manipulate a live voice call. Sensitivity labels provide information-protection classification and likewise have no voice-control function.

Therefore, the calling/voice APIs are the only option that provides the required programmable interaction control.

Study Guide reference: Implement channels - > Provision and manage voice channels - > Extend voice interaction and calling capabilities by using supported APIs/SDKs.

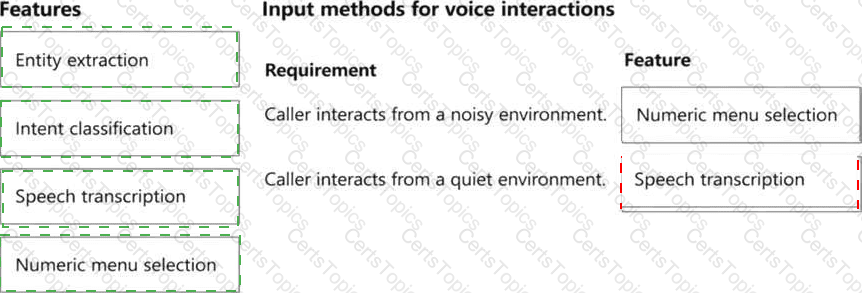

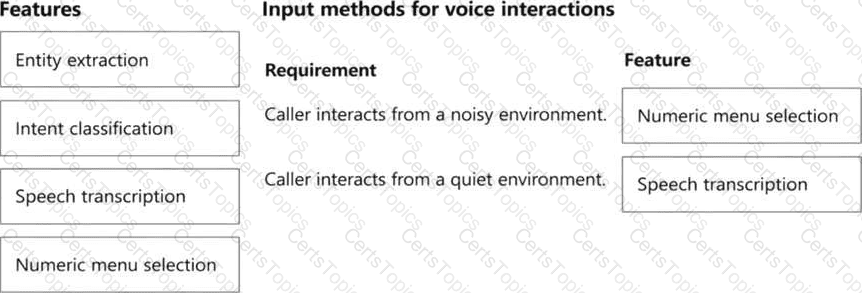

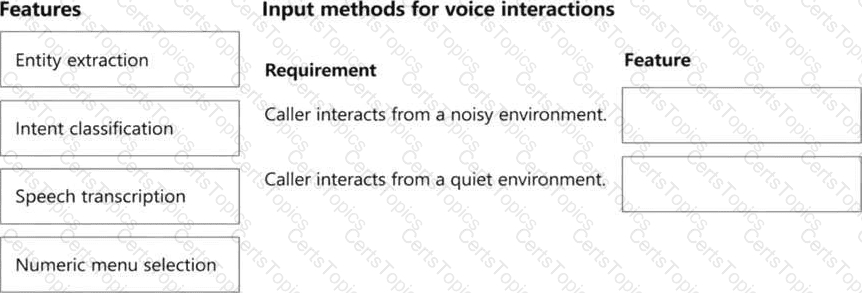

Caller interacts from a noisy environment - > Numeric menu selection

Caller interacts from a quiet environment - > Speech transcription

For callers in noisy environments, DTMF-based numeric menu selection provides a deterministic input mechanism that is largely unaffected by background sound. Copilot Studio supports DTMF input specifically so callers can use the phone keypad instead of relying on spoken responses. Microsoft notes that DTMF can be configured on Question nodes and is well suited to deterministic IVR menu flows.

In a quiet environment, speech transcription provides a more natural interaction. Basic voice architecture processes the caller's speech through speech-to-text before the resulting text is evaluated by Copilot Studio's NLU or dialog logic. This supports natural spoken input while preserving the caller's intent and captured information for the automated interaction.

Entity extraction and intent classification are processing techniques applied after input is captured; they are not alternative physical input methods. Entity extraction identifies values such as account numbers or names, while intent classification determines what the caller is trying to accomplish.

The scenario also states that Fabrikam must support both naturally spoken input and keypad input, making this mapping directly consistent with its technical requirement.

Study Guide reference: Configure agents and AI capabilities - > Configure voice-enabled Copilot agents - > Configure speech and DTMF interaction behavior.

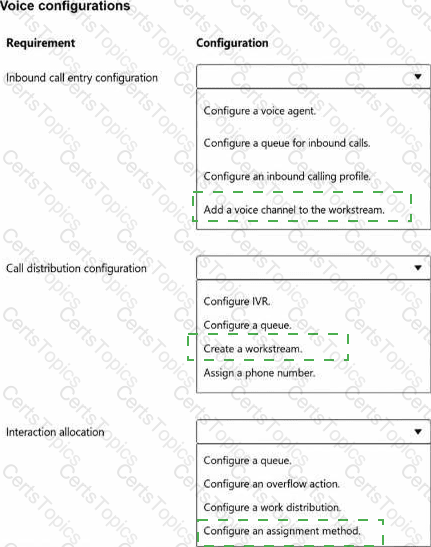

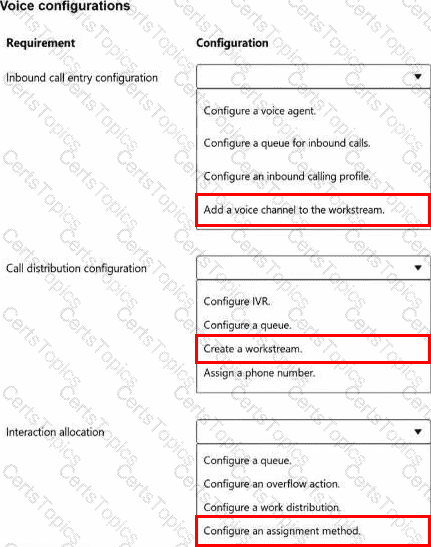

Inbound call entry configuration - > Add a voice channel to the workstream.

Call distribution configuration - > Create a workstream.

Interaction allocation - > Configure an assignment method.

Inbound voice routing in Dynamics 365 Contact Center is built around a voice workstream. Microsoft defines a workstream as the container that enriches, routes, and assigns work items and specifically requires a Voice workstream for inbound voice configuration.

The voice channel is then associated with that workstream by configuring the phone number and channel settings. This establishes the inbound entry point through which the call enters the Contact Center routing pipeline. Microsoft documents configuring the voice channel from the workstream and associating an inbound-enabled phone number with it.

Once a call is classified and routed to a queue, the assignment method controls which eligible representative receives the work item. Assignment methods can evaluate representative capacity, skills, presence, and configured selection criteria. Microsoft provides standard methods such as Highest capacity and Least active, as well as configurable custom assignment rules.

A queue provides a routing destination but does not by itself determine which representative receives the interaction. Therefore, the workstream/channel establishes call entry and distribution architecture, while the assignment method performs representative allocation.

Study Guide reference: Implement channels / Configure work distribution - > Configure inbound voice, workstreams, queues, and assignment methods.

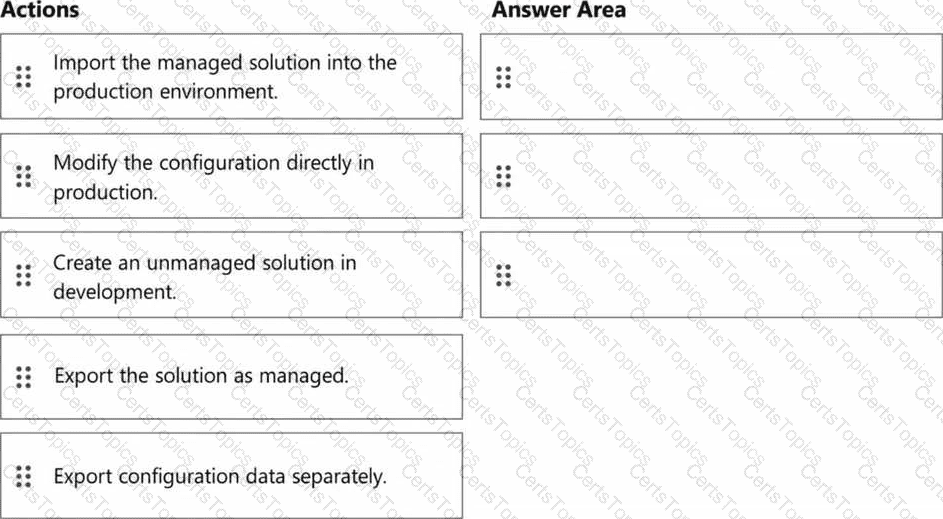

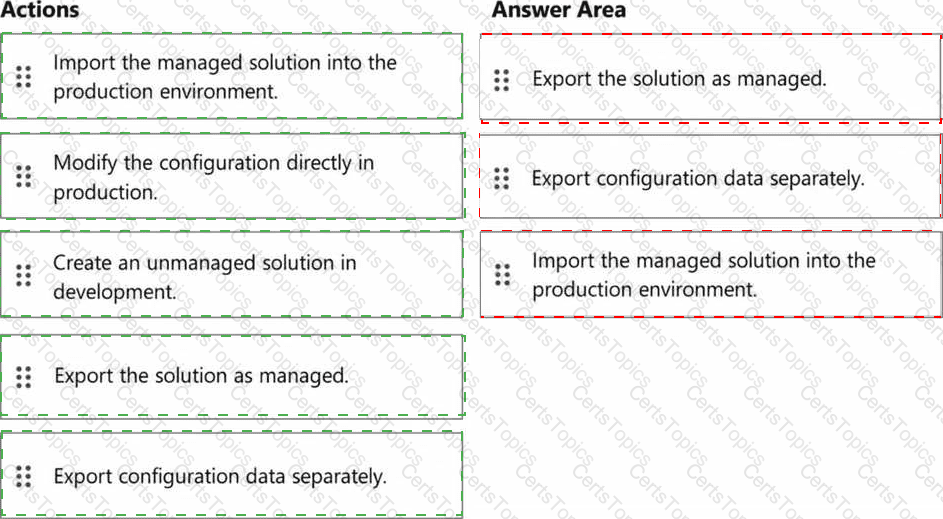

1. Export the solution as managed.

2. Export configuration data separately.

3. Import the managed solution into the production environment.

Fabrikam requires governed, repeatable deployment, managed solutions in production, and supported migration of configuration data without manually rebuilding the environment. The solution therefore separates deployable solution components from configuration records that require configuration-data migration.

Microsoft recommends developing configuration in an unmanaged solution in the source environment, exporting that solution as managed, and importing the managed package into downstream environments. Direct editing of managed configuration in production is specifically discouraged because it introduces an active unmanaged layer that can override later managed updates and interfere with ALM servicing.

Contact Center also contains configuration records that may need migration separately. Microsoft documents the use of solutions together with the Configuration Migration tool for workstreams, queues, skills, capacity profiles, routing configuration, and channel-related records. Therefore, the deployment package is exported as managed, configuration data is exported through the supported migration process, and the managed solution is introduced into production rather than modifying production manually.

Study Guide reference: Deploy Dynamics 365 Contact Center - > Create solutions; Configure ALM for Dynamics 365 Contact Center deployments.

The requirement is to eliminate inconsistent access across the customer service representative, supervisor, and administrator personas while enforcing least privilege. Dataverse security roles are the correct control because they define the privileges users receive on tables, records, applications, and Contact Center capabilities. Dynamics 365 Contact Center supports administrator, supervisor, and representative personas, and Microsoft permits custom security roles to be mapped to these personas when the predefined roles do not precisely match organizational responsibilities.

The Fabrikam requirements explicitly state that access must be restricted according to user responsibilities, CSRs should access only records associated with the interactions they handle, supervisors require performance and scheduling visibility, and administrators require configuration access. Creating appropriately scoped Dataverse roles for each defined persona addresses these requirements directly.

Access teams primarily provide record-sharing semantics and do not establish the complete functional privilege model required here. Field-level security protects specific secured columns rather than defining an entire persona. Queue membership controls routing eligibility rather than application authorization.

Study Guide reference: Deploy Dynamics 365 Contact Center - > Manage users - > Manage security roles, including custom security roles and personas.

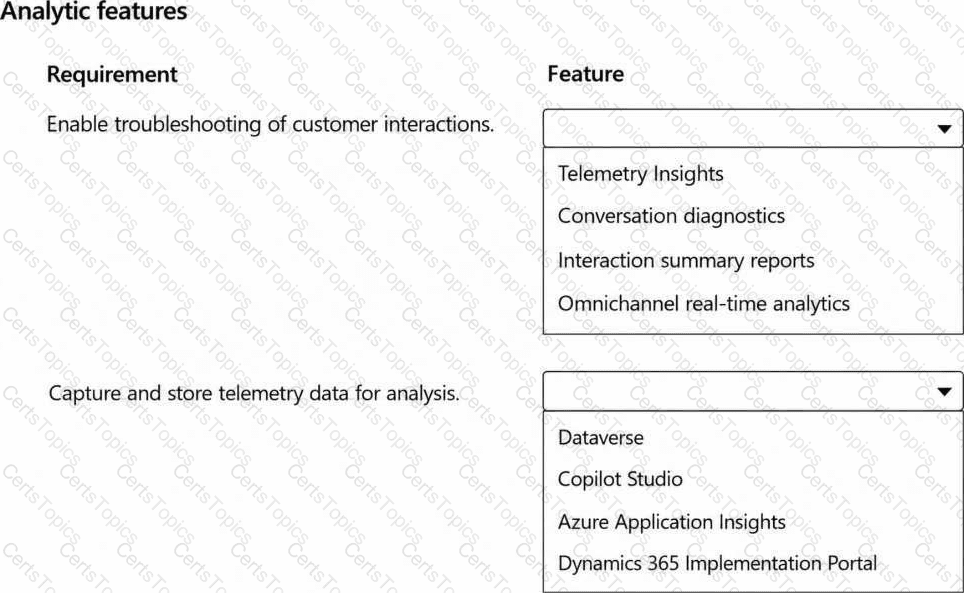

Enable troubleshooting of customer interactions - > Conversation diagnostics

Capture and store telemetry data for analysis - > Azure Application Insights

Conversation diagnostics provides interaction-specific diagnostic visibility across the Contact Center lifecycle. It allows administrators and supervisors to trace what occurred as a customer interaction moved through classification, routing, queue assignment, representative selection, transfers, consultations, and supervisor actions. This makes it the correct feature for troubleshooting customer interactions rather than simply reviewing aggregated performance metrics.

Azure Application Insights provides the telemetry storage and analysis layer. Microsoft's current Contact Center analytics training explicitly identifies Application Insights as the service used to capture and query conversation lifecycle telemetry. Once integrated, diagnostic events can be inspected with queries to investigate routing anomalies and other runtime problems.

Omnichannel real-time analytics is designed for operational monitoring of live KPIs such as queue backlog, service levels, representative availability, and active conversations. It is valuable for supervision but does not replace detailed conversation diagnostics. Interaction summary reports similarly provide summarized analytical information rather than end-to-end diagnostic traces.

The supplied case-study answer therefore correctly separates the troubleshooting capability from the underlying telemetry platform: Conversation diagnostics for investigation and Application Insights for telemetry capture/storage.

Study Guide reference: Manage analytics for Dynamics 365 Contact Center - > Configure conversation diagnostics in Application Insights.

Generative answers grounded in approved organizational knowledge allow a Copilot Studio agent to respond naturally to customer questions without requiring every possible utterance or FAQ variation to be manually represented as a deterministic topic. The agent retrieves relevant knowledge and uses that grounded material to construct a conversational response to the customer's request.

Microsoft's Contact Center architecture explicitly supports AI agents for autonomous self-service, and Copilot Studio generative orchestration can dynamically select knowledge, topics, or actions according to the customer's natural-language intent. This makes the approach substantially more flexible than a conventional fixed-menu IVR while still allowing the knowledge sources to constrain and ground generated responses.

The Fabrikam requirements require AI-driven handling of frequently asked questions and explicitly call for generative, natural conversational interactions. Therefore, a grounded Copilot Studio implementation directly addresses both requirements.

A fixed IVR menu may be appropriate where deterministic routing is required, but it cannot satisfy the generative requirement. An emailed FAQ is asynchronous and does not participate in the live interaction. A greeting message provides no question-answering capability.

Study Guide reference: Configure agents and AI capabilities - > Configure voice agents by using generative AI or classic orchestration; configure knowledge-grounded AI interactions.

A Copilot Studio voice agent directly satisfies both parts of the requirement: autonomous resolution and contextual escalation. Dynamics 365 Contact Center supports integrating Copilot Studio agents into voice and digital channels so the agent can conduct the initial customer interaction, answer routine requests, gather information, and transfer the customer to a human representative when escalation becomes necessary.

Microsoft specifically documents that integrated agents can provide automated responses and subsequently transfer the conversation to a representative while preserving the full conversation context. This continuity prevents customers from having to repeat information already supplied during the automated portion of the interaction and gives the CSR the contextual data required to continue handling the request efficiently.

The Fabrikam scenario requires self-service for simple inquiries, generative conversational capabilities, defined escalation paths, and preservation of information captured before escalation. The voice-agent architecture maps directly to those requirements.

A static FAQ cannot participate in a live call. A callback queue only transfers responsibility to a person and therefore provides no automated resolution. A scheduled report is retrospective analytics rather than an interaction-processing component.

Study Guide reference: Configure agents and AI capabilities - > Configure voice agents; manage variables and context; integrate agents with Contact Center and human escalation.

Structured information collection in Copilot Studio begins by defining what type of information must be captured. Entities provide the semantic type for values such as numbers, dates, account identifiers, locations, or custom business concepts. Once the expected entity is known, a Question node prompts the customer and associates the response with the corresponding variable.

The captured value can then be reused later in the topic or made available more broadly through appropriately scoped variables. This is critical in the Fabrikam scenario because information collected by the voice agent must remain available for downstream processing and for human escalation. Microsoft includes variable management as an explicit AB-250 voice-agent objective and supports using topic/global variables to retain and reuse customer input during the conversational journey.

Creating variables before any value exists does not establish the required structured capture logic. Publishing before defining entities and questions reverses the correct development sequence. Disabling validation and relying entirely on free-text parsing also weakens reliability because the agent loses the structured entity recognition needed for predictable automation.

The technically sound sequence is therefore entity definition, Question-node capture, and persistence of the captured result for subsequent use.

Study Guide reference: Configure agents and AI capabilities - > Configure voice agents - > Manage variables in Copilot Studio.

The automated voice interaction must be defined before downstream human-routing behavior can be finalized because the voice agent determines what customer input is collected, which requests can be resolved through self-service, and when escalation to a representative is required. The Fabrikam technical requirements explicitly require Copilot Studio voice agents, both spoken and keypad input, and the ability to carry collected information into the subsequent representative interaction.

Microsoft's Copilot Studio voice architecture supports voice-enabled agents that process speech and DTMF input, use NLU or generative orchestration, collect context, and transfer unresolved conversations to Contact Center. The voice agent is therefore part of the caller journey before the human-assignment stage.

After the interaction behavior and escalation conditions are understood, routing configuration can use the resulting context, intent, skills, and other classification information to determine the correct queue and representative. Configuring routing first would force routing logic to be created without knowing precisely which interaction outputs and escalation conditions the agent will generate.

Queue membership and representative assignment are later-stage work-distribution concerns and do not define the automated IVR experience.

Study Guide reference: Configure agents and AI capabilities - > Configure Copilot Studio voice agents, IVR interactions, context, and escalation.

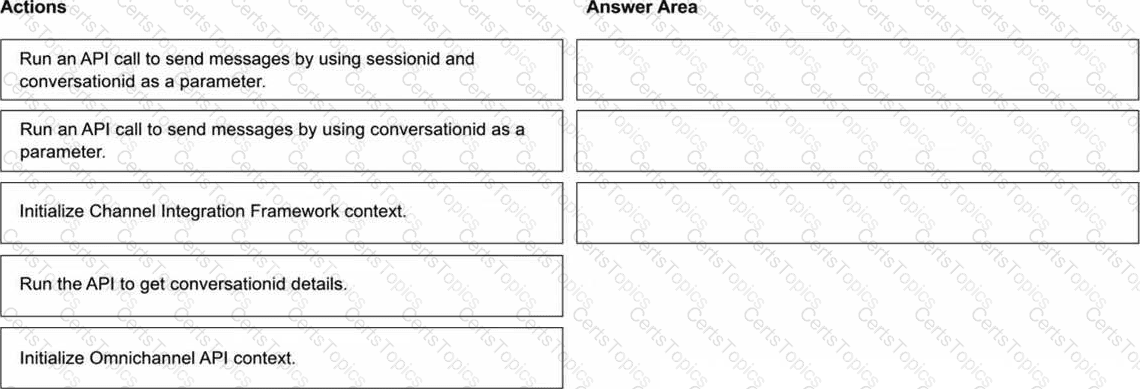

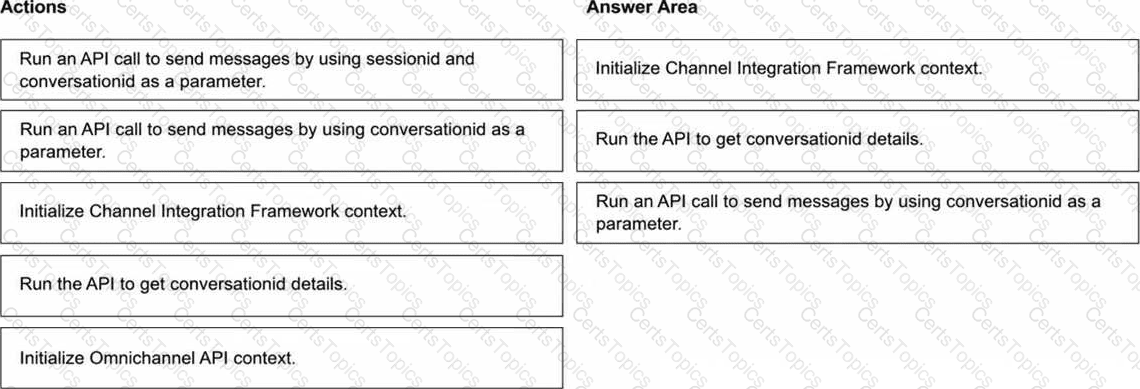

1. Initialize Channel Integration Framework context.

2. Run the API to get conversationid details.

3. Run an API call to send messages by using conversationid as a parameter.

The integration first needs an initialized Channel Integration Framework context because VanArsdel is operating an external CCaaS provider through the Dynamics 365 representative desktop. The active interaction must then be identified so the integration can target the correct conversation rather than relying on an unrelated session identifier.

Dynamics 365 exposes an Omnichannel JavaScript API containing getConversationId, which retrieves the unique identifier of the current conversation, and sendMessageToConversation, which sends a programmatic message to a conversation. Microsoft documents conversationId as the identifier used to target a particular conversation; when supplied, sendMessageToConversation directs the message to that interaction.

This distinction is important because a representative can operate multiple sessions. Conversation identity is the reliable interaction-level identifier required by the API. Supplying both sessionid and conversationid is not the documented signature for sendMessageToConversation. Therefore, after the framework context is established, retrieve the conversation identifier and use that identifier when issuing the message operation.

Study Guide reference: Configure the Dynamics 365 Contact Center representative experience - > Extend the representative experience by using APIs and productivity capabilities.

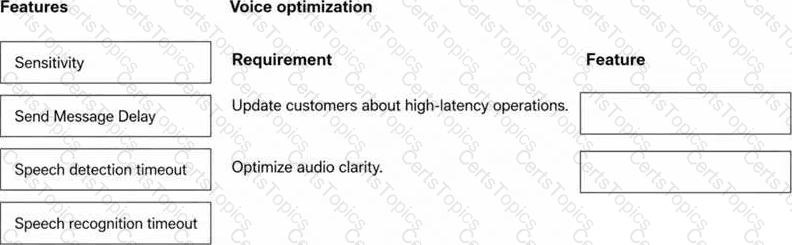

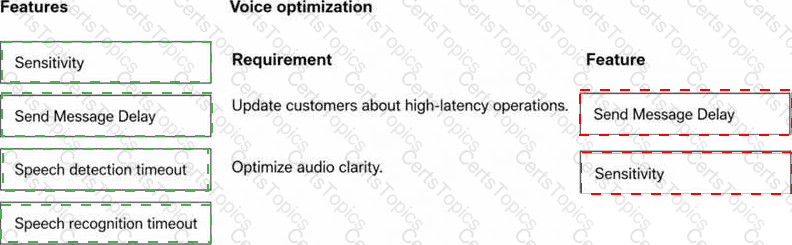

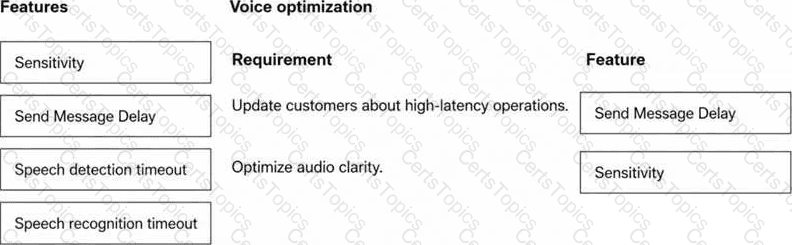

Update customers about high-latency operations - > Send Message Delay

Optimize audio clarity - > Sensitivity

Send Message Delay controls when a voice agent presents a latency message during a long-running operation. Microsoft defines this setting as the period the agent waits after a background operation begins before communicating the configured latency message. It is therefore the appropriate control when customers must be kept informed while an operation takes longer than expected.

Sensitivity governs how aggressively the voice agent distinguishes spoken input from environmental noise. Microsoft specifically documents that lower sensitivity is appropriate for noisy environments, public spaces, or hands-free scenarios, while higher sensitivity is more suitable for quiet environments and soft-spoken callers. Tuning sensitivity therefore directly affects practical speech clarity and recognition reliability.

Speech detection timeout and speech recognition timeout address different timing concerns. They determine how long the voice agent waits for speech to begin or how long it allows input after the caller starts speaking; they do not control latency notifications or the balance between speech and background noise.

Study Guide reference: Configure agents and AI capabilities - > Configure voice agents - > Configure voice optimization settings, latency messaging, and speech recognition behavior.

The case requires supervisors to have both immediate operational visibility and retrospective performance insight. Real-time dashboards satisfy the first requirement by exposing current Contact Center conditions such as active interactions, queue backlog, representative availability, service levels, abandonment, and other time-sensitive KPIs. Microsoft describes real-time analytics as providing supervisors with continuously changing operational metrics so they can make immediate decisions during the working day.

Historical analytics provides the complementary long-term perspective. It allows supervisors and service managers to analyze previous conversation volumes, representative performance, handling patterns, channel trends, and other historical metrics. Microsoft distinguishes historical analytics as the appropriate capability for identifying patterns and supporting strategic improvement over time.

SLA metrics may be useful within service operations but do not provide the complete monitoring architecture required by the case. Supervisor actions such as monitor or transfer enable intervention in individual live conversations but do not supply the historical trend analysis explicitly required.

Together, real-time dashboards and historical analytics provide the operational and analytical coverage specified in the case study.

Study Guide reference: Manage analytics for Dynamics 365 Contact Center - > Configure real-time analytics, historical analytics, and supervisor monitoring capabilities.

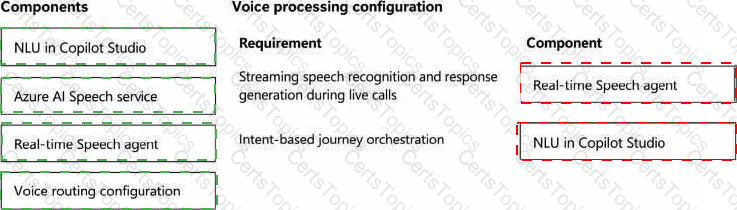

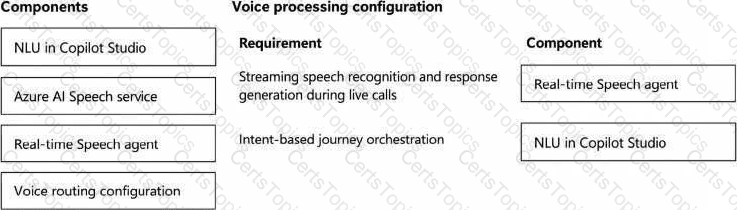

Streaming speech recognition and response generation during live calls - > Real-time Speech agent

Intent-based journey orchestration - > NLU in Copilot Studio

A real-time voice agent is designed for low-latency conversational processing in which spoken input and generated responses are handled continuously during the live interaction. Microsoft distinguishes real-time voice agents from basic voice agents: real-time agents use a speech-to-speech real-time model for natural, low-latency conversations, while basic voice agents typically convert speech to text, process the resulting text, and then synthesize speech.

Consequently, Real-time Speech agent is the appropriate component for streaming speech recognition and response generation during a live call. It addresses the requirement for fluid, interactive speech rather than merely supplying a standalone transcription service.

For intent-driven orchestration, Copilot Studio's Natural Language Understanding capability interprets customer language and determines which predefined topic or conversational path should execute. Microsoft documents NLU, NLU+, and classic orchestration as mechanisms for deterministic intent-driven dialog behavior, while generative orchestration dynamically chooses topics, actions, and knowledge.

Voice routing configuration operates at the Contact Center work-distribution layer rather than performing conversational intent understanding. Azure AI Speech provides speech services but does not itself represent the Copilot Studio orchestration component required here.

Study Guide reference: Configure agents and AI capabilities - > Configure voice agents, real-time voice, NLU, and IVR orchestration.

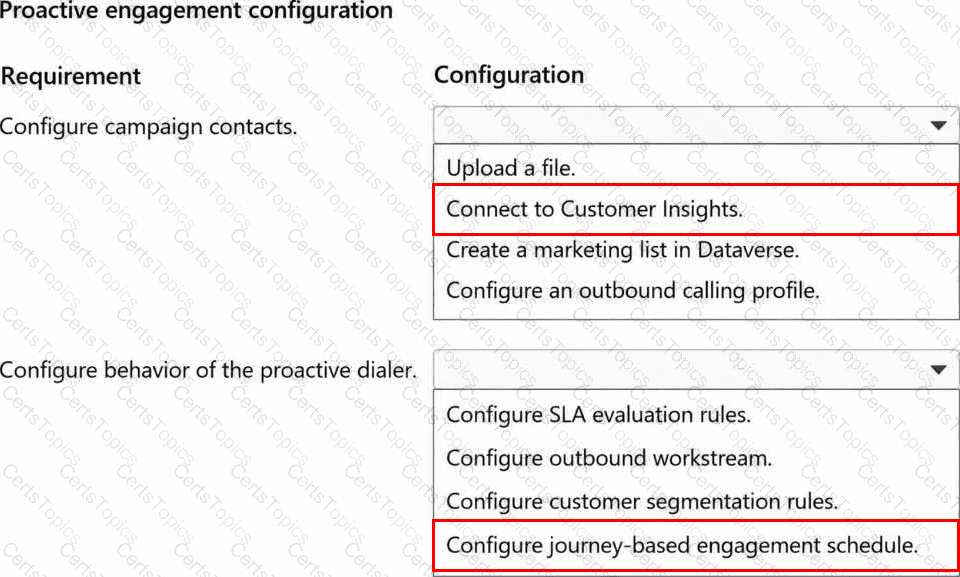

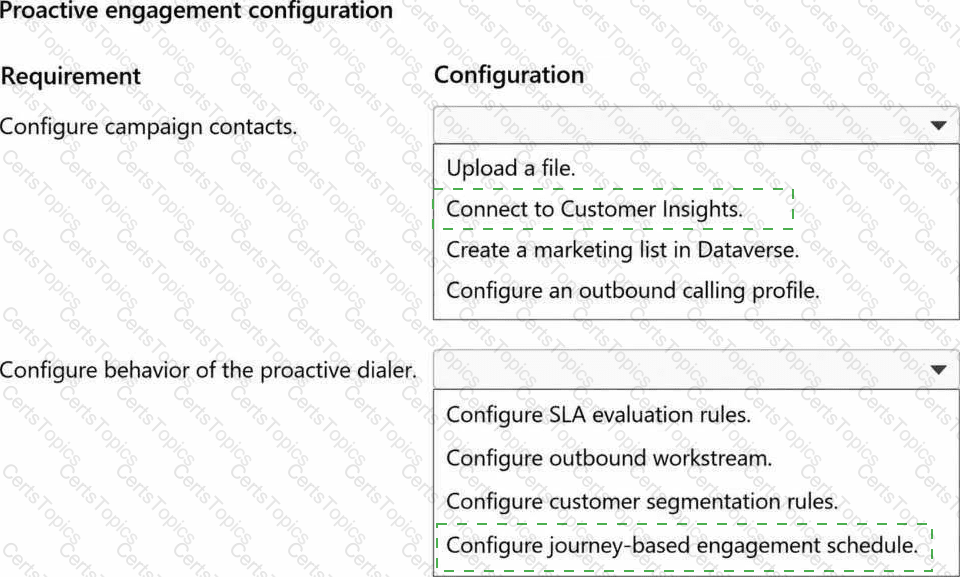

Configure campaign contacts - > Connect to Customer Insights.

Configure behavior of the proactive dialer - > Configure journey-based engagement schedule.

Dynamics 365 Contact Center proactive engagement can integrate with Dynamics 365 Customer Insights - Journeys when customer outreach is driven through conversational journeys. Microsoft documents Customer Insights as a supported proactive-engagement intake/orchestration path and requires Customer Insights when journey-based customer outreach is used.

The customer audience or campaign-contact definition can therefore originate from Customer Insights, where segmentation, triggers, and customer-journey logic determine who should receive the outreach. This matches the case requirement to use customer data for personalized engagement without integrating the existing third-party marketing platform.

The dialer's operational behavior can then be coordinated with the journey-based engagement schedule, defining when the proactive outreach occurs according to the configured customer journey. Customer Insights triggers and journey configuration can initiate voice or messaging engagements when defined customer events or segment criteria are satisfied.

An outbound calling profile primarily governs representative-initiated calling, caller identity, and related voice settings; it does not define the campaign audience. SLA evaluation rules are unrelated to proactive dialing behavior. A generic Dataverse marketing list would also bypass the scenario's stated Customer Insights - Journeys direction.

Study Guide reference: Implement channels - > Configure proactive engagement; integrate Contact Center with Customer Insights - Journeys; configure outbound audience and engagement scheduling.

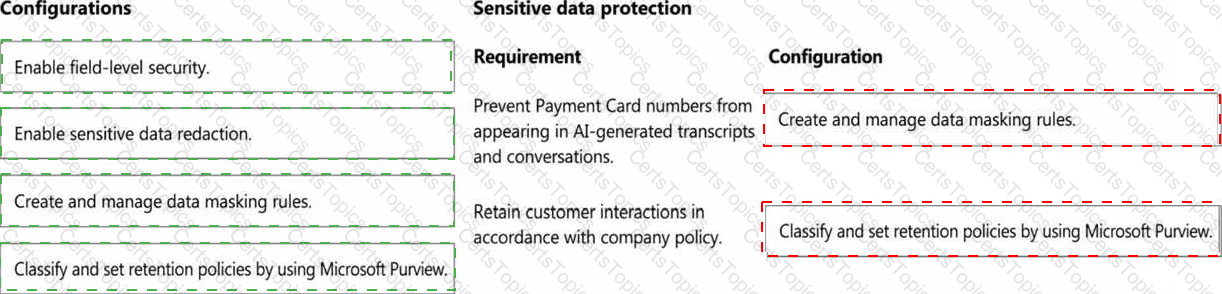

Prevent Payment Card numbers from appearing in AI-generated transcripts and conversations - > Create and manage data masking rules.

Retain customer interactions in accordance with company policy - > Classify and set retention policies by using Microsoft Purview.

The two requirements address different stages of information governance. Sensitive information must first be protected within the interaction itself. Dynamics 365 Contact Center data-masking rules detect configured patterns such as credit-card numbers and replace the protected data with masked characters. Microsoft documents that text masked in a conversation message is also masked in the corresponding conversation transcript. Contact Center includes predefined masking patterns for credit cards and allows administrators to define additional rules.

The second requirement concerns lifecycle governance rather than runtime visibility. Retention policy determines how long customer interaction records must remain available according to organizational and regulatory policy. In the case study, VanArsdel specifically handles PII and payment information and must prevent sensitive information from being retained in transcripts and AI-generated summaries while maintaining compliant records.

Field-level security protects Dataverse columns but does not redact sensitive values appearing inside conversation text. Sensitive-data redaction is related, but the supplied requirement specifically maps payment-card protection to configurable masking rules. Retention and classification are therefore handled independently through Microsoft Purview governance controls.

Study Guide reference: Deploy Dynamics 365 Contact Center - > Configure data protection, security, governance, and Contact Center environments.

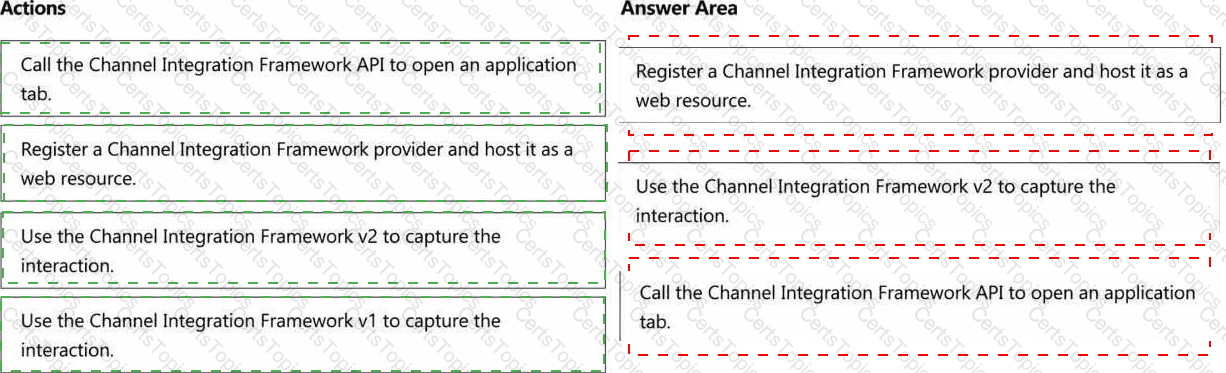

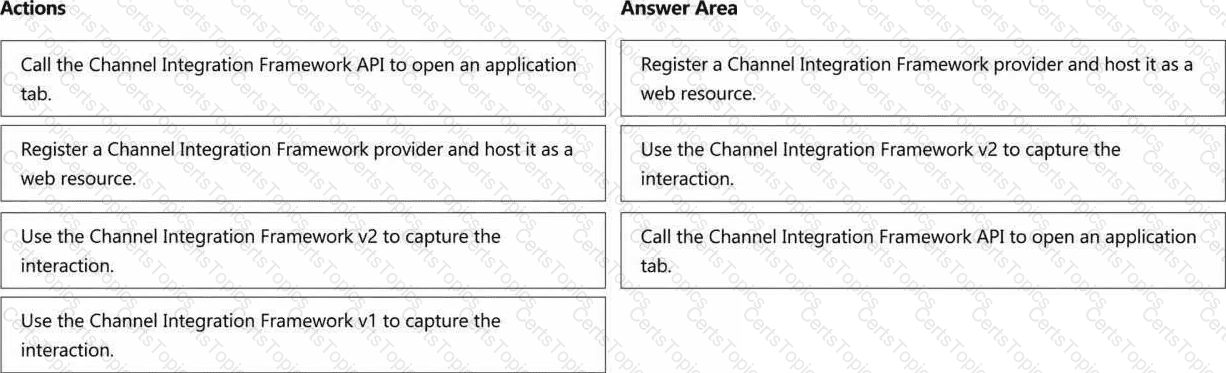

1. Register a Channel Integration Framework provider and host it as a web resource.

2. Use the Channel Integration Framework v2 to capture the interaction.

3. Call the Channel Integration Framework API to open an application tab.

VanArsdel is deliberately adopting the representative desktop before completing migration from its existing CCaaS platform. The technical requirements therefore call for Dynamics 365 Channel Integration Framework so the external communication provider can operate inside the Dynamics 365 model-driven representative experience.

The provider must first be registered so Dynamics 365 knows which channel provider implementation to load. The hosted web resource then functions as the provider application running inside the Channel Integration Framework environment. Channel Integration Framework 2.0 is appropriate because Microsoft designed it for integration of telephony channel providers with Dynamics 365 model-driven apps and exposes browser-based JavaScript APIs for communication-provider interactions.

After the interaction is available through the framework, Channel Integration Framework APIs can control the Dynamics workspace, including opening application content associated with the interaction. This allows the CSR to receive the interaction and expose corresponding CRM customer information without abandoning the standardized representative desktop.

Version 1 is therefore not appropriate for the required modern multisession Contact Center integration.

Study Guide reference: Deploy Dynamics 365 Contact Center - > Configure and extend connectors for Dynamics 365 Contact Center; configure integration architecture.

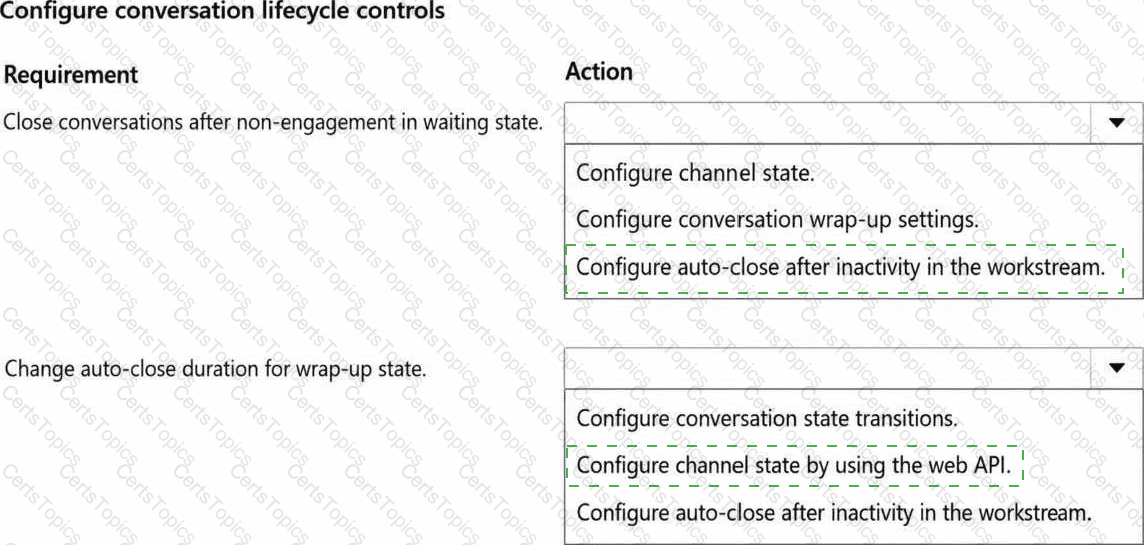

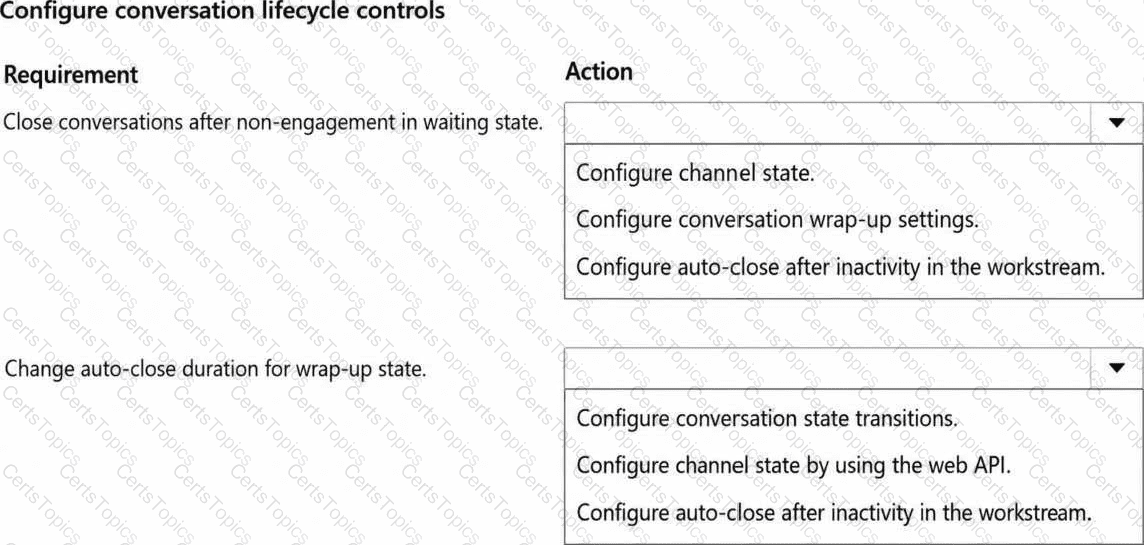

Close conversations after non-engagement in waiting state - > Configure auto-close after inactivity in the workstream.

Change auto-close duration for wrap-up state - > Configure channel state by using the web API.

Dynamics 365 Contact Center distinguishes between inactivity while a conversation is waiting and the lifecycle behavior of a conversation that has entered Wrap-up. For supported persistent channels, the workstream exposes an Auto-close after inactivity setting. Microsoft states that a conversation remaining in Waiting for longer than the configured inactivity interval is automatically transitioned to Closed. This capability applies to persistent chat, SMS, social, and Microsoft Teams channels.

Wrap-up closure is controlled through the underlying channel-state configuration. Microsoft documents that administrators can modify the auto-close duration for conversation states by updating the Channel State Configuration data. The value can be managed through Power Apps or programmatically through the supported Web API when an organization requires a business-specific timeout rather than the standard lifecycle duration.

Consequently, waiting-state inactivity belongs at the workstream level, while customized wrap-up state timing is handled through the channel-state configuration/API mechanism.

The source exhibit on page 30 confirms these two selections.

Study Guide reference: Implement channels - > Configure chat and digital channels - > Configure persistent conversations and conversation lifecycle settings.

Dynamics 365 Contact Center quality evaluation uses an evaluation framework composed of evaluation criteria, evaluation plans, and evaluation results. Evaluation criteria define what is assessed, including questions, answer options, scoring logic, weighting, and evaluator instructions. Evaluation plans determine which interactions should be evaluated and under what conditions.

For automatic condition-based evaluation, supervisors configure evaluation criteria and then use an evaluation plan to identify conversations that satisfy defined conditions. When the plan runs, the Quality Evaluation Agent evaluates the qualifying conversations, generates predicted responses with reasoning, and calculates measurable quality scores. Microsoft explicitly documents weighted and equal-distribution scoring models, enabling organizations to quantify performance consistently rather than relying on subjective manual review.

Manual spot checking cannot provide scalable, systematic coverage. A static training checklist provides guidance but does not automatically evaluate live or completed interactions. Knowledge article review is unrelated to representative conversation-quality measurement.

The correct design therefore combines defined evaluation criteria with automated evaluation rules/plans so qualifying conversations are scored consistently by the Quality Evaluation Agent.

Study Guide reference: Manage analytics for Dynamics 365 Contact Center - > Configure Quality Evaluation Agent, evaluation criteria, evaluation plans, and scoring.

Copilot Studio Question nodes are designed to collect information from users and automatically store the resulting value in a variable. Microsoft explicitly states that the response captured by a Question node can be reused later in the same conversation. The variable can represent structured entity data, multiple-choice input, free-form responses, or values obtained through voice and supported DTMF interaction.

Topic variables are scoped to the topic in which they are created but can also be passed between topics when the interaction design requires reuse across a broader conversation path. For values that must be available throughout the complete session, the variable can additionally be promoted to global scope. Microsoft documents that global variables remain available across topics during the same user session.

A greeting message only outputs information and does not capture a reusable value. A scheduled report operates after the interaction and therefore cannot drive real-time conversational logic. A knowledge article is a static knowledge resource and cannot represent an individual caller's dynamically supplied value.

Study Guide reference: Configure agents and AI capabilities - > Configure Copilot Studio agents - > Configure questions, entities, variables, and conversational context.
