To provide IP phones with geographic location details (such as civic addresses or coordinates) automatically, Juniper EX Series switches utilize the LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery) protocol.

VoIP Specifics: While standard LLDP (C) is for general device discovery, LLDP-MED is an enhancement specifically designed for network-to-endpoint communication for VoIP devices.

Location Identification: LLDP-MED supports Location Identification TLVs (Type-Length-Values). These allow a switch to push geographic or civic location data to an IP phone, which is critical for E911 services and asset tracking.

Junos Implementation: On EX Series switches, this is typically configured under protocols lldp-med to ensure the switch advertises the necessary location information to connected endpoints.

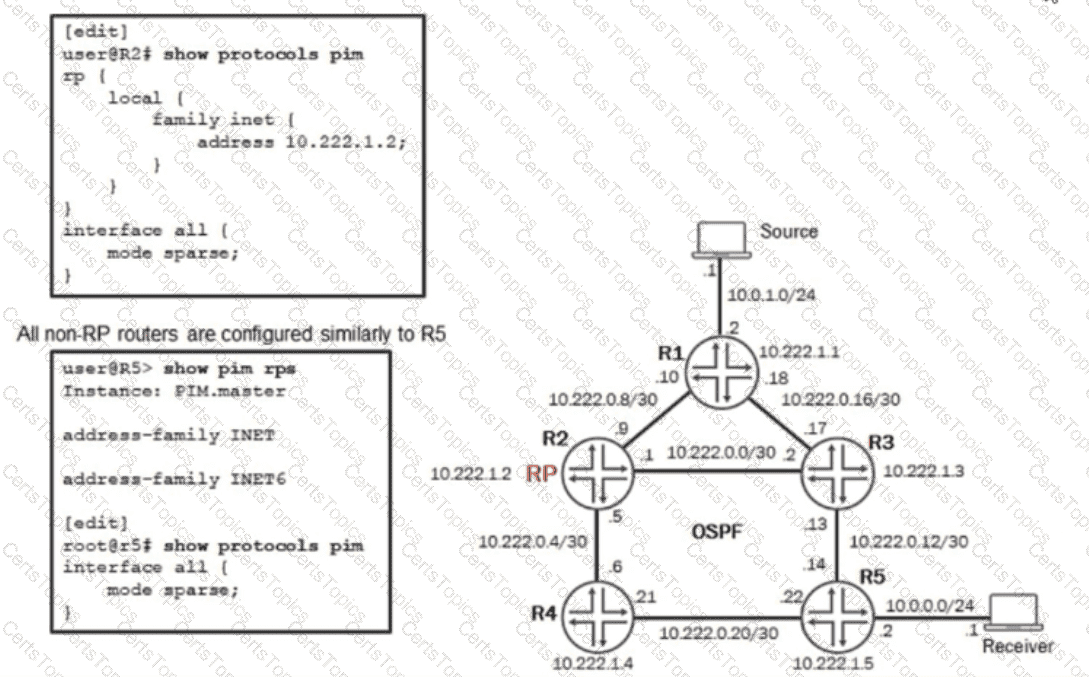

The exhibit illustrates a PIM multicast environment where router R2 has received a multicast packet from Source 1 (192.168.100.10) on its ge-0/0/4.0 interface. To prevent loops, PIM-SM uses a mechanism called Reverse Path Forwarding (RPF).

RPF Check Process (Option A): When a multicast packet arrives, the router performs an RPF check by looking up the source ' s IP address in its unicast routing table (typically inet.0).

The exhibit ' s command output, show multicast rpf 192.168.100.10, explicitly shows that for the source network $192.168.100.0/24$, the RPF interface is ge-0/0/1.0.

Because the packet actually arrived on ge-0/0/4.0 instead of the expected ge-0/0/1.0 interface, the RPF check fails.

Packet Discard (Option C): According to standard PIM-SM operation in Junos OS 24.4, if a multicast packet fails the RPF check—meaning it arrived on an interface that the router does not use to reach the source via unicast—the packet is discarded. This is a fundamental loop-prevention mechanism that ensures multicast traffic is only accepted from the shortest path toward the source.

Option B is incorrect because the router will not add any interfaces to the Outgoing Interface List (OIL) for a packet that fails the initial RPF check.

Option D is incorrect because the exhibit clearly shows the interface in the RPF table (ge-0/0/1.0) is different from the interface where the packet was received (ge-0/0/4.0).

This scenario describes the standard transition of Class of Service (CoS) metadata from the network edge to the network core.

MF vs. BA Classification: Edge devices use Multifield (MF) classifiers because incoming traffic often lacks markings. MF classification assigns traffic to an internal forwarding class based on multiple fields (IPs, ports, etc.). Core devices use Behavior Aggregate (BA) classifiers because they are faster; they only look at the CoS bits (like DSCP) in the header to determine the forwarding class.

The Problem: Internal forwarding class assignments made by an MF classifier on the edge device do not automatically travel with the packet. If the packet leaves the edge device with its original (potentially zeroed) DSCP bits, the core device ' s BA classifier will not be able to identify the priority.

The Solution (Option A): You must implement rewrite rules on the egress interfaces of the edge devices. A rewrite rule takes the internal forwarding class and loss priority assigned by the MF classifier and " writes " the corresponding DSCP value into the packet header as it exits toward the core. This ensures that the core device sees the correct DSCP marking and can apply the appropriate BA classification.

Incorrect Options: Rewrite rules are strictly an egress function to modify the packet for the next hop. Applying them on ingress (Option B) or core ingress (Option C) does not solve the problem of ensuring the packet header reflects the classification logic used during the internal switching process of the edge device.
