In Autodesk Revit Electrical Design, lighting control systems such as single-pole, three-way, and four-way switches are managed using Switch Systems. These systems logically connect lighting devices (switches) to the lighting fixtures they control. For multiple switches (like three-way configurations) to be part of the same control circuit, they must share the same Switch ID value.

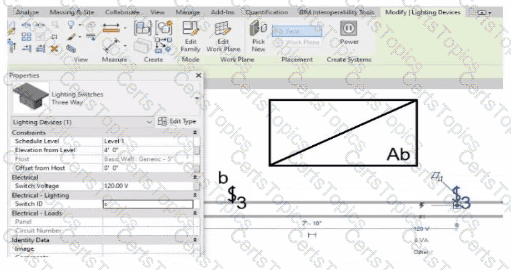

In the exhibit, the electrical designer is attempting to add a three-way switch to the existing switch system labeled “b”, but Revit does not allow it. The reason is that the Switch ID parameter of the new switch does not match the Switch ID of the system it is intended to join.

The Switch ID acts as the unique identifier that links all switches controlling the same group of fixtures. If the IDs differ (for example, “b3” versus “b”), Revit interprets them as belonging to separate systems and prevents them from being grouped together.

The Autodesk Revit MEP User’s Guide – Electrical Systems: Lighting and Switch Systems explains this clearly:

“Switch systems are organized by Switch ID. All switches controlling the same lighting circuit must have identical Switch ID values. Revit will not allow a switch to be added to an existing system if its Switch ID does not match that system’s identifier.”

To fix this, the designer must:

1️⃣ Select the three-way switch.

2️⃣ In the Properties palette, locate the Switch ID parameter.

3️⃣ Change its value to match the target switch system’s ID (in this case, “b”).

Once both switches share the same Switch ID, Revit will successfully include them in the same Switch System.

In Autodesk Revit, when an electrical designer creates a callout view, the software automatically generates a new dependent or independent view based on the selected callout type. However, if a callout is accidentally linked to the wrong or redundant view, the designer can easily reassign it to another existing view without recreating the callout. This can be done using the Reference Other View property in the Properties palette.

According to the Revit MEP User’s Guide (Chapter 47 “Views and Callouts”):

“To link a callout to an existing view rather than creating a new one, select the callout, and under the properties for that element, use Reference Other View to specify the desired target view.”

This means that when the designer selects the callout (in this case, shown as “L0 - Power - Callout 1” in the Project Browser), they can modify the Reference Other View setting from the Properties palette to point to a different, pre-existing detail view or callout view—for example, one showing an enlarged power distribution layout or switchboard detail.

This is the most efficient workflow because:

It avoids recreating or redrawing the callout (unlike Option C).

It preserves all annotation and sheet referencing data.

It ensures alignment and consistency across sheet references.

The Smithsonian Facilities Revit Template User’s Guide reinforces this standard Revit practice:

“When a view reference or callout is incorrectly associated, use the Reference Other View property to redirect the annotation to an existing detail or dependent view.”

Why the Other Options Are Incorrect:

B. Change its type from the Type Selector: Callout types control annotation style (not the referenced view).

C. Delete and recreate: This is unnecessary and inefficient.

D. Open the callout view and change its type: Callout type cannot be changed directly once created; it’s controlled by view properties.

Therefore, the correct and Revit-recommended approach is Option A: Select the callout and choose a detail view under Reference Other View.

Before placing spaces in an MEP model that should reflect architectural room names and numbers, the linked architectural model must be set to Room Bounding. This ensures that Revit recognizes the architectural walls and room boundaries, allowing the spaces to reference and display room information correctly.

As the Revit MEP documentation explains:

“Turns on the Room Bounding parameter for the linked model. This step ensures that the Revit MEP project recognizes room-bounding elements in the Revit Architecture project.”

“The spaces use the room boundaries defined by the Revit Architecture project.”

Additionally, the section Using Room Boundaries in a Linked Model details the procedure:

“In a plan view of the host project, select the linked model symbol → Click Modify | RVT Links tab ➤ Properties panel ➤ (Type Properties). In the Type Properties dialog, select Room Bounding.”

Once this setting is enabled, Revit MEP automatically detects the architectural rooms, enabling the designer to place spaces that inherit the architectural room name and number.

In Revit, when a designer nests a Generic Annotation family (such as a receptacle symbol) inside an Electrical Fixture family, and that annotation includes a label, the label value cannot be changed directly in the project unless the parameter controlling that label is properly associated (linked) to a parameter in the host (electrical fixture) family.

According to Autodesk Revit Electrical Design documentation, under “Creating Family Parameter Links”, it is explicitly stated:

“By linking family parameters, you can control the parameters of families nested inside host families from within a project view. You can control instance parameters or type parameters.”

The procedure describes the correct process to make the label value editable in a project:

“Click the button next to a parameter that is of the same type as the one you created in Step 6. For example, if you created a text parameter, you must select a text parameter here. In the dialog that displays, select the parameter you created in Step 6 to associate it with the current parameter, and click OK.”

“The nested family changes according to the value you entered.”

This means that the designer must associate the nested family’s label parameter (usually a text parameter controlling the annotation label) to a corresponding parameter in the host electrical fixture family. Once linked, this host parameter appears in the project’s Properties palette, allowing the designer to change the label value directly.

Other options—such as creating formulas, modifying visibility, or enabling “Shared”—do not make the label editable in the project unless the parameter link is established.

In Revit Electrical Design, for a loadable family (such as electrical equipment, lighting fixtures, or devices) to connect to a power circuit, it must include an electrical connector defined in the Family Editor.

According to the Autodesk Revit MEP User’s Guide (Chapter 17 – Electrical Systems):

“For an electrical family to participate in a circuit, the family must contain an electrical connector. The connector defines the relationship between the component and the electrical system. Without a connector, Revit cannot establish a power connection, and the Power tool will not be available.”

— Revit MEP User’s Guide, Electrical Systems – Creating Electrical Families

The connector type determines what kind of system (Power, Data, Communication, etc.) the family can join. When the electrical connector is not added, Revit cannot recognize the family as part of an electrical system, and thus the Power icon is grayed out or unavailable.

Incorrect Options:

A. Set the distribution system for the family – only available after a connector is added.

B. Set the family parameter to Shared – allows tagging or scheduling across projects but does not affect connectivity.

C. Change the Voltage parameter value – affects circuit data but not connection availability.

Therefore, the issue is resolved only by adding an electrical connector in the Family Editor.

Verified References:

Autodesk Revit MEP User’s Guide (2011) – Electrical Systems → Creating Electrical Families → Adding Connectors

Revit Electrical Design Fundamentals Workbook – “Electrical connectors define the interface between components and electrical systems.”

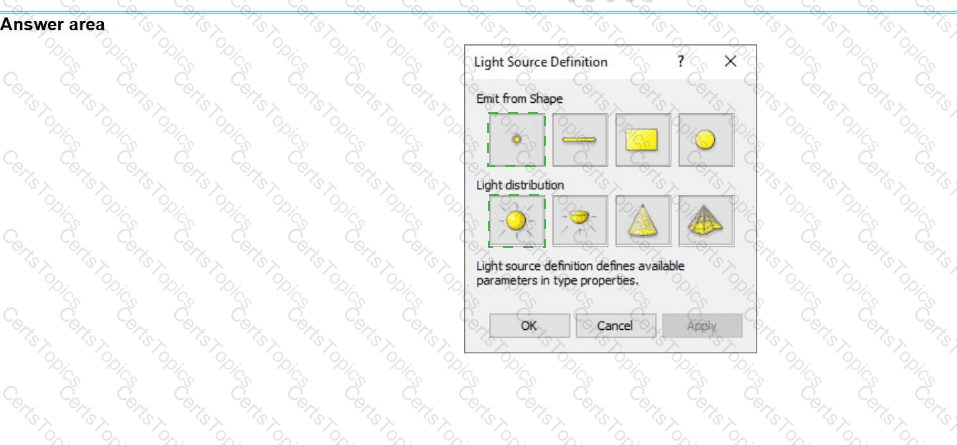

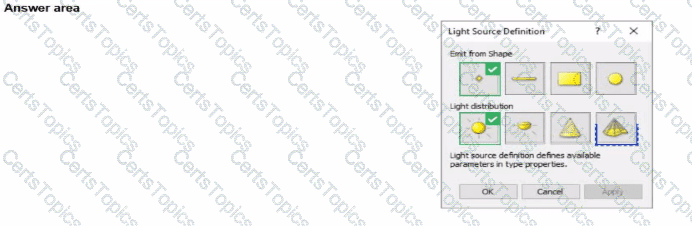

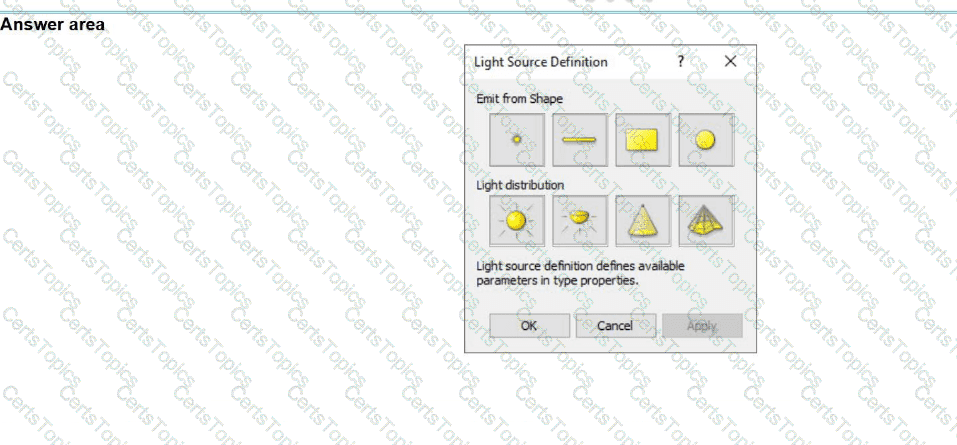

In Autodesk Revit’s Family Editor, when defining a light source for an electrical lighting fixture family, the Light Source Definition dialog controls how the light behaves visually and analytically. When incorporating an IES photometric web file (.ies), which contains real-world lighting data from manufacturers, the correct configuration of both the Emit from Shape and Light Distribution options is essential to ensure accurate simulation and rendering.

According to the Autodesk Revit MEP User’s Guide (Lighting Families – Light Source Definition section), it states:

“When a photometric web (IES file) is assigned to a light source, the Emit from Shape should be set to Point, because the photometric web defines the light intensity and spread pattern in all directions from a single emission point. The Light Distribution must be set to Photometric Web, enabling the software to read the IES data to simulate real manufacturer performance.”

(Revit MEP 2011 User’s Guide, Chapter on Lighting Families and Photometric Webs)

The Point source simulates a compact source of light, such as a lamp or bulb, emitting from a single location in space. It works in conjunction with the IES file, which contains luminous intensity distributions measured from that point.

Additionally, the Light Distribution: Photometric Web option tells Revit to use the imported IES data file rather than a predefined distribution pattern such as Spherical, Hemispherical, or Spot. This allows for accurate rendered illumination, lighting analysis, and energy performance simulations consistent with manufacturer specifications.

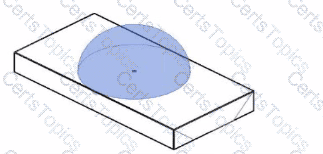

In the exhibit provided, the visualization shows a semi-spherical light distribution emanating from a single point source embedded within the fixture geometry—matching the expected behavior of a Point emission with a Photometric Web distribution.

The Placement panel shown in the exhibit — with options such as Place on Vertical Face, Place on Face, and Place on Work Plane — is displayed only when the family being placed was created using a wall-hosted (face-based or vertical face-based) template. This indicates that the family is designed to be hosted on a vertical surface, such as a wall, rather than a floor or level.

According to the Autodesk Revit MEP User’s Guide (Chapter 44 “Creating and Modifying Families”):

“When placing a hosted family, the placement options depend on the family’s host type.

Wall-based families display the Place on Vertical Face option.

Ceiling-based families display Place on Face or Place on Work Plane.

Floor-based families display Place on Work Plane only.”

The “Place on Vertical Face” option specifically appears for wall-hosted or face-based components because it allows the user to select a vertical plane, typically representing a wall surface. This confirms that the family template used during creation was Wall-based (commonly “Electrical Equipment - Wall Based.rft” or “Generic Model - Wall Based.rft”).

In electrical design, examples of such components include:

Wall-mounted panelboards, switchboards, or transformers.

Receptacles or lighting control devices hosted on walls.

The Smithsonian Facilities Revit Template Guide reinforces this explanation:

“Wall-based components, such as surface-mounted panels, display the Place on Vertical Face option. This confirms the family is wall-hosted and cannot be placed freely on floors or reference planes.”

Why the Other Options Are Incorrect:

A. Face-based template: Would show “Place on Face” (not necessarily limited to vertical).

C. Floor-based template: Displays “Place on Work Plane” only.

D. Always Vertical option: Controls orientation (rotation relative to surface), not placement host type.

Therefore, the Placement panel confirms the component was created using a wall-based family template, allowing it to be attached only to vertical surfaces.

In Autodesk Revit Electrical Design, the Interference Check tool allows designers to detect physical conflicts between elements in the current model and linked models, ensuring coordination between architectural, structural, and MEP systems.

According to the Revit MEP User’s Guide (Chapter 45 “Interference Checking”):

“You can check for interferences between elements within a single project or between elements in the host project and linked models. In the Interference Check dialog box, you can specify categories from the current project and from linked Revit models.”

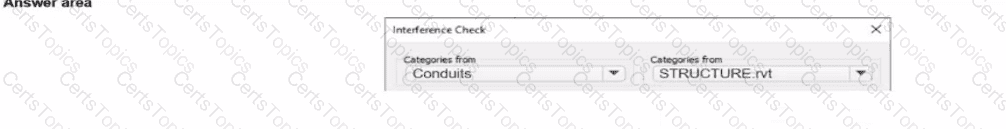

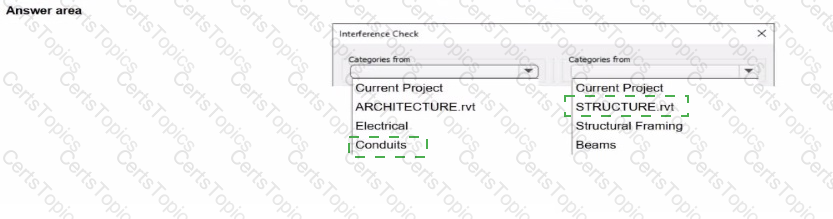

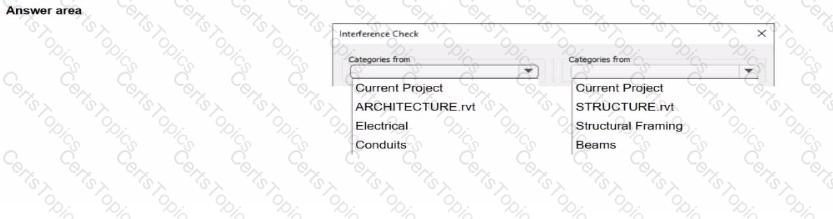

The dialog box shown in the image displays two selection lists:

The left-hand side represents categories from the current electrical project.

The right-hand side represents categories from the linked structural model (STRUCTURE.rvt).

Since the task is to check for clashes between conduits (electrical) and beams (structural), the designer should select:

“Conduits” under Categories from Current Project (the electrical model).

“Beams” under Categories from STRUCTURE.rvt (the linked structural model).

As the guide explains further:

“Interference checking identifies intersections or overlaps between the geometry of selected categories. For MEP users, this is commonly used to check for clashes between ducts, pipes, or conduits and architectural or structural elements.”

This process ensures early detection of coordination issues before construction documentation. The designer can then review results through Coordination Review, isolate elements in 3D, or tag affected areas for correction.

Incorrect Options:

Selecting both categories from the same model (e.g., Electrical and Conduits) would only check within that model.

Choosing unrelated linked files (e.g., ARCHITECTURE.rvt) would not detect clashes with the structural beams.

To allow conduit to be modeled from any point on a specific side of the electrical equipment, the most accurate method is to use the "Surface Connector". This method enables the designer to place a surface-based conduit connector on a specific face of the equipment family. Here's how the process is explained:

"To place a conduit connector on the surface of a family component so that the conduit can start from anywhere on that surface, use the Surface Connector option. This connector attaches to the selected face of the equipment, allowing conduit to be drawn directly from any point on the selected face in the project environment."

"Click Conduit Connector, then choose Surface Connector, and select the face where the conduit should connect. This gives flexibility in modeling, especially for equipment requiring multiple connection points across a single face or allowing freedom of routing."

This process is especially beneficial in custom electrical equipment families where conduits must originate from arbitrary points along a flat side—ensuring both parametric flexibility and coordination ease within the project environment.

In contrast:

Option A refers to editing connector dimensions, which does not affect the connector's ability to accept connections from any surface point.

Option B uses Individual Connector which limits the connection to a specific point, not the whole face.

Option D refers to changing connector type in the Properties palette, which doesn't impact connector location or coverage on a face.

In the given Lighting Fixture Schedule, each row represents a lighting fixture type rather than individual instances, and the “Count” column summarizes how many fixtures of that type exist in the project. To achieve this layout in Revit, two specific actions must be performed in the Schedule Properties dialog:

Deselected “Itemize every instance.”

The Revit documentation explains:

“Itemize every instance. This option displays all instances of an element in individual rows. If you clear this option, multiple instances collapse to the same row based on the sorting parameter. If you do not specify a sorting parameter, all instances collapse to one row.”

By deselecting this checkbox, Revit consolidates identical fixture instances of the same type into a single row — exactly as shown in the exhibit, where each “Type Mark” (A, B, C, etc.) appears once with a summarized Count.

Sorted by Type Mark.

On the same Sorting/Grouping tab, Revit allows users to organize the schedule by a specific field:

“On the Sorting/Grouping tab of the Schedule Properties dialog, you can specify sorting options for rows in a schedule… You can sort by any field in a schedule, except Count.”

In the example, fixtures are sorted alphabetically by their “Type Mark” (A through E). This ensures the grouped and counted results appear in order.

Other options—such as filtering by type mark or adding switch data—do not impact how instances collapse or group within the schedule.

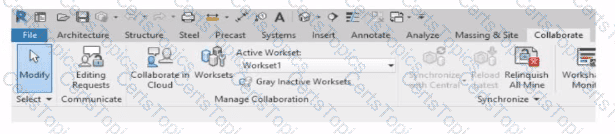

In Autodesk Revit, the Collaborate tab provides the tools necessary for managing multi-user worksharing environments. The Synchronize with Central command allows users to save their local changes back to the central model. However, this command becomes disabled under certain conditions — most notably when the user is currently working directly within the central file rather than a local copy.

The Autodesk Revit User’s Guide – Worksharing and Collaboration section clearly explains this behavior:

“When you open the central file directly, the Synchronize with Central option is unavailable because all edits are already in the central file. Worksharing operations such as borrowing, relinquishing, or synchronization only apply to local copies created from the central model.”

This rule ensures that the integrity of the central model is preserved and that no user directly edits or synchronizes within it, preventing potential file corruption. In normal collaborative workflows, users open local copies of the central model. The local files maintain an editable subset of elements while allowing synchronization and relinquishing operations.

Thus, the disabled Synchronize with Central button (as shown in the exhibit) indicates that the designer is currently in the central model, not a local copy. Since synchronization is unnecessary in this state — all changes are automatically applied to the central file — the command is grayed out.

In Autodesk Revit, a drafting view is a 2D view that contains detail information not directly associated with the model. When an electrical designer needs to reuse a drafting view from another project (for example, standard details or symbols), the correct method is to use the Insert Views from File command under the Insert tab.

The Autodesk Revit MEP User’s Guide – Chapter 48 “Detailing” (page 1072) describes the process as follows:

“Inserting a Drafting View from Another Project

Click Insert tab ➤ Import panel ➤ Insert from File drop-down ➤ Insert Views from File.

In the Open dialog, select a project file, and click Open.

The Insert Views dialog opens, displaying all the views that are saved in that project.

Select the desired drafting views and click OK.”(Revit MEP User’s Guide, p. 1072)

This command imports the drafting view into the current Revit model while preserving annotations, filled regions, detail components, and text. It ensures that any standard electrical symbols, notes, or schematics created previously can be directly reused without rebuilding the detail from scratch.

If any duplicate type names exist, Revit automatically uses the types and properties from the current project, displaying a warning if necessary.

“Revit MEP creates a new drafting view with all the 2D components and text. If you have duplicate type names, the type name and properties from the current project are used.”

(Revit MEP User’s Guide, p. 1072)

Supporting Documentation Extracts:

“Saving Drafting Views to an External Project

Select a drafting view in the Project Browser.

Right-click the view name, and click Save to New File.”(Revit MEP User’s Guide, p. 1071)

“The saved project can then be used later to insert drafting views into another Revit project using Insert Views from File.”

(Revit MEP User’s Guide, p. 1072)

When an electrical designer wants to schedule parameters from Generic Annotations, the correct method is to use a Note Block, not a generic schedule. Revit documentation defines this process clearly under Annotation Schedules (Note Blocks):

“Annotation schedules, or note blocks, list all instances of annotations that you can add using the Symbol tool.”

“Creating an Annotation Schedule (Note Block):

Load the generic annotation family or families into your project and place them where desired.

Click View tab ➤ Create panel ➤ Schedules drop-down ➤ Note Block.

In the New Note Block dialog, for Family, select a generic annotation.”

This extract confirms that when working with generic annotation families, Revit requires the use of a Note Block to extract and list their parameters in a schedule. Standard schedules such as Generic Model or Family schedules cannot access data from Generic Annotations since they are annotation-based, not model-based.

When lighting fixtures placed in an architectural linked model need to be replicated in the electrical model while maintaining their exact positions, the correct tool is Copy/Monitor.

This Revit feature allows the electrical designer to copy elements—like lighting fixtures—from a linked model into their project, while establishing a monitoring relationship between the original (architectural) and copied (electrical) instances.

From the Autodesk Revit MEP User’s Guide – Chapter 55 “Multi-Discipline Coordination” (pages 1349–1357):

“Use the Copy/Monitor tool to copy MEP fixtures from an architectural model into an MEP project, and monitor them for changes.”

(Revit MEP User’s Guide, p. 1350)

“To copy fixtures from a linked model:

Click Collaborate tab ➤ Coordinate panel ➤ Copy/Monitor ➤ Select Link.

Select the linked architectural model in the drawing area.

Click Copy and select the lighting fixtures to copy.

Click Finish.Revit MEP copies the fixtures to the current project and establishes monitoring relationships.”*(Revit MEP User’s Guide, p. 1356)

Behavior and Benefits:

The copied lighting fixtures maintain the same location, orientation, and type mapping as in the linked model.

Any changes (move, delete, or modify) made by the architect in the linked model will trigger a coordination review in the electrical model.

This ensures accurate positioning and easy coordination between disciplines.

“When you select a copied fixture in the current project, the monitor icon displays next to the fixture, indicating that it has a relationship with the original fixture in the linked model.”

(Revit MEP User’s Guide, p. 1357)

“If copied fixtures are moved, changed, or deleted in the linked model, Revit MEP notifies the engineers of the changes during Coordination Review.”

(Revit MEP User’s Guide, p. 1357)

When working in Autodesk Revit for MEP Electrical Design, lighting fixtures can be either hosted (such as ceiling-hosted or wall-hosted) or non-hosted. The movement of lighting fixtures in relation to linked model elements—like ceiling grids—is determined by the hosting condition and alignment constraints applied to those elements.

According to the Revit MEP User’s Guide (Chapter 24 “Ceilings” and Chapter 50 “Rendering”), a ceiling is a level-based element. You can create it on a specified level and host ceiling-based families such as lighting fixtures. When a ceiling is modified or repositioned, the hosted lighting fixtures will move with the ceiling itself, maintaining their relationship to the host surface. However, when ceiling grid patterns are changed or moved in a linked Revit model, the movement of those grid patterns does not automatically propagate to hosted elements in the electrical model unless those elements are directly linked or constrained to a movable reference plane.

As described:

“Ceilings are level-based elements… When you create a ceiling, you can host components such as lighting fixtures on its face. Hosted elements remain associated with their host even if the ceiling is modified.”

And further in the glossary section:

“Rehost: To move a component from one host to another. For example, you can use the Pick New Host tool to move a window from one wall to another wall.”

This confirms that a hosted light fixture maintains its attachment to the host element (the ceiling) but not to the grid pattern itself. Grid movement within a linked ceiling model does not alter the position of lights unless they are manually re-hosted or alignment-locked directly to a specific geometry within the host model.

Therefore, the correct interpretation is that when ceiling grid patterns move within a linked Revit model, the lights placed in the electrical model do not follow the grid pattern movement automatically. They remain stationary relative to the ceiling surface, provided they are hosted correctly.

This behavior reflects Revit’s parametric relationships — “hosted elements maintain dependency only on their host, not on graphical references like grids unless locked via constraints.”

In Autodesk Revit MEP, the Electrical Settings dialog box contains project-wide configuration parameters that affect all electrical systems, including Cable Tray Settings. This dialog allows users to control annotation scales, fitting symbols, and text size for documentation purposes.

The option labeled “Use Annot. Scale for Single Line Fittings” determines whether the cable tray fittings’ annotation graphics automatically scale according to the view’s annotation scale. When this box is checked, the annotation symbol size for fittings adjusts proportionally to the scale of the view.

Similarly, “Cable Tray Fitting Annotation Size” defines the annotation size for cable tray fittings in single-line representations (schematic views or simplified plan representations). Changing this parameter (for instance, from ¾” to ⅛”) modifies the visual representation globally for all cable tray fittings in the project, since the Electrical Settings dialog is a project-wide configuration, not a per-instance or per-view override.

According to the Autodesk Revit MEP User’s Guide (Electrical Systems – Cable Trays):

“Electrical settings define how cable trays and conduit are displayed throughout the project. Any change made to these settings, such as annotation size or use of annotation scaling, affects all related fittings and components in the project model.”

Therefore, once the designer checks the box for Use Annot. Scale for Single Line Fittings and changes the Cable Tray Fitting Annotation Size to 1/8” (3 mm), all cable tray fittings across the entire project will update to reflect these new settings.

In Autodesk Revit, the Worksharing Display Modes feature allows designers to visually inspect ownership and editing information about elements in a workshared model.

According to the Autodesk Revit MEP User Guide – Chapter 54 “Working in a Team”:

“Worksharing Display Modes can be used to visualize the ownership of elements, including which user created or modified them. For example, you can use the Worksharing Display command to show elements by their owner, workset, or checkout status.”

Thus, this mode identifies which user created or owns an element — making B. Worksharing display modes the correct choice.

Other options:

A. Gray Inactive Worksets: Only shows non-active worksets in gray, not creator info.

C. Show History: Displays synchronization comments, not element ownership.

D. Worksets dialog: Shows ownership of worksets, not individual elements.

In Autodesk Revit Electrical Design, each electrical family (such as a receptacle, lighting fixture, or equipment) can contain one or more connectors that define how it interacts with the electrical system. The Load Classification parameter determines how the connected load is categorized in electrical schedules and load calculations (e.g., Lighting, Power, Receptacle, Other).

When a family’s Type Parameter Load Classification does not display correctly (e.g., it shows “Other” instead of “Receptacle” after being circuited), the issue lies in the power connector’s internal parameter not being linked to the family-level “Load Classification” parameter. Revit uses the connector’s classification to determine the load type when it is connected to a circuit — if the connector isn’t associated, the classification defaults to “Other.”

According to the Autodesk Revit MEP User’s Guide (Chapter: Electrical Systems – Creating Electrical Families), it specifies:

“To control how a component reports its connected load type, associate the power connector’s Load Classification parameter with a corresponding Family Parameter. This ensures the load classification in the circuit matches the family definition, rather than defaulting to ‘Other.’ To correct existing families, edit the family in Family Editor, select the connector, and associate its Load Classification parameter with the family’s Load Classification type parameter. Then reload the family into the project.”

This confirms that the correct approach is to edit the family and create or link the Load Classification parameter to the connector’s Load Classification field. Merely changing the connector value (option C) won’t ensure dynamic synchronization between the family type and circuit. Deleting and re-adding the connector (option B) won’t automatically create that link. Option D (editing through the System Browser) modifies instance-level data, not family associations.

Hence, the correct and permanent fix is:

Open the family in the Family Editor.

Select the power connector.

In the Properties palette, click the small Associate Family Parameter button (⚙️) next to Load Classification.

Link it to the family’s Load Classification parameter.

Save and reload the family into the project.
