To allow conduit to be modeled from any point on a specific side of the electrical equipment, the most accurate method is to use the "Surface Connector". This method enables the designer to place a surface-based conduit connector on a specific face of the equipment family. Here's how the process is explained:

"To place a conduit connector on the surface of a family component so that the conduit can start from anywhere on that surface, use the Surface Connector option. This connector attaches to the selected face of the equipment, allowing conduit to be drawn directly from any point on the selected face in the project environment."

"Click Conduit Connector, then choose Surface Connector, and select the face where the conduit should connect. This gives flexibility in modeling, especially for equipment requiring multiple connection points across a single face or allowing freedom of routing."

This process is especially beneficial in custom electrical equipment families where conduits must originate from arbitrary points along a flat side—ensuring both parametric flexibility and coordination ease within the project environment.

In contrast:

Option A refers to editing connector dimensions, which does not affect the connector's ability to accept connections from any surface point.

Option B uses Individual Connector which limits the connection to a specific point, not the whole face.

Option D refers to changing connector type in the Properties palette, which doesn't impact connector location or coverage on a face.

In Autodesk Revit Electrical Design, each electrical family (such as a receptacle, lighting fixture, or equipment) can contain one or more connectors that define how it interacts with the electrical system. The Load Classification parameter determines how the connected load is categorized in electrical schedules and load calculations (e.g., Lighting, Power, Receptacle, Other).

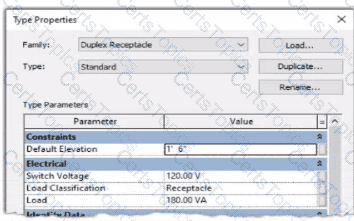

When a family’s Type Parameter Load Classification does not display correctly (e.g., it shows “Other” instead of “Receptacle” after being circuited), the issue lies in the power connector’s internal parameter not being linked to the family-level “Load Classification” parameter. Revit uses the connector’s classification to determine the load type when it is connected to a circuit — if the connector isn’t associated, the classification defaults to “Other.”

According to the Autodesk Revit MEP User’s Guide (Chapter: Electrical Systems – Creating Electrical Families), it specifies:

“To control how a component reports its connected load type, associate the power connector’s Load Classification parameter with a corresponding Family Parameter. This ensures the load classification in the circuit matches the family definition, rather than defaulting to ‘Other.’ To correct existing families, edit the family in Family Editor, select the connector, and associate its Load Classification parameter with the family’s Load Classification type parameter. Then reload the family into the project.”

This confirms that the correct approach is to edit the family and create or link the Load Classification parameter to the connector’s Load Classification field. Merely changing the connector value (option C) won’t ensure dynamic synchronization between the family type and circuit. Deleting and re-adding the connector (option B) won’t automatically create that link. Option D (editing through the System Browser) modifies instance-level data, not family associations.

Hence, the correct and permanent fix is:

Open the family in the Family Editor.

Select the power connector.

In the Properties palette, click the small Associate Family Parameter button (⚙️) next to Load Classification.

Link it to the family’s Load Classification parameter.

Save and reload the family into the project.

When working in Autodesk Revit for MEP Electrical Design, lighting fixtures can be either hosted (such as ceiling-hosted or wall-hosted) or non-hosted. The movement of lighting fixtures in relation to linked model elements—like ceiling grids—is determined by the hosting condition and alignment constraints applied to those elements.

According to the Revit MEP User’s Guide (Chapter 24 “Ceilings” and Chapter 50 “Rendering”), a ceiling is a level-based element. You can create it on a specified level and host ceiling-based families such as lighting fixtures. When a ceiling is modified or repositioned, the hosted lighting fixtures will move with the ceiling itself, maintaining their relationship to the host surface. However, when ceiling grid patterns are changed or moved in a linked Revit model, the movement of those grid patterns does not automatically propagate to hosted elements in the electrical model unless those elements are directly linked or constrained to a movable reference plane.

As described:

“Ceilings are level-based elements… When you create a ceiling, you can host components such as lighting fixtures on its face. Hosted elements remain associated with their host even if the ceiling is modified.”

And further in the glossary section:

“Rehost: To move a component from one host to another. For example, you can use the Pick New Host tool to move a window from one wall to another wall.”

This confirms that a hosted light fixture maintains its attachment to the host element (the ceiling) but not to the grid pattern itself. Grid movement within a linked ceiling model does not alter the position of lights unless they are manually re-hosted or alignment-locked directly to a specific geometry within the host model.

Therefore, the correct interpretation is that when ceiling grid patterns move within a linked Revit model, the lights placed in the electrical model do not follow the grid pattern movement automatically. They remain stationary relative to the ceiling surface, provided they are hosted correctly.

This behavior reflects Revit’s parametric relationships — “hosted elements maintain dependency only on their host, not on graphical references like grids unless locked via constraints.”
