Passed Exam Today AZ-400

Step1: Create a New Team Dashboard

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access Dashboards:

In the left-hand menu, select Dashboards.

Create a New Dashboard:

Click on New Dashboard.

Enter the name Dashboard1.

Ensure the dashboard type is set to Team Dashboard.

Click Create.

Step 2: Add the Team Members Widget

Open the Widget Catalog:

After creating the dashboard, thewidget catalog will open automatically. If it doesn’t, click on Add Widget.

Search for Team Members Widget:

In the widget catalog, search for Team Members.

Add the Widget:

Click on the Team Members widget and then click Add to place it on your dashboard.

Configure the Widget:

Once added, you can resize and move the widget to your preferred location on the dashboard.

Step 3: Save and Share the Dashboard

Save the Dashboard:

Click on Save to save your changes.

Share the Dashboard:

You can share the dashboardURL with your team members or set permissions to control who can view or edit the dashboard.

By following these steps, you will have a new team dashboard named Dashboard1 that displays the members of the default project team for Project1

To enable streaming of diagnostic telemetry for asingle or a pooled database, follow these steps:

1. Go to Azure SQL database resource.

2. Select Diagnostics settings.

3. Select Turn on diagnostics if no previous settings exist, or select Edit setting to edit a previous setting. You can create up to three parallel connections to stream diagnostic telemetry.

4. Select Add diagnostic setting to configure parallel streaming of diagnostics data to multiple resources.

5. Enter a setting name for your own reference.

6. Select a destination resource for the streaming diagnostics data: Archive to storage account, Stream to an event hub, or Send to Log Analytics.

7. For the standard, event-based monitoring experience, select the following check boxes for database diagnostics log telemetry: Query Store Runtime Statistics

8. For an advanced, one-minute-based monitoring experience, select the check box for Basic metrics.

9. Select Save.

Azure Automation now ships with the Azure PowerShell module of version 0.8.6, which introduced the ability to non-interactively authenticate to Azure using OrgId (Azure Active Directory user) credential-based authentication. Using the steps below, you can set up Azure Automation to talk to Azure using this authentication type.

Step 1: Find the Azure Active Directory associated with the Azure subscription to manage:

1. Log in to the Azure portal as the service administrator for the Azure subscription you want to manage using Azure Automation. You can find this user by logging in to the Azure portal as any user with access to this Azure subscription, then clicking Settings, then Administrators.

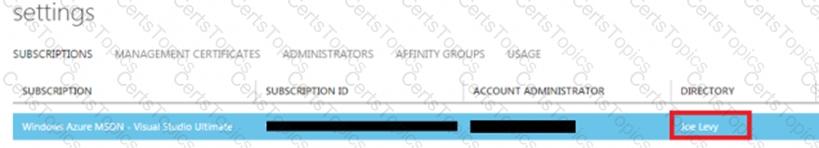

2. Note the name of the directory associated with the Azure subscription you want to manage. You can find this directory by clicking Settings, then Subscriptions.

Step 2: Create an Azure Active Directory user in the directory associated with the Azure subscription to manage:

You can skip this step if you already have an Azure Active Directory user in this directory. and plan to use this OrgId to manage Azure.

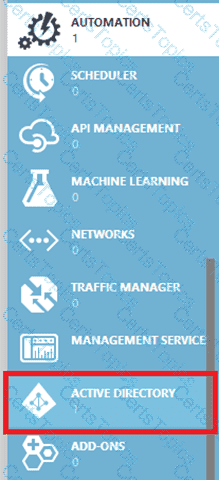

1. In the Azure portal click on Active Directory service.

2. Click the directory name that is associated with this Azure subscription.

3. Click on the Users tab and then click the Add User button.

4. For type of user, select “New user in yourorganization.” Enter a username for the user to create.

5. Fill out the user’s profile. For role, pick “User.” Don’t enable multi-factor authentication. Multi-factor accounts cannot be used with Azure Automation.

6. Click Create.

7. Jot down the full username (including part after @ symbol) and temporary password.

Step 3: Allow this Azure Active Directory user to manage this Azure subscription.

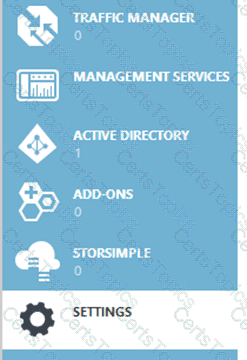

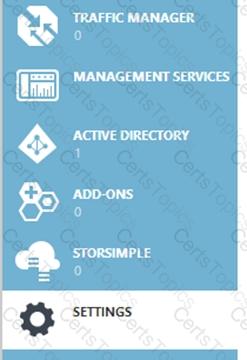

1. Click on Settings (bottom Azure tab under StorSimple)

2. Click Administrators

3. Click the Add button. Type the full user name (including part after @ symbol) of the Azure Active Directory user you want to set up to manage Azure. For subscriptions, choose the Azure subscriptions you want this user to be able to manage. Click the check mark.

Step 4: ConfigureAzure Automation to use this Azure Active Directory user to manage this Azure subscription

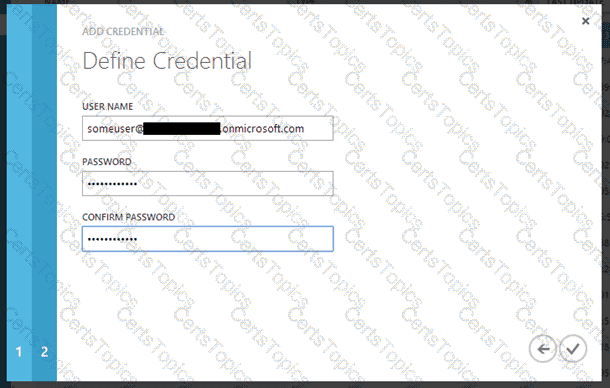

Create an Azure Automation credential asset containing the username and password of the Azure Active Directory user that you have just created. You can create a credential asset in Azure Automation by clicking into an Automation Account and then clicking the Assets tab, then the Add Setting button.

Note: Once you have set up the Azure Active Directory credential in Azure and Azure Automation, you can now manage Azure from Azure Automation runbooks using this credential.

Step 1: Navigate to the Project1 Repository

In your browser, go to your Azure DevOps organization:

In the left menu, select the project named Project1.

In the left menu under Repos, click on Files.

Step 2: Initialize the Main Branch (if it doesn’t exist)

If the main branch doesn’t exist (because the repo is empty):

In the Repos > Files view, you’ll see a message: “This repository is empty.”

Click on the Initialize button.

Choose the default branch name as main and create a README file (or any file to initialize).

Click Initialize.

This creates the main branch in your repository.

Step 3: Set Up Branch Protection for the Main Branch

Branch protection ensures that all changes go through a pull request (PR), and that PRs are linked to work items (for traceability).

In the Repos view, click on Branches in the left menu.

Locate the main branch in the list.

Click on the three dots (...) next to main and select Branch policies.

Step 4: Configure Branch Policies for main

In the Branch policies for the main branch:

Require a minimum number of reviewers:

Enable this option and set to 1 or more as per your team’s standards.

Check for linked work items:

Enable the Check for linked work items option.

This ensures that every PR has at least one linked work item.

Require a linked work item:

This enforces the traceability requirement you mentioned.

Optionally, you can also:

Enable build validation if you have a pipeline to validate builds.

Enforce merge strategies (like squash merge).

Click Save changes at the bottom.
