In theObject Management Group (OMG) Business Process Maturity Model (BPMM), each maturity level is characterized by a specific scope of focus and a defined set of process areas.

ForMaturity Level 2 – Managed, BPMM clearly states that the emphasis is on bringing basic management discipline toindividual organizational units where work is performed, typically calledwork units(e.g., departments, teams, projects, operational units).

At this level:

Processes areplanned, performed, monitored, and controlledat thework unit level.

The goal is to ensure that commitments are met, performance is tracked, and issues are managed within these units.

Process areas at Level 2 (such as those concerned with work unit management, performance, and corrective action) explicitly assume that theprimary organizational entity of concern is the work unit, not yet the end-to-end, cross-functional business process.

This is a key distinction in BPMM:

Level 1 (Initial):Work is performed, but processes are ad hoc and largely unmanaged.

Level 2 (Managed):Processes are managedwithin work units. The discipline of basic planning, monitoring, and control is introduced at this local level.

Level 3 (Standardized):Processes becomestandardized and harmonized across the organization, and attention shifts toend-to-end processesthat cut across functional and organizational boundaries.

Higher levels (4 and 5) further institutionalize measurement, predictability, and continuous optimization across these standardized processes.

Given this structure:

Option A – work units

Correct. This is exactly the organizational focus of Level 2 process areas in BPMM.

Option B – business area managers

While business area managers may be involved, BPMM does not define maturity level 2 as focusing on managers as entities; it focuses onwork units as the organizational locusof process management.

Option C – information technology operations

IT operations may constitute a particular type of work unit, but BPMM Level 2 isnot limitedto IT; it is generic to all work units across the enterprise. Therefore, this is too narrow and not aligned with the model’s definition.

Option D – end-to-end product and service offerings

This reflects a Level 3 and above concern, wherecross-functional, end-to-end processesare standardized and managed as a whole. It isnotthe focus of maturity level 2, which is still concentrated on thelocal, work-unitperspective.

Accordingly, based on the OMGBusiness Process Maturity Modelspecification, the process areas atmaturity level 2focus onwork unitsas the primary organizational entities.

By BPMN rules,Message Flowsare usedonly between different participants (different Pools). You cannot use a Message Flow between Flow Objects inside the same Pool; inside a Pool you must useSequence Flowinstead. Therefore, optionCstates the valid constraint.

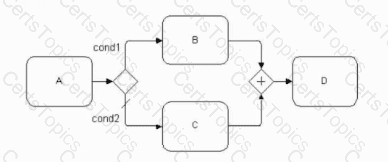

In the given diagram:

After activityA, there is anexclusive gateway(with conditionscond1andcond2), soeither B or Cis chosen—never both.

AfterBandC, their flows go into a gateway with aplus sign, which is aParallel Gateway (AND-join)in BPMN.

AParallel Joinwaits fora token fromeveryincoming branchbefore it can release a token onward toD. But due to the earlier exclusive split,only oneof the two branches (B or C) ever receives a token. The other branch never activates, so the parallel join never gets all required tokens.

Consequences:

The join gateway willnever be satisfied,

Therefore, the flownever proceeds to activity D.

So the defect is exactly what optionBsays:

The activity D can never be reached.

That is the correct answer.

TheBalanced Scorecard(Kaplan & Norton) has four recognized perspectives:

Financial

Customer

Internal Business Processes

Learning and Growth

Therefore, the only recognized perspective in the answer choices isB. financial.

In theBusiness Motivation Model (BMM), aGoalis anEnd. The BMM defines a Goal as a statement about astate or condition of the enterprise (or its environment) that the enterprise intends to bring about or sustain. That definitional phrase is captured directly in optionB.

Goals arebroad, long-term, and not directly measurable; they express direction and desired future conditions.

More specific, time-bound, and measurable targets are modeled asObjectives, not Goals. Thus, characteristics likeattainable and measurable(option C) describe an Objective, not a Goal.

While Goals are ultimately realized via business processes (through strategies, tactics, and courses of action), the BMM models that realization indirectly; the direct relationship is thatMeans (such as Courses of Action) realize Ends (Goals/Objectives). So option D is not the defining characteristic.

Option A (“should be broad”) is generally true but is not the core definitional statement; BMM’s precise wording emphasizes thestate to be brought about, which is optionB.

Therefore, the key BMM-defined characteristic is thata Goal describes a state to be brought about or sustained.

Traditional (functional) work managementorganizes people and work bydepartments or specialties(e.g., Sales, Finance, HR, Operations). From an OMG BPM and value-chain perspective, the mainweaknessof this traditional model is that it:

Focuses onoptimizing individual functionsrather than optimizing theend-to-end processthat delivers value to customers.

Encourageslocal optimization(department KPIs) at the expense of global optimization (process performance, customer experience).

Createssilosand coordination issues across boundaries.

This is captured inOption D:

Lack of end-to-end focus

Why the other options are wrong:

A. Clear definition of roles and responsibilities– That is typically astrengthof functional management; roles are clearly defined within each department.

B. Functional excellence– Functional organizations often deliverstrong specialist expertise; again, that’s a strength, not a weakness.

C. Bad vision and mission– Vision and mission areenterprise-level strategic artifacts, not intrinsic to functional vs process structure.

Thus, the key structural weakness of traditional functional management is itslack of end-to-end focus, soDis correct.

===============

InBPMN, a rounded rectangle with adashed borderaround activities is aGroupartifact.

Key BPMN semantics for aGroup:

It ispurely documentary: used to visually group related activities (for example, labeling them “Process Payment” or “Deliver Product”).

Itdoes not affect execution semantics—sequence flow, data flow, and transaction behavior areexactly the same as if the group were not drawn.

Looking at the diagram:

The sequence is:Verify Credit → Process Payment → Deliver Product → Notify Customer, each connected by normal sequence flows.

The two dashed rectangles just visually cluster the first two and last two activities; there are no special events or gateways.

Now the options:

A. Activities that are in the dashed rectangle must exchange data.BPMN Groups say nothing about data exchange; this is incorrect.

B. The activities are executed as if the dashed rectangles do not exist.This matches the BPMN definition of a Group artifact and is correct.

C. Canceling "Notify Customer" will cancel the result of "Deliver Product".That would require atransaction subprocess with cancel behavior, not just a Group.

D. "Verify Credit" and "Process Payment" are executed in parallel. "Deliver Product" and "Notify Customer" are executed in parallel.Parallelism requires a parallel gateway or similar construct; here, a simple sequence flow shows they are executedsequentially.

Therefore, the correct statement is that thedashed rectangles have no execution effect: optionB.

Chang states clearly thatInformation Technology (IT)is thekey enablerof Business Process Re-engineering (BPR), as it allows radical redesign of processes rather than incremental improvement.

HenceCis correct.

Straight-through-processing (STP)refers toend-to-end automationwhere a process instance flows through the systemwithout any human intervention.

OptionAis the precise definition used in BPM and BPMS literature.

BPMN distinguishes between:

Embedded (non-reusable) Sub-Processes

Event Sub-ProcessesandCall Activities

For anEmbedded Sub-Process:

Its life cycle iscontrolled by the parent process; the subprocess starts when the token enters it.

Therefore, itsStart Event (if drawn) must be of type “None”. No Message, Signal, Timer, or other trigger types are allowed for the start of a normal embedded subprocess; those trigger types are reserved forEvent Sub-Processesand top-level processes.

So, “All Start Events for an Embedded Sub-Process must be of which type?” →None.

Options A, B, and C are valid Start Event trigger types, butnotfor a standard embedded subprocess.

Ablack-box Poolin BPMN:

Represents aParticipantin a Collaboration whoseinternal process is not shown.

It is used precisely to show that this external party exists and can exchange messages, while hiding its internal flow.

Therefore:

A. It indicates a participant.– Correct.

B. It can be partitioned using lanes – not in a black-box; the interior is intentionally not detailed.

C. It shows full process information – false; it shows none.

D. It cannot be used if messages should be exchanged – false; showing message exchange with a black-box pool is a very common pattern.

In Six Sigma and statistical process control, which are often referenced within Object Management Group (OMG) Business Process Management practices for performance measurement and process capability analysis, variation in a process is categorized into two types:

Common cause variation (natural variation)

This is the inherent, stable variation built into the process.

It reflects the normal, expected fluctuations when the process is operating in a state of statistical control.

On a control chart, data points that reflect only common cause variationremain within the control limits (UCL and LCL)and do not exhibit specific non-random patterns.

Special cause variation (assignable variation)

This arises from specific, identifiable factors not normally part of the process (e.g., equipment failure, operator error, unusual input material).

On a control chart, it is typically indicated by pointsoutside the control limitsor by defined abnormal patterns (runs, trends, cycles) even if still inside the limits.

In the diagram shown:

The horizontal center line represents theprocess average.

The upper and lower horizontal lines representUCL (Upper Control Limit)andLCL (Lower Control Limit), typically set at ±3σ from the mean.

Zones A, B, and C mark bands of 1-sigma increments from the mean but are allwithinthe control limits.

From a standard Six Sigma / SPC standpoint, and consistent with how OMG-based BPM measurement and control concepts are applied:

All data points inside the UCL and LCLare considered to be a result ofcommon cause variation, provided they do not exhibit specific rule-violating patterns.

Data points outside the UCL or LCLare not common cause; they are indications ofspecial cause variationthat must be investigated and corrected.

In OMG’s BPMN usage guidance and common practice, BPMN models are often discussed inthree levels of detail:

Level 1 – Descriptive (non-technical) modeling

Level 2 – Analytical (detailed but still platform-independent) modeling

Level 3 – Executable (implementation-ready) modeling

Descriptive modeling(Level 1) deliberately uses asmall, business-oriented subset of BPMN symbols. It avoids technical execution attributes and is meant primarily fordocumentation and communication among business stakeholdersacross the organization: managers, business analysts, and subject-matter experts.

Because it is simple, easy to read, and does not assume knowledge of execution semantics or tooling, it isthe easiest level to communicate across the organization.

The other options do not match OMG’s three levels:

Event modelingandvisual modelingare not defined as standard BPMN levels.

Executable modelingis Level 3, aimed at implementation, and isnotthe easiest for broad communication because it introduces technical details (data, error handling, engine-specific attributes).

Therefore, the correct answer isdescriptive modeling.

In cost accounting, expenses likeelectricity, water, heating, rent, and factory insuranceare typically categorized asoverhead costs(often calledindirect costsorindirect manufacturing costs).

From aBusiness Process Management (BPM)andOMG value-chainview:

These costssupportcore operational processes (production, service delivery) butcannot bedirectly tracedto a single product, unit, or customer.

In process modeling (e.g., usingBPMN), they are part of theresourcesandenvironmentneeded to perform activities, not attributed to one specific activity output.

Why the other options are incorrect:

A. Labor costs– Labor can bedirect(e.g., assembly worker) orindirect(e.g., supervisor), but electricity and water are not labor.

B. Variable costs– Electricity and water canbehavevariably with activity level, but in cost accounting terminology they are classified asoverhead, not as primary variable costs like direct materials.

D. Indirect materials costs– Indirect materials are items like lubricants, cleaning supplies, small tools. Electricity and water areutilities, not materials.

So in standard cost accounting and in how OMG-aligned enterprise models group resource costs,electricity and water are treated as overhead costs.

In the BMM,Directives(i.e., Business Policies and Business Rules) are used togovern how the enterprise actsto achieve its Ends.

BMM breaks down:

Meansinto:

Mission

Courses of Action(Strategies and Tactics)

Directives(Business Policies and Business Rules)

The specification states thatBusiness Policies (a type of Directive) exist to govern – control, guide, and shape – Strategies and Tactics, which together are theCourses of Action. Business Rules, derived from these policies, provide precise, enforceable guidance for their execution.

Thus,Directives govern Courses of Action, not Goals, Assessments, or Business Policies (Business Policies themselves are a type of Directive).

So the correct answer isCourses of Action.

Management documents without any External Links or URL:

In theBusiness Motivation Model (BMM):

Courses of Action(Strategies and Tactics) representhowthe organization intends to achieve its Ends (Goals and Objectives).

Directives(Business Policies and Business Rules)governandconstrainhow those Courses of Action are carried out.

So:

Directivesspecify what is allowed, required, or prohibited in implementing strategies and tactics.

This is why BMM explicitly states thatDirectives govern Courses of Action.

Why others are incorrect:

Objectives(B) are measurable targets (Ends), not governing elements.

Internal Influencers(C) affect assessments and motivation but donotdirectly govern Courses of Action.

Business Processes(D) are operational implementations, not governance elements in BMM terminology.

Thus, the correct governing elements for Courses of Action in BMM areDirectives.

In BMM,Influencersare factors—internal or external—that caninfluence an organization’s ability to achieve its Ends. They can be trends, events, conditions, or stakeholders.

The observation“Younger customers buying more Chilean wine”is a description of amarket trend/conditionin the environment.

That is exactly the role of anInfluencer: a situation or trend that may positively or negatively affect goals and strategies.

If the winery evaluates that trend (for example, calling it anOpportunity), that evaluation would be modeled as anAssessment. The raw trend itself is the Influencer.

Option A (Threat) is atypeof Assessment (negative evaluation of an Influencer).

Option C (Assessment) would be something like “The increased Chilean-wine preference among younger customers is an opportunity for our brand,” which adds judgment.

Option D (Course of Action) would be a response, such as “Launch a Chilean-style product line,” which is a Means, not the trend itself.

So the element“Younger customers buying more Chilean wine”is modeled as anInfluencerin BMM

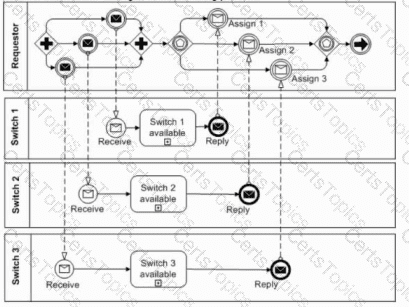

In the first diagram:

TheRequestorprocess sends a request message tomultiple switches(Switch 1, Switch 2, Switch 3), typically modeled using aparallel gatewayto broadcast the request.

EachSwitchlane has a process that:

Receivesthe request

Evaluates “Switch X available”

Sends areplymessage back to the Requestor if it is available

In the Requestor lane, anevent-based gateway(or similar construct) waits for thefirst replyindicating availability. Once one switch responds as available, the process assigns the work to that switch, and the other potential selections are effectively ignored or cancelled.

This structure—parallel requests out, first acceptable reply wins—is a classic“race for the first available resource”pattern in BPMN, where the goal is toroute the incoming request to whichever resource (switch) indicates availability first.

Evaluating the choices:

A.“Designate the unassigned switch…” – too vague and not specific to “first available”.

B.Emphasizes planning workloads, which is not modeled here.

C.Talks about a switch “allocated to a pending project,” which is not shown.

E.Focuses on status reporting back to the office, not on assigning work.

OnlyDcorrectly captures the intent of the process:assigning the incoming message to the first available switch.

“Repeat for Each Customer” means thewhole sequenceof activities (Request → Receive → Update) must be executed once per customer. In BPMN this is modeled as amulti-instance activity/subprocess(the three vertical bars marker), which represents “for each element in a collection.” Option B shows exactly that. Option A is a simple loop, C loops each task separately, and D is just a manual cycle in the flow.

This question refers toMartyn Ould’sprinciple inBusiness Process Management: A Rigorous Approach, where he distinguishes between:

What people actually do– theconcreteview of the process, including all the messy, detailed activities (paper handling, phone calls, chasing, checking, etc.).

What they effectively do– theabstractorintentview of the process, i.e., what the process isreally aboutin terms of business purpose (for example: “extracting payment for goods and services supplied”).

Ould’s guidance is:

Donottry to “merge” or forcibly reconcile these into one model.

Recognize them astwo different but valid views of the same process:

Aconcrete model(what people actually do).

Anabstract model(what the process is effectively doing).

He explicitly says the answer isnotto reconcile them, but to model both views.

Therefore, the correct interpretation is:

An analyst should not try to reconcile them. These are two different views of the same thing.

So, the correct answer isD.

In OMG-aligned BPM architecture,SOA decouples processes from specific application technologiesby exposing system functions as standardized services.

This allows BPM processes to:

Orchestrate services regardless of underlying technology

Promote reuse, loose coupling, and interoperability

Increase agility and maintainability

OptionBis correct because SOAremoves the tight dependenceof process logic on the specific technologies used in back-end systems.

OptionAdescribes a possible outcome, not the core benefit.

OptionCcontradicts SOA’s goal of standardization and reuse.

OptionDincorrectly implies forced tight integration; SOA actually promotesloosely coupledintegration.

Thus,SOA benefits BPM by separating business processes from application-specific technologies, enabling flexible orchestration.

In OMG BPM,process discoveryrefers to uncovering and making explicit theas-isstate of business processes. The primary goal is to document and visualize what actually happens—before analysis, redesign, or automation.

OptionAcorrectly describes this:Process discoverycaptures, documents, and makes explicitthe organizational understanding of current business processes.

OptionBrefers toprocess optimization, which comes later.

OptionCis part of project initiation, not discovery itself.

OptionDrefers toprocess implementationin a BPMS.

Thus, the correct characteristic of process discovery ismaking current processes explicit.

ActivityBhas the envelope marker, meaning it is aReceive Taskin BPMN. The sequence flow goes A → B → C. Between A and C, the process reaches B andwaits to receive a message from an external participantbefore continuing on to C. It does not send a message to C or receive one from A; the envelope indicates interaction with an external party.

TheAs-Is processis used as a basis for To-Be modeling when thecurrent process exists and is still relevant, even if it needs modification—for example, whennew regulatory rules require adjustments. Regulatory changes mean the process structure stays largely valid, but must be updated to meet compliance requirements.

Options A and D are incorrect because if a process is new or undefined, no As-Is model exists.

Option B is incorrect becauseradically changed requirementstypically justify designing a fresh To-Be process without depending on the existing one.

In BPMN, when anExpanded Sub-Processcontains activities (here:CandD)without any Sequence Flows between them, there isno defined execution orderimplied by their vertical or horizontal placement. Unless there are explicit sequence flows or gateway logic:

Neither “C then D” nor “D then C” is mandated.

They may be performed in any order, potentially overlapping, or by ad-hoc control external to the diagram.

Therefore the only correct statement is thattheir order is undefined in the diagram.

Smith and Fingar describe human-system interaction components as:

Workflow(routing, sequencing of human tasks)

Automation / work allocation

Task management(task lists, inboxes, lifecycle mgmt.)

Form-based data entry(human data interaction layer)

Option D is theexact matchto the classification provided inThe Third Wave.

The other options include unrelated BPMN elements or organizational metrics not used by Smith & Fingar.

In the BMM,Objectivesare defined as:

Measurable,

Time-targeted,

Performance-oriented outcomes.

They representquantified measures of enterprise performance.

Other elements do not fulfill this function:

Assessments= evaluations of influencers (not performance measures).

CSFs and KPIs= allowed, butnot formally defined elementsin BMM; they may be used by an organization but donot define enterprise performance in the core model.

Thus, the BMM’s official performance-defining construct isObjectives.
