 In Juniper Apstra, a widget is a graphical element that displays data from an intent-based analytics (IBA) probe. A widget can be used to monitor different aspects of the network and raise alerts to any anomalies. A widget can be viewed by itself or added to an analytics dashboard. A dashboard is a collection of widgets that can be customized and organized according to the user’s preference1.

The main dashboard in Juniper Apstra is the blueprint dashboard, which is the default view that shows the network information and configuration for the active blueprint. A blueprint is a logical representation of the network design and intent. The blueprint dashboard can display the system-generated dashboards, the user-generated dashboards, and the individual widgets that are relevant to the network2.

To make a widget appear on the main dashboard in Juniper Apstra, the user needs to set the Default toggle switch to On for the desired widget. This will add the widget to the blueprint dashboard, where it can be viewed along with other network information. The user can also remove the widget from the blueprint dashboard by setting the Default toggle switch to Off for the widget3. Therefore, the statement D is correct in this scenario.

The following three statements are incorrect in this scenario:

When creating the widget, select the Add to Blueprint Dashboard option. This is not true, because there is no such option when creating a widget in Juniper Apstra. The user can only select the widget type, the probe, and the display mode when creating a widget4. To add the widget to the blueprint dashboard, the user needs to set the Default toggle switch to On for the widget after creating it3.

On the blueprint dashboard, click on the Add Widget option. This is not true, because there is no such option on the blueprint dashboard in Juniper Apstra. The user can only view, edit, or delete the existing widgets and dashboards on the blueprint dashboard2. To add a widget to the blueprint dashboard, the user needs to set the Default toggle switch to On for the widget from the widgets table view3.

Widgets automatically appear on the blueprint dashboard. This is not true, because widgets do not automatically appear on the blueprint dashboard in Juniper Apstra. The user needs to manually add the widgets to the blueprint dashboard by setting the Default toggle switch to On for the widgets that they want to see on the blueprint dashboard3. The only exception is the widgets that are part of the system-generated dashboards, which are automatically created and added to the blueprint dashboard based on the state of the active blueprint2.

According to the Juniper documentation1, an interface map is a configuration template that maps interfaces between logical devices and physical hardware devices (represented with device profiles) while adhering to vendor specifications. An interface map specifies a connection between the interfaces of two devices, such as a leaf and a spine, a leaf and a server, or a leaf and an external gateway. An interface map can also specify port transformations, such as breaking out a 40 GbE port into four 10 GbE ports, or disabling unused ports. An interface map can be used to achieve the intended network configuration rendering and to enable features such as LAG, ESI-LAG, or MLAG. Therefore, the correct answer is B. An interface map specifies a connection between the interfaces of two devices. References: Interface Maps (Datacenter Design)

In Apstra 5.1, an IBA probe is a defined analytics pipeline that applies to a scoped set of graph objects (here, interfaces) and evaluates telemetry against logic defined in its processors. The exhibit shows a probe that consumes Interface Counters Average and then applies a Range processor. In the processor configuration, the Anomalous Range is set to “greater than 1,000,000” (bytes per second–equivalent for ~1 Mbps depending on the probe’s metric definition), and Raise Anomaly is set to True. Therefore, when ge-0/0/5 receives an average traffic level above the configured threshold, the probe’s condition evaluates as anomalous and Apstra raises a probe anomaly for that interface. That makes statement A correct.

When probe anomalies are raised, Apstra surfaces them in the blueprint’s Analytics area because they are analytics-derived findings (as opposed to configuration drift or deployment workflow issues). As a result, the blueprint’s Analytics tab indicator changes state (commonly to red with a badge count) to signal active analytics anomalies requiring attention. That makes statement B correct.

This event is not classified as a service anomaly (which is associated with higher-level service intent/assurance objects) unless separately mapped by policy/logic, and it does not primarily drive the Active tab indicator, which is focused on operational state views rather than being the primary alert surface for IBA probe anomalies.

In a VXLAN overlay, each Layer 2 broadcast domain (the logical equivalent of a VLAN/bridge domain) is identified by a 24-bit VXLAN Network Identifier (VNI) carried in the VXLAN header. This VNI is what allows the overlay to scale far beyond traditional VLAN space (12-bit VLAN IDs), enabling up to ~16 million distinct segments. In an EVPN-VXLAN data center fabric, Junos v24.4 leaf switches operate as VTEPs and map local bridge domains (often associated with VLANs on server-facing ports) to a VNI. When traffic is sent across the routed underlay, the leaf encapsulates Ethernet frames into VXLAN packets and inserts the VNI so the receiving VTEP can place the frame into the correct broadcast domain on decapsulation.

Apstra 5.1 abstracts this mapping through virtual networks and resource allocation: when you define a VXLAN-based virtual network, Apstra allocates a VNI from the appropriate pool and consistently programs the necessary constructs on all participating leaves. The key point is that VNI is the unique identifier in the VXLAN data plane used to label the broadcast domain across the IP fabric; VLAN IDs may exist locally at the edge for tagging, but the globally significant overlay identifier is the VNI.

Verified Juniper sources (URLs):

In Apstra 5.1, the cabling map is part of the blueprint’s intended physical topology. Cable-map edits are performed in the Staged workspace because Staged is where you modify intent (what the fabric should look like) before committing those changes and deploying them. The Staged → Physical → Links view provides both a tabular and topology-oriented representation of spine-to-leaf and other physical connections. When Apstra auto-assigns interfaces during initial build, the logical mapping may not match the real patching in the data center. The cabling map editor allows you to override interface names (and where applicable, link addressing metadata) so the blueprint accurately reflects the actual patch panel and switchport usage.

This accuracy is critical in a Junos v24.4 leaf-spine fabric because underlay correctness depends on the real physical adjacencies: link membership, LAG expectations (where used), and the resulting BGP neighbor relationships that carry EVPN signaling for VXLAN overlays. By updating the cabling map in Staged, you ensure Apstra can correctly validate neighbor discovery, verify intent, and produce consistent device configuration aligned to the real-world wiring. After making the cabling corrections, you commit the staged changes and then deploy/apply so that Apstra’s intent and the running network converge. This work is not performed under Active (which reflects deployed state) and is not a function of Connectivity Templates (which are for endpoint/service attachment rather than fabric cabling).

Verified Juniper sources (URLs):

In Apstra 5.1, a logical device defines the abstract port layout and capabilities (including supported speeds), while an interface map binds that abstract port layout to the real, vendor-specific front-panel ports. Rack types then consume logical devices and interface maps to model the rack’s leaf/superspine roles. Once a logical device is referenced by interface maps and used inside rack types (and potentially templates that instantiate those rack types), Apstra treats the combination as a consistent contract: port counts, roles, and speeds must remain semantically valid for every object that depends on it.

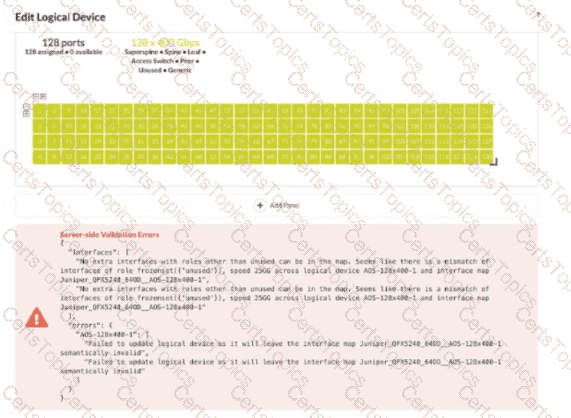

The exhibit’s validation error indicates that after changing interface speeds on the logical device, the existing interface map(s) and their usage in rack types no longer match the logical device definition (for example, the map expects certain ports/speeds/roles, but the updated logical device would leave the map invalid). Because the logical device is being consumed in multiple places, the safest and required way to remove the error is to remove all dependencies—templates (if they reference the rack types), rack types, and interface maps—so Apstra can accept the new logical device definition without violating existing mappings. After updating the logical device, you then recreate or update the interface maps and re-associate them with the rack types/templates so the entire chain remains consistent under the new speed requirements.

In a three-stage eBGP IP Clos, a leaf typically learns the same prefix through multiple spines, and those spines are commonly in different AS numbers (a standard Clos pattern for simplified operations and fault isolation). To install multiple equal-cost eBGP paths for the same destination, Junos requires BGP multipath and, when the candidate paths come from different neighbor ASs, you must use the multiple-as capability (expressed as “multipath multiple-as” in many designs) to bypass the default same-neighbor-AS restriction for multipath selection. This ensures multiple eligible eBGP next-hops can be accepted as equal-cost paths and installed.

Separately, to actually perform load balancing in the forwarding plane across those installed next-hops, Junos uses a load-balancing policy that is applied to the forwarding table via routing-options forwarding-table export . This policy (for example, per-packet or consistent-hash variants, depending on platform and intent) activates the forwarding behavior needed to distribute traffic over the ECMP set.

A “load-balance policy applied to the BGP group” is not the required mechanism for ECMP forwarding behavior in this context, and multihop is unnecessary in a Clos underlay because neighbors are typically directly connected.

Verified Juniper sources (URLs):

In EVPN multihoming, the Ethernet Segment Identifier (ESI) is the mandatory identifier used to represent a multihomed Ethernet segment—for example, a server or downstream switch that is dual-homed to two leaf devices using a single logical LAG/port-channel. By assigning the same ESI to the participating leaf-facing interfaces, the fabric recognizes those links as belonging to one Ethernet segment and can apply EVPN multihoming procedures consistently across the pair.

A key outcome of EVPN multihoming is loop prevention for multi-attached Layer 2 domains. EVPN uses the Ethernet segment concept (identified by the ESI) along with Designated Forwarder (DF) election to ensure that only the appropriate device forwards BUM (broadcast, unknown unicast, multicast) traffic toward the multihomed segment, avoiding duplicate forwarding and L2 loops. In addition, ESI-based multihoming supports resilient forwarding behavior during failures (for example, link or node loss) while maintaining correct advertisement and convergence in the EVPN control plane.

Therefore, among the provided options, the purpose that best matches how ESI is used operationally is to prevent loops within a LAG/multihomed connection, which is fundamental to EVPN-VXLAN data center designs on Junos v24.4 leaf devices and is also explicitly supported by Apstra when modeling ESI-based dual-homing.

Verified Juniper sources (URLs):

The exhibit shows node100 (Generic System) selected, with links from that generic system to two fabric leaf switches (for example, a leaf participating in an ESI pair and another leaf node). In Apstra 5.1, a Generic System represents an endpoint that is not managed as a network device by Apstra (such as a server, appliance, or host), but it is still modeled so Apstra can apply interface intent (LAG vs single link), connectivity templates, and virtual network attachments.

Because the device is shown as a generic system connected on leaf-facing ports inside the fabric topology, this aligns with an internal generic system. Internal generic systems are used for servers or endpoints that reside “inside” the rack/fabric context and consume leaf switch ports as access-facing connections. This is the common representation for endpoints in EVPN-VXLAN data center designs, where the leaf switches provide the VLAN/VNI mapping and, if required, IRB gateway services within the tenant VRF (routing zone).

An external generic system is typically used for devices outside the fabric boundary—most commonly external routers, firewalls, or upstream networks attached at border leafs—where the intent is external connectivity rather than server access. The selected node is neither a peer switch nor an access switch (those are network infrastructure roles), and the UI explicitly labels it as a Generic System, confirming the correct classification as an internal generic system.

In Apstra, Deploy Mode = Drain is the operational mechanism used to gracefully remove a switch from active forwarding before performing maintenance such as an OS upgrade. Drain mode is specifically intended to drain traffic while preserving fabric stability, so that maintenance can be executed with minimal to no application impact, provided the fabric design has sufficient redundancy (for example, ECMP in the underlay and dual-homing/ESI for server attachments). In an EVPN-VXLAN IP fabric, taking a leaf or spine abruptly out of service can cause transient loss of reachability as underlay adjacencies reconverge and the overlay recalculates paths. By placing the device into Drain, Apstra adjusts intent so that traffic is shifted away from the device as much as possible, reducing dependency on it before the upgrade begins.

This is different from Undeploy, which removes Apstra-rendered configuration and is generally used for decommissioning; if a device is carrying traffic, Apstra guidance is to drain first. Ready is a pre-deploy state used in lifecycle workflows, not a maintenance traffic-shifting mode. Deploy keeps the device fully participating. Therefore, for a maintenance window where the goal is “upgrade with minimal interruption,” the correct mode is Drain, then perform the Junos v24.4 upgrade, and finally return the device to Deploy.

Verified Juniper sources (URLs):

In Apstra 5.1, Intent-Based Analytics (IBA) is built on Apstra’s graph-based source of truth, where devices, interfaces, links, routing constructs, and services are represented as nodes with relationships. An IBA probe is effectively a processing pipeline (a directed acyclic graph of stages and processors) that ingests telemetry and then performs calculations, aggregations, and anomaly detection. To make any of that work, the probe must first determine which specific objects in the graph—for example, which leaf switches, which uplinks, which BGP sessions, or which interface counters—should be included in the analysis.

The probe element that selects those objects is the graph query. A graph query is evaluated against Apstra’s graph database to return a set of matching nodes/relationships; those query results then become the scope for ingestion and subsequent processing. In other words, the graph query defines “apply this probe to these devices/interfaces/sessions,” and it also provides the context used to bind telemetry identities (key-value pairs describing the metric source) to the correct logical objects in the blueprint. This is why Apstra documentation describes early probe processors producing outputs whose cardinality aligns with the number of results returned by the specified graph query(s). Without a graph query, the probe would not have a deterministic, intent-aligned target set for analytics, and the same probe definition could not be reliably reused across fabrics or blueprints.

In Apstra 5.1, resources are values that must be allocated uniquely and consistently across a fabric so Apstra can render deterministic, conflict-free configurations. These values are managed through resource pools, which provide ranges (or sets) of assignable identifiers that Apstra can automatically allocate to blueprint elements during build and deployment.

Three valid resource pool types in Apstra are ASN pools, VNI pools, and integer pools. ASN pools supply Autonomous System Numbers used in IP fabric underlays (commonly eBGP in three-stage Clos), ensuring each device or role receives the correct AS assignment without manual tracking. VNI pools supply VXLAN Network Identifiers for overlay segmentation in EVPN-VXLAN fabrics. Apstra uses these to create scalable tenant segments where the VNI uniquely identifies the broadcast domain in the overlay, and Junos v24.4 devices (leaf VTEPs) are configured accordingly. Integer pools provide generic numeric values used mainly in Freeform-style designs or in situations where a template needs a consistent allocated integer (for example, a custom ID used by a configlet or another allocation-driven construct).

“Routing zone pools” and “interface pools” are not resource pool types in Apstra. Routing zones (VRFs) are blueprint design objects, and interfaces are physical/logical constructs, but neither is consumed as an allocatable “pool” resource type in the Apstra resource catalog model.

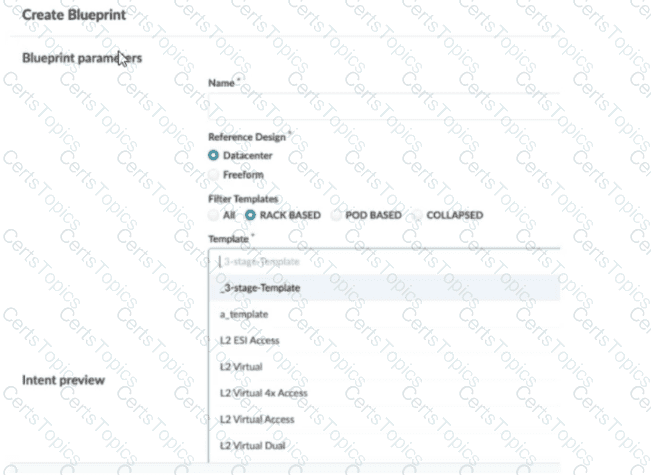

In Apstra 5.1, templates are organized by template type, and the Create Blueprint screen can filter the template list by those types. A five-stage Clos design in Apstra is represented as a pod-based template (multi-pod fabric with an additional tier such as super-spines to interconnect pods). Because of that, a five-stage template will only appear in the template selector when the Pod Based filter is chosen. If the filter is set to Rack Based or Collapsed, Apstra hides pod-based templates because those types correspond to different topology classes: rack-based aligns with a three-stage leaf–spine pod, while collapsed aligns with a spine-less topology pattern.

This behavior is by design to prevent selecting an incompatible template for the intended topology. The template name itself does not need to contain “five-stage”; Apstra determines its type from how the template was created and stored in the catalog. Also, five-stage templates are not limited to Freeform blueprints—five-stage is a data center fabric topology choice, and it is supported within the data center reference design workflows when the appropriate template type is selected.

So, to make the five-stage template visible and selectable, choose Pod Based in the template filter.

In Juniper Apstra 5.1, Root Cause Identification (RCI) is implemented with a currently supported model focused on connectivity. Practically, this means RCI is designed to take telemetry and state learned from the fabric (for example, interface operational status, LLDP neighbor information, and routing session status) and correlate those signals to determine the most likely underlying cause of a connectivity-impacting event. Within an EVPN-VXLAN IP fabric, many operational symptoms can appear similar at the service layer (endpoints cannot reach each other, routes disappear, overlays degrade), but RCI narrows the problem by correlating evidence across the underlay and control plane.

The “connectivity” RCI model targets common failure scenarios that directly break device-to-device reachability, such as a broken link, a miscabled link (wrong LLDP neighbors), or an operator-disabled interface. These conditions often cascade into higher-level symptoms, including BGP sessions dropping over affected links. With Junos v24.4-based leaf-spine fabrics, maintaining stable underlay connectivity is foundational for EVPN signaling and VXLAN forwarding; therefore, Apstra’s connectivity-focused RCI helps operators rapidly isolate whether the primary fault lies in physical adjacency, cabling/neighbor correctness, or administrative shutdown—reducing mean time to repair by pointing to the most probable root cause rather than only listing alarms.

A configuration deviation (also called a configuration anomaly) in Apstra indicates that the device’s running configuration differs from Apstra’s intended (golden) configuration for that node. In day-to-day operations, this most commonly occurs when an operator makes a change outside of Apstra’s control, such as entering commands directly on the device CLI (for example, on a Junos v24.4 switch), using another automation system, or applying an out-of-band configuration method.

Apstra continuously compares the device’s operational configuration against what it expects based on blueprint intent. When it detects drift, it raises a deviation anomaly so operators can decide how to restore compliance. Typical remediations are either (1) remove/revert the out-of-band change so the device matches intent again, or (2) explicitly acknowledge the change in Apstra (for example, via an accept/suppress workflow, depending on the exact UI action and version), so the deviation is no longer treated as unexpected.

While it is also possible for a deviation to be triggered by a device not accepting a rendered command (capability mismatch), the question asks what the anomaly indicates in this scenario; the primary meaning of “configuration deviation” is configuration changed outside of Apstra and therefore the network is no longer aligned with the intended state. That corresponds to option C.

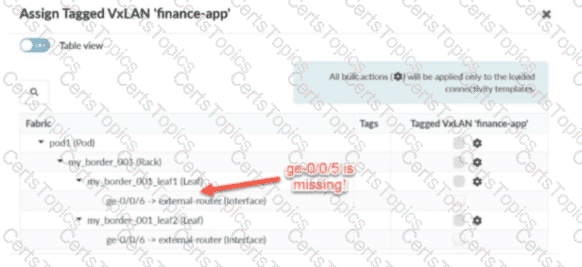

In Apstra 5.1, servers are modeled as Generic Systems and must be represented in the blueprint topology so that Apstra can bind an endpoint (the server) to a specific switch interface and then apply the intended connectivity template / virtual network attachment. In the exhibit, the interface ge-0/0/5 on my_border_001_leaf1 is shown as missing from the assignment workflow, which indicates that Apstra does not currently have an endpoint object connected to that port in the blueprint’s staged physical topology (or that the port is not presented as an eligible connectivity point for server attachment).

The correct remediation is to add a Generic System connected to my_border_001_leaf1 ge-0/0/5 in Staged > Physical > Topology, thereby creating a modeled server link on that interface. Once the Generic System exists and the interface is a recognized server-facing connectivity point, you can assign the Tagged VXLAN “finance-app” connectivity template (or the VN assignment action driven by that template) to the server-facing interface and then commit the staged changes.

Changing “deploy mode” may affect whether Apstra actively configures a generic system-facing link, but it does not solve a missing interface in the topology model. Likewise, allocating an IP pool is unrelated to making the port available for attachment, and assigning the VN to the switch node is not how server interfaces are attached in this workflow.

Verified Juniper sources (URLs):

The attribute that enables Juniper Apstra to scale and manage thousands of devices with a single server instance is that Apstra is a distributed state system. This means that Apstra uses a graph database to store the network topology and configuration data in a distributed and replicated manner across multiple server nodes. This allows Apstra to handle large-scale networks with high performance, reliability, and availability. Apstra also uses a stateful orchestration engine that ensures the network state is always consistent with the intent of the blueprint, which is the logical representation of the network design and behavior. Apstra can automatically detect and resolve any discrepancies between the desired and actual network state, as well as handle any changes or failures in the network. The other options are incorrect because:

A. Apstra is installed as a cloud resource is wrong because Apstra can be installed either as a cloud resource or as an on-premises resource. Apstra is available as a virtual machine image that can be deployed on various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. Apstra can also be deployed on public cloud platforms, such as Amazon Web Services (AWS) or Microsoft Azure. However, the installation method does not affect the scalability of Apstra, which is determined by the distributed state system architecture.

B. Apstra is based on NGINX is wrong because Apstra is not based on NGINX, but on Python and Django. NGINX is a web server and reverse proxy that Apstra uses to serve the web user interface and the REST API. However, NGINX is not the core component of Apstra, and it does not affect the scalability of Apstra, which is determined by the distributed state system architecture.

C. Apstra is available as an OVA is wrong because Apstra is available as an OVF, not an OVA. An OVF (Open Virtualization Format) is a standard format for packaging and distributing virtual machine images. An OVA (Open Virtual Appliance) is a single file that contains the OVF and the virtual disk images. Apstra provides an OVF file that can be imported into various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. However, the availability of Apstra as an OVF does not affect the scalability of Apstra, which is determined by the distributed state system architecture. References:

JUNIPER APSTRA ARCHITECTURE

Apstra Server Requirements/References

Juniper Networks Apstra 4.0 enhances the experience of users and operators

In Apstra 5.1, property sets are structured data objects (YAML/JSON) used to hold values that templates can consume at render time. Their most common use is with configlets, where property set key/value pairs are referenced as variables inside the template so Apstra can perform variable substitution during configuration generation. This directly supports statement B.

Property sets are also designed to be reusable. A single configlet can reference more than one property set (for example, one set for NTP servers and another for syslog collectors), allowing clean separation of data domains and easier lifecycle updates. This supports statement E.

Operationally, when you bring design content into a blueprint, the blueprint must have the required supporting objects available. In Apstra workflows, configlets that use property sets require those property sets to be present in the blueprint context (commonly accomplished by importing the relevant property set(s) from the catalog into the blueprint as part of bringing in the configlet and its dependencies). This aligns with statement A as the blueprint-level outcome: the property sets used by an imported configlet are imported/available in the blueprint for rendering.

Statements C and D are incorrect because property sets are not limited only to configlets (they are also used with Analytics probes), and the syntax is not vendor-specific—Apstra uses standard YAML/JSON structures independent of NOS.

Verified Juniper sources (URLs):

In Apstra 5.1, Security Policies express traffic-permit/deny intent between defined fabric endpoints, and Apstra compiles that intent into ACL enforcement on the appropriate switches (for example, on gateway interfaces for east-west segmentation and on border leaf interfaces for north-south controls). The objects you use to define that policy intent must correspond to fabric connectivity constructs that Apstra understands as endpoints in the blueprint’s logical model.

Two such valid objects are Virtual Networks and Routing Zones. A virtual network represents a tenant segment (typically mapped into EVPN-VXLAN constructs such as VNI and associated IRB gateway when L3 is enabled). Policies between virtual networks are a common way to implement micro-segmentation or tier-based segmentation (web/app/db) within the same tenant boundary. A routing zone represents the L3 tenancy boundary (mapped to a VRF) and can be used to group and control connectivity at the tenant level, especially where policy needs to be expressed for aggregated tenant domains or for controls involving external connectivity.

“Domain name” and “application signature” are not endpoint objects for Apstra Security Policies in this context. They may exist in other security ecosystems, but Apstra’s security intent model for ACL generation is based on topology and blueprint objects (routing zones, virtual networks, and endpoint definitions), which can then be rendered into Junos v24.4 firewall filter–style enforcement on the fabric devices.

Verified Juniper sources (URLs):
