The correct answer is A . When FortiNAC-F needs near real-time Layer 2 visibility, it relies on link traps, MAC notification traps, RADIUS, or scheduled/manual Layer 2 polling. The study guide explains that MAC notification traps contain the MAC address learned or removed from the switch MAC address table and the associated port, allowing FortiNAC-F to update its database when hosts connect, disconnect, or move. It also states that MAC notification traps are the preferred method for learning and updating Layer 2 information.

If a newly modeled switch does not show hosts as they connect or move between ports, the likely problem is that MAC notification traps are not correctly configured or not reaching FortiNAC-F . Layer 3 polling failure would affect IP-to-MAC correlation, not the ability to learn which switch port a MAC address is connected to. Disabled scheduled polling could delay updates, but it would not be the best explanation when the expected behavior is immediate host detection during connection or movement testing. Contact polling only checks whether the device is reachable; it does not collect host MAC-to-port visibility.

In FortiNAC-F, theInventory topologyuses specific icons to represent the status and model of discovered network infrastructure. When a switch or other network device is discovered via SNMP, FortiNAC-F retrieves itsSystem ObjectID (sysObjectID)to identify the specific make and model. This OID is then compared against the internal database of supported device mappings.

Aquestion mark (?)icon appearing on a discovered switch indicates that while the discovery process successfully communicated with the device (meaning SNMP credentials were correct), theSNMP ObjectID is not recognizedor mapped in the current version of FortiNAC-F. This essentially means the device is " unsupported " by the current software out-of-the-box. Because the OID is unknown, FortiNAC-F does not know which CLI or SNMP command set to use for critical functions like L2 polling (host visibility) or VLAN switching (enforcement). To resolve this, an administrator can manually " Set Device Mapping " to a similar existing model or a " Generic SNMP Device " if only basic L3 visibility is required.

" Discovered devices displaying a ' ? ' iconindicate the currently running version does not have a mapping for that device ' sSystem OID(device is not supported). Device mappings are used to manage the device by performing functions such as L2/L3 Polling, Reading, and Switching VLANs. " —Fortinet Technical Tip: Options for devices unable to be modeled in Inventory.

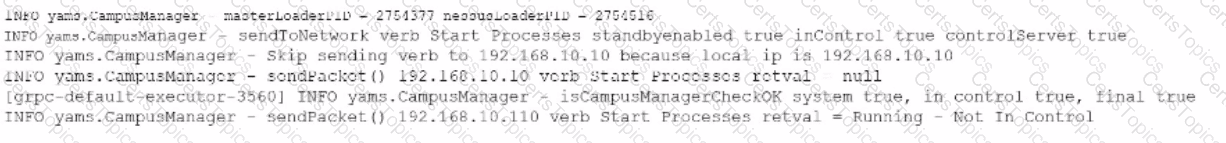

The correct answer is D . The log output shows the local IP address as 192.168.10.10 , which the question identifies as the primary FortiNAC-F server. In the same output, FortiNAC-F reports inControl true and controlServer true , which means the local primary server is currently the control server. The line showing communication to 192.168.10.110 returns Running - Not In Control , confirming that the secondary server is alive but is not the active controlling node.

This matches FortiNAC-F 1+1 HA behavior. The study guide describes a 1+1 HA pair as an active-passive deployment where one FortiNAC-F device is designated primary and the other secondary. Database and configuration synchronization keep the devices aligned, but only one server is in control at a time. If the primary fails, the secondary assumes control automatically; otherwise, the primary remains the active control server.

Option A is wrong because the secondary explicitly reports Not In Control . Option B is wrong because the output does not show database replication failure. Option C is wrong because failover is not in progress; the output shows a stable state where the primary is in control and the secondary is running as the passive node.

The correct answers are C, D, and E . In a Layer 3 captive or isolation network design, FortiNAC-F port2 acts as the captive network service interface. The study guide states that Layer 3 captive networks require DHCP traffic to be relayed to port2 from the captive networks, and that the FortiNAC-F interface provides DHCP, DNS, and captive portal services to hosts assigned to any captive network.

That means the firewall path between the isolation VLANs and FortiNAC-F must allow DHCP , so isolated endpoints can receive an IP address from the FortiNAC-F captive network scope; DNS , so the isolated endpoint uses FortiNAC-F as its DNS server and gets redirected correctly; and HTTP/HTTPS , so the endpoint can load the FortiNAC-F captive portal page. The guide’s browser-redirection flow confirms this sequence: the host is moved to the isolation VLAN, requests DHCP, receives FortiNAC-F as the DNS server, performs DNS lookup, and then Apache/Tomcat services present the portal content.

Option A , DDNS, is not required for captive portal operation. Option B , NTP, may be useful for endpoint time accuracy or certificate-related workflows, but it is not part of the minimum traffic required for FortiNAC-F isolation network operation.

In a corporate domain environment where " enhanced endpoint visibility " is required, thePersistent Agentis the recommended choice. Unlike the Dissolvable Agent, which is temporary and intended for one-time compliance scans during registration, the Persistent Agent is an " install-and-stay-resident " application.

The Persistent Agent is specifically designed to be distributed through automated enterprise methods, includinglogin scripts, Group Policy Objects (GPO), or third-party software management tools. When deployed via a login script, the agent can be configured to silently install and immediately begin communicating with the FortiNAC-F service interface. Once active, it provides continuous visibility by reporting host details such as logged-on users, installed applications, and adapter information. It also listens for Windows session events (logon/logoff) to trigger automatic single-sign-on (SSO) registration in FortiNAC-F, ensuring that as soon as a user connects to the domain, their device is identified and assigned the correct network access policy.

" The Persistent Agent can be distributed to Windows domain machines vialogin scriptor by any other software distribution method your organization might use. The Persistent Agent remains installed on the host at all times. Once the agent is installed it runs in the background and communicates with FortiNAC at intervals established by the FortiNAC administrator. " —FortiNAC-F Administration Guide: Persistent Agent Overview.

In FortiNAC-F, theLayer 3 Network typeis specifically designed for deployments where the isolation networks—such as Registration, Remediation, and Dead End—are separated from the FortiNAC appliance ' s service interface (port2) by one or more routers. This architecture is common in large, distributed enterprise environments where endpoints in different physical locations or branches must be isolated into subnets that are local to their respective network equipment.

The reason the Configuration Wizard allows for more than one DHCP scope for a single isolation network type (state) is thatthere can be more than one isolation network of each typeacross the infrastructure. For instance, if an organization has three different sites, each site might require its own unique Layer 3 registration subnet to ensure efficient routing and to accommodate local IP address management. By allowing multiple scopes for the " Registration " state, FortiNAC can provide the appropriate IP address, gateway, and DNS settings to a rogue host regardless of which site ' s registration VLAN it is placed into.

When an endpoint is isolated, the network infrastructure (via DHCP Relay/IP Helper) directs the DHCP request to the FortiNAC service interface. FortiNAC then identifies which scope to use based on the incoming request ' s gateway information. This flexibility ensures that the system is not limited to a single flat subnet for each isolation state, supporting a scalable, multi-routed network topology.

" Multiple scopes are allowed for each isolation state (Registration, Remediation, Dead End, VPN, Authentication, Isolation, and Access Point Management). Within these scopes, multiple ranges in the lease pool are also permitted... This configWizard option is used when Isolation Networks are separated from the FortiNAC Appliance ' s port2 interface by a router. " —FortiNAC-F Configuration Wizard Reference Manual: Layer 3 Network Section.

The correct answers are A and C . Fortinet’s FortiNAC-F 7.6 documentation states that, to receive and interpret traps from devices or applications, those devices or applications must be modeled in FortiNAC and must have an associated IP address. That validates option A directly. The same Fortinet Trap MIB Files documentation also lists a FortiNAC-OS requirement: the snmp option must be included in the set allowaccess command. That validates option C .

Option B is wrong because Trap MIB integration is not limited to SNMPv3. Fortinet states that Trap MIB supports receiving SNMPv1 and SNMPv2 traps from external devices, while SNMPv3 is discussed separately for traps that populate host and user records.

Option D is the trap. The Fortinet documentation explicitly says IP address OID, MAC address OID, and user ID OID are not all required ; any one OID can be used to identify the host or user that triggered the trap. So the statement that both the IP address OID and MAC address OID must be configured is false.

The correct answer is A . In a FortiNAC-F 1+1 HA deployment, failover from primary to secondary is automatic, but failback to the primary is not automatic . The study guide states that if the primary device or its network connectivity fails, the secondary assumes control automatically, but restoration of a failed-over HA deployment is a manual administrator-driven process. It further explains that after the cause of the failover is resolved, the administrator must use the Resume Control button to transfer control back to the primary server.

That means when the primary comes back online, it does not immediately take over again. The pair can resume HA communication, but the secondary remains the in-control node until an administrator deliberately returns control to the primary. Option B is wrong because FortiNAC-F 1+1 HA is active-passive, not load-balanced. Option C is wrong because the restored primary does not power itself down for maintenance. Option D is a trap: five failed heartbeats are used in failure detection and gateway validation logic, not as an automatic failback timer. The exam point is simple: automatic failover, manual failback .

In a1+1 High Availability (HA)deployment, FortiNAC-F supports two primary methods for management access: individual IP addresses or aShared IP Address(also known as a Virtual IP or VIP). The Shared IP option is part of aLayer 2 HAdesign, which simplifies administration by providing a single URL or IP that always points to whichever appliance is currently in the " Active " or " In Control " state.

For a Shared IP configuration to function correctly, thePrimary and Secondary administrative interfaces (port1) must be on the same subnet. This requirement exists because the Shared IP is a logical address that is dynamically assigned to the physical interface of the active unit. Since only one unit can own the IP at a time, both units must reside on the same broadcast domain (Layer 2) to ensure that ARP requests for the Shared IP are correctly answered and that the gateway remains reachable regardless of which unit is active. If the appliances were on different subnets (a Layer 3 HA design), a shared IP could not be used because it cannot " float " across different network segments; instead, administrators would need to manage each unit via its unique physical IP or use a FortiNAC Manager.

" For L2 HA configurations, click theUse Shared IP Addresscheckbox and enter the Shared IP Address information...If your Primary and Secondary Servers are not in the same subnet, do not use a shared IP address.The shared IP address moves between appliances during a failover and recovery and requires both units to reside on the same network. " —FortiNAC-F High Availability Reference Manual: Shared IP Configuration.

In a FortiNAC-F deployment, the configuration of theDHCP scopefor isolation networks (Registration, Remediation, etc.) must perfectly align with the underlying network infrastructure to ensure that isolated hosts can communicate with the FortiNAC appliance. In the provided exhibits, there is a clear discrepancy between theDHCP configurationand theNetwork Topology.

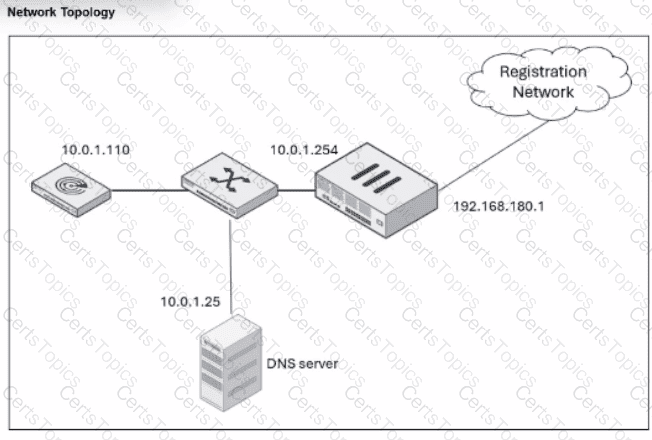

As shown in the " Network Topology " exhibit, theRegistration Networkresides on a router interface (or sub-interface) with the IP address192.168.180.1. This address represents the default gateway for any host placed into the Registration VLAN. However, the " DHCP configuration " exhibit shows the scope " REG-ScopeOne " configured with aGateway of 10.0.1.254. This 10.0.1.254 address belongs to the management/service network (port2 of FortiNAC), not the registration subnet. If a host in the Registration VLAN receives this incorrect gateway via DHCP, it will attempt to send all off-link traffic to an unreachable IP, preventing it from loading theCaptive Portalor communicating with the FortiNAC server.

According to theFortiNAC-F Configuration Wizard Reference, when defining a Layer 3 network scope, the " Gateway " field must contain the IP address of the router interface that acts as the gateway for that specific isolation VLAN. The FortiNAC appliance itself usually sits on a different subnet, and traffic is directed to it via the router ' s DHCP Relay (IP Helper) and DNS redirection.

" When configuring scopes for a Layer 3 network, theGatewayvalue must be the IP address of the router interface for that subnet. This allows the host to reach its local gateway to route traffic. If the gateway is misconfigured, the host will be unable to reach the FortiNAC eth1/port2 interface for registration... Ensure the Gateway matches the network topology for the isolation VLAN. " —FortiNAC-F Configuration Wizard Reference Manual: DHCP Scopes.

The correct answer is C . In FortiNAC-F Manager clustering, the active cluster management role is the leader role, and other cluster members operate as worker nodes. Fortinet’s FortiNAC-F 7.6 Manager Cluster Guide states that when a worker is promoted to leader during automatic transition, the original leader becomes a worker node when it comes back online. It also explains that a cluster has one leader and can have multiple workers, with leader/worker roles used for cluster management and heartbeat exchange.

So, if the cluster manager becomes non-responsive and another node takes over leadership, the recovered manager does not automatically reclaim the leader role. It rejoins as a worker node. Option A is wrong because recovery does not automatically remove it into a standalone group. Option B is wrong because automatic return to the previous manager/leader state would create instability and possible split-brain behavior. Option D is wrong because “standby” is not the role described for FortiNAC-F Manager clustering in this context; the documented cluster roles are leader and worker.

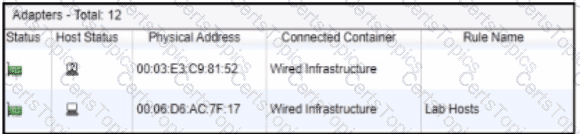

The correct answer is A . The exhibit shows two adapters learned on the same wired port: one appears as a rogue/unknown host, and the other is associated with the Lab Hosts rule. The port is in both Role-Based Access and Forced Registration . FortiNAC-F state-based control takes precedence over policy-based provisioning, and the study guide states that when a rogue host connects to a port in the Forced Registration group, FortiNAC-F isolates that host by moving it into the registration captive network. The guide also explains that the Isolation network can be used as a single network for abnormal host states while still presenting state-specific portal pages.

Because this is a wired switch port using VLAN-based control, FortiNAC-F cannot put one host on the production VLAN and the other host on the isolation portal VLAN at the same time on the same access port. The VLAN change applies to the port, not independently to each MAC address behind that port. Therefore, the presence of the rogue host on a Forced Registration port causes the port to be provisioned to the isolation network. Option B is technically unrealistic for this access-port scenario. Option C is wrong because two MAC addresses alone do not make the port an uplink; FortiNAC-F uses uplink logic for infrastructure-device MACs, manually marked uplinks, or a threshold such as more than 20 MAC addresses. Option D is unrelated because Access Point Management is not triggered by learning two wired hosts on a port.

In FortiNAC-F,Security Triggersare used to identify specific security-related activities based on incoming data such as Syslog messages or SNMP traps from external security devices (like a FortiGate or an IDS). These triggers act as a filtering mechanism to determine if an incoming notification should be escalated from a standard system event to aSecurity Event.

According to theFortiNAC-F Administrator Guideand relevant training materials for versions 7.2 and 7.4, theFilter Matchsetting is the critical logic gate for this process. As seen in the exhibit, the " Filter Match " configuration is set to " All " . This means that for the Security Trigger named " Infected File Detected " to " fire " and generate a Security Event or a subsequent Security Alarm,every single filterlisted in the Security Filters table must be satisfied simultaneously by the incoming data.

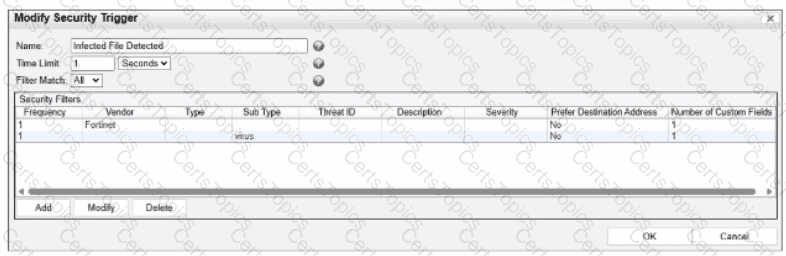

In the provided exhibit, there are two filters: one looking for the Vendor " Fortinet " and another looking for the Sub Type " virus " . If only one of these filters is satisfied (for example, a message from Fortinet that does not contain the " virus " subtype), the logic for the Security Trigger is not met. Consequently, FortiNAC-F does not escalate the notification. Instead, it processes theincoming data as aNormal Event, which is recorded in the Event Log but does not trigger the automated security response workflows associated with security alarms.

" The Filter Match option defines the logic used when multiple filters are defined. If ' All ' is selected, then all filter criteria must be met in order for the trigger to fire and aSecurity Eventto be generated. If the criteria are not met, the incoming data is processed as anormal event. If ' Any ' is selected, the trigger fires if at least one of the filters matches. " —FortiNAC-F Administration Guide: Security Triggers Section.

Questions no:9

Verified Answer: B

Comprehensive and Detailed 250 to 300 words each Explanation with Exact Matched Extract from FortiNAC-F Administrator library and documentation for current versions (including F 7.2, 7.4, and 7.6) documents:

In FortiNAC-F, the integration with FortiGate for Security Fabric and Single Sign-On (FSSO) allows the system to communicate the access level of an endpoint directly to the firewall usingfirewall tags. This eliminates the need for complex VLAN steering in some environments by allowing the FortiGate to apply policies based on these dynamic tags instead of just a physical or virtual network segment.

The actual assignment of the firewall tag value occurs within aLogical Network. In the FortiNAC-F architectural model, a Logical Network acts as a container for " Access Values " . When an administrator configures a Logical Network (located underNetwork > Logical Networks), they define what that network represents—such as " Corporate Access " or " Contractor Limited " . Within that definition, they assign the specificFirewall Tagthat matches the tag created on the FortiGate. Once a user or host matches aNetwork Access Policy, FortiNAC-F identifies the associated Logical Network and pushes the defined tag to the FortiGate via the FSSO connector.

It is important to note that whileNetwork Access Policies(and by extensionSecurity Rules) are the logic engines thattriggerthe assignment, they do not hold the tag value itself. They simply point to a Logical Network, which serves as the central repository for that specific access configuration.

" To assign firewall tags, navigate toNetwork > Logical Networks. Select the desired logical network and clickEdit. Under theAccess Valuesection, selectFirewall Tagas the type and enter the tag name exactly as it appears on the FortiGate. When a Network Access Policy matches a host, FortiNAC sends this tag to the FortiGate as an FSSO message. " —FortiNAC-F Administration Guide: Logical Networks and Security Fabric Integration.

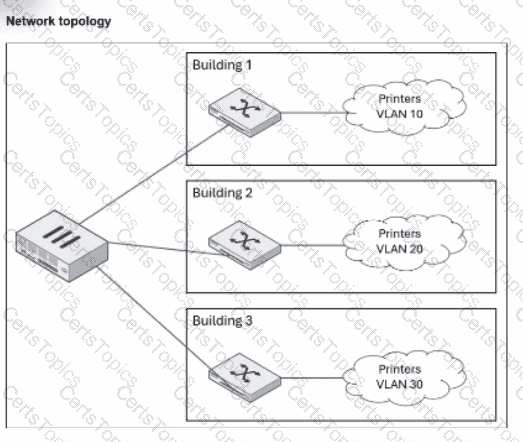

The FortiNAC-FLogical Networkfeature is specifically designed to provide an abstraction layer between high-level security policies and the underlying physical network infrastructure. In large-scale deployments where different physical locations (like Building 1, 2, and 3 in the exhibit) use different local VLAN IDs for the same type of device (e.g., VLAN 10, 20, and 30 for printers), managing separate policies for each building would create significant administrative overhead.

By using aLogical Network, an administrator can create a single entity—for example, a logical network named " Printers " —and use it as the " Access Value " in a singleNetwork Access Policy. The mapping of this logical label to a specific physical VLAN occurs at theModel Configurationlevel for each network device. When a printer connects to a switch in Building 1, FortiNAC-F evaluates the policy, identifies that the printer should be in the " Printers " logical network, and checks the Model Configuration for that specific switch to see which VLAN ID is mapped to that label (VLAN 10). If the same printer moves to Building 3, the same single policy applies, but FortiNAC-F provisions it to VLAN 30 based on the local mapping for that building ' s switch.

This architectural approach ensures that policies remain consistent and easy to manage regardless of the complexity or variations in the local network topology.

" Logical Networks provide a way to define a network access requirement once and apply it across many different network devices that may use different VLAN IDs for that access... Each managed device can usedifferent VLAN IDs for the same Logical Network label. You can define the Logical Networks based on requirements and then associate the network to a VLAN ID when the managed device is configured in theModel Configuration. " —FortiNAC-F IoT Deployment Guide: Define the Logical Networks.

The correct answer is C . The FortiNAC-F study guide explains that all VPN hosts are initially treated as unauthorized. For those unauthorized VPN hosts, the FortiGate firewall policy must allow traffic only to and from the FortiNAC-F VPN isolation interface and deny all other traffic. This forces the connecting VPN client into the FortiNAC-F validation process, including captive portal presentation and FortiNAC-F agent communication or download.

Options A and B are incorrect, and they appear duplicated in the question. The client is not supposed to be granted access only to the production DNS server while still unauthorized. FortiGate assigns DNS during VPN connection setup, with production DNS as primary and the FortiNAC-F VPN isolation interface as secondary, but the unauthorized firewall policy restricts useful access to FortiNAC-F so that validation can occur. Option D is wrong because the VPN client has already connected to the FortiGate VPN service; the authorization workflow requires access to the FortiNAC-F VPN isolation interface , not merely the FortiGate VPN interface.

When FortiNAC-F manages VPN clients through a FortiGate, the agent plays a fundamental role in device identification that standard network protocols cannot provide on their own. In a standard VPN connection, the FortiGate establishes a Layer 3 tunnel and assigns a virtual IP address to the client. While the FortiGate sends a syslog message to FortiNAC-F containing the username and this assigned IP address, it typically does not provide the hardware (MAC) address of the remote endpoint ' s physical or virtual adapter.

FortiNAC-F relies on theMAC addressas the primary unique identifier for all host records in its database. Without the MAC address, FortiNAC-F cannot correlate the incoming VPN session with an existing host record to apply specific policies or track the device ' s history. By running either a Persistent or Dissolvable Agent, the endpoint retrieves its own MAC address and communicates it directly to the FortiNAC-F service interface. This allows the " IP to MAC " mapping to occur. Once FortiNAC-F has both the IP and the MAC, it can successfully identify the device, verify its status, and send the appropriateFSSO tagsor group information back to the FortiGate to lift network restrictions.

Furthermore, while the agent can also perform compliance checks (Option D), the architectural requirement for the agent in a managed VPN environment is primarily driven by the need for session data correlation—specifically the collection of the IP and MAC address pairing.

" Session Data Components: • User ID (collected via RADIUS, syslog and API from the FortiGate). • Remote IP address for the remote user connection (collected via syslog and API from the FortiGate and from the FortiNAC agent). •Device IP and MAC address (collected via FortiNAC agent).... The Agent is used to provide the MAC address of the connecting VPN user (IP to MAC). " —FortiNAC-F FortiGate VPN Integration Guide: How it Works Section.
