The BIG-IP system uses a centralized management framework to ensure that all devices within a Sync-Failover group share a consistent configuration. When an administrator makes a change on any member of the group—whether it is the active or the standby device—the system detects a " ConfigSync " mismatch. The " Device Management > > Overview " screen tracks these changes by comparing the commit ID and timestamps of the configurations across all peers.

If a change is made on the standby member, that device now possesses a more recent configuration than the other members of the group. Consequently, the BIG-IP GUI will display a status of " Changes Pending " and suggest a Recommended Action to resolve the discrepancy. In this scenario, the correct action is to Synchronize the standby member configuration to the group. This push operation will copy the updated configuration from the standby device to the active device (and any other peers), bringing the entire cluster back into a " In Sync " status. It is important to note that BIG-IP allows bi-directional synchronization; you do not have to be on the active device to push a configuration. However, administrators must be cautious: choosing Option C (Synchronizing the active member to the group) would overwrite the changes just made on the standby device with the older configuration from the active device, effectively reverting the changes. The Recommended Action always points toward the direction that propagates the most recent change to the rest of the group.

URI-based traffic steering requires inspection of the HTTP request. BIG-IP processes HTTP headers and URIs in the HTTP_REQUEST event. Pool member selection based on URI must occur before the request is sent to the server, making HTTP_REQUEST the correct event.

In F5 BIG-IP administration, iApps are designed to manage complex application configurations as a single unit. When an iApp is deployed, it creates an " Application Service " object that owns all the associated LTM objects, such as Virtual Servers, Pools, and Nodes. By default, these iApps are created with Strict Updates enabled. Strict Updates is a safety mechanism that prevents administrators from making manual " out-of-band " changes to the individual objects created by the iApp. The system enforces this because manual changes would be overwritten the next time the iApp template is updated or re-entered.

When the administrator attempts to change the destination IP address directly on the Virtual Server object, the BIG-IP system checks the " Strict Updates " flag. If it is set to " Enabled, " the system blocks the modification and generates the error message stating the service must be updated via the application management interface. To resolve this, the administrator must navigate to the iApp > > Application Services menu, select the specific application service, and go to the " Reconfigure " tab. Within the iApp configuration form, the destination IP can be safely changed. Alternatively, if the administrator specifically wants to manage the objects manually and forgo the benefits of the iApp template management, they could disable " Strict Updates " in the iApp properties, though this is generally discouraged as it breaks the template ' s logic. The error is not related to subnetting or duplicate IPs, but strictly to the configuration authority assigned to the iApp service.

X-Forwarded-For inserts the original client IP into HTTP headers while SNAT is enabled.

Application-level monitors ensure that only the affected service is marked down, not the entire node.

When a single IP address (Virtual Server) must host multiple hostnames (e.g., site1.com, site2.com) over HTTPS, the BIG-IP must be able to present the correct SSL certificate for each site during the initial handshake. This requirement is handled by a technology called Server Name Indication (SNI).

To implement this on the BIG-IP, the administrator must use a Client SSL profile because the encryption is occurring between the user (Client) and the Virtual Server. Within the Client SSL profile settings, there is a field called Server Name. By creating multiple Client SSL profiles—each with a different " Server Name " (the hostname) and its corresponding certificate—and attaching them all to the same Virtual Server, the BIG-IP can inspect the SNI extension in the client ' s " Client Hello " packet. It then selects the specific profile that matches the requested hostname.

Option A is incorrect because " Client Name " is not the standard field name used for SNI hostname matching in the profile. Options B and C refer to Server SSL profiles, which manage the connection between the BIG-IP and the backend servers. While Server SSL profiles also have a " Server Name " field (used to send SNI to a backend server), the requirement here is to provide encrypted communication for " users " accessing the virtual server, which definitively requires a Client-side SSL configuration.

According to the provided exhibit, the " SSL Profile (Client) " section in the Virtual Server configuration is empty. For a BIG-IP system to process HTTPS traffic, it must act as an SSL/TLS endpoint. This process, known as SSL Termination or SSL Offload, requires the assignment of a Client SSL Profile to the Virtual Server. Without this profile, the BIG-IP does not have the necessary certificate and private key information to perform the SSL handshake with the client ' s browser. Consequently, when a user attempts to connect via HTTPS, the TCP connection may establish, but the SSL handshake will fail because the BIG-IP will not know how to decrypt the incoming encrypted packets.

A Client SSL profile defines the ciphers, certificates, and keys that the BIG-IP uses to communicate securely with the client. In a standard HTTPS deployment, the BIG-IP decrypts the traffic and can then send it to the backend pool members either as plain text (header insertion/manipulation) or re-encrypt it using a Server SSL profile. While a Server SSL profile (Option C) is needed if the backend servers themselves require HTTPS, the initial failure for a user reaching a Virtual Server is almost always the lack of a Client SSL profile to terminate the user ' s connection. Changing the Service Port to HTTP (Option D) would be incorrect because the goal is to handle HTTPS traffic (typically port 443). Assigning the " clientssl " or a custom client-side profile from the " Available " list to the " Selected " list in the GUI is the mandatory step to make the Virtual Server operational for secure web traffic.

To determine if an iRule is influencing traffic for a specific Virtual Server, the administrator must verify the association between the Virtual Server object and any applied scripts. In the BIG-IP Configuration Utility (GUI), this association is found under the Resources tab of the specific Virtual Server. While there is an " iRules " sub-menu under Local Traffic, checking the Virtual Server ' s Resources tab is the definitive way to see which specific rules are currently active and in what order they are being processed for that particular traffic flow.

From the Command Line Interface (CLI), the tmsh list /ltm virtual < virtual_server > command provides a full text-based output of the virtual server ' s configuration. If iRules are applied, they will appear within a " rules { ... } " block in the command output. This is more effective than Option A, which only lists the contents of the iRule itself but does not show if or where it is applied. Option C is a common misconception; while some versions of the GUI have reorganized menus, the standard location for managing the association of profiles, policies, and iRules to a Virtual Server remains the " Resources " section. By identifying the applied iRule, an administrator can then review the script logic—often containing commands like pool or node—to see if it is overriding the default pool selection based on specific HTTP headers, URI paths, or client IP addresses.

The issue described is a classic symptom of asymmetric routing, which frequently occurs when the BIG-IP system and the back-end servers reside on the same subnet (often referred to as a " one-arm " deployment).

The Routing Problem: By default, the BIG-IP system preserves the original client source IP address when forwarding traffic to a pool member. If the server is in the same subnet as the client or if the server ' s default gateway is not the BIG-IP, the server will attempt to send its response directly back to the client’s IP address, bypassing the BIG-IP.

Stateful Failure: Since the BIG-IP is a Full Proxy, it maintains a state table. Because the response packet never returns through the BIG-IP, the system cannot complete the three-way handshake or manage the application session, resulting in a connection failure for the user.

The Solution (SNAT): Enabling Source Network Address Translation (SNAT) solves this by changing the source IP address of the request to an IP address owned by the BIG-IP (typically a self-IP).

Requirement for Subnet Alignment: To ensure the server sends the response back to the BIG-IP, the translation address must be reachable. By using a self-IP configured in the same subnet as the servers, the BIG-IP ensures that the server sees the request coming from a local " neighbor. " The server will then naturally send the response back to that self-IP, allowing the BIG-IP to translate the packet back and forward it to the client.

Why other options are incorrect:

A: Disabling address translation would ensure the server-side traffic uses the client IP, making asymmetric routing inevitable in this scenario.

B: This is technically contradictory; " Auto Map " specifically uses existing self-IPs and does not require or use a " SNAT pool " configuration.

C: While using a specific translation address can work, it does not inherently guarantee the Layer 2/Layer 3 reachability mentioned in the scenario as effectively as ensuring the self-IP is correctly placed in the server ' s subnet.

The BIG-IP Configuration Utility (GUI) organizes information hierarchically to allow for granular management of application objects. A Pool is a collection of backend servers (pool members) that provide the same service. To verify the specific network parameters—such as the IP address and the service port—of the servers within a pool, the administrator must navigate to the specific pool ' s configuration.

The standard procedural path to verify this is Local Traffic > Pools: Pool List, where the administrator selects the specific pool name. Once inside the pool ' s configuration, the Members tab displays a list of all IP addresses and service ports associated with that pool. Under the " Service Port " column, the administrator can confirm if the member is listening on port 80 (HTTP).

Options A and B are incorrect for this specific verification task. While Nodes (Option A) show the health of a physical server, a node represents only an IP address and does not have a " Service Port " associated with it until it is defined as a pool member. Verifying the Health Monitor (Option B) would tell the administrator how the system is checking the member ' s status, but it does not definitively show the port on which the member is actually receiving application traffic. In a BIG-IP environment, a pool member is uniquely identified by the combination of its Node IP and its Service Port, and the Members tab is the primary interface for managing and auditing these specific member attributes.

Connection rate limits restrict how many new connections are accepted per second, protecting application resources.

A red diamond indicates that the Virtual Server is enabled but unavailable, typically due to all pool members being down.

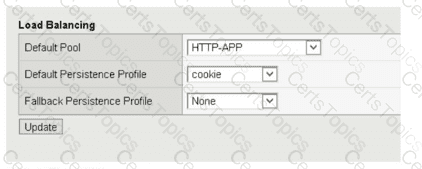

When many users share one source IP, source-address persistence fails. Cookie persistence uniquely identifies clients at Layer 7.

The X-Forwarded-For header preserves the original client IP when SNAT is enabled.

The log message “Intercept exhaustion” indicates that the BIG-IP system has exhausted the available source port translations for one or more SNAT addresses. This occurs when too many concurrent client connections are being translated through a limited number of SNAT IP addresses, and all ephemeral source ports (typically ~64,000 per SNAT IP) are in use.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Each SNAT IP address provides a finite number of available source ports.

When the number of concurrent connections exceeds the available port space, the BIG-IP logs an Intercept exhaustion error and new connections fail.

The recommended resolution is to increase the available SNAT resources by adding additional IP addresses to the SNAT pool.

Why the other options are incorrect:

A. Increase the timeout of the SNAT addressesIncreasing timeouts may actually worsen the problem by keeping ports allocated longer, accelerating port exhaustion.

B. Remove the SNAT pool and apply SNAT AutomapSNAT Automap uses the Self IP addresses on the egress VLAN, which may not provide additional capacity and can introduce routing or design issues. This is not a direct or recommended fix for SNAT exhaustion.

C. Remove an IP address from the SNAT poolThis would reduce the number of available source ports and further exacerbate the intercept exhaustion condition.

Correct Resolution:

By adding an IP address to the SNAT pool, the BIG-IP increases the total number of available source ports, alleviating intercept exhaustion and restoring successful client connections.

When multiple hostnames resolve to the same IP address and encrypted communication is required, the BIG-IP must be able to present the correct SSL certificate based on the hostname requested by the client. This is accomplished using Server Name Indication (SNI).

According to BIG-IP Administration: Data Plane Configuration documentation:

SNI is a client-side TLS extension, where the client includes the requested hostname during the SSL handshake.

BIG-IP evaluates this hostname using the Client SSL profile, not the Server SSL profile.

The “Server Name” setting in the Client SSL profile enables BIG-IP to select the appropriate SSL certificate for the requested hostname.

Why option C is correct:

Client SSL profile handles inbound (client-side) encryption.

Server Name enables SNI-based certificate selection when multiple DNS names share the same virtual server IP.

Why the other options are incorrect:

A. Client SSL, Client NameThere is no Client SSL setting called Client Name for SNI certificate selection.

B. Server SSL, Server NameServer SSL is used for encryption between BIG-IP and backend servers, not for client-side hostname identification.

D. Server SSL, Client NameServer SSL does not process client-requested hostnames during TLS negotiation.

Correct Resolution:

Configure a Client SSL profile and enable the Server Name (SNI) setting to support multiple encrypted hostnames on the same virtual server IP.

A 400 Bad Request response from an HTTP/1.1 web server is a definitive indicator that the HTTP request sent by the health monitor is missing a required Host header . In HTTP/1.1, the Host header is mandatory per RFC 7230. Web servers — particularly those hosting named virtual hosts such as — will reject any HTTP/1.1 request that omits the Host header, returning a 400 error, which the BIG-IP monitor interprets as a failed health check, marking all members DOWN.

The correct Send string must include:

The GET request line with HTTP/1.1 protocol declaration

A \r\n (carriage return + line feed) after the request line

The Host: www.f5.com header to satisfy HTTP/1.1 requirements

A \r\n after the Host header

Connection: Close header to instruct the server to close the connection after responding

A final \r\n\r\n to properly terminate the HTTP request headers

Only option C satisfies all these requirements with the correct syntax and Host header inclusion.

Option D (the current configured string) omits the Host header entirely — the root cause of the 400 error. Options A and B are structurally incomplete or syntactically malformed.

When clients connect through a single source IP (NAT) — such as a corporate proxy or carrier-grade NAT — Source Address Affinity persistence becomes entirely ineffective because all clients share an identical source IP address. This would force every client session to the same pool member, completely eliminating even distribution and defeating the purpose of load balancing.

Cookie Persistence is the optimal solution in this scenario because it operates at Layer 7 , inserting a unique cookie into each client ' s HTTP/HTTPS response. Each individual browser session carries its own distinct cookie value, allowing the BIG-IP to identify and persist individual clients to specific pool members — regardless of whether they share a common source IP address. This guarantees both session persistence and even load distribution across pool members.

The remaining options are unsuitable because:

Destination Address Affinity persists based on destination IP, irrelevant for client-to-server session stickiness.

SSL Persistence uses the SSL Session ID for persistence, but SSL session IDs are frequently renegotiated and are unreliable for long-term persistence across modern TLS implementations.

Source Address Affinity fails entirely under NAT conditions as described.

Cookie persistence is the industry-standard method for HTTPS application load balancing requiring per-client session affinity.

To solve this requirement, we must distinguish between the two " legs " of an SSL connection in a BIG-IP environment: Client-side and Server-side.

Current State (SSL Bridging): The administrator states the servers currently require encrypted traffic. This means the BIG-IP is likely performing " SSL Bridging. " In this setup, a Client SSL profile terminates encryption from the user, and a Server SSL profile re-encrypts the traffic before sending it to the back-end servers.

Target State (SSL Offloading): The requirement is to " offload SSL " to reduce web server load. This means the BIG-IP will continue to handle the encryption for the users (keeping the Client SSL profile) but will communicate with the back-end servers using unencrypted HTTP.

Why Option A is correct:

Remove the Server SSL profile: By removing this profile, the BIG-IP stops attempting to initiate an SSL/TLS handshake with the pool members.

Configure Pool Members to use HTTP: The service port for the pool members must be changed (typically from port 443 to port 80) so that the BIG-IP sends standard HTTP traffic to the servers.

Why other options are incorrect:

B & D: These suggest removing the Client SSL profile. If you remove this, the users can no longer connect via HTTPS, which violates the requirement for encrypted communication between the users and the BIG-IP.

C: Changing the Virtual Server to accept HTTP traffic would mean the user-to-BIG-IP connection is no longer encrypted, which is the opposite of SSL termination/offloading.

Similar to the logic required for managing multi-service backend environments, the issue described—where servers hosting multiple protocols like FTP and HTTP are experiencing uneven distribution—stems from the BIG-IP ' s default behavior of treating each pool independently. If the administrator uses a member-based load balancing method, the BIG-IP distributes HTTP traffic regardless of how much FTP traffic that same physical server is currently processing.

To resolve this, the administrator must utilize the Least Connections (Node) method. By switching both the HTTP and FTP pools to this algorithm, the BIG-IP begins to make load balancing decisions based on the total combined connection count for the IP address of each server. When a new HTTP request arrives, the BIG-IP checks which server has the fewest total connections (including existing FTP sessions). This prevents a server that is already busy with long-lived FTP transfers from being overwhelmed by a sudden burst of HTTP requests.

Ratio methods (Options A and C) are static and rely on the administrator manually assigning weights to servers based on their perceived capacity; they do not adapt to real-time fluctuations in traffic volume across different pools. Least Connections (Member) (Option B) remains blind to the " cross-pool " traffic on the same hardware. Only the Node-based Least Connections approach provides the global visibility necessary to " even out " the total resource utilization across servers supporting multiple distinct applications.

The log message " aggressive mode activated " indicates that the BIG-IP ' s adaptive connection management system (the " Sweeper " ) has detected that the system ' s memory or connection limits are reaching a critical threshold. To protect the system from crashing due to memory exhaustion (OOM), the BIG-IP enters Aggressive Mode, where it begins to proactively and rapidly reap (close) idle connections to free up resources for new incoming traffic.

To mitigate this and return the system to a healthy state, the administrator needs to reduce the overall resource footprint of existing connections. Decreasing the TCP profile Idle Timeout value (Option B) is the most effective administrative action. In many environments, the default idle timeout is 300 seconds (5 minutes). If a large number of connections remain " open " in the BIG-IP connection table long after the clients have stopped sending data, they consume valuable TMM (Traffic Management Microkernel) memory. By lowering the timeout (e.g., to 60 or 120 seconds), the BIG-IP can expire and remove these inactive entries much sooner, preventing the connection table from bloating and triggering the Sweeper ' s aggressive mode.

Conversely, increasing the timeout (Option C) would exacerbate the problem by keeping " dead " connections in memory even longer. Connection Mirroring (Option D) actually increases memory usage because every connection must be duplicated on the standby peer. An active-active configuration (Option A) might spread the load but does not address the underlying resource management issue on the individual units. Therefore, tightening the idle timers is the standard procedural fix for memory pressure caused by high connection volumes.

In BIG-IP systems, iRules influence traffic only when they are attached to a Virtual Server. If application traffic is being sent to nodes or pool members that are not defined in the pool, this typically indicates that an iRule is overriding the default load-balancing behavior by explicitly selecting a pool or node.

According to BIG-IP Administration: Data Plane Configuration and official F5 guidance:

iRules are associated with Virtual Servers, not directly with pools or nodes.

To determine whether an iRule is actively affecting traffic, the administrator must inspect the Virtual Server configuration.

Explanation of the correct answers:

B. Via the GUI at the Resources tab for the virtual serverThe Resources tab in the Configuration Utility displays all traffic-handling objects applied to the Virtual Server, including assigned iRules. This is the primary GUI location to verify whether an iRule is influencing data plane traffic.

C. Via TMSH with the list /ltm virtual < virtual_server > commandThis TMSH command displays the full Virtual Server configuration, including any iRules listed under the rules section. It is the authoritative CLI method to confirm iRule usage.

Why the other options are incorrect:

A. Via TMSH with the list /ltm rule < irule > commandThis command only shows the contents of an iRule and does not indicate whether the iRule is attached to or used by any Virtual Server.

D. Via the GUI at the iRule tab for the virtual serverBIG-IP does not provide a dedicated “iRule” tab on Virtual Servers. iRules are viewed and managed under the Resources tab.

Correct Conclusion:

To verify whether an iRule is responsible for unexpected node selection, the BIG-IP Administrator must examine the Virtual Server configuration, either through the Resources tab in the GUI or by using TMSH to list the Virtual Server configuration.

In F5 BIG-IP systems, an iApp is a template-driven framework used to deploy and manage application-specific configurations. When an iApp is deployed, the system creates a specialized folder or " Application Service " container to hold all the resulting Local Traffic Manager (LTM) objects, such as virtual servers, pools, and profiles. This container is visually and programmatically identified by the .app extension in its path name.

The naming convention for these objects follows a specific hierarchical structure: / < partition > / < iapp_name > .app/ < object_name > . For example, if an administrator creates an iApp named " testhttp " in the " /Common " partition, the virtual server created by that iApp would be identified in the configuration (TMSH) and the GUI as /Common/testhttp.app/testhttp. This structure allows the BIG-IP system to distinguish between manually created objects and those managed by the iApp ' s automation logic.

This identification is crucial because iApp-managed objects typically have Strict Updates enabled, which prevents administrators from making direct manual changes to the object settings outside of the iApp ' s reconfigure interface. Attempting to modify such an object directly will result in an error message stating that the application service must be updated using an application management interface. By recognizing the .app path and the repeated name within the structure, an administrator can immediately identify that the object belongs to an iApp and should be managed through the iApp ' s specific management screen rather than standard LTM configuration menus.

Forwarding (IP) virtual servers forward traffic based on routing decisions and do not use pools or pool members.
