VCF 9.0 explicitly documents thatVKS supports two CNI options: Antrea and Calico, and that thesystem-defined default CNI is Antrea. This directly eliminates Flannel and Cilium as default supported options for VKS clusters on Supervisor in this context. VCF 9.0 also describes how a vSphere administrator can view or change this setting in the vSphere Client underSupervisor Management → Configure → Kubernetes Service → Default CNI, further reinforcing that Antrea is the baseline/default choice.

From a policy perspective in the question, the requirement is Kubernetes-layer observability and control of pod communications “without additional licensing or overlay complexity.” Antrea is presented in VCF 9.0 as the default CNI and is implemented usingOpen vSwitch, with networking and network policy capabilities provided at the Kubernetes layer for pods and services. Because it is the documented default (and supported) option for new VKS clusters, selectingAntreabest aligns with the “default supported option” requirement.

Amulti-zone Supervisorin VCF 9.0 is designed to deliverplatform resiliency and high availability at the vSphere cluster (zone) failure-domain level. The VCF 9.0 documentation states that a multi-zone Supervisor “leverages three vSphere clusters” (each mapped to a vSphere Zone) and that these zones are used by both “workloads and Supervisor management components to deliver high availability,” exposing “each cluster as an independent, consumable availability zone,” resulting in a “resilient, HA-capable platform.”

This is reinforced in the vSphere Zones guidance: deploying the Supervisor onthree vSphere Zones spreads the control plane VMs across three zones, providing “cluster-level high availability” that protects the Supervisor control plane against asingle cluster-level failure(one control plane VM per management zone).

Because VKS (vSphere Kubernetes Service) runs on Supervisor, distributing Supervisor control plane and workload placement across zones improves overall availability of Supervisor services and Kubernetes consumption in that Supervisor instance.

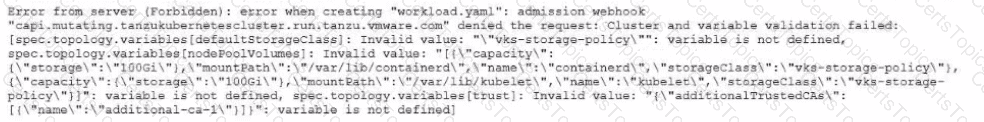

VCF 9.0 describesCloud Native Storage (CNS) on vCenteras the component that implements “provisioning and lifecycle operations for persistent volumes.” When provisioning persistent volumes, CNS “interacts with the vSphere First Class Disk functionality to create virtual disks that back the volumes,” and it “communicates with Storage Policy Based Management to guarantee a required level of service to the disks.” This is exactly the storage-policy-to-backed-virtual-disk relationship the question is testing: storage policies (via policy-based management) define requirements, and CNS is the vCenter-side service that applies those requirements while creating and managing the backing storage objects.

In contrast,CSI(including Supervisor CNS-CSI and VKS pvCSI) is the Kubernetes-facing interface/driver used to request and consume storage, but it does not “provide” the vSphere storage policy system; rather, it relies on CNS/CNS-CSI and vCenter services to fulfill provisioning requests. Therefore,vSphere Cloud Native Storage (CNS)is the correct choice.

VCF 9.0 states that you can provision Kubernetes clusters using both GUI and CLI approaches, and it explicitly calls out the CLI clients: “the VCF CLI and kubectl provide command-line interfaces for provisioning Kubernetes clusters.” That directly maps tokubectl (A)andVCF CLI (E)as supported clients for provisioning and lifecycle operations. Separately, VCF 9.0 explains that vSphere administrators can “manage and monitor vSphere Pods, VMs, and VKS clusters by using the vSphere Client,” which corresponds tovSphere UI (C)in the question. In addition, the vSphere Client is used to access Supervisor-facing self-service interfaces (for example, the Local Consumption Interface through the vSphere Client), reinforcing vSphere UI as an operational entry point for managing Supervisor-backed services and workloads.

By contrast,Cluster APIis a controller framework (not an operator “client” for admins in this context), andesxtop/esxcliare ESXi host tools that do not represent the documented, supported interfaces for provisioning and managing VKS clusters at the Kubernetes service layer.

The documented behavior of kubectl edit is that it opens the object manifest in a local text editor, and the editor it launches is controlled by environment variables. In the VCF 9.0 documentation (Workload Management / Supervisor operations), the procedure explicitly states: “The kubectl edit command opens the namespace manifest in the text editor defined by your KUBE_EDITOR or the EDITOR environment variable.”

If the administrator’s environment does not have KUBE_EDITOR or EDITOR defined (or they point to an invalid/interactive-less editor in the current session), kubectl edit may not open the expected editor workflow, and the admin may not see the normal confirmation after saving and exiting. Setting KUBE_EDITOR (preferred for kubectl-specific behavior) or EDITOR ensures kubectl launches a known-good editor, allowing the manifest to be modified, saved, and then submitted back to the API server when the editor exits. The same documented requirement also applies to editing other Kubernetes objects (such as a VKS cluster manifest) because the kubectl edit mechanism is identical.

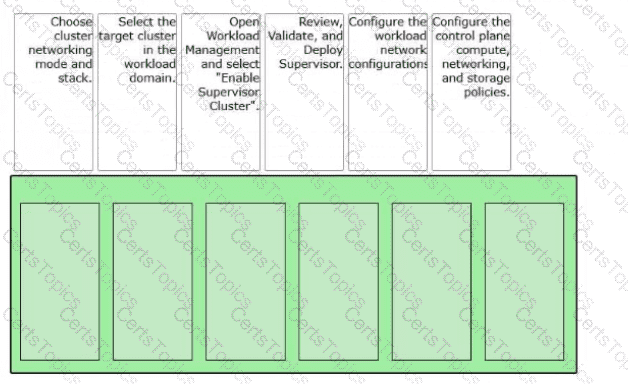

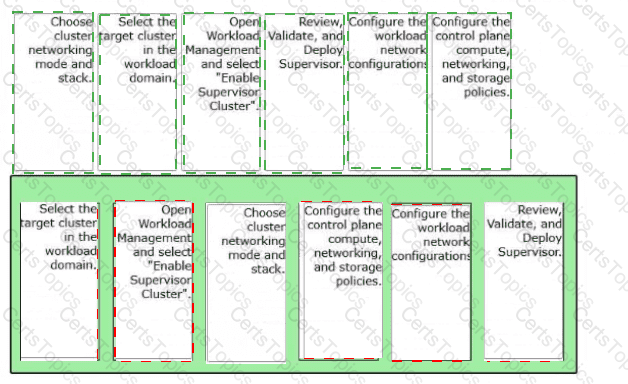

Answer (Correct Order):

Select the target cluster in the workload domain.

Open Workload Management and select “Enable Supervisor Cluster”.

Choose cluster networking mode and stack.

Configure the control plane compute, networking, and storage policies.

Configure the workload network configurations.

Review, Validate, and Deploy Supervisor.

You start by selecting theexact vSphere cluster(in the workload domain) that will host the Supervisor, because Supervisor enablement is performedagainst a specific cluster. From there you launch the enablement workflow inWorkload Management(“Enable Supervisor Cluster”). Early in the wizard you must decide thenetworking mode(for example, VDS-based vs NSX-backed) and theIP stack, because those choices drive the remaining configuration screens and what inputs are required. Next you define theSupervisor control plane settings—compute sizing and the core policies the Supervisor will use (including storage policy selections and related defaults). After the control plane foundation is defined, you configure theworkload networkingused by namespaces and Kubernetes workloads (IP ranges, routing/LB integration depending on the selected mode). Finally, youreview/validateall inputs anddeployso the platform can create and configure the Supervisor control plane and supporting components.

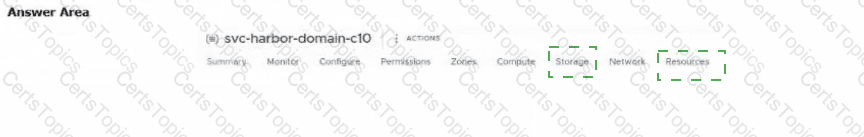

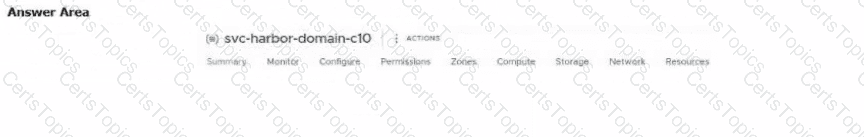

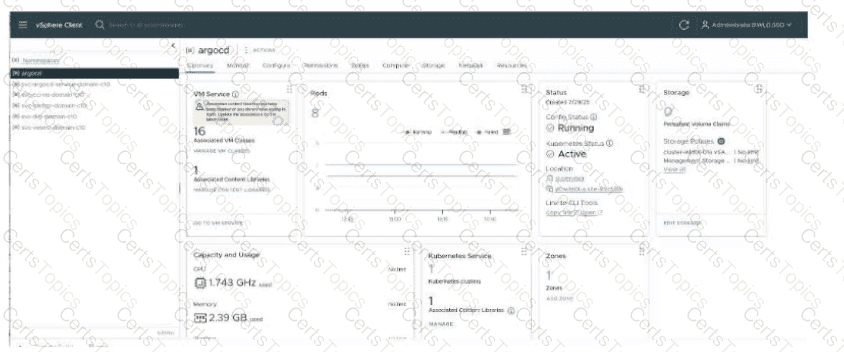

Storage

Resources

When a stateful pod (like Harbor’s database) is stuck Pending/ContainerCreating or repeatedly failing to attach/mount storage, one of the first checks is whether the PVC’sAccess Modesmatch what the workload and backing storage support (for example, ReadWriteOnce vs ReadWriteMany). In Kubernetes, the PVC and PV explicitly showAccess Modes(for example Access Modes: RWO) when you inspect them.

In the vSphere Namespace UI, theStoragetab is where namespace storage is managed and reviewed (including storage policy assignments that back storage classes/PVCs), making it the natural place to validate the storage configuration being consumed by the Harbor database PVC. VMware’s VCF documentation directs administrators to navigate to a namespace and use theStoragetab for storage-related settings.

TheResourcestab is the Kubernetes-object oriented view for the namespace, where you can locate the PVC object associated with the failing pod and inspect its properties/YAML (including the requested storage class and access mode intent). Namespace permissions explicitly include the ability to view Kubernetes resources within the namespace, which aligns with checking PVC details there.

VCF 9.0 documents that you obtain access to the Supervisor (and the contexts you’re entitled to, which commonly correspond to namespaces and workload clusters) by authenticating withkubectl vsphere login. The procedure “Get and Use the Supervisor Context” explains that after you log in, a Kubernetes configuration context is generated and you can view it in$HOME/.kube/config, which is “commonly called the kubeconfig file.”

The documentation is explicit that running kubectl vsphere login --server= < KUBERNETES-CONTROL-PLANE-IP > --vsphere-username < VCENTER-SSO-USER > “creates a configuration file with the JSON Web Token (JWT) to authenticate to the Kubernetes API,” and then lists how to view and switch contexts using kubectl config get-contexts and kubectl config use-context.

This matches optionDprecisely: you don’t “download” kubeconfig from VCF Operations or a Supervisor Services page; instead, you generate/update your kubeconfig locally by logging in withkubectl’s vSphere plugin, which writes the required cluster/user/context details into .kube/config.

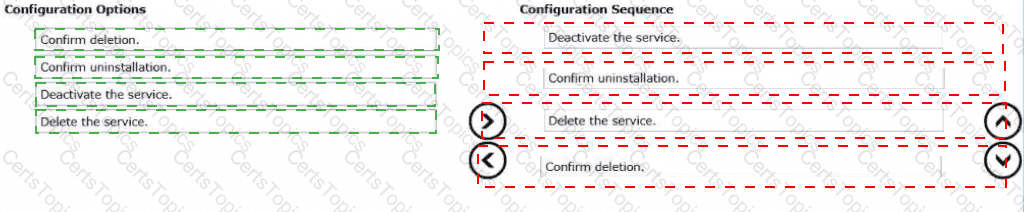

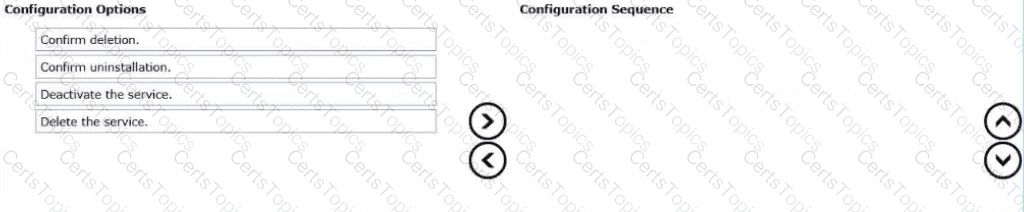

Configuration Sequence (in order):

Deactivate the service.

Confirm uninstallation.

Delete the service.

Confirm deletion.

Uninstalling a Supervisor Service cleanly follows a “stop/remove/cleanup” pattern to avoid orphaned components and to ensure the Supervisor isn’t still reconciling the service while you remove it. First, youDeactivate the serviceso the Supervisor stops managing and running the Harbor service components. This prevents new service resources from being created while you are attempting to remove them and allows the platform to transition the service into a non-operational state safely.

Next, youConfirm uninstallationto initiate the removal workflow. This step acknowledges that the service’s deployed components (such as pods, controllers, and any associated objects) will be removed from the Supervisor-managed environment. After the uninstall workflow is initiated and the service is no longer active, you proceed toDelete the serviceto remove the Harbor service registration/entry from the Supervisor Services list, ensuring it is no longer available to namespaces or consumers. Finally, youConfirm deletionas the last safeguard, since deletion is typically destructive and removes the service definition from the environment’s available services catalog.

VCF 9.0 design guidance for theSupervisor NSX Load Balancer modelstates that theNSX load balancers run on NSX Edges, and sets explicit sizing requirements at theEdge nodelevel. In the “NSX Load Balancer Design Requirements,” VCF 9.0 requires that theNSX Edge cluster must be deployedbecause “NSX Load Balancers run on NSX Edges.” It further requires that“NSX Edge nodes must be deployed with a minimum of Large form factor”because NSX load balancers havefixed resource allocations on NSX Edge nodes, and the Large form factor is needed to accommodate basic system and workload needs.

This directly ties “deployment size” of the load balancer service capacity to theEdge node form factor(Small/Medium/Large, etc.) rather than the number of pods or the number of clusters. The document also notes that if additional load balancers are required, NSX Edges can bescaled up or out, again reinforcing that sizing is anEdge nodesizing decision.

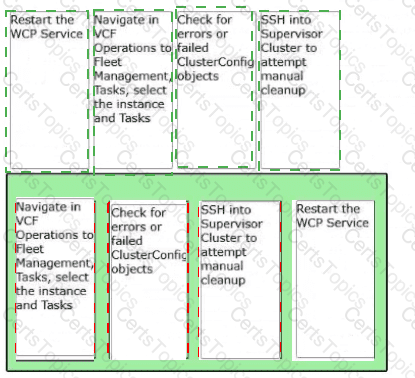

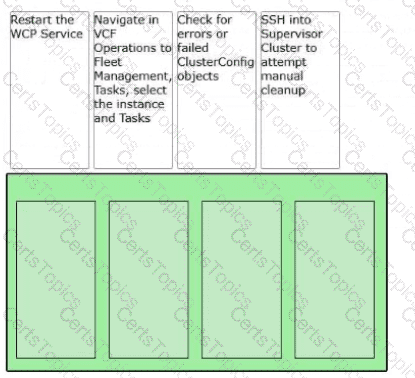

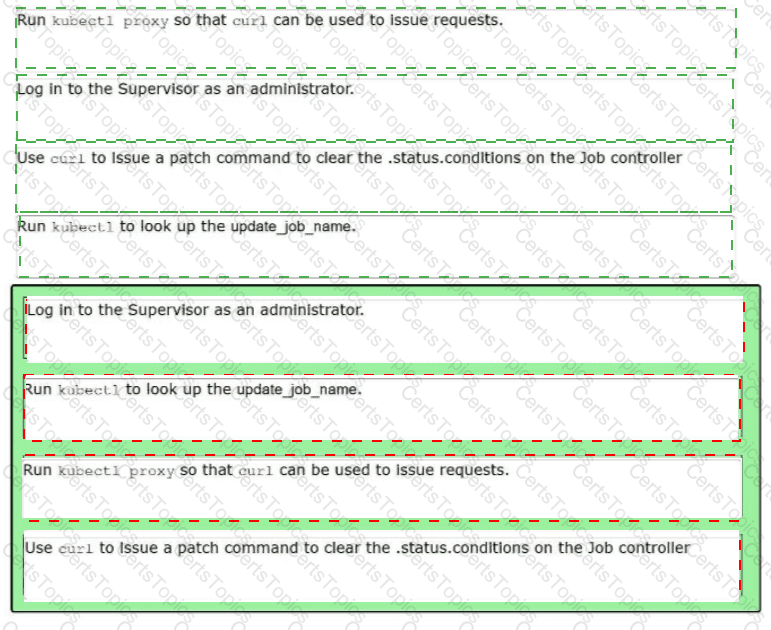

Answer (Correct Order):

Navigate in VCF Operations to Fleet Management → Tasks, select the instance and review Tasks

Check for errors or failed ClusterConfig objects

SSH into the Supervisor Cluster to review logs / attempt manual cleanup if required

Restart the WCP Service

To determinewhya Supervisor upgrade failed, you start where the platform records the most actionable failure context: themanagement-plane task history. The Fleet/Task view surfaces the upgrade workflow steps, timestamps, and the specific operation that failed, which gives you the fastest pointer to the failing phase (precheck, image staging, reconciliation, add-on updates, etc.). Next, you validate the Kubernetes-side reconciliation state by checking forfailed ClusterConfigobjects, because Supervisor enablement/upgrade actions commonly drive configuration via controller reconciliation; a failed ClusterConfig often contains the clearest “reason” and “message” fields that explain what blocked progress (validation errors, dependency issues, unreachable endpoints, incompatible components).

If the management-plane/task view and ClusterConfig status still don’t isolate the root cause, the next escalation is toSSH into the Supervisorto inspect component logs/events and identify low-level failures that may not bubble up cleanly (for example, admission failures, controller crashes, or connectivity/auth issues). Finally,restarting WCPis a remediation step that can clear stuck states, but it’s placed last because it can alter evidence and should not be your first action when you’re still trying to identify the original failure cause.

Kubernetes Role-Based Access Control (RBAC) is implemented through theRBAC API group(rbac.authorization.k8s.io) and defines the core authorization primitives used to grant permissions to users, groups, and service accounts. The cluster-scoped objects declared by the RBAC API areClusterRoleandClusterRoleBinding. AClusterRoledefines a set of permissions (verbs such as get/list/watch/create/update/delete) over resources at thecluster scope(including cluster-wide resources and optionally namespaced resources across namespaces). AClusterRoleBindingthenbindsthat ClusterRole to a subject (user/group/serviceaccount), making those permissions effective cluster-wide.

This differs from namespace-scoped RBAC objects (RoleandRoleBinding) which apply only within a single namespace. The other options are incorrect becauseClusterObject/ClusterNodeare not RBAC API objects,ValidatingAdmissionPolicybelongs to the admission control API surface (policy enforcement),ResourceQuotais a namespace resource governance object, andContainer/Deploymentare workload/runtime concepts defined in the core/apps APIs rather than authorization primitives.

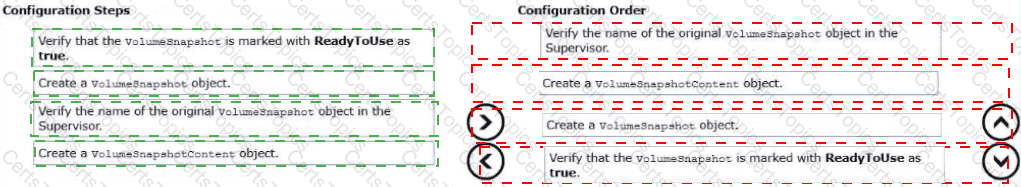

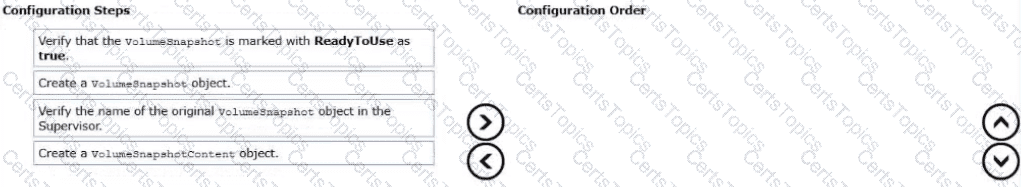

Configuration Order (in order):

Verify the name of the original VolumeSnapshot object in the Supervisor.

Create a VolumeSnapshotContent object.

Create a VolumeSnapshot object.

Verify that the VolumeSnapshot is marked with ReadyToUse as true.

Apre-provisioned snapshotworkflow means the snapshot already exists at the Supervisor/storage layer, and you are “importing” it into Kubernetes by creating the Kubernetes objects that reference it. That’s why the first step is toidentify/verify the exact snapshot nameas it exists in the Supervisor context—this is the authoritative identifier you must point to when you create Kubernetes snapshot metadata. Next, you create theVolumeSnapshotContentobject, which represents theactual snapshot on the storage backendand includes the handle/reference to that pre-existing snapshot. With the content object in place, you then create theVolumeSnapshotobject, which is theuser-facing Kubernetes object(namespaced) that binds to the pre-provisioned VolumeSnapshotContent (either explicitly or via binding rules). Finally, you validate the outcome by checking that theVolumeSnapshot shows ReadyToUse: true, confirming the binding succeeded and Kubernetes can use the snapshot for restore/clone workflows.

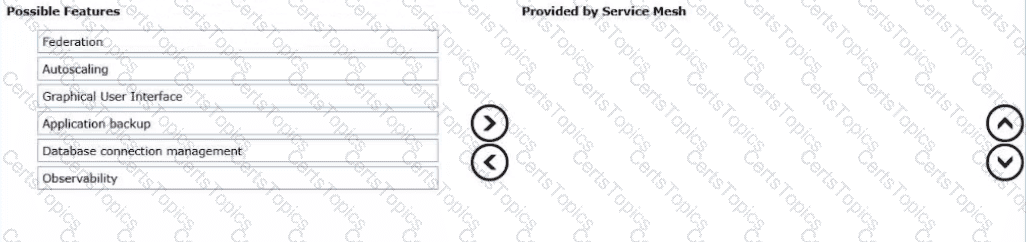

A service mesh is an application communication layer that standardizesservice-to-service trafficinside Kubernetes. Instead of each development team building custom logic for retries, timeouts, encryption, and telemetry, the mesh provides these capabilities consistently across workloads. This is typically done by inserting a data plane (often sidecar proxies or node-level proxies) that intercepts inbound and outbound traffic for each microservice, plus a control plane that distributes configuration and identity material.

The key outcomes align directly to optionB: communication becomespossible(reliable connectivity patterns),structured(consistent routing rules, policies, and identity), andobservable(metrics, logs, and distributed tracing for east-west traffic). A service mesh commonly adds controls such asmTLS encryption, fine-grainedtraffic policy(allow/deny, rate limits, circuit breaking), and progressive delivery patterns (canary/blue-green) without changing application code.

By contrast, service discovery (A) is usually a built-in Kubernetes function, load balancing/autoscaling across sites (C) is not the primary definition of a service mesh, and a single centralized global routing table (D) is not how meshes are typically described or implemented.

VCF 9.0 describes Supervisor networking with NSX as a model whereNSX provides network connectivity to Supervisor control plane VMs, services, and workloads, and where the Supervisor can use either the NSX Load Balancer or the Avi Load Balancer. In the NSX + Avi design, the documentation identifies theAvi Load Balancer Controlleras a core infrastructure element: the Controller “interacts with vCenter to automate the load balancing for the VKS clusters,” and is responsible for provisioning and coordinating Service Engines and exposing operational interfaces.

Also, the Supervisor itself is anchored by theSupervisor control plane virtual machines. VCF 9.0 explains you deploy the Supervisor with one or three control plane VMs, and in a three-zone Supervisor the control plane VMs are distributed across zones for high availability.

Finally, because the requirement explicitly calls for a unified networking/security model throughNSX, theNSX Manager virtual machineis foundational to the NSX-based Supervisor design, as shown in the documented architecture and component descriptions for NSX-backed Supervisor deployments.

VCF 9.0 describes backing up workloads on VKS clusters usingVelero(Velero Plugin for vSphere) and shows the backup command pattern scoping backup content bynamespace(for example, velero backup create ... --include-namespaces=my-namespace). This demonstrates thatNamespacesare a primary object type within backup scope (you choose which namespace content is captured). The same section explains that after backup execution,Kubernetes metadata is uploaded to the object store. “Kubernetes metadata” in this context includes standard namespaced resources that represent running workloads and how they are exposed, such asServices(a core Kubernetes API object used to provide stable access to pods).

In addition to namespace scoping, Velero’s selection model commonly includes filtering backed-up Kubernetes objects using selectors (for example, selecting subsets of resources), which aligns with the “objects identified by a label selector” option as an object-selection mechanism within the scope of what Velero captures from Kubernetes APIs (metadata/resources) once the namespace is targeted.

Therefore, the best match to the documented Velero workload-backup model is:Namespace,Service, andlabel-selected objectswithin the included namespace(s).

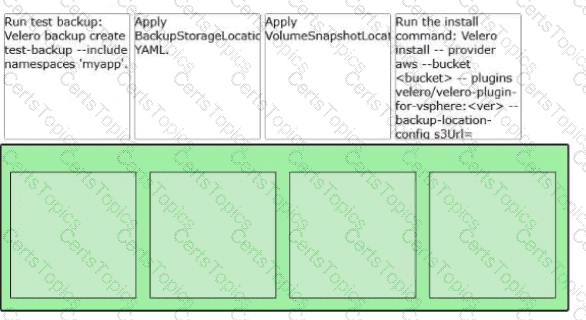

In VCF 9.0 Workload Management, workload backup for VKS clusters (and vSphere Pods) is performed using Velero, specifically theVelero Plugin for vSpherefor Supervisor/VKS scenarios. The documentation describes that you must firstprovide an S3-compatible object storeas part of installing and configuring the Velero Plugin for vSphere, because backup data (Kubernetes metadata and volume snapshot data movement) relies on object storage rather than “namespace storage.” The backup workflow further indicates that when you create a backup, the system uploadsKubernetes metadata to the object store, and persistent volume snapshot handling is coordinated through the plugin components (Snapshot/Upload custom resources).

Therefore, the correct configuration pattern is to point Velero’s backup target (BackupStorageLocation) at anS3-compatible object storeendpoint so metadata and snapshot payloads have a durable destination. This aligns with the documented prerequisite that object storage is required to enable backup/restore operations for persistent workloads, and it is the mechanism Velero uses to store backup artifacts for later restore operations in VKS environments.

VCF 9.0 describes VKS as providing self-service, declarative lifecycle management for Kubernetes clusters and explicitly identifiesCluster APIas the mechanism that enables Kubernetes-style lifecycle automation. The documentation states that “The Cluster API provides declarative, Kubernetes-style APIs for cluster creation, configuration, and management,” and that its inputs include resources describing “the virtual machines that make up the cluster” plus “cluster add-ons.” This directly maps to automated lifecycle management: a desired-state YAML is reconciled by controllers that create, update, and maintain the control plane and worker node resources without manual, imperative procedures.

The same VCF 9.0 content also notes VKS exposes “three layers of controllers” for lifecycle management and lists Cluster API as one of those layers, reinforcing that Cluster API is foundational for ongoing cluster operations (create, scale, upgrade, reconcile). Contour is an ingress controller (traffic routing), kubeadm is a Kubernetes bootstrap tool (not the VKS lifecycle controller framework), and Grafana is observability/visualization (not cluster lifecycle).
