Band Steering is a RUCKUS feature designed to guide dual-band capable clients toward the 5 GHz band , which generally provides better performance and less interference than 2.4 GHz.

As described in RUCKUS One Online Help – Band Steering Configuration and RUCKUS AI Documentation – Client Connectivity Optimization , when a client attempts to connect, the AP temporarily delays responses to 2.4 GHz probes, encouraging the client to associate on 5 GHz.

This feature enhances airtime efficiency and reduces congestion in dense environments. Band Balancing distributes clients between APs, while SmartCast and ChannelFly manage QoS and channel optimization, respectively.

Background Scanning in RUCKUS APs allows radios to periodically scan other channels to collect RF environment data while still serving clients. The scan interval determines how often the AP samples channel information for features like ChannelFly , Auto Cell Sizing , and rogue detection .

According to RUCKUS One Online Help – Background Scanning and RF Management , and RUCKUS Analytics 3.5 User Guide – RF Monitoring , increasing the Background Scanning interval to 90 seconds delays updates for processes that depend on real-time RF sampling, specifically:

Rogue AP Detection (B): Takes longer to discover unauthorized or neighboring APs.

Auto-Channel Selection (C): Updates channel quality metrics less frequently, slowing responsiveness to interference changes.

Auto Power Adjustment (E): Depends on scanning results to optimize transmit power for coverage balance, so adjustments occur less frequently.

Processes such as client count and throughput measurement rely on active client data, not background scanning, and spectrum analysis operates in a dedicated analysis mode outside of normal scanning intervals.

SmartZone uses a configuration hierarchy in which an AP Group can override the WLAN Group assigned at the Zone level separately for each radio. Therefore, adding a new SSID to the Zone ' s default WLAN Group does not guarantee that every AP in that Zone will advertise it. If the test AP belongs to an AP Group whose 2.4 GHz and 5 GHz radios override the Zone configuration with another WLAN Group, only WLANs contained in that overridden group will be broadcast. RUCKUS training documentation specifically instructs administrators to enable the AP Group ' s Override zone configuration option and select the required WLAN Group for each radio. Tunnel Mode and DHCP Option 43 do not determine whether the configured SSID is advertised, and routine WLAN Group changes do not require a manual AP reboot. Ruckus Training

================

For the SmartZone 6.1.x/RCWA configuration context represented by this question, an R650 supports a maximum of 64 VLANs in a VLAN Pool . The R650 is an 802.11ax Wi-Fi 6 AP, and the SmartZone 6.1 Security Guide specifies that Wave 2 and 802.11ax APs support 64 dynamic VLAN entries, while older Wave 1 APs are limited to 32. Each WLAN can use one VLAN Pool. Therefore, the certification-era answer is B, 64. There is an important release distinction: RUCKUS subsequently expanded the dynamic-VLAN capability of supported Wi-Fi 6 APs, including the R650, to as many as 128 per VAP beginning with SmartZone 7.0. That later enhancement does not change the intended answer for this RCWA-era question. rcw 2 Commscope Docs

================

Optimized Connectivity Experience (OCE) is the RUCKUS feature specifically designed to prevent stations with marginal connectivity from joining the WLAN. In SmartZone WLAN configuration, OCE includes an RSSI-based Association Rejection Threshold. When a client ' s received signal level falls below the configured threshold, its association can be rejected, helping prevent poor-quality connections that consume disproportionate airtime and produce an unsatisfactory user experience. Transient Client Management has a different purpose: it delays or discourages associations from devices that only briefly pass through the AP ' s coverage area. Airtime Decongestion reduces management-frame airtime consumption, while OFDM Only prevents legacy 802.11b operation on the 2.4 GHz radio. RUCKUS documentation explicitly states that OCE prevents devices with marginal connectivity from joining and rejects associations from clients with poor signal levels. Ruckus Wireless Documentation

================

SmartCast is RUCKUS’s advanced Quality of Service (QoS) engine that prioritizes latency-sensitive traffic such as voice, video, and real-time collaboration apps .

According to RUCKUS One Online Help – SmartCast Overview and RUCKUS Analytics 3.5 User Guide – QoS Monitoring , SmartCast identifies traffic types using Deep Packet Inspection (DPI) and applies 802.1p/DSCP markings to preserve QoS across wired and wireless segments.

It dynamically manages airtime scheduling and retransmissions to maintain low delay and jitter. Other features—like BeamFlex+ (antenna optimization) or ChannelFly (channel selection)—do not handle traffic prioritization.

For optimal voice and video performance , RUCKUS recommends maintaining a Signal-to-Noise Ratio (SNR) of 25 dB or higher to ensure a clear, low-latency wireless link.

According to RUCKUS One Online Help – Wi-Fi Quality and SNR Thresholds and RUCKUS AI Documentation – VoIP and Streaming Application Optimization , SNR values above 25 dB correspond to high modulation and coding schemes (MCS8–MCS11 in Wi-Fi 6), supporting stable throughput with minimal jitter or packet loss.

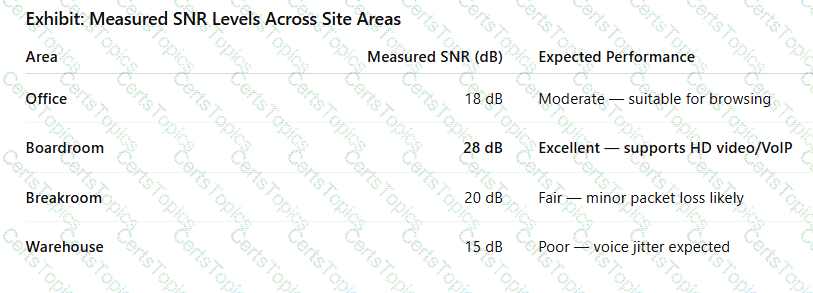

The exhibit shows that the Boardroom maintains an SNR of 28 dB , which exceeds the recommended 25 dB threshold, making it ideal for HD video conferencing and VoIP applications.

Other areas (Office, Breakroom, Warehouse) fall below optimal levels, which can lead to voice dropouts, jitter, and reduced data rates.

RUCKUS Analytics 3.5 User Guide – Client Experience Metrics further validates SNR as a key indicator of real-time application quality.

BeamFlex+ is RUCKUS ' s adaptive antenna technology and combines sophisticated software algorithms with an antenna array rather than relying solely on conventional radio-based beamforming. RUCKUS states that BeamFlex can provide up to approximately 6 dBi of additional signal gain by dynamically selecting optimized antenna patterns for each client. BeamFlex+ also incorporates adaptive polarization diversity through PD-MRC, enabling the AP to adapt to horizontal and vertical client orientations and improve reception from mobile devices. In addition, it can select patterns that direct RF energy away from interference sources, providing significant interference mitigation. BeamFlex+ does not require an 802.11ac-capable client because its antenna adaptation occurs on the AP and remains client independent. It is useful across many deployment densities rather than being intended specifically for sparse environments. Therefore, B, E, and F are correct.

A SmartZone cluster backup is a comprehensive backup of the controller cluster’s system and configuration data, intended for disaster recovery or migration to similar SmartZone platforms. According to the RUCKUS One Online Help – Cluster Backup and Restore and SmartZone Administration Guide (v5.2+) , a cluster backup includes:

Cluster and controller configuration , including IP addressing, zones, AP groups, WLANs, and policies.

Client statistical data and historical analytics , which are also captured for restoration of system monitoring data.

When a cluster backup is initiated, the controller enters maintenance mode to ensure database consistency and prevent configuration changes during the process. This temporarily suspends management operations but preserves data integrity.

Cluster backups cannot be restored to different SmartZone models (e.g., vSZ to SZ-100) due to hardware and licensing differences. Backups also require system services to be active during execution.

Therefore, the correct answers are B (contains IP addressing and client statistical information) and D (puts the controller into maintenance mode when executed).

RUCKUS Edge and the SmartZone Data Plane are the two options designed to provide tunneled data-plane functionality. SmartZone supports centralized data forwarding by tunneling WLAN traffic from managed APs to a SmartZone Data Plane, where user traffic can be aggregated and forwarded centrally. RUCKUS Edge extends RUCKUS One services to an edge appliance and supports secure tunneled WLANs, traffic redirection, segmentation, and centralized service control. RUCKUS One itself is primarily the cloud management and orchestration platform; its standard AP data-plane model uses local breakout rather than sending all user traffic through the cloud. Network Director provides management functionality, while Cloudpath focuses on secure onboarding and identity-based network access rather than acting as the Wi-Fi user-traffic data plane. RUCKUS Networks

================

A General Port provides more selective VLAN forwarding than a Trunk Port. RUCKUS RCWA training material describes a General Port as supporting one untagged VLAN together with up to 20 tagged VLANs. This enables an administrator to explicitly define which VLAN traffic can traverse the AP Ethernet port instead of allowing all VLANs as a trunk would. SmartZone documentation similarly explains that General Ports use a user-defined VLAN member list and that the native, or untagged, VLAN must also be included in the configured membership. An Access Port, by contrast, normally carries only a single untagged VLAN, while a Trunk Port permits traffic for the broader VLAN set. Therefore, the description that correctly characterizes a General Port is option C. rcw 3 Ruckus Training

================

RSSI (Received Signal Strength Indicator) is a key measurement representing the power level of a received RF signal. It is typically displayed in dBm (decibel-milliwatts) , a logarithmic unit that expresses the power relative to 1 milliwatt. In Wi-Fi systems, RSSI values usually range between –30 dBm (excellent) and –90 dBm (very weak) .

According to the RUCKUS One Online Help and the RUCKUS Analytics 3.5 User Guide , signal strength metrics shown in dashboards, client views, and RF reports are represented in dBm for consistency across platforms. This allows network engineers to correlate signal levels with client connectivity performance and thresholds used for roaming or troubleshooting.

Other units such as dBi refer to antenna gain, Watts measure absolute power (not typically used in client reporting), and Ohms measure resistance. Thus, dBm is the correct and standard unit used for RSSI measurement in RUCKUS and all IEEE 802.11-based systems.

Signal-to-Noise Ratio (SNR) directly influences the modulation and coding scheme (MCS) that can be used between a Wi-Fi client and AP. A higher SNR allows the AP to select higher-order modulations (e.g., 256-QAM or 1024-QAM), which increases throughput efficiency.

According to RUCKUS One Online Help – RF Signal and SNR Concepts , an SNR of around 25 dB or greater is typically required for high-rate modulation such as MCS 9 or above.

RUCKUS Analytics 3.5 User Guide – PHY Metrics confirms that RUCKUS APs continuously adapt MCS levels based on SNR, optimizing link performance dynamically.

Lower SNR conditions force modulation downshifts (e.g., QPSK or BPSK), reducing data rates for reliability.

When enabling 802.1X authentication on a RUCKUS Access Port via an Ethernet Port Profile (used for ICX switches or AP wired interfaces), the available roles are:

(A) Supplicant: The device (AP or switch port) acts as the client that must authenticate to the upstream authenticator (e.g., a switch or NAC system).

(C) Port-based Authenticator: The device enforces 802.1X authentication for devices connected to it (e.g., a switch controlling a connected host).

According to RUCKUS One Online Help – 802.1X and Wired Authentication Configuration and RUCKUS Analytics 3.5 User Guide – Wired Client Authentication Monitoring , these two roles define whether the port initiates or enforces authentication.

“Host-based” and “MAC-based” refer to specific authentication methods , not roles , and “Authentication Server” (e.g., RADIUS) is an external entity, not a port role.

802.11 networks use a shared-medium contention mechanism, meaning devices operating within the same contention domain must compete for airtime. One direct way to reduce contention is therefore to decrease the number of clients sharing that contention domain. Another is to design channel reuse carefully so neighboring cells use non-overlapping channels, reducing interference and unnecessary competition between nearby radios. RUCKUS design guidance emphasizes that co-channel interference forces devices capable of hearing each other to defer transmissions, effectively causing multiple cells to share the same airtime resource. Client isolation affects Layer 2 communication between clients but does not eliminate RF contention. VLAN tagging separates logical broadcast domains but does not create additional wireless airtime. Using excessively low minimum data rates can actually consume additional airtime. Therefore, B and C are correct. rcw 3 RUCKUS Networks

================

RUCKUS identifies two primary influences on Wi-Fi airtime utilization: external RF interference, including non-Wi-Fi energy, and medium contention. Non-Wi-Fi devices such as microwave ovens, Bluetooth equipment, cameras, or other RF emitters can occupy the channel and reduce the amount of usable airtime available to Wi-Fi transmissions. Medium contention occurs because 802.11 uses a shared half-duplex medium in which stations must compete for transmission opportunities. As more devices contend for access, additional waiting and retransmission overhead can reduce effective throughput. The RUCKUS RCWA study material explicitly identifies external non-Wi-Fi RF energy and medium contention as the two principal airtime-utilization influencers. Free-space path loss and wall attenuation primarily affect signal propagation, while a short guard interval is intended to improve PHY efficiency rather than directly create excessive airtime utilization. Ruckus Training

================

dBi is a relative logarithmic measurement used to express antenna gain compared with an ideal isotropic radiator. The “i” explicitly identifies the isotropic antenna as the reference. For example, an antenna specified with 4 dBi gain concentrates RF energy so that its effective gain is 4 dB above that theoretical isotropic reference. By comparison, dBm is an absolute logarithmic power measurement referenced to 1 milliwatt: 0 dBm equals 1 mW. Milliwatts and watts are also absolute units of power. RUCKUS product specifications clearly distinguish these measurements, typically listing antenna gain in dBi while transmitter power and receiver sensitivity are specified in dBm. This distinction is important when calculating link budgets and EIRP because antenna gain and radio output power represent different RF quantities. Therefore, option A, dBi, is the relative measurement. RUCKUS Networks

================

An Application Policy in SmartZone defines actions applied to identified applications or categories of traffic traversing a WLAN. Using Deep Packet Inspection (DPI) , RUCKUS APs recognize application types and enforce predefined behaviors.

According to RUCKUS One Online Help – Application Policy Configuration , the supported rule actions include:

(A) QoS: Assigns priority levels to traffic (Voice, Video, Best Effort, Background) for latency and throughput management.

(B) Deny: Blocks specific applications or categories (e.g., streaming or gaming) to preserve network performance.

(D) Rate Limit: Restricts bandwidth available to defined applications, ensuring fair use of airtime and bandwidth resources.

Local Breakout and VLAN Assignment are functions of traffic forwarding and device policy , not application policy. URL filtering is managed under separate content control modules, not part of Application Policies.

The AP Manager Log within SmartZone is dedicated to monitoring access point registration, join processes, firmware version checks, and heartbeat communication with the controller.

As stated in the RUCKUS One Online Help – Log Categories and Troubleshooting and the RUCKUS Analytics 3.5 User Guide – Device Connectivity Diagnostics , the AP Manager Log records messages about:

AP registration attempts

Join authorization success/failure

Firmware mismatch detection and upgrade triggers

The System Log covers controller-level events, the Events Log records systemwide notifications, and the Control Plane Log captures traffic flow analytics.

SmartCast is RUCKUS ' s application-aware wireless Quality of Service technology designed to improve performance for latency-sensitive traffic such as voice and video. SmartCast classifies traffic at the AP and gives appropriate priority to delay-sensitive applications instead of depending entirely on client-side QoS markings. This reduces latency and jitter and provides more consistent voice calls, video conferencing, streaming, and similar real-time applications. SmartCast also incorporates techniques such as airtime fairness and optimized multicast handling to improve spectrum utilization. BeamFlex optimizes adaptive antenna patterns, SmartMesh provides wireless AP backhaul, and ChannelFly optimizes channel selection based on channel performance. Those technologies can improve overall WLAN performance, but they are not the RUCKUS QoS mechanism specifically responsible for addressing application delay and jitter. Therefore, SmartCast is the correct answer. RUCKUS Networks

================

OFDMA (Orthogonal Frequency Division Multiple Access) is one of the core features introduced in IEEE 802.11ax (Wi-Fi 6) . It divides a channel into smaller subcarriers called Resource Units (RUs) , allowing an AP to communicate with multiple clients simultaneously, both on uplink and downlink.

According to the RUCKUS One Online Help – Wi-Fi 6 Features Overview , OFDMA improves spectrum efficiency, reduces latency, and increases throughput in high-density environments. RUCKUS APs such as the R750 and R850 use OFDMA in coordination with RUCKUS AI’s client traffic analysis to allocate resources dynamically.

In contrast, MU-MIMO also supports multi-user communication but only in one direction (downlink for 802.11ac Wave 2, both for 11ax). QAM256 enhances modulation efficiency but doesn’t enable concurrent multi-client service.

Cloud Auto-Upgrade is a RUCKUS One feature that automatically updates AP firmware to the latest stable release without requiring manual scheduling.

According to RUCKUS One Online Help – Firmware and Lifecycle Automation , this capability ensures security compliance and performance optimization across managed APs. Administrators can opt in or out of automatic updates per site or organization.

SmartZone uses manual scheduling via Image Management , while RUCKUS One provides hands-free upgrades integrated into its cloud management platform.

RUCKUS Wi-Fi Planner (Wi-R Planner) is a predictive design tool that helps plan AP placement and coverage before physical deployment. It relies on environmental and hardware data to simulate accurate RF propagation.

According to RUCKUS One Online Help – Wi-Fi Planner Configuration , essential inputs include:

AP model selection (A): Determines transmit power, antenna gain, and coverage pattern.

Building wall materials (C): Define RF attenuation and signal propagation characteristics.

Parameters like DHCP/DNS settings or controller cluster size are not required for predictive modeling—they’re part of post-deployment configuration.

In SmartZone , Generic Routing Encapsulation (GRE) tunnels are used to encapsulate client traffic and forward it to a remote gateway, typically for security or centralized routing.

As described in RUCKUS One Online Help – GRE Tunneling Configuration , a tunnel profile becomes available for WLAN association only when it is explicitly linked to an AP Zone . This ensures that all APs in the zone can apply the correct tunnel endpoint and keying parameters.

If a GRE profile is not mapped to a zone, it will not appear in the WLAN configuration dropdown , even if successfully created.

Other options are incorrect because SmartZone supports GRE for WLANs by design, split-tunnel profiles are optional, and tunnel count limitations are far higher than typical enterprise use.

Partner Domains are associated with the high-scale SmartZone architecture and are supported by Virtual SmartZone High Scale, or vSZ-H. They provide hierarchical multi-tenant administration so that service providers or large organizations can separate customers, administrators, zones, WLANs, and resources within a single scalable management platform. Administrators belonging to Partner Domains can be assigned permissions and resources independently, while a system-level administrator retains overall control. RUCKUS SmartZone documentation specifically discusses Partner Domain configuration and migration functionality in the vSZ-H/SZ300 architecture. vSZ-Essentials is targeted at smaller deployments and does not provide the same Partner Domain multi-tenancy model. Unleashed provides controller-less AP management, while ZoneDirector is an older controller platform. Consequently, the correct answer is vSZ-High Scale. rcw 3 Ruckus Wireless Documentation

================

(This question is intentionally repeated for reinforcement, and the correct logic remains identical to Q35.)

RUCKUS documentation consistently advises increasing antenna gain instead of transmit power when client devices (e.g., smartphones, tablets) cannot sustain uplink performance.

Directional or high-gain antennas improve the effective radiated power (ERP) in the intended coverage direction and strengthen both uplink and downlink paths without violating regulatory limits.

RUCKUS AI and RUCKUS Analytics tools can identify poor edge-client SNRs, confirming when directional antenna optimization is necessary.

The Rule of 10s and 3s provides a fast approximation for converting logarithmic dBm values into absolute power in milliwatts. A 10 dB increase multiplies power by ten, while a 3 dB increase approximately doubles it. Start with the standard reference of 20 dBm = 100 mW. Because 17 dBm is 3 dB below 20 dBm, the power is approximately halved: 100 mW ÷ 2 = 50 mW. Therefore, 17 dBm corresponds to approximately 50 mW. The exact mathematical value is about 50.1 mW, so option C is also accurate beyond the quick approximation. RUCKUS technical specifications routinely express transmit and receive power in dBm while antenna gain is specified separately in dBi, making these conversions fundamental to RF planning and troubleshooting. RUCKUS Networks

================

Admin Domains in SmartZone provide role-based access control (RBAC) by dividing system management into separate administrative scopes. Each Admin Domain can contain specific zones, WLANs, and devices, with access limited to assigned administrators.

As outlined in RUCKUS One Online Help – Administrative Domains and Roles , this feature enables organizations or MSPs to securely delegate management tasks to different teams or customers while maintaining full isolation between configurations.

Partner Domains exist only in vSZ-H (multi-tenant environments), while Cluster Roles manage global system functions. AP Groups are configuration containers but not access control boundaries.

Virtual SmartZone High Scale (vSZ-H) is designed for very large enterprise and service-provider deployments and supports up to 10,000 managed APs per controller. Current RUCKUS SmartZone specifications also document scaling of up to 30,000 APs when vSZ-H is deployed as a supported cluster. In comparison, Virtual SmartZone Essentials is designed for smaller environments and supports substantially fewer APs per controller. Unleashed is a controller-less architecture intended for considerably smaller deployments, while ZoneDirector is a legacy controller family and does not provide vSZ-H ' s high-scale capacity. RUCKUS specifically positions vSZ-H as its virtual high-scale SmartZone solution for large distributed networks requiring centralized wired and wireless management. Therefore, among the supplied options, vSZ-H is the solution capable of managing 10,000 access points. RUCKUS Networks

================

A WISPr walled garden defines the destinations that unauthenticated users are permitted to access before completing captive-portal authentication. When an external logon portal depends on additional domains, authentication systems, content-delivery services, or other external resources, those destinations must be reachable during the pre-authentication phase. If the necessary addresses are absent from the walled-garden configuration, the client may reach the initial portal but fail when that portal attempts to load other required external resources. RUCKUS SmartZone documentation defines the walled garden as a limited environment to which unauthenticated users are explicitly granted access while establishing their account or completing onboarding. Post-authentication redirection concerns what happens after authentication, while client isolation does not control external portal reachability. Therefore, D is correct. Ruckus Wireless Documentation

================

SmartCast is RUCKUS’s patented traffic classification and Quality of Service (QoS) technology. It dynamically prioritizes network packets based on type, marking delay-sensitive applications such as voice or video for prioritized transmission.

Per RUCKUS One Online Help – SmartCast Traffic Prioritization , SmartCast identifies traffic categories using Deep Packet Inspection (DPI) and applies corresponding 802.1p/DSCP markings across wired and wireless segments.

This ensures consistent service quality for time-sensitive applications even during network congestion. BeamFlex+ , PD-MRC , and ChannelFly operate at the RF level and do not manage traffic prioritization or QoS policies.

In SmartZone High-Scale (vSZ-H) environments, the Domain Hierarchy defines the organizational and administrative structure for managing distributed networks and multi-tenant operations.

According to RUCKUS One Online Help – SmartZone Domain and Role Management and SmartZone High-Scale Administration Guide , the following apply:

(A) Each Domain defines an administrative boundary that determines which network components (zones, WLANs, APs) specific administrators can access or modify.

(D) A Domain can contain sub-domains and AP Zones , allowing hierarchical management layers for large service provider or enterprise environments.

(F) Partner Domains (exclusive to vSZ-H) allow configuration inheritance from the System Domain , while providing the flexibility to customize local settings and policies for tenants or customers.

Options B , C , and E are incorrect because all domain types (not only Partner Domains) can contain AP Zones, and SmartZone supports multi-level hierarchies beyond just System and Zone levels.

SmartZone ' s Client Connection troubleshooting workflow requires the administrator to identify the affected client and specify the APs that will participate in the connectivity trace. The client is identified using its MAC address, which allows SmartZone to filter frames specifically associated with that device. The administrator then selects one or more APs capable of hearing or communicating with the client. When the trace begins, these APs relay matching frames to the controller, enabling SmartZone to reconstruct the client ' s connection sequence and identify problems during discovery, authentication, association, key exchange, DHCP, or related stages. The client ' s hostname and operating system may appear as contextual information, and the WLAN becomes visible during analysis, but these are not the two required trace inputs. Therefore, B and C are correct. rcw 3 Ruckus Wireless Documentation

================
