In a VMware vSphere environment utilizing Virtual Volumes (vVols), a Protocol Endpoint (PE) acts as a crucial logical proxy or I/O access point between the ESXi hosts and the storage array.

Unlike traditional VMFS datastores where the host mounts a massive LUN and places all VM files inside it, vVols map individual virtual machine disks directly to native volumes on the FlashArray. Because a single ESXi host could potentially need to communicate with thousands of individual vVol volumes, it would be extremely inefficient to map every single one directly to the host. Instead, the ESXi host mounts the Protocol Endpoint , and the storage array uses this PE to dynamically route the I/O to the correct underlying vVol. On a Pure Storage FlashArray, creating and connecting a PE volume to your ESXi host groups is a mandatory prerequisite for setting up a vVol datastore.

Here is why the other options are incorrect:

It allows for volumes of the same name within host groups (A): Purity OS requires all volume names across the entire FlashArray to be completely unique, regardless of which host group they are connected to or whether a Protocol Endpoint is in use.

It is required to set Host Protocol (C): The host communication protocol (such as iSCSI, Fibre Channel, or NVMe-oF) is determined by the physical host bus adapters (HBAs), network interface cards (NICs), and the configuration of the Host object in Purity, not by the creation of a volume type like a PE.

User Mapping in FA File: On a Pure Storage FlashArray, User Mapping is the mechanism that translates identities between different protocols (like mapping a Windows SID to a Unix UID/GID) or between an external directory service (like Active Directory or LDAP) and the local file system permissions.

The Impact of Disabling Mapping: When User Mapping is disabled on an active NFS export, the FlashArray can no longer resolve the identity of the user attempting to access existing files. Because NFS (specifically NFSv3 and NFSv4.1 supported by Pure) relies on these identifiers to verify file ownership and ACLs, existing files—which are tagged with specific owner IDs—become effectively " orphaned " from the perspective of the incoming request.

Access vs. Creation: * Existing Files: Accessibility is lost because the system cannot verify that the user has the rights to read or modify the file without the mapping logic.

New Files: Interestingly, in many " No Mapping " configurations, a user may still be able to create new files (often defaulting to a ' nobody ' or ' anonymous ' UID depending on the export rules), but they will immediately lose the ability to manage or access them once created because the mapping link is broken.

Real-time Application: Unlike some legacy storage systems that require a service restart, Purity applies export policy changes dynamically . As soon as the " User Mapping " toggle is disabled, the logic is removed from the data path, impacting active sessions immediately.

Understanding Alert 51: On a Pure Storage FlashArray, Alert 51 signifies that a Protection Group ' s replication is lagging behind its scheduled completion time. This does not necessarily mean the connection is " down, " but rather that the volume of data being sent is exceeding the available throughput or is being queued behind other tasks.

The Triage Process:

Open Alerts: You must check for related alerts (like Alert 20 for " Replication Connection Down " ) to determine if the delay is caused by a total link failure or just congestion.

Replication Jobs in Progress: Because FlashArray uses a specialized engine to manage replication, having multiple large snapshots from different Protection Groups replicating simultaneously can saturate the " replication pipe. " Checking active jobs helps determine if there is a scheduling " traffic jam. "

Replication Bandwidth: Comparing the current outgoing replication throughput against the historical average or the physical limit of the replication ports helps identify if the delay is due to a sudden increase in Data Change Rate (churn) or a reduction in network performance.

Why Option B is incorrect: If a Protection Group were disabled, replication wouldn ' t be " delayed " —it would be stopped, which triggers a different alert state. Cabling issues usually result in " Connection Down " alerts rather than just " Delayed " alerts.

Why Option C is incorrect: Disconnecting replication is a destructive troubleshooting step that will only increase the lag and RPO. You should always analyze the existing data flow before breaking the connection.

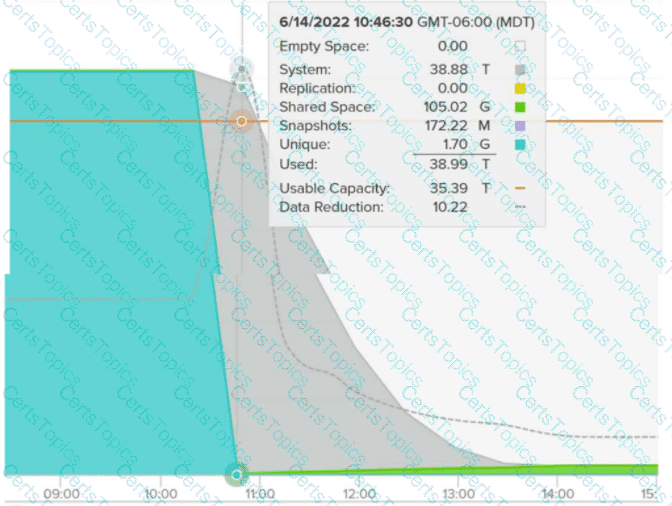

Analyzing the Graph: The provided capacity graph shows a sharp, vertical drop in Unique and Shared space (the teal/green sections) at approximately 10:45. Simultaneously, there is a massive spike in System space (the grey shaded area).

The " System " Space Spike: In Purity, when a volume is deleted and eradicated, the data isn ' t physically wiped from the flash modules instantly. Instead, the logical references are removed, and the blocks are moved into a " Pending Reclamation " state. In older versions of Purity reporting (or specific views), this pending work is often categorized under System space until the background Garbage Collection (GC) process can physically reclaim it.

The Decay Curve: Notice the grey " System " area gradually tapers down over the following hours (from 11:00 to 14:00). This is the visual representation of the array ' s Garbage Collection engine working in the background to physically free up those blocks.

Why Option C is incorrect: If SafeMode were enabled, the space would not move into " System " space in this manner; it would remain locked in the Snapshots or Destroyed bucket for the duration of the retention period, preventing the graph from dropping at all.

Why Option A is incorrect: If space reclamation stopped working, the grey " System " area would stay flat and would not decay over time. The fact that it is trending downward proves that reclamation is actively processing the deleted volume.

In the Pure Storage FlashArray GUI, granular performance metrics (Latency, IOPS, Bandwidth) are located under the Analysis > Performance tabs. When you navigate to the Volumes sub-tab and select a specific volume, Purity displays a unified line graph tracking the performance of that volume over time.

By default, the Latency graph simultaneously plots Read , Write , and Mirrored Write (for volumes participating in an ActiveCluster or synchronous replication pod) latencies. Because these lines can overlap or compress the Y-axis (especially if one metric spikes), isolating a specific metric requires interacting with the graph ' s legend.

To view the exact, un-obscured latency for standard write requests to that volume, the administrator should click on " Read " and " Mirrored Write " in the chart ' s legend. This deselects those metrics, effectively hiding their lines from the graph and automatically rescaling the view to exclusively display the host write latency.

Here is why the other options are incorrect:

Health > Network (A): The Health tab is used to check the hardware status of the physical controller ports, including link state and errors. While you might see port-level throughput or queue depth here, it does not provide volume-specific application latency.

Storage > Volumes > Details (B): The Storage tab is primarily used for provisioning and configuration management. Clicking on a volume here will show its size, data reduction ratio, snapshot policies, and connected hosts, but it does not provide detailed interactive performance graphs.

In Pure1, the ability to simulate snapshot policies—particularly when assessing the capacity requirements and impact of enabling SafeMode—heavily relies on historical telemetry data. Pure1 uses the data from existing snapshots on the FlashArray to calculate the environment ' s daily data change rate, as well as the deduplication and compression ratios specific to those workloads.

By analyzing the footprint of existing snapshots, Pure1 ' s analytics engine can accurately project the future storage capacity required if you were to change your snapshot frequency or extend the retention period (for example, locking them down for 7 to 30 days under a SafeMode policy). If a FlashArray does not have any existing snapshots, Pure1 lacks the foundational baseline metrics needed to simulate and forecast the capacity impact of a proposed snapshot policy.

The Analysis Tab: In the Pure Storage FlashArray GUI, the Analysis tab is the primary location for deep-dive performance troubleshooting and historical data visualization. While the Storage tab provides a real-time " at-a-glance " view of a volume, the Analysis tab allows for granular filtering of specific metrics.

Granular Metric Filtering: When troubleshooting latency, it is critical to distinguish between Read and Write operations, as they interact with the Purity operating environment differently (e.g., writes hitting NVRAM vs. reads hitting the Flash modules).

External vs. Internal Latency: Pure Storage differentiates between " Array Latency " (internal processing) and " External Latency " (the time seen by the host). By navigating to Analysis > Performance , an administrator can drill down into the Volumes sub-tab.

Selecting the Volume and Operations: Once a specific volume is selected, the chart typically defaults to a combined view. To isolate " external latency for write requests, " the administrator must use the legend/filters to select " Write " while deselecting " Read " and " Mirrored Write " (which refers to synchronous replication traffic in ActiveCluster environments). This provides a clean graph of the round-trip write latency specifically for that volume ' s host I/O.

Why other options are incorrect: Option B refers to physical port health and hardware status, not volume-level performance. Option C provides basic volume metadata and real-time total latency, but lacks the granular historical filtering (selecting/deselecting specific I/O types) required for detailed performance analysis.

What is SafeMode Ratcheting?: SafeMode is Purity ' s " immutability " feature that prevents snapshots from being deleted, eradicated, or modified, even by an administrator with compromised credentials. Ratcheting is the process of increasing the protection levels (like extending the retention period) for a protection group (pgroup) to ensure even stricter data safety.

The Dependency on Local Snapshots: SafeMode ' s primary function is to protect point-in-time copies of data residing on the array. For a protection group to be " ratcheted " into a SafeMode-protected state, it must have an active Local Snapshot Schedule .

Why Option C is the Constraint: If a protection group does not have a local snapshot schedule, there are no local snapshots being generated for SafeMode to " lock. " SafeMode cannot protect what doesn ' t exist locally. While a pgroup might be used for replication only, SafeMode requires the local scheduling component to be active and configured to apply its immutable retention policies.

Why Option B is incorrect: Protection groups are designed to contain hosts, host groups, or volumes. This is the standard way to group related data for snapshot consistency and has no negative impact on SafeMode eligibility.

Operational Note: When you enable SafeMode on a protection group with a local schedule, the " Erradicate " button for those snapshots is disabled. To " ratchet " the protection, you typically work with Pure Storage Support to ensure the retention settings meet your compliance needs.

The ActiveCluster Mediator (whether it is the Pure1 Cloud Mediator or the On-Premises VM) is a lightweight tie-breaker that communicates continuously with the management interfaces of both FlashArrays. If it was previously online and suddenly reports as " unreachable " from both arrays simultaneously, the issue is almost always caused by a network interruption or firewall rule change blocking the required communication ports between the arrays ' management IP addresses and the Mediator VM.

If a network firewall is suddenly configured to drop or deny outbound TCP traffic (such as port 80/443 depending on the specific HTTP/HTTPS discovery and heartbeat configuration) from the FlashArrays to the ESXi-hosted Mediator, the arrays will fail to send their heartbeats, causing the mediator status to drop to " unreachable. "

Here is why the other options are incorrect:

Fibre Channel (FC) zoning or network access has not been created properly for the host (A): The Mediator is completely independent of the front-end host storage fabric (Fibre Channel or iSCSI). Host zoning issues would prevent the ESXi server from seeing its volumes, but it would not cause the FlashArrays to lose management network connectivity to the Mediator.

The mediator does not reside within a Pure datastore (B): This is actually a strict best practice and requirement . Pure Storage explicitly states that the On-Premises Mediator VM must be deployed in a separate (third) failure domain. It should not reside on the ActiveCluster mirrored datastore, because a site-wide SAN failure would take the mediator offline exactly when it is needed most. Therefore, not residing on a Pure datastore is the correct setup, not a cause for an outage.

According to official Pure Storage documentation regarding Asynchronous Replication management, while replication throughput (bandwidth) can be viewed globally on the Analysis tab, the actual replication status for in-progress snapshot transfers is tracked and monitored on the replication target .

To monitor an in-progress asynchronous transfer from the GUI, a storage administrator must log into the target FlashArray, navigate to Storage - > Protection Groups , and look at the Transfers section within the Protection Group Snapshots panel. This view explicitly details the time the replicated snapshot was created on the source, the time the transfer started, and the current progress of the snapshot being received. If a transfer is currently in-progress, the " Completed " column will remain blank until the snapshot is fully safely written to the target array.

Here is why the other options are incorrect:

From the replication source (C): While the source orchestrates the creation of the snapshot and initiates the data push, the granular transfer completion status and historical transfer logs of the incoming snapshots are tracked on the target ' s Protection Group interface.

From the either the replication source or target (B): Because the specific " Transfers " tracking panel for asynchronous protection group snapshots is located on the receiving end (target), monitoring the granular completion status cannot be done symmetrically from either side in the UI.

When configuring NVMe/TCP (or iSCSI) for optimal performance on a Pure Storage FlashArray, configuring Jumbo Frames (an MTU of 9000) end-to-end is a standard best practice.

The command ping -M do -s 8972 < ip_addr > is specifically used to verify Jumbo Frame configuration across the network.

The -M do flag sets the " Do Not Fragment " (DF) bit, meaning the network is not allowed to break the packet into smaller pieces.

The -s 8972 flag sets the ICMP data payload to 8972 bytes. When you add the standard 8-byte ICMP header and the 20-byte IP header, the total packet size equals exactly 9000 bytes.

If this ping command fails, it indicates that somewhere along the network path between the host (initiator) and the FlashArray (target), a switch port, router, or network interface is not configured to support an MTU of 9000. The packet is being dropped because it is too large and cannot be fragmented. The administrator must verify the MTU settings on every network hop (switches, routers, and host NICs) to resolve the issue.

Here is why the other options are incorrect:

Engage support to enable NVME/ TCP services (A): The failure of a Jumbo Frame ping test is a Layer 2/Layer 3 network configuration issue, not an indicator that the NVMe/TCP storage protocol service is disabled on the array.

Run the command from the target (C): While pinging from the FlashArray back to the host is a valid secondary troubleshooting step, it will likely also fail if the network path doesn ' t support Jumbo Frames. The actual resolution is to fix the MTU on the network hops.

On a Pure Storage FlashArray, volume snapshots are immutable, read-only, point-in-time representations of your data. Because they cannot be attached directly to a host to be read or modified, you must use the Copy function to make the data usable.

The Purity operating environment allows you to copy a snapshot to two specific destinations:

A new volume: This effectively creates a clone. It provisions a brand-new, writable volume using the exact data footprint of the snapshot. This is incredibly useful for test/dev environments, offline reporting, or granular file recovery where you don ' t want to disrupt the original production volume.

An existing volume: This takes the data from the snapshot and completely overwrites the target volume. This is the standard procedure when you need to perform a full rollback of a corrupted volume, or when you want to quickly refresh a lower-level environment (like refreshing a QA database with yesterday ' s Production snapshot).

Here is why the other options are incorrect:

A new Snapshot (B & C): You cannot directly " copy " a snapshot to create another standalone snapshot. Snapshots are uniquely generated from active volumes. If you wanted to duplicate a snapshot ' s exact state, you would first copy it to a volume, and then take a new snapshot of that resulting volume.

Understanding CRC Errors: CRC (Cyclic Redundancy Check) errors occur when the data received at a port does not match the checksum sent by the initiator or switch. In a Pure Storage environment, these are tracked per port and can be viewed via the CLI (purehw list) or the GUI.

Configuration vs. Hardware: While a failing SFP or a damaged fiber cable can cause CRC errors, they are a primary indicator of configuration mismatches in the SAN fabric. Common culprits include:

Port Speed Mismatches: Manually setting a port to 16Gbps when the switch is set to " Auto " or 8Gbps.

Duplex Mismatches: Though rare in modern Fibre Channel, it is a classic Ethernet/iSCSI configuration error.

MTU Mismatches: In iSCSI or NVMe-oF environments, if the FlashArray is configured for Jumbo Frames (MTU 9000) but the switch or host is at MTU 1500, packet fragmentation or CRC-like errors/drops will occur.

Why Option A is incorrect: A blinking status LED on a controller is often part of normal operation (indicating heartbeat or activity). A solid amber LED would be an indicator of a hardware failure, not necessarily a misconfiguration.

Why Option C is incorrect: While latency spikes can be caused by misconfiguration (like incorrect MPIO settings), they are more commonly symptoms of workload changes , " noisy neighbors, " or reaching the physical performance limits of the array. CRC errors are a much more specific diagnostic " smoking gun " for port and fabric configuration issues.

Best Practice: When CRC errors are detected, Pure Storage recommends first checking the physical layer (reseating SFPs/cables) and then verifying that the port speed and protocol settings on the FlashArray match the upstream switch configuration exactly.

Defining Unified Storage: In the storage industry, " Unified Storage " refers to a single storage platform that can simultaneously serve data over both block-level and file-level protocols.

The Pure Storage Approach: Historically, FlashArray was a high-performance block-only array. However, with the introduction of FlashArray File Services , Pure transitioned to a unified architecture. This means the same hardware (FlashArray//X, //C, or //XL) and the same management interface (Purity) handle both types of workloads.

Protocol Support:

Block Protocols: Fibre Channel (FC), iSCSI, and NVMe-over-Fabrics (NVMe-oF).

File Protocols: NFS (Network File System) and SMB (Server Message Block).

Why this is " Unified " : * Shared Pool of Resources: Unlike older legacy systems that used " file gateways " or separate hardware heads for NAS, Pure’s unified storage shares a single global pool of flash memory and deduplication metadata.

Ease of Management: Administrators don ' t need to manage two different systems. You can create a Volume (Block) or a File System (File) from the same " Add " menu in the GUI.

Why Options A and B are incorrect: * Option A only describes the File side of the equation.

Option B only describes the Block side of the equation.

Only Option C accurately captures the combination of both paradigms, which is the definition of " Unified. "

When an NFS client successfully mounts an export using the target ' s IP address, it proves that the fundamental network connectivity (routing, firewalls) and the storage protocol layer (NFS export policies, host access permissions) are functioning correctly.

However, if the exact same mount attempt fails when using the Fully Qualified Domain Name (FQDN) of the FlashArray file service, the issue lies entirely with name resolution. The Domain Name System (DNS) is responsible for translating human-readable FQDNs into the IP addresses required for network communication. If the client cannot reach the DNS server, or if the DNS server lacks the correct A or AAAA records for the FlashArray ' s file Virtual IP (VIP) addresses, the client won ' t be able to resolve the name to the IP, causing the mount command to fail.

Here is why the other options are incorrect:

Issue with the Active Directory (AD) controller (A): Active Directory is primarily used for directory services, user authentication, and authorization (such as mapping permissions for SMB or NFSv4). While AD environments usually include DNS, an " AD controller issue " in the context of storage protocols usually points to permission denials, not host name resolution failures. Furthermore, since the mount works via IP, basic access is already validated.

Issue with the OpenLDAP (C): Similar to AD, OpenLDAP provides directory services for user mappings (UID/GID) and authentication. It does not perform FQDN-to-IP resolution.

Understanding Space Reporting: To understand this behavior, you have to look at how Purity calculates capacity. Pure Storage uses a data reduction engine where data is deduplicated and compressed.

Volume Space vs. Shared Space:

Volume Space: This represents the unique data belonging to a specific volume that is not shared with any other volume via deduplication or snapshots.

Shared Space: This represents the data that is common across multiple volumes or snapshots. If you have two volumes that are clones of each other, most of that data is " Shared. "

The " Shift " Mechanism: When a volume is deleted (and potentially eradicated), the data it once shared with other volumes no longer needs to be " shared. "

Imagine Volume A and Volume B share 100GB of data. That 100GB is accounted for in Shared Space .

If you delete Volume B, that 100GB of data is now only referenced by Volume A.

Consequently, that 100GB is moved from the Shared Space bucket into Volume A ' s Volume Space bucket.

Net Result: The total physical space used on the array remains the same initially, but the accounting shifts. You see a decrease in Shared Space and an identical increase in the Volume Space of the remaining volumes that held those deduplication references.

Definition of Host Personality: In Purity//FA, a Host Personality is a setting applied to a host object that modifies how the FlashArray communicates with that specific initiator. It ensures the array sends the correct SCSI responses that the target Operating System (OS) expects. Common personalities include ESXi, AIX, HP-UX, and Hitachi-VSP.

The Importance of Timing: The best practice is to set the personality during the host creation phase , before any volumes are attached or I/O has commenced. This ensures that from the very first " Inquiry " command sent by the host, the FlashArray responds with the appropriate settings (such as specific VAAI primitives for ESXi or specific ALUA behaviors for other Unix variants).

Risks of Changing Later: While Purity allows you to change a host personality later, doing so while volumes are connected and I/O is active can be disruptive. For many operating systems, a change in personality requires the host to be rebooted or the storage paths to be " rescanned " to recognize the change in device capabilities.

Default Behavior: If no personality is selected, the FlashArray uses a " Generic " personality suitable for standard Windows and Linux distributions. However, for specialized hypervisors like ESXi , failing to set the personality correctly from the start can lead to performance issues or lack of support for hardware acceleration features.

Why Option C is incorrect: Changing the personality after volumes are connected is reactive rather than proactive. It increases the risk of the host misinterpreting the storage device ' s capabilities, potentially leading to mount failures or path instability.

Understanding MTU: The Maximum Transmission Unit (MTU) defines the largest size of a packet or frame that can be sent in a single network transaction. The standard Ethernet MTU is 1500 bytes . Anything larger than 1500 bytes is referred to as a Jumbo Frame .

Replication Efficiency: Replication involves moving large amounts of data between arrays. Using standard 1500-byte frames results in higher overhead because the CPU must process a larger number of headers for the same amount of data. By increasing the MTU, the FlashArray can pack more data into each frame, reducing CPU interrupts and improving overall throughput.

The Pure Recommendation: Pure Storage specifically recommends an MTU of 9000 for both iSCSI and Replication traffic. This is the industry standard for Jumbo Frames that balances efficiency with compatibility across most enterprise-grade switches.

Configuration Requirements: It is critical to remember that MTU must be configured end-to-end . For an MTU of 9000 to work on the replication ports:

The FlashArray replication ports must be set to 9000.

The network switches along the path (and any routers/ISLs) must support and be configured for at least 9000.

The target array ' s replication ports must also be set to 9000.

Why 9216 (Option A) is incorrect: While some switches support a " Baby Giant " or slightly larger MTU like 9216 to account for VLAN tagging overhead, Pure ' s internal and best practice documentation specifically points to 9000 as the standard setting for the array ' s interface.

On the Pure Storage FlashArray//C R4 (as well as the //XL and //E series architectures), the onboard 100Gb/s Ethernet LOM (LAN on Motherboard) ports—specifically eth0 and eth1—are purpose-built and strictly reserved for DirectFlash Shelf (DFS) connectivity .

Pure Storage uses these dedicated 100GbE ports to run NVMe over RoCE (RDMA over Converged Ethernet), effectively extending the array ' s internal PCIe backplane to additional backend storage shelves. Because these ports are hardcoded exclusively for back-end shelf expansion, the Purity operating environment fundamentally restricts them from being assigned IP addresses for front-end host I/O services. Therefore, an administrator will be completely unable to configure eth0 or eth1 for iSCSI, NVMe/TCP, or Replication. Front-end iSCSI services must instead be configured on the dedicated Host I/O PCIe cards (which typically appear as eth2, eth3, etc., depending on the slot configuration).

Here is why the other options are incorrect:

The ports are designated for Management connectivity (A): On modern FlashArrays, dedicated management ports are typically out-of-band 1GbE/10GbE RJ45 ports (often designated as vir0 or specific management eth ports on older hardware), not the ultra-high-speed 100Gb/s QSFP28 ports.

The DAC cables are not compatible with the array ' s ports (B): While incompatible cables can prevent a link from coming up physically, the specific reason the administrator cannot configure the ports for iSCSI in the Purity software is due to the port ' s hardcoded role (DFS), not the physical cable type.

Zoning Best Practices: In a Fibre Channel SAN environment, zoning is used to partition the fabric to ensure that initiators (hosts) can only see the targets (FlashArray ports) they are intended to communicate with.

The " Single Initiator " Rule: Pure Storage, following industry-standard SAN best practices (and Cisco/Brocade recommendations), strongly advises using Single Initiator Zoning . This means each zone should contain exactly one initiator (HBA port) and one or more targets (FlashArray ports) .

Why Single Initiator to Multiple Targets (Option B)?:

Isolation: This prevents " Initiator-to-Initiator " communication. If multiple initiators are in the same zone, they may attempt to communicate with or probe each other (Registered State Change Notifications - RSCNs), which can cause host instability, driver timeouts, or discovery issues.

Troubleshooting: It simplifies troubleshooting. If a port is experiencing CRC errors or flapping, the impact is isolated to that specific host ' s zone rather than affecting a broad " group " zone.

Efficiency: When a target port changes state (e.g., during a controller reboot), the switch sends an RSCN. In a single-initiator zone, only that specific host is notified. In a multi-initiator zone, every host in the zone is interrupted to process the notification, even if they aren ' t using the port that changed.

Target Selection: While the zone should have only one initiator, it can (and should) include multiple target ports from the FlashArray (usually one port from CT0 and one from CT1 for the same fabric) to provide path redundancy and allow the host ' s MPIO software to manage failover.

When physical links fail to establish—especially when using Direct Attach Copper (DAC) cables or Twinax—the most common culprit is a hardware compatibility mismatch. Pure Storage arrays have specific requirements for optics and cabling to ensure optimal signal integrity and performance.

The FlashArray Transceiver and Cable Support article (available on the Pure Storage Support portal) is the authoritative, verified resource for this scenario. It provides a comprehensive, constantly updated compatibility matrix detailing exactly which vendor DAC cables (e.g., Cisco, Brocade, Arista) and transceivers are officially validated and supported for use with specific FlashArray models and port types. If an unsupported DAC cable is used, the switch or host bus adapter (HBA) on the array might simply refuse to bring the link up.

Here is why the other options are incorrect for this specific issue:

The FlashArray User Guide (A): This guide is excellent for day-to-day administration (volume creation, host grouping, etc.) but is too broad to contain granular, constantly updating hardware compatibility matrices for specific cables.

The Port Usage and Definitions article (C): This document explains the logical and physical purpose of the ports on the back of the controllers (e.g., defining which ports are used for management, replication, or host connectivity), but it does not dictate hardware transceiver or cable interoperability.

On a Pure Storage FlashArray, " System Space " is a specific GUI-reported metric. Purity has a predefined, hidden internal space budget—typically around 20% of the raw mapped capacity (which would be 2TB on a 10TB array)—reserved for internal array operations. This budget covers RAID/parity overhead, metadata, and reclaimable space (data from deleted volumes, snapshots, or overwritten blocks that are waiting for the backend garbage collection process to fully erase them from the flash chips).

Normally, this internal overhead stays below the 20% budget, and " System Space " displays as 0.00 in the GUI. However, if an administrator deletes a massive amount of data at once, causing the reclaimable space to exceed that 2TB budget, the overflow is prominently displayed in the GUI as " System Space. "

Here is why the other options are incorrect:

Virtual machines have not yet issued an unmap command (A): If a VMware VM deletes a file but the OS hasn ' t issued an UNMAP/TRIM command, the FlashArray is completely unaware that the data was deleted. Therefore, the array continues to report that capacity as standard Volume Space , not System Space.

More than 2TB of volume snapshots were destroyed (C): While destroying snapshots leads to reclaimable space, " reclaimable space " (Option B) is the specific, correct Purity architectural term and metric that the system uses to calculate the internal budget threshold.
