Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

PE-CE routing is the mechanism used to exchange customer prefix reachability between a provider edge or data center leaf and the attached customer edge router. It can be implemented statically or dynamically. Static routing is operationally simple but does not scale well when many prefixes or frequent changes are involved. BGP is preferred for larger deployments because it supports policy, route filtering, attributes, and automated advertisement of changing reachability. In most EVPN PE-CE designs, eBGP is preferred because it creates a clean routing boundary between the PE and CE, with each device operating in a different autonomous system. Option D is false because the CE does not advertise BGP EVPN route type 5 updates to the PE. The CE advertises ordinary IPv4 or IPv6 unicast prefixes over the PE-CE routing session. The PE then imports those customer prefixes into the IP-VRF and advertises them into the EVPN overlay as route type 5 IP Prefix routes toward other PEs. This distinction matters: EVPN signaling is a PE-to-PE overlay function, not a CE-originated EVPN control-plane role. Reference: PE-CE routing, eBGP, EVPN RT-5 prefix advertisement.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

A route distinguisher is used in MP-BGP VPN and EVPN address families to make otherwise overlapping tenant routes unique in the BGP control plane. In EVPN, different tenants or EVPN instances may legitimately use the same MAC or IP values. The route distinguisher makes the NLRI globally unique by prepending a unique value to the tenant route. It is typically unique per PE and per EVI, and it is carried in EVPN route advertisements. However, the route distinguisher does not control route import, export, or service membership. That role belongs to the route target, which is a BGP extended community used by receiving PEs to decide which EVPN instance should import the route. Therefore, option D is not part of the correct description of a route distinguisher. Saying that the RD identifies the EVPN instance in the control plane confuses RD uniqueness with route-target membership. The RD makes routes unique; the route target associates those routes with the appropriate MAC-VRF or IP-VRF import policy. Reference: EVPN route distinguisher, overlapping tenant addresses, route target separation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In interface-less symmetric routing, the EVPN fabric exchanges host forwarding information using EVPN route type 2 MAC/IP advertisements. RT-2 carries the host MAC address and, when present, the associated host IP address, allowing remote PEs to build the forwarding state needed for distributed gateway operation. Unlike asymmetric routing, interface-less symmetric routing does not require every MAC-VRF to be instantiated on every PE. The design scales better because each leaf only needs the locally attached MAC-VRFs plus the shared IP-VRF/routed VXLAN construct for inter-subnet forwarding. Option B describes an asymmetric forwarding pattern more than a symmetric one; in symmetric routing, both ingress and egress PEs perform routed forwarding functions through the IP-VRF. Option C is also incorrect because anycast gateway is fundamental when multiple leaves provide the same default-gateway service for a subnet. Therefore, the true statement is that forwarding information is exchanged using EVPN route type 2 updates. Reference: interface-less symmetric routing, EVPN RT-2 host MAC/IP signaling, distributed IRB operation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

EVPN route type 2 carries MAC/IP advertisement information. It is central to host-based routing and to designs where the fabric must distribute host MAC-to-IP bindings for integrated routing and bridging. In host routing, RT-2 is required because individual host reachability is signaled through MAC/IP advertisements. In interface-less prefix routing, RT-2 is still needed because the system relies on host or gateway MAC/IP information associated with the IRB and distributed gateway behavior. Interface-ful unnumbered designs may also require RT-2-style information to resolve next-hop or adjacency behavior because the routed interface does not use a conventional numbered next-hop model. Prefix routing with interface-ful numbered operation is different. In that model, the routed interface has explicit IP addressing and prefix reachability can be carried with L3 prefix routes without requiring EVPN RT-2 host MAC/IP advertisement as a dependency. Therefore, the symmetric routing option that does not require EVPN route type 2 is prefix routing interface-ful numbered. Reference: symmetric L3 EVPN routing models, RT-2 MAC/IP advertisements, prefix routing behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

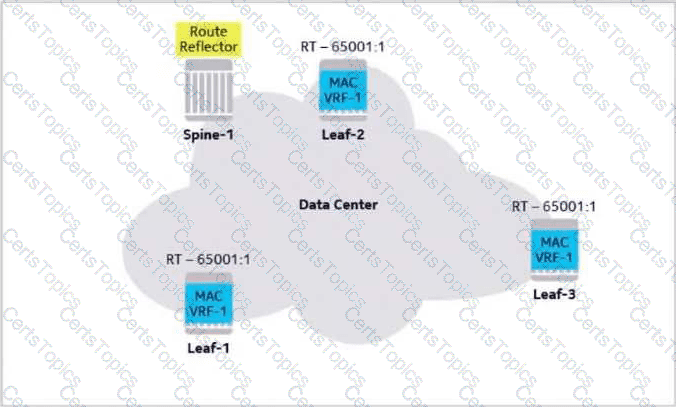

When a new Layer 2 EVPN MAC-VRF instance is enabled, the PE advertises an Inclusive Multicast Ethernet Tag route, commonly called an IMET route or EVPN route type 3. The IMET route is used to auto-discover remote PEs that participate in the same EVPN service and to build the BUM flooding list for that MAC-VRF. In this topology, all leaf routers peer with the route reflector on Spine-1. Leaf-1 therefore advertises its IMET route to the route reflector, not directly to Leaf-2 and Leaf-3. The route reflector then reflects the EVPN update to the other client leaves. Leaf-2 and Leaf-3 import the route based on matching route-target policy and add Leaf-1 to the replication list for broadcast, unknown unicast, and multicast traffic. Option B is the step that is not taken because it incorrectly describes direct leaf-to-leaf EVPN advertisement. In a route-reflector design, the RR centralizes EVPN route distribution and avoids the need for a full mesh of MP-BGP EVPN sessions between leaves. Reference: EVPN RT-3 IMET route, route-reflector operation, BUM flooding-list auto-discovery.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The scenario describes Layer 3 EVPN multi-homing with an IP-VRF service and an external CE VNF advertising the 40.40.40.0/24 prefix through BGP. A DF election can occur among the leaf routers participating in the Ethernet Segment, and the active/primary forwarding node is used for the relevant service behavior. The AD per EVI route can participate in identifying service-level reachability for the Ethernet Segment, and the prefix traffic follows the valid advertised path toward the CE VNF. Because Leaf3 has the BGP connection to the CE VNF, traffic for 40.40.40.0/24 is forwarded through Leaf3. Option B is false because it incorrectly states that all connected leaf routers will use single-active redundancy. The exhibit and answer context indicate a more specific forwarding/primary selection for the service, not a blanket statement that every connected leaf operates using single-active redundancy. In L3 multi-homing, redundancy behavior depends on the ES mode, prefix advertisement, next-hop association, and CE connectivity. The forwarding decision for the customer prefix is tied to the active/valid route advertisement, not to every leaf uniformly acting as single-active. Reference: L3 EVPN multi-homing, DF election, AD per EVI role, PE-CE BGP prefix forwarding.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The exhibit describes a Layer 3 multi-homing scenario where the Ethernet Segment is associated with an IP-VRF and the configuration references an EVI value of 1000. The segment is configured with all-active multi-homing, allowing multiple attached leaf routers to advertise reachability for the same external L3 next-hop or third-party prefix attachment. In this model, the Ethernet Segment represents the shared L3 attachment and is used by EVPN to associate remote prefix reachability with the multi-homed segment. The incorrect statement is that a LAG must be configured on the connected leaf routers and the host. That requirement is specific to many Layer 2 all-active host attachment designs, where the host commonly uses LACP toward multiple leaf routers and the leaf LAG subinterfaces are associated with the Ethernet Segment. In Layer 3 multi-homing, the attached device can be a router or VNF, and the EVPN ES association can be used for L3 prefix reachability without mandating that the host side be configured as a LAG. Reference: L3 EVPN multi-homing, EVI association, all-active Ethernet Segment behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

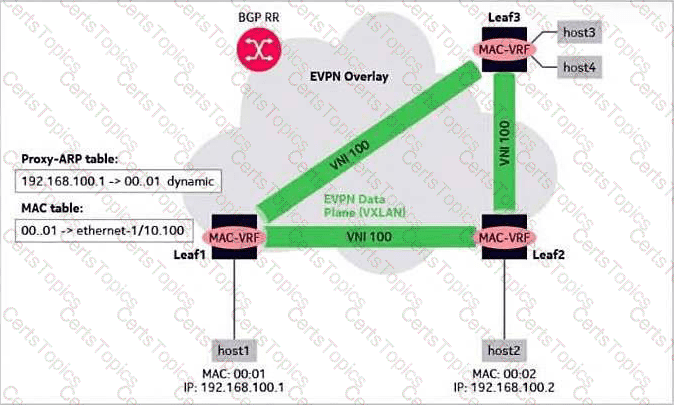

A Gratuitous ARP is an ARP message a host sends to announce or refresh its own IP-to-MAC binding without waiting for another host to request it. In a traditional Ethernet subnet, the GARP is sent as a broadcast so that other hosts can update their ARP caches with the sender's current MAC address. This is useful after a host boots, changes NICs, moves to another attachment point, or takes over an IP address in a redundancy scenario. In EVPN environments, GARPs are also important because a leaf can snoop the ARP information and update local proxy ARP and EVPN MAC/IP state. Option D is false because recipients do not acknowledge a gratuitous ARP with a reply. GARP is an announcement mechanism, not a request/response transaction. If every receiving host acknowledged a broadcast GARP, the result would be unnecessary ARP traffic amplification. The correct behavior is passive update of ARP state by receiving systems and, in EVPN, potential control-plane propagation of the learned binding by the local PE. Reference: GARP behavior, proxy ARP learning, Layer 2 EVPN endpoint update procedures.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Layer 3 multi-homing is fundamentally about redundant or load-balanced L3 reachability for external prefixes, not about Layer 2 broadcast-domain flooding toward a host. In single-active L3 multi-homing, DF election determines which attached leaf is active for the Ethernet Segment, and only that leaf advertises or forwards for the attached customer route as required by the redundancy model. In all-active L3 multi-homing, multiple leaf routers can be valid next-hops for the same learned third-party prefix, and remote PEs may load-balance toward them based on the Ethernet Segment association. Learned external prefixes are carried as EVPN route type 5 IP Prefix routes, which is the correct route type for L3 reachability. The Ethernet Segment is associated with the next-hop for those prefixes so that remote PEs understand the multi-homed nature of the path. Option B is false because BUM forwarding is a Layer 2 EVPN concern. In an all-active L3 multi-homing scenario, DF election is not used to identify a BUM-forwarding leaf for host traffic in the same way it is used in Layer 2 multi-homing services. Reference: L3 EVPN multi-homing, RT-5 prefix routes, ES next-hop behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

This scenario describes all-active Layer 2 EVPN multi-homing with a host connected through a LAG to Leaf1 and Leaf2. The LAG subinterface is associated with the MAC-VRF on both participating leaves, and the Ethernet Segment ES-1 is configured for all-active multi-homing. In all-active operation, both leaf routers can be active attachment points for host-originated traffic, and remote traffic can use EVPN multi-homing mechanisms to reach the segment. Option D is false because the host does not know or use the EVPN Designated Forwarder state when sending BUM traffic. The host forwards over its LAG based on its local LAG hashing and LACP behavior. DF election is an EVPN PE-side mechanism used mainly to control which PE forwards BUM traffic from the EVPN overlay toward the Ethernet Segment, preventing duplicate delivery to the multihomed access network. The host itself does not selectively forward all BUM traffic toward the DF. That distinction is critical: DF controls overlay-to-segment replication, while the host's LAG controls host-to-leaf link selection. Reference: all-active L2 EVPN multi-homing, host LAG behavior, DF election scope, BUM forwarding.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

This setup represents a Layer 2 EVPN multi-homing attachment where the host is connected to Leaf1 and Leaf2 through an Ethernet Segment named ES-1. In SR Linux EVPN multi-homing, the Ethernet Segment must be associated with the physical or logical attachment interfaces facing the host. This allows the PEs to advertise Ethernet Segment information into EVPN, participate in DF election, and apply the appropriate forwarding behavior for single-active or all-active redundancy. Option D is therefore correct. Option A is not necessarily true because the exhibit indicates an active/standby style attachment, not all-active operation. Option B is also incorrect because ECMP on the remote MAC-VRF is not the mechanism that defines the local ES association or single-active behavior. Option C is wrong in this setup because a host LAG is required for common all-active L2 multi-homing with LACP, but the shown design uses an active/standby-style attachment where the Ethernet Segment is bound to the host-facing ports. The technical anchor is that ES-1 must be associated to the access ports connecting the host into the multi-homed MAC-VRF service. Reference: L2 EVPN multi-homing, Ethernet Segment interface association, DF behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

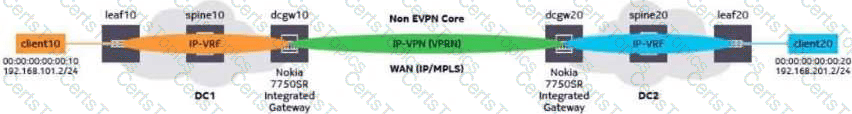

A decoupled gateway-based DCI model separates the data center border-leaf function from the WAN PE function. This separation is the key design point. The border leaf remains part of the data center EVPN/VXLAN environment, while the WAN PE participates in WAN VPN transport and policy enforcement. Because the roles are split across two devices, the handoff between the border leaf and WAN PE provides a clean administrative and operational boundary. That boundary is useful for security policy, QoS marking, traffic classification, and troubleshooting ownership. The WAN does not need direct reachability to every leaf and route reflector as in a gateway-less model. The WAN PE also does not peer directly with the data center route reflector in a decoupled model; route exchange occurs through the border-leaf/WAN-PE handoff. VXLAN tunnels between leaf routers across different data centers are characteristic of gateway-less extension, not decoupled gateway operation. Therefore, the statement about clear demarcation between the data center border leaf and WAN PE is the accurate description. Reference: decoupled gateway-based DCI, security/QoS demarcation, WAN PE separation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

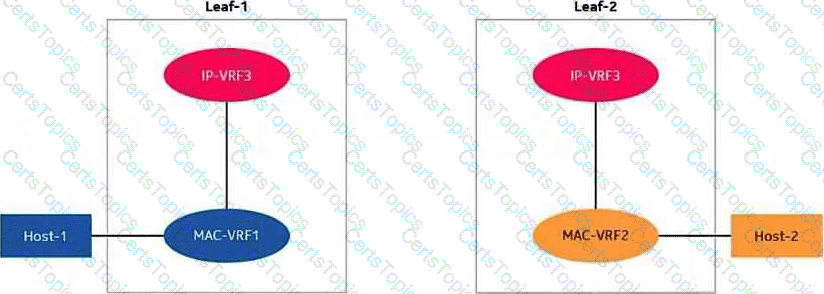

In asymmetric L3 EVPN routing, the ingress PE performs the routing decision and then sends traffic across the overlay in the context of the destination MAC-VRF. The egress PE performs Layer 2 MAC forwarding only toward the destination host. This is why options A and B correctly describe asymmetric data-plane behavior. Asymmetric routing relies heavily on EVPN route type 2 MAC/IP Advertisement routes because the ingress PE must know the destination host's MAC/IP binding and the destination bridge domain information. EVPN route type 5, which advertises IP prefixes, is a symmetric L3 EVPN mechanism and is not mandatory for asymmetric routing. Therefore, option C is false. Option D is treated as correct in this asymmetric-routing model because each PE participating in inter-subnet forwarding needs the destination MAC-VRF context to encapsulate traffic toward the correct L2 VNI. This requirement is one reason asymmetric routing scales less efficiently than symmetric routing: MAC-VRF presence and host reachability information must be broadly available. Symmetric routing improves scale by using an IP-VRF routed VXLAN interface and RT-5 prefix routes instead. Reference: asymmetric L3 EVPN routing, ingress IP/MAC forwarding, egress MAC forwarding, RT-2 versus RT-5 usage.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In SR Linux, a Layer 2 EVPN service is implemented using a MAC-VRF network instance. The MAC-VRF represents the tenant bridge domain and is associated with access subinterfaces and a VXLAN data-plane mapping. Local hosts are learned through the data plane when Ethernet frames arrive on local interfaces. Remote hosts, however, are not learned by flooding or by configuring static per-peer VXLAN interfaces. They are learned through MP-BGP EVPN updates, especially EVPN route type 2 MAC/IP Advertisement routes. Option B is false because SR Linux does not require a separate manually configured VXLAN interface toward each remote VTEP for the MAC-VRF. Instead, the MAC-VRF is bound to VXLAN encapsulation and a VNI, while remote VTEPs and their MAC reachability are discovered dynamically through the EVPN control plane. This is one of the central advantages of EVPN compared with static VXLAN flood-and-learn models: the overlay endpoints and endpoint reachability are signaled through BGP, reducing manual configuration and improving scale. Reference: SR Linux L2 EVPN MAC-VRF configuration, MP-BGP EVPN learning, VXLAN data-plane mapping.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Asymmetric routing relies heavily on host MAC/IP information because the ingress PE performs routing into the destination subnet and then sends the frame across the overlay using the destination MAC-VRF/VNI. This means PEs require enough ARP and MAC/IP binding information to forward traffic toward remote hosts correctly. If a host has multiple IP addresses on the same interface, separate EVPN route type 2 advertisements may be needed to communicate each IP-to-MAC binding. The ingress and egress PEs participate in MAC and IP forwarding across the end-to-end service path, but the forwarding responsibilities differ by direction and stage. The false statement is option C. The statement says all MAC-VRFs connected to the L3 EVPN network must exist on each PE, but that is not the correct requirement in this question's verified answer set. In practical EVPN designs, the exact MAC-VRF placement depends on whether the service is implemented as asymmetric, symmetric, interface-less, or interface-ful routing. Here, the course answer marks the universal MAC-VRF requirement as false. Reference: asymmetric L3 EVPN routing, RT-2 MAC/IP advertisements, ARP and MAC forwarding behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The route target is the extended community consistently associated with EVPN updates to control route import and export between EVPN instances. In SR Linux EVPN services, route targets determine which MAC-VRF or IP-VRF should import a received EVPN route. This is essential for tenant separation because multiple tenants may use overlapping MAC or IP address spaces while sharing the same physical fabric and BGP control plane. The AFI/SAFI is not an extended community; it identifies the BGP address family and subsequent address family used to carry EVPN NLRI. The EVPN route type is also not an extended community; it is part of the EVPN NLRI structure and identifies whether the route is RT-1, RT-2, RT-3, RT-4, RT-5, and so on. The VXLAN network ID may be carried or inferred through service and encapsulation-specific attributes, but it is not universally present as the required extended community in every EVPN update. The route target is the mandatory policy element that enables receiving PEs to place EVPN routes into the correct service context. Reference: EVPN extended communities, route-target import/export policy, tenant service identification.

================
