To restrict access to a newly created LUN to specific hosts, the administrator should configure the igroup (initiator group). An igroup is used to control which initiators (hosts) are allowed to access specific LUNs. This ensures that only authorized hosts can access the storage, enhancing security and access control.

For more details, refer to:

NetApp Documentation on iGroups​ ( NetApp )​.

To verify the cabling of a four-node NetApp ONTAP SAN cluster after installation, the recommended tool is Active IQ Config Advisor. This tool provides detailed checks for proper configuration, including cabling verification, and helps ensure that best practices are followed for optimal performance and reliability.

For further details, see:

NetApp Active IQ Config Advisor

MetroCluster uses SyncMirror technology to synchronously mirror data between storage pools at the two MetroCluster sites. Mirrored aggregates contain local and remote plexes, and writes are replicated synchronously so that a current copy of the data exists at the remote site. This storage-level mirroring is fundamental to MetroCluster ' s ability to maintain data availability during site failures and perform switchover operations. SnapMirror active sync is a separate ONTAP technology that provides synchronous application-level protection between peered clusters. SnapMirror Synchronous is likewise a replication technology but is not the underlying aggregate-mirroring mechanism used by MetroCluster. MPIO operates on the host to manage multiple SAN paths and performs no data replication. Therefore, data written to a LUN residing on a mirrored MetroCluster aggregate is replicated to the remote plex through SyncMirror.

The network port reachability show command is the best troubleshooting choice because it validates Layer-2 reachability for ONTAP Ethernet ports against their expected broadcast domains. NetApp documents that this command reports expected reachability, actual reachability, and conditions such as misconfigured reachability, making it directly useful when an NVMe/TCP LIF repeatedly disconnects because of an underlying network-path or VLAN/broadcast-domain problem. ipspace show only displays IPspace configuration, and vserver nvme subsystem show focuses on NVMe subsystem objects rather than Ethernet path health. cluster ping-cluster tests the cluster network and is not the correct diagnostic for a client-facing NVMe/TCP data LIF. Relevant SAN ONTAP topics are NVMe/TCP networking, Ethernet port reachability, broadcast domains, VLAN connectivity, and SAN network troubleshooting.

SCSI UNMAP is the mechanism used by a supported SAN host to inform ONTAP that logical blocks within a thin-provisioned LUN are no longer required. Deleting files within Windows normally changes the filesystem ' s allocation information; without storage reclamation, ONTAP may still regard the associated LUN blocks as allocated. When LUN space allocation is enabled and the host supports logical block provisioning, Windows can issue SCSI UNMAP commands identifying unused blocks so ONTAP can return that physical capacity to the available storage pool. A SCSI reservation controls device-access coordination and does not reclaim capacity. Snapshot Autodelete manages Snapshot copies, while SnapCenter provides application-consistent data protection and management. Therefore, SCSI UNMAP is the SAN protocol operation responsible for reclaiming blocks released by the Windows filesystem.

For synchronous data replication between two sites with automatic failover in case of a site disaster for SAN workloads, the two NetApp features that provide these capabilities are SnapMirror Synchronous and MetroCluster IP.

SnapMirror Synchronous: This feature provides volume-granular, synchronous replication with zero RPO (Recovery Point Objective), ensuring that data is mirrored in real-time to a secondary site. This setup supports automatic failover, maintaining data availability even during site failures​

MetroCluster IP: This solution provides synchronous replication and combines high availability and disaster recovery capabilities. MetroCluster IP uses IP networking to extend the distance over which replication can occur and supports automatic failover and failback, making it suitable for critical SAN workloads

Fibre Channel zoning is configured and maintained within the FC switching fabric. ONTAP hosts and storage LIFs provide WWPN identities, but the switch configuration determines which initiator and target ports are permitted to communicate. NetApp’s FC zoning guidance instructs administrators to log in to the FC switch administration interface, create zones containing host initiator WWPNs and ONTAP FC LIF WWPNs, save the zones, and activate the resulting zone configuration. Cisco environments use zones and zonesets, while comparable constructs exist on Broadcom/Brocade fabrics. Neither the host HBA nor the ONTAP storage system stores the authoritative fabric zoning configuration. Therefore, the FC switches are the correct location. Relevant SAN ONTAP topics include FC fabric design, WWPN zoning, zonesets, dual-fabric configurations, and SAN connectivity.

To ensure the best performance in an iSCSI SAN implementation:

Connect host and storage ports to the same switches: This minimizes latency and maximizes the efficiency of data paths by ensuring direct connections within the same network segment.

Configure Jumbo frames in the entire data path: Setting a larger Maximum Transmission Unit (MTU) size reduces the overhead for processing each packet, thus improving overall network performance. Ensuring Jumbo frames are configured end-to-end in the data path is crucial for optimal performance.

For further details, check:

NetApp Best Practices for iSCSI

NetApp Community Discussion on iSCSI Performance

In a traditional FAS SAN configuration, ONTAP uses ALUA to distinguish optimized paths from non-optimized paths. Active/Optimized paths are serviced by the controller associated with the aggregate and LUN being accessed. These paths provide the preferred I/O route because data does not need to be forwarded through another controller. Paths through the HA partner remain available but are normally Active/Non-Optimized and are used when optimized paths become unavailable. NetApp host configuration guidance explicitly describes AFF and FAS systems as having higher-priority Active/Optimized paths serviced by the controller where the aggregate resides and lower-priority non-optimized paths served through another controller. Round-robin is a host multipathing policy and does not define ALUA path state. Relevant topics include ALUA, Active/Optimized paths, Active/Non-Optimized paths, FAS multipathing, and HA architecture.

To move SAN LIFs to new nodes that are members of a portset during maintenance of a NetApp AFF ONTAP cluster, you should take the following steps:

Remove the LIF from the portset: This ensures that the LIF is no longer associated with the current node, preparing it for the move to the new node.

Take the SAN LIF offline: This step is necessary to make configuration changes without causing disruption to the SAN hosts. Once offline, the LIF can be moved to the new node and reconfigured as needed.

These actions help maintain the integrity and performance of the SAN environment during the migration of LIFs.

For more details, see:

NetApp Documentation on Moving SAN LIFs

NetApp Community on Moving LIFs

After deleting a LUN, if the space does not show as available, performing space reclamation is necessary. Space reclamation involves identifying and reclaiming unused space on the storage system, making it available for new data. This process ensures that the deleted LUN ' s space is properly freed up and reflected in the available storage capacity.

For more details, refer to:

NetApp Documentation on Space Reclamation

NetApp Community on Free Space Reclamation

NetApp ONTAP 9.14.1 supports up to a 16-node cluster for SAN and NAS configurations. Given a current 10-node cluster, you can add up to 6 additional nodes to reach the maximum supported node count. This expansion capability ensures scalability for growing storage needs while maintaining high availability and performance.

For more information, refer to:

NetApp Storage Limits Documentation​ ( NetApp )

In an NVMe environment, the storage construct that enables an NVMe client to store data in an SVM (Storage Virtual Machine) is a Subsystem. A subsystem is a collection of one or more namespaces, which are used to store data. This abstraction allows for efficient management and scaling of NVMe storage within the ONTAP environment.

For further information, refer to:

NetApp NVMe/FC Configuration​ ( NetApp )​.

For enabling jumbo frames on Cisco Nexus switches for NVMe over TCP with tagged VLANs, the following changes are required:

Modify the Cisco Nexus switches to use an MTU of 9216: Setting the MTU to 9216 ensures that the network can handle jumbo frames, reducing the number of packets needed for large data transfers and thus improving performance.

Modify the appropriate broadcast domain in NetApp ONTAP software to use an MTU of 9216: This setting must match the network configuration to ensure end-to-end support for jumbo frames, which is essential for optimizing performance in NVMe over TCP environments.

For additional information, refer to:

NetApp Documentation on NVMe over TCP

Cisco Documentation on Jumbo Frames

For a successful deployment of a switchless HA pair with two NetApp DS224C shelves in an already populated rack, it is crucial to verify:

Rack units: Ensure that there are enough rack units available to accommodate the new shelves and any associated equipment. Proper planning of space in the rack is essential for a neat and functional setup.

Power connections: Verify that there are sufficient and appropriately rated power connections available. Ensuring proper power distribution and redundancy is critical for the reliability and uptime of the storage system.

For more details, refer to:

NetApp Documentation on Rack Installation

NetApp Community Discussion on Power Connections

During an iSCSI deployment, if a customer requests a change from twinax cables to fiber-optic cables, two NetApp tools can be used to verify the supported port speeds and transceivers:

Hardware Universe (HWU): This tool is essential for determining the supported transceivers and port speeds for NetApp hardware. It provides detailed information on hardware compatibility, including supported transceivers, cables, and port speeds, which helps ensure that the selected components are compatible with the NetApp storage system.

Interoperability Matrix Tool (IMT): The IMT provides comprehensive compatibility information between NetApp products and third-party components. It includes details on supported transceivers and port speeds, ensuring that any changes made to the network connections are supported and will function correctly in the given configuration.

For more detailed information, you can refer to the following resources:

NetApp Hardware Universe​ ( NetApp )​.

NetApp Interoperability Matrix Tool​ ( NetApp )​.

Separate VLANs are a recommended design practice for IP-based SAN traffic because they provide logical network segmentation and enable independent broadcast domains. ONTAP VLANs can separate storage traffic by function or network path even when the underlying physical switching infrastructure is shared. For SAN redundancy, NetApp also recommends separate Ethernet networks and multiple paths so that failure of one network does not eliminate storage connectivity. VLAN separation additionally limits unnecessary broadcast-domain exposure and provides clearer operational boundaries for iSCSI or NVMe/TCP traffic. An MTU of 1500 is supported but does not inherently provide the requested security and reliability improvement, while simply using routed networking is not the relevant SAN best practice. Therefore, separate VLANs provide the appropriate segmentation and path-isolation characteristics for an AFF ASA IP SAN design.

ONTAP igroups can be created with an fcp, iscsi, or mixed protocol type. An iSCSI igroup is therefore valid for presenting the existing LUN specifically to the new iSCSI host. A mixed igroup is also valid because it permits both Fibre Channel and iSCSI initiators and can be used when access to a LUN involves both protocol types. ONTAP permits an igroup to be mapped to multiple LUNs and a LUN to be presented through appropriate SAN igroup mappings. Creating another FC-only igroup would not accommodate the new iSCSI initiator. A subsystem belongs to the NVMe architecture and is used to map NVMe namespaces to NVMe hosts; it is not used for FCP or iSCSI LUN presentation. Thus, both iSCSI and mixed igroups are valid configurations for the requirement.

When planning to upgrade the UCS Server BIOS and Cisco NX-OS system running on the switches in a NetApp AFF ASA cluster environment, the Interoperability Matrix Tool (IMT) is the recommended resource to check compatibility with the new versions. The IMT provides detailed compatibility information for various hardware and software components, ensuring that the planned upgrades will not cause any interoperability issues.

For further details, refer to:

NetApp Interoperability Matrix Tool

The configuration described is a portset use case. NetApp states that portsets can be bound to igroups to restrict which SAN LIFs an initiator can use to access mapped LUNs, which is especially useful when a node has more than two LIFs and access must be limited to a subset. The lun portset show command displays each portset together with its protocol, Port Names representing participating LIFs, and the igroups bound to that portset. That output directly verifies which igroup has visibility through which LIFs. lun mapping show primarily displays LUN-to-igroup mappings and SLM reporting nodes; it does not provide the same direct LIF membership view. Therefore, the supplied V9.02 answer D requires correction to C. Relevant SAN ONTAP topics are portsets, igroup binding, LIF path restriction, SLM, and SAN path visibility.

The Auto FabricPool tiering policy permits ONTAP to identify cold blocks in both the active filesystem and Snapshot data and move those blocks from the performance tier to the configured object-store capacity tier, including Microsoft Azure Blob Storage. Unlike the all policy, Auto does not immediately classify all blocks as cold; active data remains on the performance tier until it satisfies the cooling criteria. The default cooling period for Auto is 31 days and can be adjusted within supported limits. snapshot-only restricts tiering primarily to Snapshot-related blocks, while none prevents additional blocks from being tiered. Because the customer specifically wants to reclaim performance-tier capacity while retaining active SAN workload behavior, the Auto policy provides the appropriate balance between cloud-tier space reclamation and performance.

In a two-node NetApp AFF ASA cluster, the recommended minimum number of paths for a SAN environment from the client host perspective is 4. This configuration ensures high availability and load balancing, which are critical for maintaining performance and resilience in a SAN environment. Each host should have at least two paths to each controller to achieve this setup.

For more detailed information, you can refer to:

NetApp SAN Configuration

NetApp All-Flash SAN Array Documentation

ONTAP interface groups support several traffic-distribution algorithms, including port, which distributes traffic using transport-layer TCP or UDP port information. Therefore, network port ifgrp create -distr-func port establishes the corresponding ONTAP-side distribution behavior. The connected Cisco Nexus infrastructure should use a compatible port-channel hashing method; NetApp validated architectures show port-channel load-balance src-dst l4port for Nexus switches so source and destination Layer-4 ports contribute to traffic distribution. This improves utilization across member links compared with algorithms using fewer flow attributes. The original V9.02 text contained the typographical string 14port; the correct command parameter is l4port, meaning Layer 4 port. Options C and D do not establish the requested port-based load-balancing algorithm. Relevant SAN ONTAP topics include interface groups, port distribution functions, link aggregation, and Nexus port-channel hashing.

The space-allocation option enables ONTAP support for SCSI thin-provisioning functions and allows compatible SAN hosts to manage and reclaim unused LUN space. When space allocation is enabled, ONTAP can communicate storage-space conditions to the host and support host-initiated space reclamation through mechanisms such as SCSI UNMAP. NetApp specifically states that enabling space allocation allows SAN hosts to reclaim storage that is no longer being used. space-reserve controls whether physical capacity is reserved for the LUN but does not provide host-side reclamation. resize relates to changing storage size, and alua controls asymmetric path behavior rather than capacity management. Current ONTAP releases enable space allocation by default for many newly created SAN objects. Relevant SAN ONTAP topics include LUN thin provisioning, SCSI UNMAP, space reclamation, and LUN space-allocation configuration.

Asymmetric Namespace Access (ANA) is the NVMe mechanism used by ONTAP to provide multipath access to NVMe namespaces. NetApp documents that NVMe hosts use ANA for multipath high availability, whereas conventional FCP and iSCSI hosts use Asymmetric Logical Unit Access (ALUA). ANA enables the NVMe host to understand the accessibility and optimization state of each path to a namespace and select an appropriate path during normal operation or failover. An NQN is an NVMe Qualified Name used to identify hosts, subsystems, and controllers; it does not provide multipath functionality. IQN is associated with iSCSI, while ALUA applies to SCSI-based SAN protocols. Therefore, ANA is specifically responsible for NVMe namespace multipathing in ONTAP environments. Relevant SAN ONTAP topics include NVMe-oF, ANA, namespace access, host multipathing, and HA path management.

To verify compatibility in an iSCSI storage environment before a NetApp ONTAP software upgrade, the following tools are recommended:

Interoperability Matrix Tool (IMT): This tool helps verify the compatibility of different components, including network switches, hosts, and storage systems, ensuring that the planned upgrade will be supported.

Active IQ OneCollect: This tool collects comprehensive configuration and performance data from the storage environment, which can be used to assess the current setup and identify any compatibility issues before the upgrade.

For further details, refer to:

NetApp Interoperability Matrix Tool

Active IQ OneCollect Documentation

The correct tool for designing an FC SAN solution consisting of a NetApp ONTAP system, Broadcom switches, and servers is the " NetApp Verified Architecture " (NVA). The NetApp Verified Architecture provides comprehensive blueprints and detailed implementation references. These blueprints are thoroughly tested, prescriptive in nature, and designed to minimize deployment risks and accelerate time to market. They are specifically designed to help ensure that the architecture meets the high standards required for enterprise environments.

NVA documents include design guides, best practices, and detailed configuration steps, making them invaluable for planning and deploying complex solutions like the one described.

For more information, you can refer to the official NetApp documentation on NetApp Verified Architectures:

NetApp Verified Architecture Program Summary

NetApp Verified Architecture Overview

These resources provide detailed insights into the architecture, including technology requirements, deployment procedures, and additional references for further reading.

To ensure that Snapshot copies of database files across multiple FCP LUNs are taken at the same point in time, the following configurations can be used:

Create a consistency group that uses FlexVol volumes: This setup ensures that snapshots of all volumes in the consistency group are taken simultaneously.

Create each LUN within the same FlexGroup volume: This configuration allows for a unified snapshot across multiple LUNs within the FlexGroup, ensuring data consistency.

For more details, see:

NetApp Documentation on Consistency Groups

NetApp FlexGroup Overview

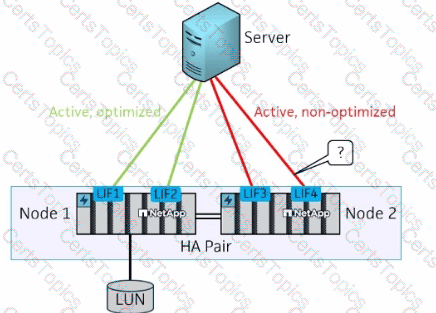

In the scenario where a storage failover is performed on Node 1 in an HA pair, the path marked in the exhibit would become Active/Nonoptimized. After the failover, the LIFs from Node 1 that were active and optimized will switch to Node 2. Paths that were previously optimized will become nonoptimized because they are now served through the partner node.

For more details, see:

NetApp Documentation on ALUA

To validate that the entire network path supports jumbo frames after an iSCSI implementation, you should perform a ping test from the host with fragmentation. This involves using the ping command with specific options to test jumbo frame support:

ping -M do -s 8972 < target_IP >

In this command:

-M do ensures the packets are not fragmented.

-s 8972 sets the packet size to 8972 bytes (9000 bytes MTU minus 28 bytes for the ICMP header).

By confirming that the large packets are successfully transmitted without fragmentation, you can validate that the network path, including switches and adapters, supports jumbo frames.

For more details, you can check:

NetApp Documentation - iSCSI Configuration and Best Practices ​ ( NetApp )​​ ( NetApp )​.

In a NetApp ONTAP cluster using FCP, NVMe/FC, and NVMe/TCP, it is important to understand that NVMe/FC and FCP require different FC ports. This separation is necessary because the protocols, while both running over Fibre Channel, have different configurations and operational characteristics.

For more information, refer to:

NetApp Documentation on NVMe Configuration

NetApp Best Practices for SAN

In NetApp ONTAP 9.13.1, one of the automatic features that can be used with iSCSI is LIF failover. This feature ensures that in the event of a network failure or a node issue, the Logical Interface (LIF) will automatically fail over to another available port, maintaining connectivity and minimizing disruption to iSCSI traffic.

For more information, refer to:

NetApp ONTAP 9.13.1 Features
