These are the correct statements regarding the ERSPAN session that needs to be established on an AOS-CX switch for a network administrator to examine the packets over a period of time from their desktop. ERSPAN (Encapsulated Remote Switched Port Analyzer) is a feature that allows an AOS-CX switch to mirror traffic from one or more source ports or VLANs to a remote destination IP address over a GRE (Generic Routing Encapsulation) tunnel. The destination IP address must be the IP address of the administrator’s desktop, which must have a packet capture tool installed to receive and analyze the mirrored traffic. The encapsulation protocol used for ERSPAN is GRE, which adds a header to the mirrored packets with information such as source and destination IP addresses, session ID, etc. The other statements are incorrect because they either do not specify the correct destination IP address or do not use ERSPAN or GRE. References:

Wi-Fi 6 is an industry certification for products that support the new wireless standard 802.11ax, also known as “high-efficiency wireless”. Wi-Fi 6 offers increased capacities, improved resource utilization and higher throughput speeds than previous standards.

Option B: ClientMatch

This is because option B shows how to use ClientMatch to optimize the wireless performance of Wi-Fi 6 clients on a UniFi network. ClientMatch is a feature that uses machine learning to analyze the traffic patterns of each client and assign them to the best available AP based on their location, device type, and network conditions2.

Therefore, option B is the best technology to implement for your customer’s issue.

1: 2:

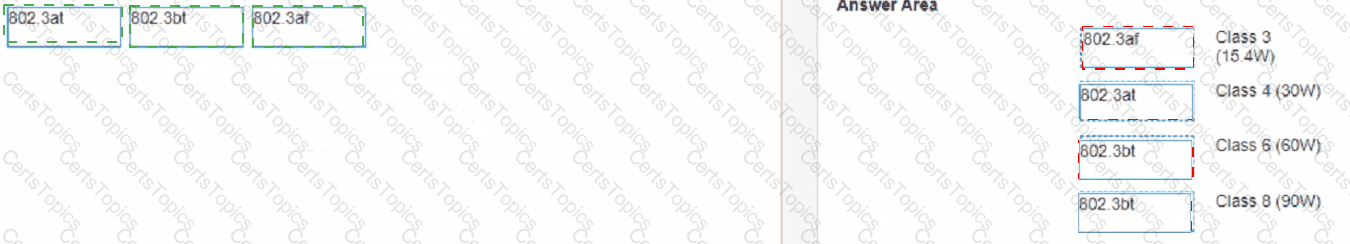

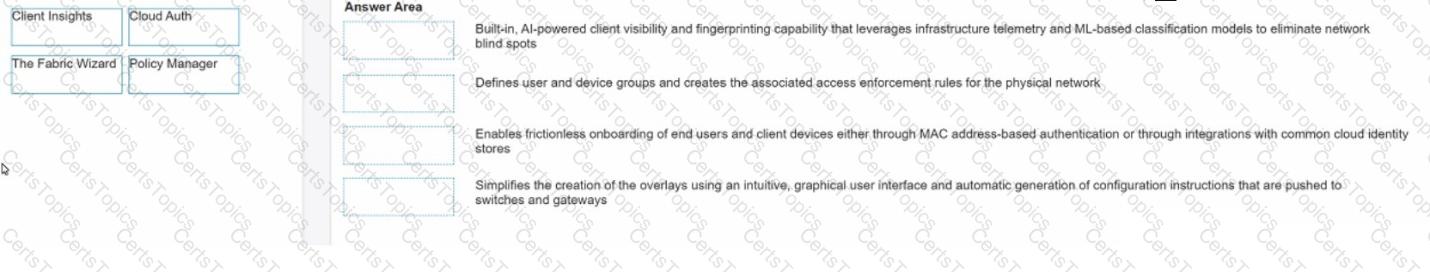

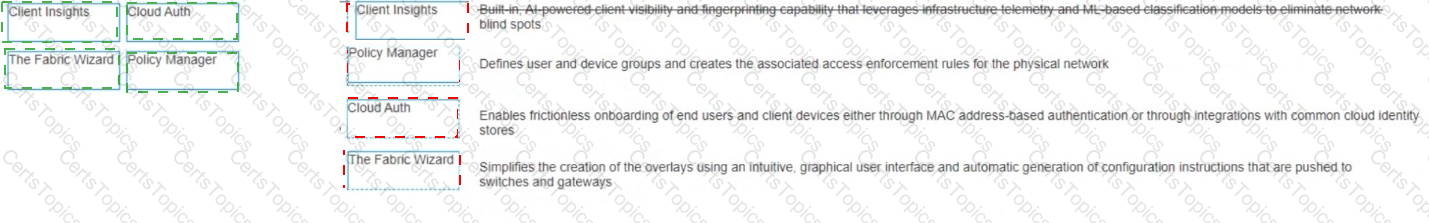

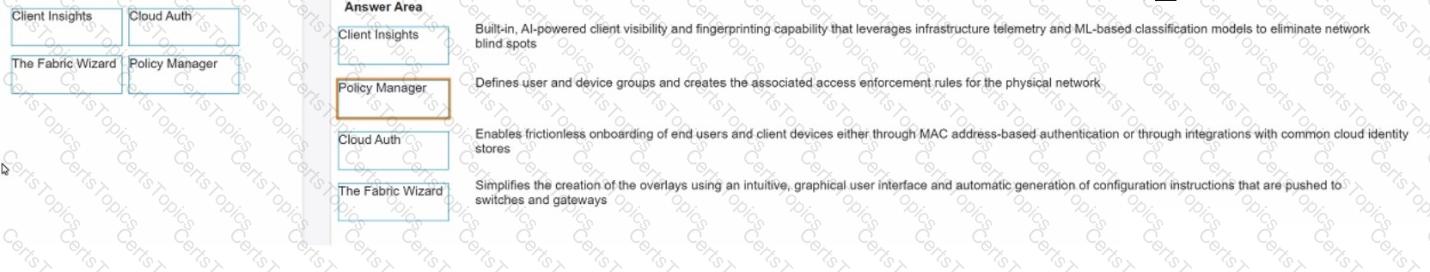

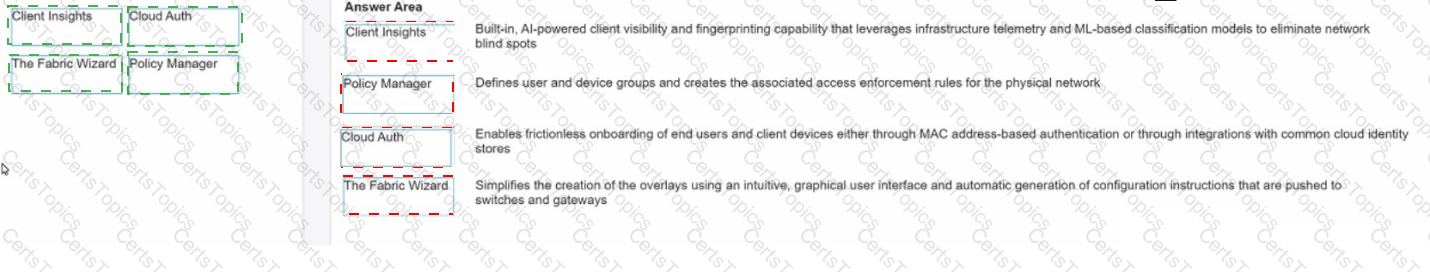

Client Insights matches with Built in , AI powered client visibility and fingerprinting capability that leverages infrastructure telemetry and ML based classification models to eliminate network bling spots

Client Insights is a solution component of NetConductor that provides built-in, AI-powered client visibility and fingerprinting capability that leverages infrastructure telemetry and ML-based classification models to eliminate network blind spots. Client Insights uses machine learning to automatically detect, identify, and classify devices on the network, such as IoT devices, BYOD devices, or rogue devices. Client Insights also provides behavioral analytics and anomaly detection to monitor device performance and security posture. Client Insights helps network administrators gain visibility into the device landscape, enforce granular access policies, and troubleshoot issues faster. References:

Cloud Auth matches with Enables fictionless onboarding of end users and client devices either through MAC address-based authentication or through integrations with common cloud identity stores

Cloud Auth is a solution component of NetConductor that enables frictionless onboarding of end users and client devices either through MAC address-based authentication or through integrations with common cloud identity stores. Cloud Auth is a cloud-native network access control (NAC) solution that is delivered via Aruba Central. Cloud Auth allows network administrators to define user and device groups, assign roles and policies, and enforce access control across wired and wireless networks. Cloud Auth supports MAC authentication for devices that do not support 802.1X, as well as integrations with cloud identity providers such as Azure AD, Google Workspace, Okta, etc. References:

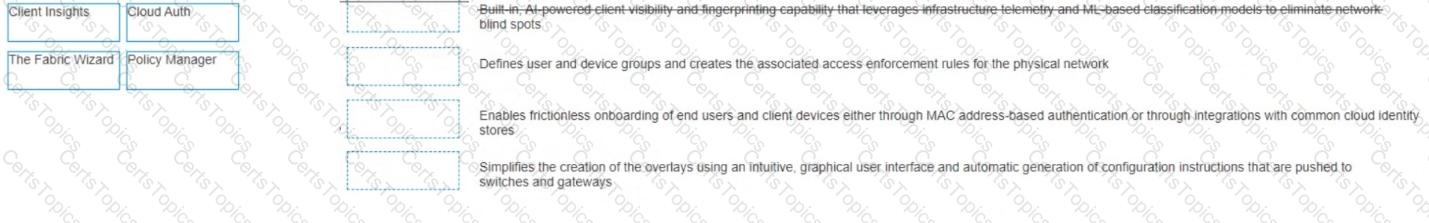

The Fabric Wizard matches with Simplifies the creation of the overlays using an intuitive graphical user interface and automatic generation of configuration instructions that are pushed to switches and gateways

The Fabric Wizard is a solution component of NetConductor that simplifies the creation of the overlays using an intuitive graphical user interface and automatic generation of configuration instructions that are pushed to switches and gateways. The Fabric Wizard is a tool that allows network administrators to design, deploy, and manage overlay networks using VXLAN and EVPN protocols. The Fabric Wizard provides a graphical representation of the network topology, devices, and links, and allows users to drag and drop virtual components such as VRFs, VLANs, and subnets. The Fabric Wizard also generates the configuration commands for each device based on the user input and pushes them to the switches and gateways via Aruba Central. References:

Policy Manager matches with Defines user and device groups and creates the associated traffic routing and access enforcement rules for the physical network

Policy Manager is a solution component of NetConductor that defines user and device groups and creates the associated traffic routing and access enforcement rules for the physical network. Policy Manager is a tool that allows network administrators to create and manage network policies based on user and device identities, roles, and contexts. Policy Manager uses Group Policy Identifier (GPID) to carry policy information in traffic for in-line enforcement. Policy Manager also integrates with Cloud Auth, ClearPass, or third-party solutions to provide flexible network access control. References:

The reason is that ClearPass OnBoard is a tool that allows you to enroll Mac computers into a ClearPass Policy Manager site using an Apple MDM push certificate. This certificate can be obtained from Apple or from a third-party PKI provider.

Apple Configurator is a tool that allows you to configure and deploy Mac computers using a GPO. This tool can also be used to enroll Mac computers into a ClearPass Policy Manager site using an Apple MDM push certificate.

EVPN-VXLAN is a technology that allows layer-2 communication across layer-3 networks by using Ethernet VPN (EVPN) as a control plane and Virtual Extensible LAN (VXLAN) as a data plane3. EVPN-VXLAN can be used to support legacy applications that communicate at layer-2 across different campuses or data centers that are connected via layer-3. EVPN-VXLAN minimizes flooding by using BGP to distribute MAC addresses and IP addresses of hosts across different VXLAN segments3. EVPN-VXLAN also provides benefits such as loop prevention, load balancing, mobility, and scalability3. References: 3

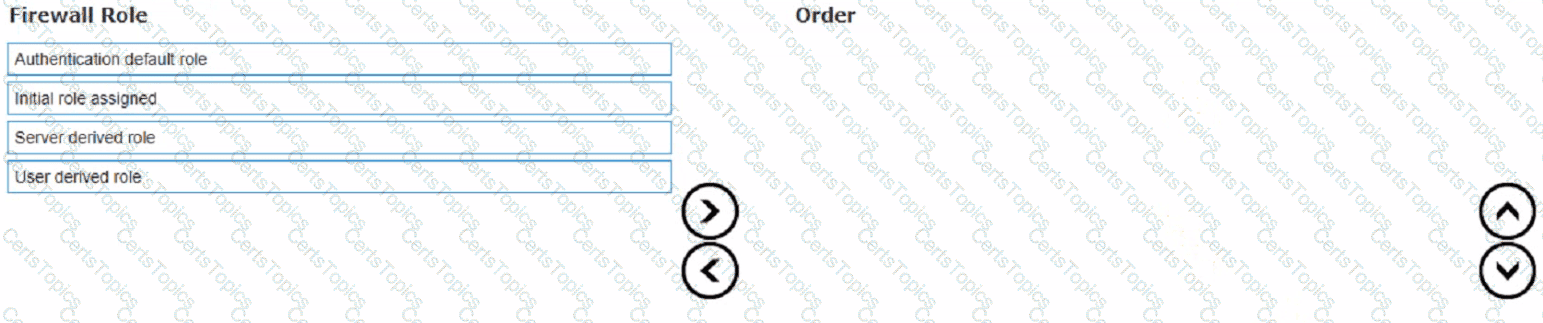

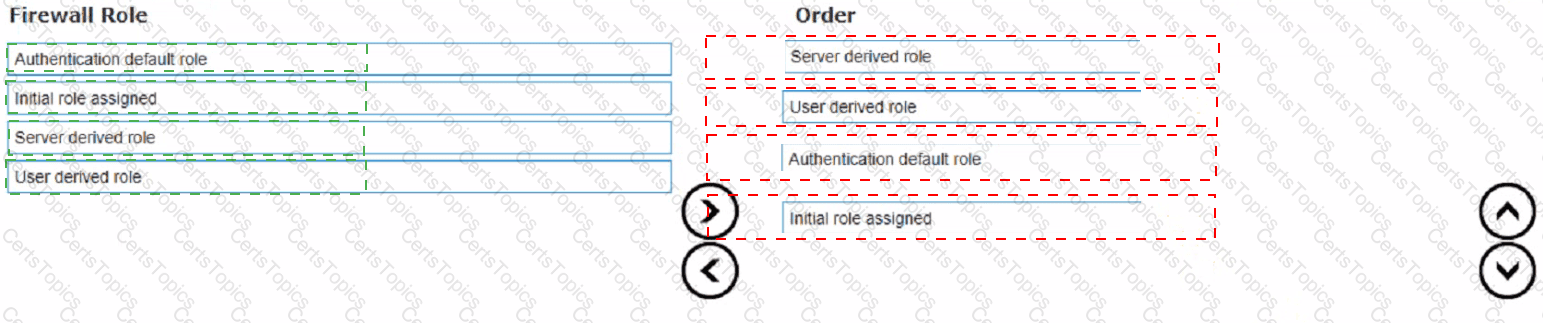

According to the Aruba Documentation Portal1, the firewall role derivation flow in the correct order is:

• Server derived role
• User derived role
• Authentication default role
• Initiation role assigned

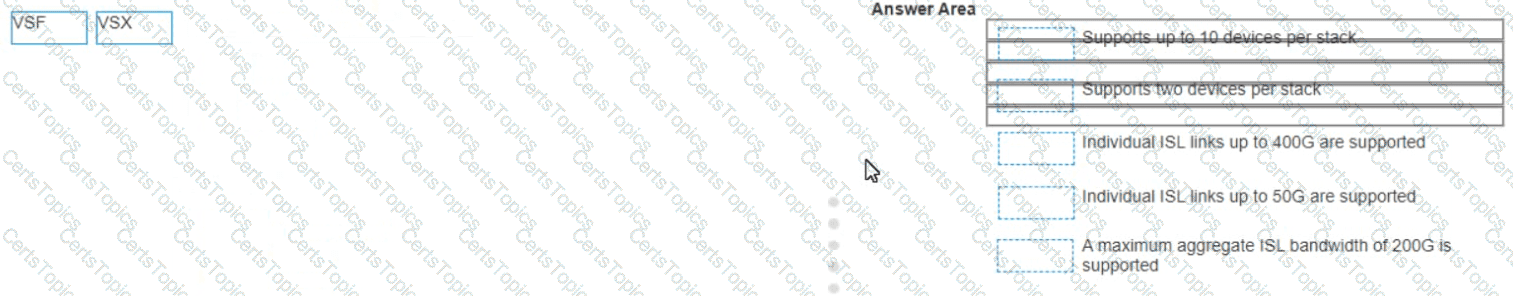

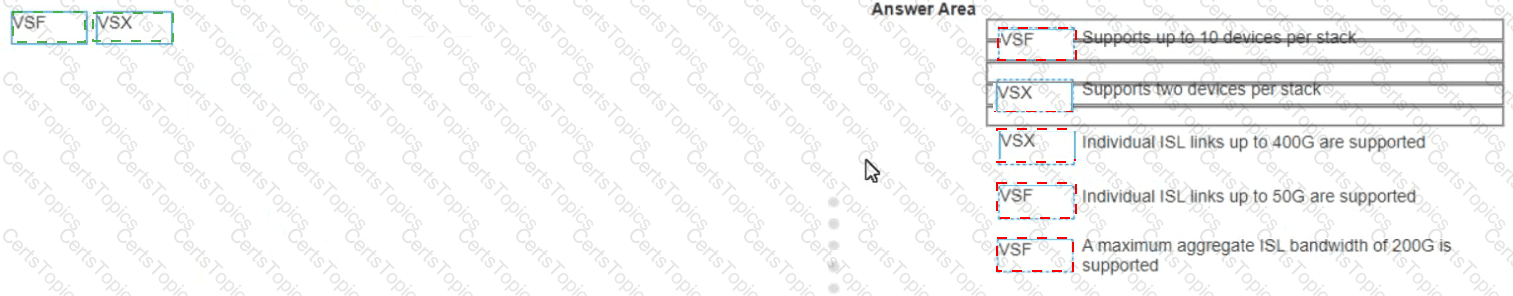

a) Support up to 10 devices per stack -> VSF

b) Support two devices per stack -> VSX

c) Individual ISL links up to 400G are supported -> VSX

d) individual ISL links up to 50G are supported -> VSF

e) A maximum aggregate ISL bandwidth of 200G is supported -> VSF

References: 1

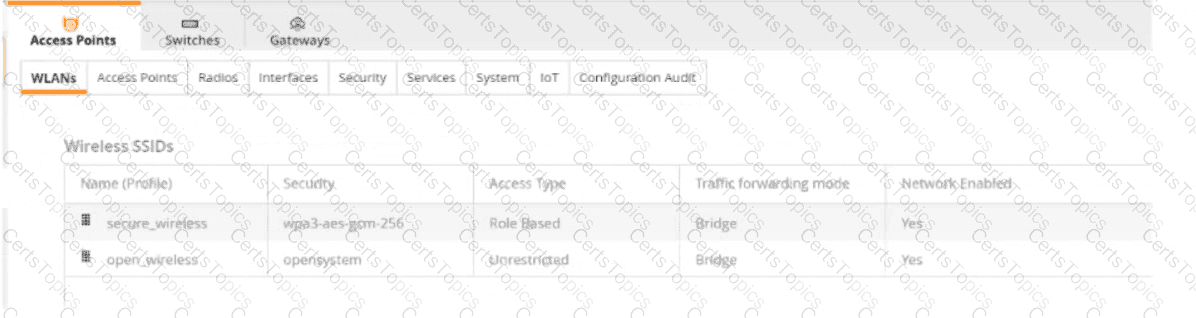

MAC Caching is a feature that allows a guest user to bypass the captive portal page after the first authentication based on their MAC address1 MAC Caching can be enabled under the splash page settings in Aruba Cloud Guest2 MAC Caching can improve the user experience and reduce the network overhead by eliminating the need for repeated authentication.

According to the Aruba Documentation Portal1, the Aruba CX 6200F VSF stack is a feature that allows you to create a virtual switching framework (VSF) with up to eight members that can be managed as a single logical device. The VSF stack provides benefits such as load balancing, failover, redundancy, and security.

To add a new device to the VSF stack, you need to configure the device with the VSF command vsf member and specify the type, link, and secondary-member information. The type of the new device can be one of the following: JL726A, JL726B, JL726C, or JL726D. The link is the interface that connects the new device to the existing VSF members. The secondary-member is an optional parameter that specifies which member will act as a backup in case of a failure.

1: 2: 3:

PAPI is the protocol that is used to establish tunnels between the CX switch and the Aruba Gateway for Dynamic Segmentation1. By default, PAPI uses a simple checksum to verify the integrity of the messages, but it does not encrypt the payload2. This could expose the network to spoofing or replay attacks by malicious actors. To address this situation, the administrator must enable Enhanced PAPI security, which uses AES-256 encryption and HMAC-SHA1 authentication to protect the tunnel traffic2. Enhanced PAPI security can be enabled on the CX switch by using the command system papi enhanced-security enable3. This will ensure that the tunnels built between the CX switch and the Aruba Gateway are encrypted and authenticated.

The likely cause of the issue of weak Wi-Fi coverage in the office is that the AP is using a directional antenna. A directional antenna is an antenna that radiates or receives radio waves more strongly in one or more directions, creating a focused beam of signal. A directional antenna can provide better coverage and performance for a specific area, but it can also create dead zones or weak spots for other areas. The other options are incorrect because they either do not affect the Wi-Fi coverage or do not match the scenario. References:

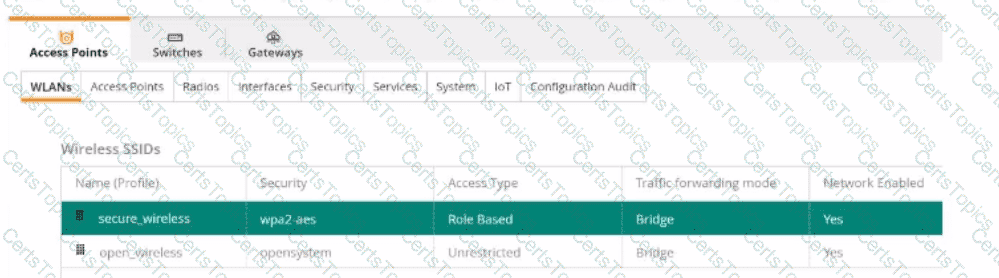

MPSK Local is a feature that can reduce the IT administration overhead associated with deploying devices that do not support 802.1X authentication while maintaining a secure environment. MPSK Local allows the switch to automatically generate and assign unique pre-shared keys for devices based on their MAC addresses, without requiring any configuration on the devices or an external authentication server. The other options are incorrect because they either require manual intervention by the installers or the MPSK gateway, or they do not provide unique pre-shared keys for devices. References:

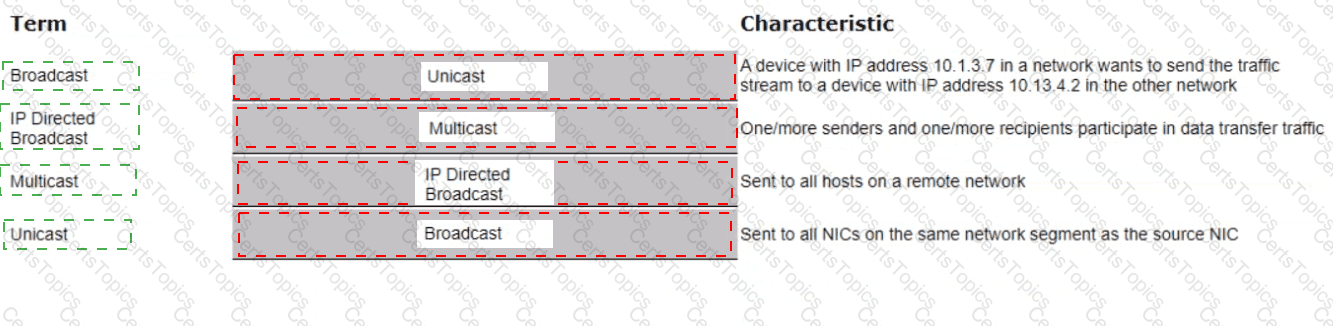

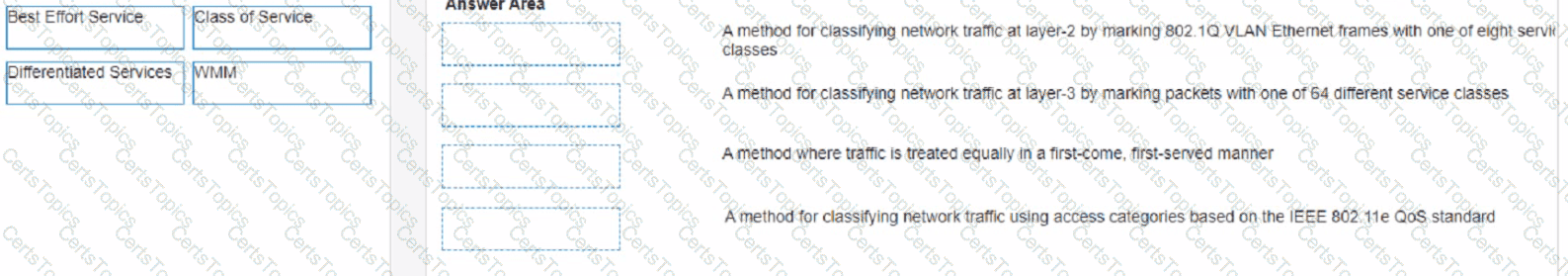

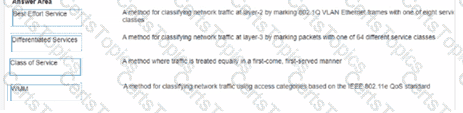

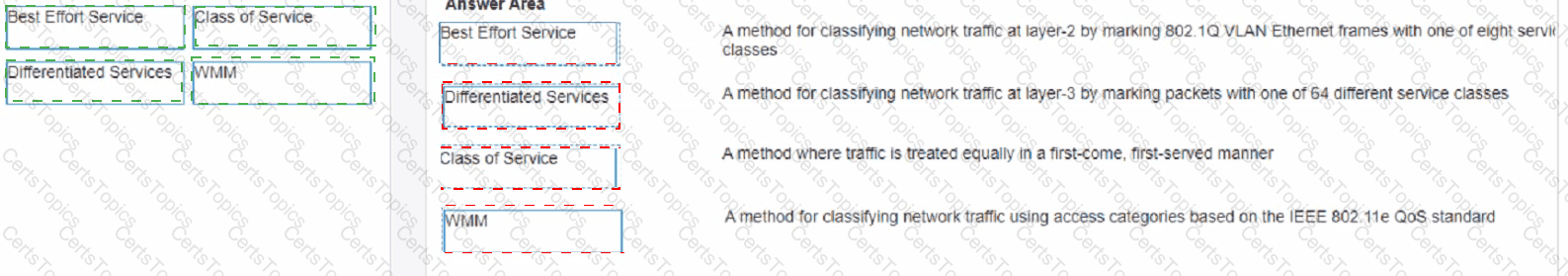

This is because Best Effort traffic is all other kinds of non-detrimental traffic that are not sensitive to Quality of Service metrics (jitter, packet loss, latency). A typical example would be peer-to-peer and email applications2. Background traffic is a type of traffic that is used for system maintenance or backup purposes and does not affect the performance or availability of the network3.

Therefore, Best Effort traffic has a higher priority than Background traffic in terms of network resources allocation and management.

1: 2: 3: &seqNum=4

OCSP is a protocol that allows clients to query the CA or a trusted responder for the status of a specific certificate. OCSP requests and responses are smaller and faster than CRLs, and they can provide real-time information about the revocation status of a certificate12. CRLs are lists of all revoked certificates that are downloaded from the CA. CRLs can present issues, as they can become outdated and have to be downloaded frequently13. Therefore, OCSP reduces latency between the time a certificate is revoked and validation reflects this status. References: 1 2 3

The reason is that AOS 10.x does not support clustering gateways with different versions in the same cluster profile. A cluster profile defines the configuration settings for a group of gateways that are managed by Aruba Central.

According to the Aruba documentation2, “You can combine 7200 Series and 7000 Series gateways in the same cluster with a maximum size of four devices with reduced AP client capacity on 7000 Series gateways.”

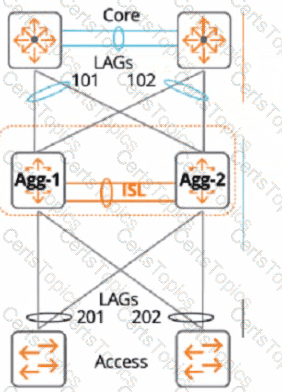

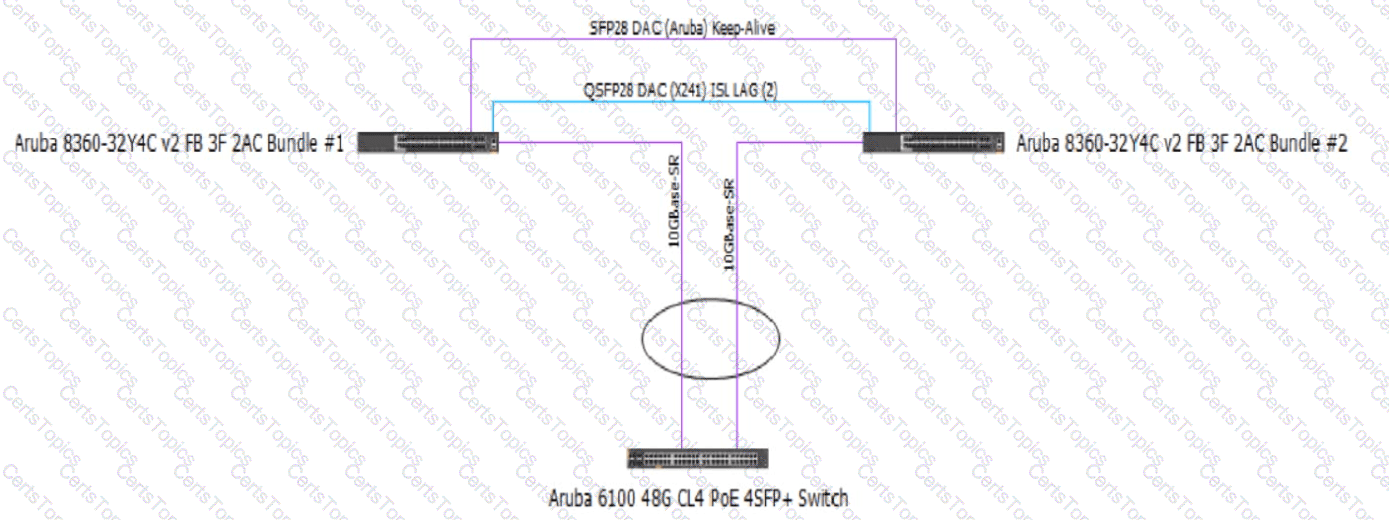

The reason is that the linkup delay timer is a feature that delays bringing downstream VSX links up, following a VSX device reboot or an ISL flap. The linkup delay timer has two phases: initial synchronization phase and link-up delay phase.

The initial synchronization phase is the download phase where the rebooted node learns all the LACP+MAC+ARP+STP database entries from its VSX peer through ISLP. The initial synchronization timer, which is not configurable, is the required time to download the database information from the peer.

The link-up delay phase is the duration for installing the downloaded entries to the ASIC, establishing router adjacencies with core nodes and learning upstream routes. The link-up delay timer default value is 180 seconds. Depending on the network size, ARP/routing tables size, you might be required to set the timer to a higher value (maximum 600 seconds).

When both VSX devices reboot, the link-up delay timer is not used.

Therefore, by configuring the linkup delay timer to include LAGs 101 and 102, which are part of the same VSX device as LAG 201, you can ensure that both devices have enough time to synchronize their databases and form routing adjacencies before bringing down their downstream links.

To onboard a new UXI in an existing environment with 802.1X authentication, you need to use the UXI app on your smartphone and connect the UXI via Bluetooth. The UXI app allows you to scan the QR code on the UXI sensor and configure its network settings, such as SSID, password, IP address, etc. The Bluetooth connection allows you to communicate with the UXI sensor without requiring any network access or cellular connection. The other options are incorrect because they either do not use the UXI app or do not use Bluetooth. References:

The correct answer is B. sysops.

The sysops user role is a predefined role that allows users to perform system operations on the switch, such as backup, restore, upgrade, or reboot. The sysops user role also has access to the PUT and POST methods for REST API, which can be used to modify the switch configuration. The sysops user role has a privilege level of 15, which is the highest level of access on the switch1.

The other options are incorrect because:

• A. sysadmin: The sysadmin user role is a predefined role that allows users to view and modify the switch configuration using the CLI or the Web UI. The sysadmin user role does not have access to the REST API methods, and cannot perform firmware upgrades1.
• C. administrators: The administrators user role is a predefined role that has full access to all switch configuration information and all REST API methods. This role is more than what the Director of Security requires1.
• D. config: The config user role is a predefined role that allows users to view and modify the switch configuration using the CLI or the Web UI. The config user role does not have access to the REST API methods, and cannot perform firmware upgrades1.

Active gateway is a first hop redundancy protocol that eliminates a single point of failure. The active gateway feature is used to increase the availability of the default gateway servicing hosts on the same subnet. An active gateway improves the reliability and performance of the host network by enabling a virtual router to act as the default gateway for that network. If you have enabled active gateway, VRRP is not required3. Active gateway is similar to VRRP in that routed traffic from the VSX node is sourced from the switch interface MAC and not the virtual MAC address (VMAC). Each active gateway sends a periodic broadcast hello packet to avoid VMAC aging on the access switches. The switch views the active gateway IP as a self IP address3. Active gateway is preferable over VRRP because with VRRP traffic is still pushed over the ISL link, resulting in latency in the network3. Therefore, VRRP and active gateway are mutually exclusive on a VLAN, and answer A is correct.

References: 1: Aruba Campus Access documents and learning resources 3: Active gateway over VSX - Aruba

Option A: MTU size must be increased beyond the default

This is because option A shows how to configure the MTU size for VXLAN tunnels on Aruba switches using the interface command and the vxlan command. The MTU size must be increased beyond the default value of 1500 bytes to accommodate the VXLAN header and payload2.

Therefore, option A is true regarding a VXLAN implementation on Aruba switches.

Option B: VNIs encapsulate and decapsulate VXLAN traffic

This is also true regarding a VXLAN implementation on Aruba switches. VNIs are used to encapsulate and decapsulate VXLAN traffic between two devices, such as a switch and a server. VNIs are also used to map VXLAN tunnels to overlay networks3.

Therefore, option B is also true regarding a VXLAN implementation on Aruba switches.

VXLAN is a Layer 2 encapsulation technology that substitutes the usage of VLAN numbers to label Ethernet broadcast domains with VXLAN numbers. VXLAN supports 224 Ethernet broadcast domains or VXLAN numbers. A VXLAN number ID is referred to as VNI. There is a one-to-one relationship between an Ethernet broadcast domain and a VNI. A single Ethernet broadcast domain can’t have more than one VNI.

The correct answers are A and D.

According to the web search results, VSX LAG is a feature that allows multiple PSKs to be used on a single SSID, providing device-specific or group-specific passphrases for enhanced security and deployment flexibility for headless IoT devices1. VSX LAGs span both aggregation switches and appear as one device to partner downstream or upstream devices or both when forming a LAG with the VSX pair2.

One of the statements that is true about VSX LAG is that the total number of configured links may not exceed 8 for the pair or 4 per switch1. This means that a VSX LAG across a downstream switch can have at most a total of eight member links, and a switch can have a maximum of four member links. When creating a VSX LAG, it is recommended to select an equal number of member links in each segment for load balancing1.

Another statement that is true about VSX LAG is that outgoing traffic is preferentially switched to local members of the LAG2. This means that when active forwarding and active gateway are enabled, north-south and south-north traffic bypasses the ISL link and uses the local ports on the switch. This optimizes the traffic path and reduces the load on the ISL link2.

The other statements are false or not relevant for VSX LAG. Outgoing traffic is not switched to a port based on a hashing algorithm, which may be either switch in the pair. This is a characteristic of MLAG (Multi-Chassis Link Aggregation), which is a different feature from VSX LAG. LAG traffic is not passed over VSX ISL links only while upgrading firmware on the switch pair. This is a scenario that may occur when performing hitless upgrades, which is a feature that allows software updates without impacting network availability. The number of VSX lags that can be configured on all 83xx and 84xx model switches is not 255, but depends on the switch model and firmware version. For example, the AOS-CX 10.04 supports up to 64 VSX lags for 8320 switches and up to 128 VSX lags for 8325 and 8400 switches.

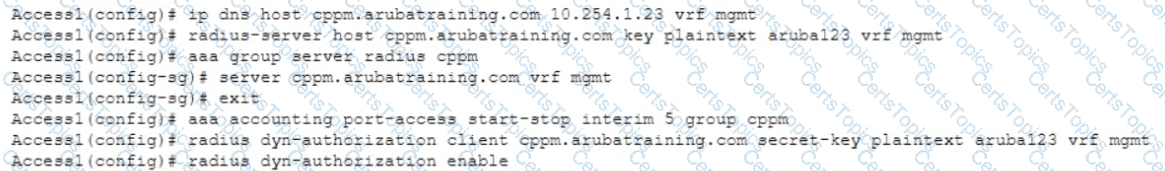

Change of Authorization (CoA) is a feature that allows ClearPass Policy Manager (CPPM) to send messages to network devices such as switches to change the authorization state of a user session. CoA requires that both CPPM and the network device support this feature and have it enabled. For AOS-CX switches, CoA must be globally enabled using the command radius-server coa enable. If CoA is not enabled on the switch, the disconnect CoA message from CPPM will be ignored and the user session will not be terminated. References:

AOS 10 Gateways can have the following personas: Mobility, Branch, and VPN Concentrator1 However, the Mobility persona is only available when configuring a Gateway-only group, which is a group that contains only one gateway device2 The Mobility persona provides Overlay WLAN and (or) wired LAN functionalities for campus networks1 The Branch persona provides the Aruba Instant OS and SD-Branch (LAN + WAN) functionality for branch and microbranch networks1 The VPN Concentrator persona provides VPN termination and routing functionality for remote access networks3 The Edge persona is not a valid option, as it is not a supported device persona for AOS 10 Gateways.

An OSPF transit network is a network that has at least two routers that are connected by a multi-access link and can forward traffic for other networks1. A transit network is different from a stub network, which has only one router connected to it and does not forward traffic for other networks2. A transit network is also different from a virtual link, which is a logical connection between two areas that are not physically adjacent2. A transit network is not necessarily connected to a different routing protocol, although it can be if the router performs redistribution2. Therefore, the correct answer is C. A network on which a router discovers at least one neighbor.

An inbound ACL is applied to traffic entering a port or VLAN. An outbound ACL is applied to traffic leaving a port or VLAN4. To deny ping sourcing from the user VLAN to the IT management VLAN, an inbound ACL on the user VLAN should be used to filter icmp echo traffic toward the IT management VLAN. Icmp echo-reply traffic is not needed to be allowed because it is already permitted by default5. References: 4 5  hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-0C3A9D0F-6E5B-4E1A-AF3C-8D8B2F9C1A7B.html

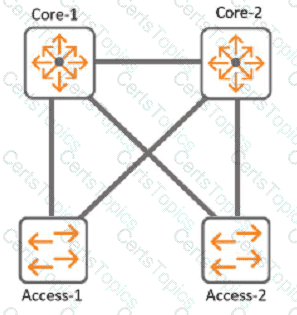

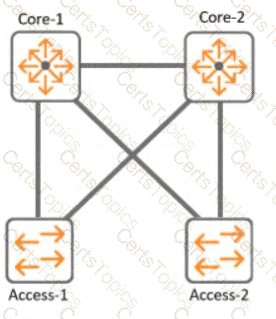

The correct answer is B. Spanning-tree instance VLAN mapping.

To load-balance VLANs with MSTP, you need to configure the same VLAN-to-instance mapping on all switches in the same MST region. This means that you need to assign different VLANs to different MST instances, and then adjust the spanning tree parameters (such as priority, cost, or port role) for each instance to achieve the desired load balancing. For example, you can make one switch the root for instance 1 and another switch the root for instance 2, and then map half of the VLANs to instance 1 and the other half to instance 2.

According to the Cisco document Understand the Multiple Spanning Tree Protocol (802.1s), one of the steps to configure MST is:

• Split your set of VLANs into more instances and configure different MST settings for each of these instances. In order to easily achieve this, elect Bridge D1 to be the root for VLANs 501 through 1000, and Bridge D2 to be the root for VLANs 1 through 500. These statements are true for this configuration:

Switch D1(config)#spanning-tree mst configuration

Switch D1(config-mst)#instance 1 vlan 501-1000

Switch D1(config-mst)#exit

Switch D1(config)#spanning-tree mst 1 priority 0

Switch D2(config)#spanning-tree mst configuration

Switch D2(config-mst)#instance 2 vlan 1-500

Switch D2(config-mst)#exit

Switch D2(config)#spanning-tree mst 2 priority 0

The above commands create two MST instances, 1 and 2, and map VLANs 501-1000 to instance 1 and VLANs 1-500 to instance 2. Then, they make switch D1 the root for instance 1 and switch D2 the root for instance 2.

The other options are incorrect because:

• A. Spanning-tree bpdu-guard setting is a security feature that disables a port if it receives a BPDU from an unauthorized device. It does not affect load balancing with MSTP.
• C. Spanning-tree CIST mapping is not a valid command. CIST stands for Common and Internal Spanning Tree, which is the spanning tree instance that runs within an MST region and interacts with other regions or non-MST switches.
• D. Spanning-tree root-guard setting is another security feature that prevents a port from becoming a root port if it receives superior BPDUs from another switch. It does not affect load balancing with MSTP.

These are the correct statements about access from the servers to the Core when the ISL link between the switches fails, but the keepalive interface functions. Server 1 can access the core layer via both uplinks because it is connected to VSX-A, which is still active for VLAN 10. Server 2 can also access the core layer via its uplink to VSX-B, which is still active for VLAN 10 because of Active Gateway feature. Server 1 and Server 2 can communicate with each other via the core layer because they are in the same VLAN and subnet, and their traffic can be routed through the core switches. The other statements are incorrect because they either describe scenarios that are not possible or not relevant to the question. References:

The correct answers are C and D.

MPSK (Multi Pre-Shared Key) is a feature that allows multiple PSKs to be used on a single SSID, providing device-specific or group-specific passphrases for enhanced security and deployment flexibility for headless IoT devices1. MPSK requires MAC authentication against a ClearPass Policy Manager server, which returns the encrypted passphrase for the device in a RADIUS VSA2. ClearPass Policy Manager is a platform that provides role- and device-based network access control for any user across any wired, wireless and VPN infrastructure3. ClearPass Policy Manager can also use device profiling and posture assessment to assign roles based on device fingerprint information4.

MPSK Local is a variant of MPSK that allows the user to configure up to 24 PSKs per SSID locally on the device, without requiring ClearPass Policy Manager5. MPSK Local can be combined with EAP-TLS (Extensible Authentication Protocol-Transport Layer Security), which is a secure authentication method that uses certificates to encrypt the wireless traffic between the IoT devices and the access points6. EAP-TLS can also use device certificates to perform role-based access control6.

Therefore, both ClearPass Policy Manager and MPSK Local with EAP-TLS can meet the customer’s requirements for wireless authentication, encryption, unique passphrase, and role-based access for their IoT devices.

MPSK and an internal RADIUS server is not a valid solution, because MPSK does not support internal RADIUS servers and requires ClearPass Policy Manager789. MPSK Local with MAC Authentication is not a valid solution, because MAC Authentication does not encrypt the wireless traffic or use fingerprint information for role-based access2. Local User Derivation Rules are not a valid solution, because they do not provide unique passphrase per device or use fingerprint information for role-based access101112.

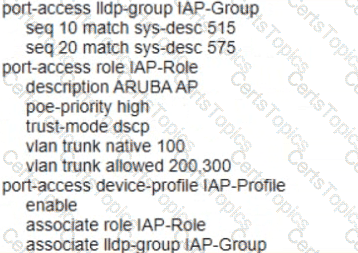

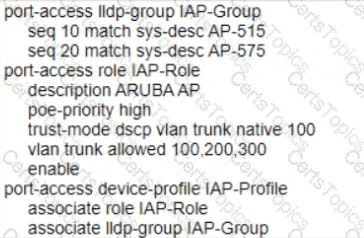

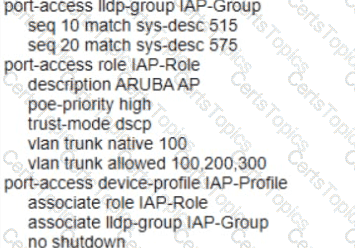

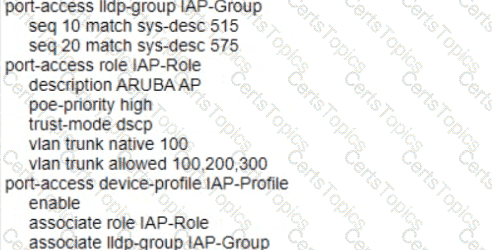

Option C is the correct configuration to ensure that APs will work properly. It uses the ap command to configure a port profile for APs with VLAN 100 as the native VLAN and VLAN 200 and 300 as tagged VLANs. It also enables LLDP on the ports to discover the APs and assign them to the port profile automatically. The other options are incorrect because they either do not use the ap command, do not enable LLDP, or do not configure the VLANs correctly. References:

multicast transmission optimization is a feature that allows the IAP to select the optimal rate for sending broadcast and multicast frames based on the lowest of unicast rates across all associated clients1. When this option is enabled, multicast traffic can be sent at up to 24 Mbps. The default rate for sending frames for 2.4 GHz is 1 Mbps and 5.0 GHz is 6 Mbps. This option is disabled by default1.

To create a new OSPF configuration for a separate routing table, you need to create a new OSPF process ID with vrf name. This will create a new OSPF instance that is associated with the specified VRF and its routing table. The other options are incorrect because they either do not create a new OSPF instance or do not associate it with a VRF. References:

According to the Aruba Documentation Portal1, the ArubaOS-CX switch supports various features to control the ingress traffic on specific ports, such as rate limiting, QoS shaping, and access control. These features can help reduce the impact of excessive broadcast traffic on the network performance and availability.

This is because rate limiting is a feature that allows you to limit the inbound or outbound traffic on a port based on a percentage of the port capacity or a fixed amount of bytes per second. Rate limiting can help prevent broadcast storms by reducing the amount of broadcast packets that enter or leave a port

2: 3:

MPSK Local is a feature that can be used to set up 15 headless IoT devices that do not support 802.1X authentication. MPSK Local allows the switch to automatically generate and assign unique pre-shared keys for devices based on their MAC addresses, without requiring any configuration on the devices or an external authentication server. The other options are incorrect because they either require 802.1X authentication, which is not supported by the IoT devices, or WPA3 encryption, which is not supported by Aruba CX switches. References:

Spectrum Monitor is an Aruba AP mode that is sending captured RF data to Aruba Central for waterfall plot. Spectrum Monitor is a mode that allows an AP to scan all channels in both 2.4 GHz and 5 GHz bands and collect information about the RF environment, such as interference sources, noise floor, channel utilization, etc. The AP then sends this data to Aruba Central, which is a cloud-based network management platform that can display the data in various formats, including waterfall plot. Waterfall plot is a graphical representation of the RF spectrum over time, showing the frequency, amplitude, and duration of RF signals. The other options are incorrect because they are either not AP modes or not sending RF data to Aruba Central. References:
