A LUN is a logical unit of storage that is presented to a host as a SCSI device. A LUN is composed of one or more RAID extents, which are the smallest units of storage that can be allocated to a LUN. A RAID extent is a slice of a RAID group that is used to store user data and parity information. The size of a RAID extent depends on the RAID type and the drive type of the RAID group. For example, a RAID 5 extent on a SAS drive is 128 MB, while a RAID 6 extent on a NL-SAS drive is 256 MB. The LUN is partitioned into slices that match the size of the RAID extents, and each slice is mapped to a RAID extent from a RAID group in the storage pool. The LUN slices are distributed across multiple RAID groups to improve performance and availability. References:

Dell EMC Unity: Storage Pools and RAID Groups

Dell EMC Unity: LUN Management

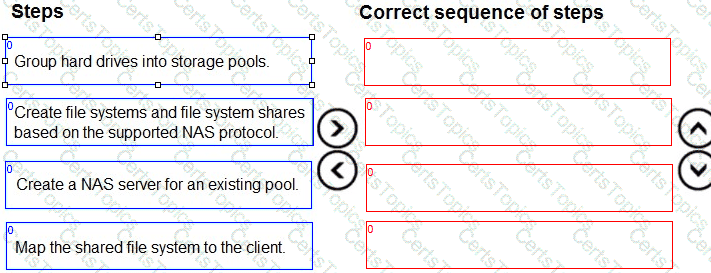

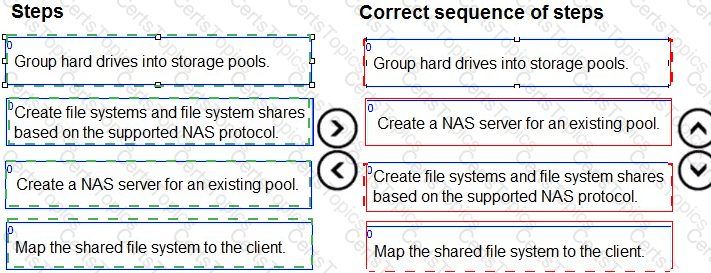

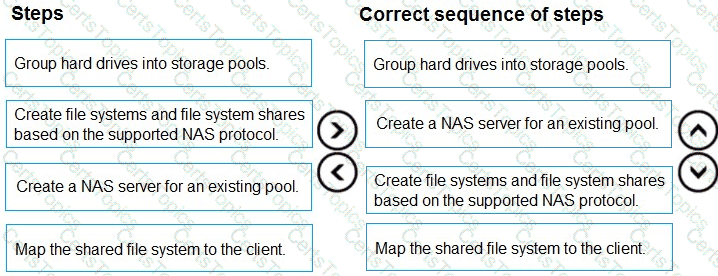

The correct sequence of steps to provision storage for SMB NAS clients is:

Group hard drives into storage pools. This allows you to create a pool of storage resources that can be allocated to different types of storage objects, such as NAS servers, file systems, and LUNs. You can create different pools based on the performance and capacity requirements of your applications1

Create a NAS server for an existing pool. A NAS server is a logical entity that provides file-level access to clients using SMB, NFS, or FTP/SFTP protocols. You need to create a NAS server before you can create file systems and shares. You can specify the pool, network settings, domain membership, and other properties for the NAS server2

Create file systems and file system shares based on the supported NAS protocol. A file system is a logical container that stores files and folders on a NAS server. A file system share is a logical representation of a file system that can be accessed by clients using a specific protocol. For SMB NAS clients, you need to create SMB file system shares that support the SMB protocol. You can configure the share name, permissions, access policies, and other settings for the SMB share3

Map the shared file system to the client. This allows the client to access the files and folders on the SMB share using a drive letter or a UNC path. You can use the Windows Explorer or the net use command to map the shared file system to the client4

The service task that the administrator should perform to fix the issue with minimal impact is Restart Management Software. This service task restarts the management software on both storage processors without affecting the data services or the host I/O. This can resolve the communication issues between Unisphere and the storage system. Reinitialize, Enable SSH, and Reboot Storage Processor are service tasks that have more impact and risk than Restart Management Software.
