Cisco 600-660 Dumps

Page: 1 / 2
Total 60 questions

Implementing Cisco Application Centric Infrastructure - Advanced (600-660 DCACIA) Questions and Answers

Question 1

Which feature should be disabled on a bridge domain when a default gateway for endpoints is on an external device instead of a Cisco ACI bridge domain SVI?

Options:

A.

unicast routing

B.

ARP flooding

C.

unknown unicast flooding

D.

proxy ARP

Question 2

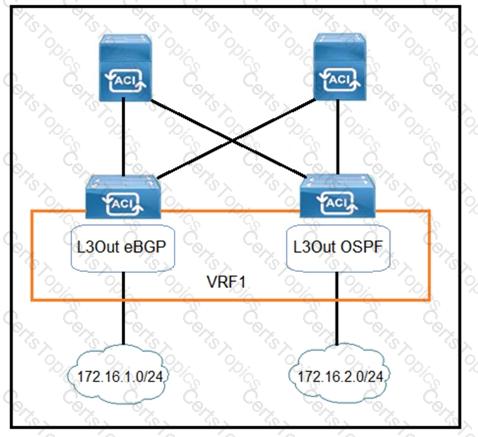

Refer to the exhibit.

Which configuration must be implemented on L3Out EBGP to advertise out of the fabric 172.16.2.0/24 network that is learned from L3Out OSPF?

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Question 3

An organization expands a Cisco ACI Multi-Pod from two to six pods and must ensure that the control plane scales. What should be configured in the IPN to ensure that BUM traffic is forwarded efficiently across the IPN?

Options:

A.

spine headend replication

B.

BIDIR-PIM

C.

MP-BGP

D.

MSDP

Question 4

Refer to the exhibit.

A network engineer configures a Layer 4 to Layer 7 device for an outside routed firewall that is connected to POD-1 inside a Cisco ACI fabric that consists of two pods. All traffic from POD-1 or POD-2 that uses the L3Out should pass through the routed firewall. Which Function Type must be implemented in the service graph for POD-2 to use L3Out?

Options:

A.

GoThrough

B.

L1

C.

GoTo

D.

L2

Question 5

What are two characteristics of Cisco ACI and Spanning Tree Protocol interaction? (Choose two.)

Options:

A.

When a TCN BPDU is received in a VLAN, Cisco ACI flushes the endpoints for the associated encapsulation.

B.

STP BPDUs are dropped due to MCP.

C.

MST BPDUs are flooded correctly in Cisco ACI fabric without additional configuration.

D.

BPDU filter and BPDU guard can be configured on Cisco ACI leaf edge ports.

E.

Cisco ACI must be configured as the STP root for all VLANs.

Question 6

Cisco ACI fabric is migrated from network-centric mode to application-centric mode. What is possible in an application-centric design?

Options:

A.

remapping of VLAN pools

B.

migration of bare metal servers to virtual machines

C.

creation of additional EPGs under one bridge domain

D.

Cisco ACI VMM integration with hypervisors

Question 7

An organization migrates its virtualized servers from a legacy environment to Cisco ACI. VM1 is incorrectly attached to PortGroup IT|3TierApp|Web.

Which action limits IP address learning in BD1?

Options:

A.

Enable Enforce Subnet Check

B.

Enable Rouge Endpoint Control

C.

Enable GARP-based EP Move Detection Mode

D.

Disable Remote EP Learn

Question 8

Refer to the exhibit.

What must be configured to allow the PBR node (LB-int) to monitor the availability of the endpoint that is in the EPG server?

Options:

A.

Endpoint Dataplane Learning

B.

Unicast Route disabled for client and server bridge domains

C.

PBR node tracking

D.

Direct Connect in the service graph template

Question 9

What is a characteristic of a stretched bridge domain solution between Cisco ACI sites with Layer 2 flood disabled?

Options:

A.

The application profile that is associated to the bridge domain have local significance in each site.

B.

The tenant and VRF that associated to the bridge domain have local significance in each site.

C.

Headend replication is used for BUM traffic between sites.

D.

IP mobility is ensured between sites for disaster recovery.

Page: 1 / 2
Total 60 questions
