WebRTC voice in Webex Contact Center is exposed to agents through the Desktop telephony option. Cisco's desktop profile documentation lists voice channel options, including Agent DN, Extension, and Desktop. The Desktop option allows the agent to sign in through the browser and use the Agent Desktop as the voice device rather than entering an external directory number or extension. Cisco's voice channel setup documentation also describes WebRTC-capable agents selecting Desktop under their telephony option so calls are routed to the Agent Desktop device. Browser is not a desktop profile voice option; it describes the client environment. Extension and Agent DN are traditional station credentials and would make the agent use a phone or configured number instead of browser-based WebRTC. Therefore, to enable agents to make and receive calls using WebRTC, the administrator must configure the Desktop option in the desktop profile. Reference: Cisco Help, Manage desktop profiles; Set up voice channels for Webex Contact Center.

Real-time transcripts require the media stream to start before the conversation is sent to the queue or agent. Cisco's AI Assistant real-time transcription feature depends on capturing and streaming the call audio so the platform can produce transcript data for the agent and downstream AI features. If the Media Stream node is placed after the Agent Answered event, the transcript starts too late and misses the early customer interaction and queue/agent transition context. A Condition node can be useful for branching but does not enable transcription by itself. Configuring a Scripted AI Agent is unrelated to enabling AI Assistant real-time transcripts for a live-agent call. The correct flow action is to add the Media Stream node before the call reaches the queue or agent so the media is available for transcription at the right point in the call lifecycle. Reference: Cisco Help, Cisco AI Assistant for Webex Contact Center: Administrator's guide to configuring Real-Time Assist; AI Assistant reports in Analyzer.

Screen recording with call audio in Webex Contact Center is a quality-management capability, not a generic flow or Webex Connect capability. Cisco positions Webex Workforce Optimization as the suite for quality management, workforce management, and related supervisor quality workflows. Screen recording requires the WFO quality management components and the proper Quality Management entitlement or license. Custom connectors to conversation intelligence platforms may export or analyze conversation data, but they do not create the native supervisor screen-recording capability. Webex Connect is the CPaaS/digital-channel automation platform and is not used to capture agent desktop screens with call audio. Calabrio ONE is historically associated with workforce optimization, but the Cisco answer pattern for current Webex Contact Center setup is Webex WFO plus the Quality Management license. That combination gives supervisors the recording and evaluation layer needed to review agent application usage and process compliance. Reference: Cisco Help, Webex Contact Center Setup and Administration Guide; Webex Contact Center Data Sheet.

The Exclusive multimedia profile type is used when an agent must handle only one interaction at a time. Cisco's multimedia-profile model controls how many simultaneous contacts an agent can receive and how different media types are blended. A blended profile can allow multiple channels, and a blended real-time profile is designed for voice plus real-time digital interactions under concurrency rules. Voice Only would restrict agents to voice and would not satisfy a team that handles voice, email, and chat. The scenario is not asking to remove digital channels; it says a few agents cannot focus on multiple interactions. Exclusive solves that by allowing the agent to work one contact regardless of channel, preventing simultaneous assignments that could reduce quality or agent performance. This is a tenant and desktop-experience configuration decision, not a queue routing problem. The agent can still be eligible for the configured channels, but the desktop capacity model keeps workload to one active interaction. Reference: Cisco Help, Webex Contact Center Setup and Administration Guide; Manage desktop profiles.

Inbound Webex Contact Center voice routing needs an entry path and an agent distribution target. The DNIS or support number must be associated with the entry point and flow so that an incoming PSTN call reaches the proper Flow Designer logic. Inside that flow, the contact must be queued to a queue that has eligible teams or agents. Cisco's queue documentation describes queues as holding areas where contacts wait until they are distributed, and it explains that non-skill queues use team assignments or agent assignments while skill queues use skill matching. The wording in the option set refers to DNIS entries in Flow Designer; operationally, DNIS is tied to the entry point/channel and flow selection, and the flow then uses a Queue Contact activity. Script Editor is a legacy/on-premises contact center construct, not the modern Webex Contact Center Flow Designer model. A softphone registration alone does not route calls, and a skills-only queue is not mandatory unless the design requires skills. Reference: Cisco Help, Set up voice channels for Webex Contact Center; Understand Routing and Queueing in Webex Contact Center.

The requirement is to detect customer dissatisfaction before it escalates. Cisco's AI Assistant reporting and quality features include automatic CSAT scoring, which estimates customer satisfaction from interaction signals and gives the contact center a proactive way to identify poor experiences without waiting for a manual survey response. Topic analytics identifies common contact drivers and trending issues, which is valuable for operational improvement but does not directly score whether a specific customer is dissatisfied. AI-generated summaries reduce after-call work and improve handoff context, but they do not by themselves predict dissatisfaction. Real-time transcripts provide the text foundation for analysis and assistance, but the feature that turns interaction data into a customer-satisfaction signal is automatic CSAT scoring. For a customer-experience program focused on early dissatisfaction detection and proactive resolution, automatic CSAT provides the required risk signal. Reference: Cisco Help, AI Assistant reports in Analyzer; Cisco AI Assistant for Webex Contact Center documentation.

SMS-based one-time passcode authentication requires generating the passcode and sending it to the user over SMS. Webex Connect includes a Generate OTP node for creating the random passcode and an SMS node for delivering the generated value to the customer's mobile number. Those two nodes form the minimum authentication workflow. A Profile node can retrieve or update customer profile information but does not generate or deliver the passcode. A Data Parser node can parse structured responses, which is useful after API calls, but it is not required to create and transmit an OTP. An Evaluate node can compare the customer's submitted passcode to the stored/generated value later in the flow, but the question asks which two nodes are needed to implement authentication via SMS using a randomly generated passcode. The foundational nodes are Generate OTP and SMS. Reference: Webex Connect Help, Generate OTP node; SMS Node; Webex Connect flow builder documentation.

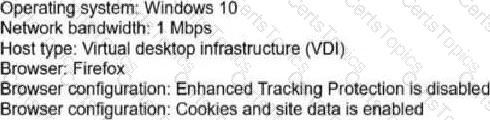

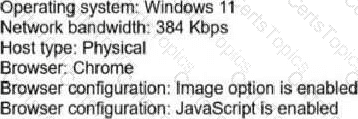

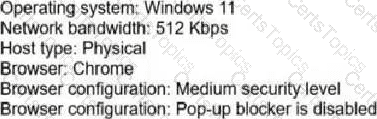

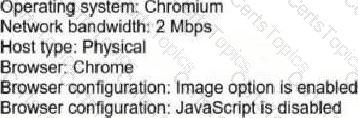

Option B is the only system profile that aligns with the Webex Contact Center Desktop WebRTC requirements shown in the exhibit. Cisco's desktop system requirements identify supported browsers and agent device models for calling, including Webex Calling desktop/app computer audio and WebRTC handling from Agent Desktop. A practical WebRTC station must have sufficient bandwidth, a supported operating system and browser, and browser settings that do not block required desktop behavior. Option A is weak because the 384 Kbps bandwidth value is below the practical WebRTC threshold shown by the comparison choices. Option C explicitly disables JavaScript, which prevents the browser-based desktop and WebRTC interaction logic from functioning properly. Option D uses a virtual desktop infrastructure condition, which is not the straightforward supported physical workstation profile presented by the question. Option B provides Windows 11, Chrome, physical host type, adequate bandwidth, a medium security level, and disabled pop-up blocking, making it the compliant choice. Reference: Cisco Help, System requirements for Webex Contact Center Desktop; Set up voice channels for Webex Contact Center.

A REST PUT request that modifies a contact-service queue is an administrative write operation. Cisco's Webex Contact Center API model uses scopes to separate read-only access from configuration changes. The endpoint /organization/{orgid}/v2/contact-service-queue/{id} updates an existing queue object, so the integration must hold the organization-level administrative write scope. The read scopes, such as cjp:config_read or cjds:admin_org_read, are appropriate when an application only retrieves configuration data. They do not authorize mutation of queue configuration. The cjp:user scope is also not sufficient because queue configuration is a tenant or organization-level administrative resource, not a simple user-context operation. The scope cjds:admin_org_write is therefore the correct scope for a PUT operation on contact-service-queue. This matches the principle used throughout Cisco's API documentation: write methods require write-capable scopes, especially for configuration entities. Reference: Webex Contact Center Developer API Reference, Contact Service Queues; Webex Developer, Contact Center Service Apps.

A Webex bot conversation must preserve conversation context between incoming messages. If each incoming message starts the Webex Connect flow from the beginning, the flow is treating every webhook event as a new start event instead of waiting for the next message from the same user. The Receive node is the correct mechanism for continuing the flow after the initial webhook trigger. It should use a custom event that matches the user email, because the user identity is what links the next inbound message to the same conversation path. Matching the bot email would identify the bot endpoint, not the specific human conversation participant. Creating multiple webhooks for different steps would fragment the design and still would not preserve state cleanly. A Call Flow node is useful for modularizing logic but does not by itself wait for and correlate the user's next message. The Receive node with the user-email custom event keeps the conversation from restarting. Reference: Webex Connect Help, Receive Node and flow debugging; Webex Connect Webex Chat/Webex Engage documentation.

For PSTN calls arriving at Webex Contact Center, the safe media statement is that the supported voice codecs are G.711 mu-law and G.711 A-law. Cisco's Webex Contact Center telephony material emphasizes PSTN and Local Gateway interoperability through standard SIP media, and the exam objective expects knowledge of codec compatibility at the service edge. Opus is widely used in WebRTC and collaboration media contexts, but it is not natively supported for PSTN ingress into Webex Contact Center without appropriate interworking or transcoding in the overall design. SIP early media support also must not be assumed as fully supported in every Webex Contact Center call path. DTMF handling is important, but the option saying it can use out-of-band is not the most accurate description of the PSTN media requirement in this question. The codec restriction is the definitive media requirement and is why option B is correct. Reference: Cisco Help, Set up voice channels for Webex Contact Center; Webex Contact Center architecture and telephony documentation.

Webex Contact Center APIs use OAuth 2.0 for authentication and authorization. Cisco's developer documentation for Webex and Webex Contact Center describes integrations as the mechanism used to request permission and obtain access tokens for API calls, using the OAuth 2.0 authorization framework rather than static API keys or basic HTTP authentication. OAuth 2.0 gives the platform scoped access control, token issuance, and administrative consent behavior appropriate for enterprise automation. Mutual TLS may be used in specific transport-security or trunking contexts, but it is not the authorization specification for normal Webex Contact Center REST APIs. Basic HTTP authentication would require sharing credentials directly with the client and does not match the Webex developer model. API key authentication is also not the supported authorization pattern for these Contact Center APIs. The typo in the original option has been corrected to OAuth 2.0. Reference: Webex Developer, Integrations and Authorization; Webex Contact Center API documentation.

Queue ranking is the feature designed for this exact business rule. Cisco's Webex Contact Center team configuration documentation allows administrators to rank queues for a team by media type, with lower numerical rank having higher priority. Cisco's routing documentation explains that ranked queues take precedence over queues without the same priority and that queue ranking can be used across media types. In the scenario, Sales must always be handled before Accounting, even when an Accounting call has waited longer. This is not a normal first-in-first-out queue rule; it is a cross-queue prioritization requirement. Configuring capacity-based queues would change the queue operating model but would not impose Sales-before-Accounting precedence. Asking agents to ignore Accounting calls is not a system configuration and would produce inconsistent reporting and service levels. A Sales-only skill profile would prevent Accounting handling rather than defer it until Sales is empty. Queue ranking is the controlled team-based mechanism that satisfies the requirement. Reference: Cisco Help, Manage teams in Webex Contact Center; Understand Routing and Queueing in Webex Contact Center.

The Microsoft Dynamics 365 connector provides CRM integration from the Webex Contact Center agent experience and includes configuration that allows agent workflows and screen-pop behavior to be customized around Dynamics records. Cisco's Dynamics integration guide describes installing the CRM connector, configuring the channel provider, and customizing screen-pop and workflow behavior using parameters and variables. OAuth certificate-based authentication is also part of secure connector authorization patterns used in Cisco integration workflows where an application uses certificate/private-key material instead of a simple shared secret. Agent state syncing between platforms is not the defining connector characteristic in this option set; there are synchronization features involving Webex App or CRM presence, but the connector question is focused on Dynamics connector capabilities. TLS encryption is expected for HTTPS communications but is too generic to be a distinctive answer. Read-only/read-write is not the pair Cisco emphasizes for this connector question. Reference: Cisco Help, Integrate Webex Contact Center CRM Connector for Microsoft Dynamics 365; Configure custom connector for Webex Contact Center.

A widget that executes background logic without presenting a visible user-interface panel belongs in the Headless area of the Agent Desktop layout. Cisco's custom desktop layout framework separates visible layout regions, such as panels or persistent areas, from headless widgets that run logic in the background. The requirement says the custom widget should trigger a CRM screen pop when an SMS arrives. That is event-driven background behavior; the agent does not need to see a standalone widget tab or panel for the code to work. A Panel object would be appropriate for visible content placed in the desktop interface. Navigation is used for navigation entries or visible application areas. Persistent is for UI that remains visible across desktop contexts. Headless is deliberately designed for invisible logic, event listeners, and background integrations that react to contact events, making it the correct object for this SMS-triggered CRM screen-pop logic. Reference: Cisco Help, Create custom desktop layout; Webex Contact Center Desktop developer documentation.

Before configuring Webex Contact Center digital channels, the integration nodes in Webex Connect must be authorized. Cisco's digital-channel setup documentation explicitly requires completing node authorization in Webex Connect and setting both Webex CC Task and Webex CC Engage nodes to Authorized state. The Task integration lets Webex Connect communicate with Webex Contact Center for task creation, queueing, routing notifications, and task resolution. The Engage integration lets Webex Connect work with conversation objects in Webex Engage, such as creating, appending, resolving, and updating conversations. The wording in the incorrect options places authorization in Webex Engage, but Cisco's procedure puts the pre-built integration authorization under Webex Connect assets and integrations. Digital channel setup depends on those authorizations because the flow cannot queue or resolve a conversation through WxCC without valid access tokens. Therefore, Webex CC Engage and Webex CC Task integration authorization in Webex Connect are the prerequisites. Reference: Cisco Help, Set up digital channels in Webex Contact Center; Webex Connect Help, Webex CC Task Integration Nodes and Node Authorizations.

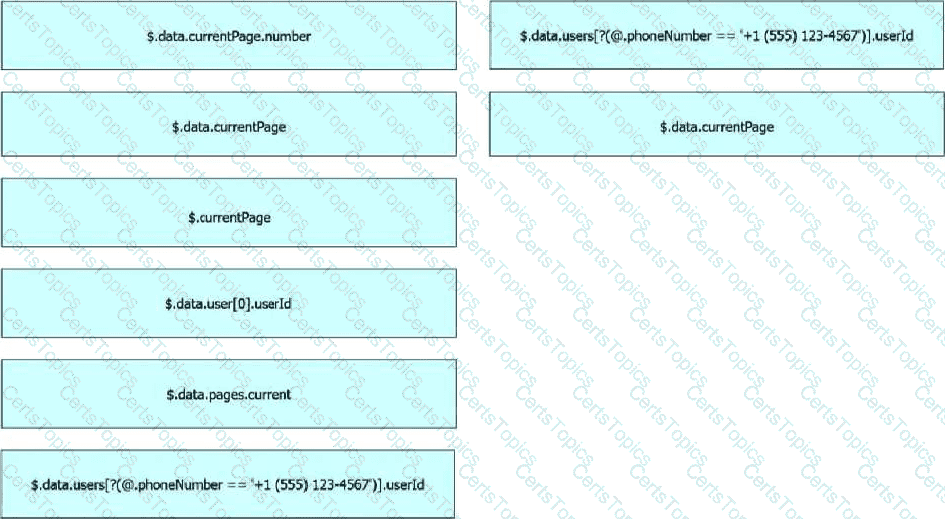

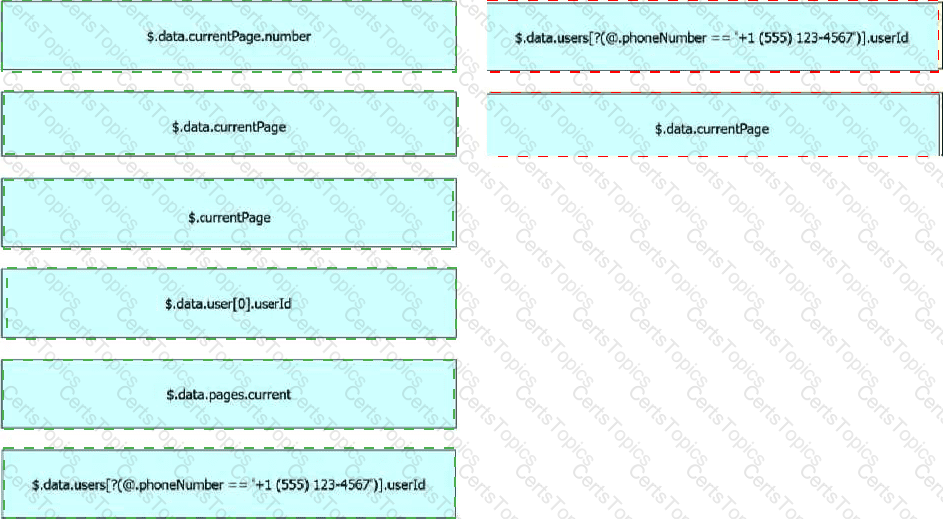

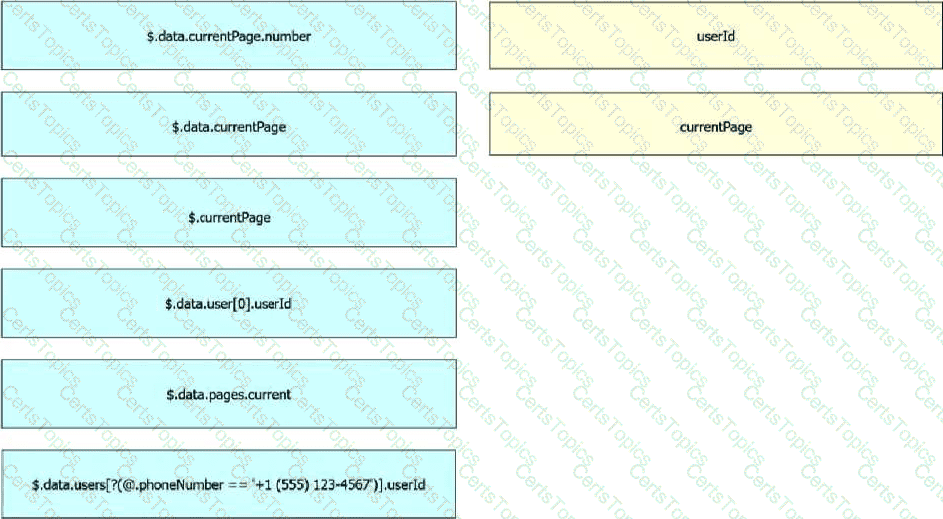

userId: $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId

currentPage: $.data.currentPage

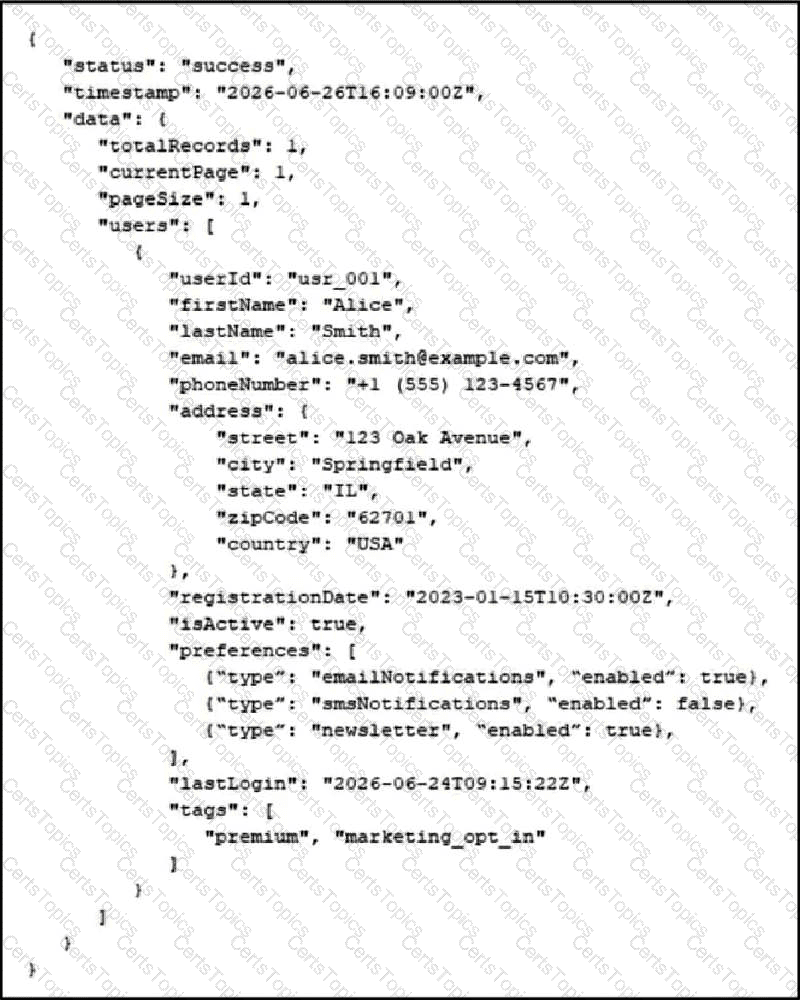

The JSONPath mapping must match the structure shown in the API response. The userId variable is not a simple top-level property; it sits inside the users array. The expression must filter the users array for the object whose phoneNumber equals +1 (555) 123-4567 and then return that object's userId. That is why the filtered JSONPath expression using $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId is the correct mapping. The currentPage variable is directly under data, so the correct expression is $.data.currentPage. Expressions such as $.currentPage miss the data wrapper, and $.data.currentPage.number assumes currentPage is an object with a number property, which the response does not show. $.data.user[0] .userId is also wrong because the array name in the response is users, not user, and it would take the first user rather than the matching phone number. Reference: Webex Connect Help, Custom Node Integration; Webex Connect flow data parsing guidance.

Language and voice are separate configuration values in a Webex Contact Center voice flow using AI Agent responses. The Global_Language variable controls the response language, while Global_VoiceName selects the voice used by text-to-speech or AI-agent speech output. Setting only Global_Language to es-ES would change the language but would not guarantee the company-approved Spanish voice. Setting only a friendly voice name without the language would not guarantee Spanish recognition and generation behavior. The string en-ES is invalid for Spanish in this context because en identifies English, while es-ES identifies Spanish for Spain. The requirement asks for consistent professional executive-sounding Spanish regardless of caller location or dialect, so both values must be explicitly set after the menu selection: Global_Language to es-ES and Global_VoiceName to the approved Spanish voice system name. This gives the flow deterministic language and voice behavior. Reference: Cisco Help, Webex AI Agent Studio Administration guide; Use AI agents for customer interactions.
